COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-35E4000-D-73-SELED COB VERO SE 18 WHT RND 3500K |
178 |
|
برگه مشخصات |
Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 4303lm (Typ) | 1.05A | 85°C | 28.3V | 145 lm/W | 2.1A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia | Flat |
|
XPEBAM-L1-0000-00901-SB01LED MOD XLAMP AMBER STARBOARD |
3,965 |
|
برگه مشخصات |
XLamp® XP-E2 | Tray | Not For New Designs | LED Module | Amber | - | 590nm (585nm ~ 595nm) | Starboard | 84lm (81lm ~ 87lm) | 350mA | 25°C | 2.2V | 109 lm/W | 1A | - | 130° | - | 19.89mm Dia | - | - | Domed |
|
LST1-01F09-IR04-00LED MOD OSLON STARBOARD |
524 |
|
برگه مشخصات |
OSLON® Black | Bulk | Active | LED Module | - | - | 940nm | Starboard | 970mW | 350mA | 25°C | 2.75V | - | 1A | - | 90° | - | - | - | - | Domed |
|
BXRC-30E4000-D-73LED COB VERO 18 WM WH RND 3000K |
723 |
|
برگه مشخصات |
Gen 7 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 4248lm (Typ) | 1.05A | 85°C | 28.3V | 143 lm/W | 2.1A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
BXRC-40E4000-D-73LED COB VERO 18 WHT RND 4000K |
343 |
|
برگه مشخصات |
Gen 7 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 4402lm (Typ) | 1.05A | 85°C | 28.3V | 148 lm/W | 2.1A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-30G4000-D-73LED COB VERO 18 WM WH RND 3000K |
191 |
|
برگه مشخصات |
Gen 7 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 3513lm (Typ) | 1.05A | 85°C | 28.3V | 118 lm/W | 2.1A | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-30E4000-C-73-SELED COB VERO WHT RND 3000K |
184 |
|
برگه مشخصات |
Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 5638lm (Typ) | 1.17A | 85°C | 34.1V | 141 lm/W | 2.34A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia | Flat |
.jpg)
|

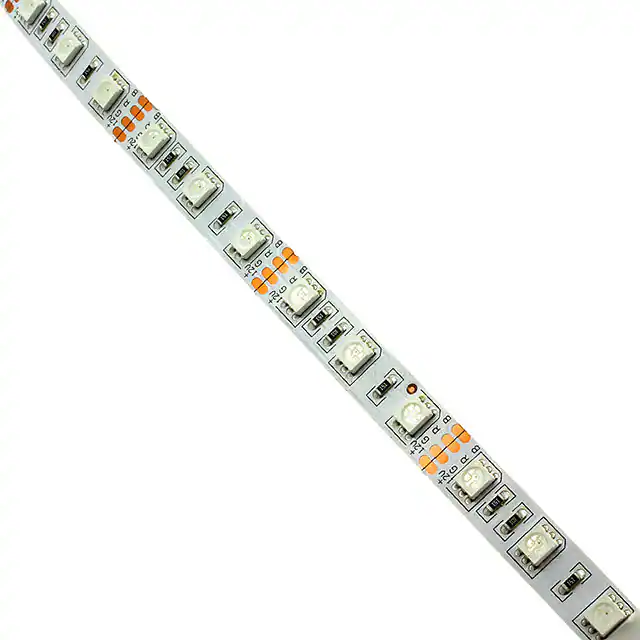

COM-12021LED RGB STRIP - BARE (1M) |
189 |
|
برگه مشخصات |
- | Bulk | Active | - | Red, Green, Blue (RGB) | - | 640nm Red, 525nm Green, 470nm Blue | - | - | 20mA Red, 20mA Green, 20mA Blue | 25°C | 12V | - | - | - | 120° | - | - | - | - | Flat |
|
SI-B8T11156HUSLED MOD LT-H562D LNR STRP 4000K |
1,149 |
|
برگه مشخصات |
LT-H562D | Bulk | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 2020lm (Typ) | 480mA | 50°C | 22.5V | 187 lm/W | - | 80 | - | With Connector | 560.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
BXEB-L1190U-50E3000-C-C3LED MOD EB SER WH LNR STRP 5000K |
290 |
|
برگه مشخصات |
EB Series™ Slim Gen 3 | Tray | Active | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 5350lm (Typ) | 700mA | 25°C | 38.2V | 200 lm/W | 1.7A | 80 | 120° | With Connector | 1190.00mm L x 12.70mm W | 4.30mm | - | Flat |
|
XHP50B-00-0000-0D0BJ440E-SB01LED MOD XHP50.2 WH STARBD 4000K |
226 |
|
برگه مشخصات |
XHP50.2 | Tray | Active | LED Module | White, Neutral | 4000K | - | Starboard | 1120lm (Typ) | 700mA | 85°C | 11.2V | 143 lm/W | 1.5A | 70 | - | - | 19.89mm Dia | - | - | Domed |
|
BXRE-30E4000-C-83LED COB V18 WM WH SQUARE 3000K |
1,679 |
|
برگه مشخصات |
Gen 8 V18 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6400lm (Typ) | 1.05A | 25°C | 33.9V | 180 lm/W | 3A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.65mm | 19.60mm Dia | Flat |
|
BXRC-30E4000-C-83LED COB VERO 18C WHT RND 3000K |
150 |
|
برگه مشخصات |
Gen 8 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 6400lm (Typ) | 1.05A | 25°C | 33.9V | 180 lm/W | 3A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia | Flat |
|
BXRC-30E4000-C-83-SELED COB VERO SE18C WH RND 3000K |
200 |
|
برگه مشخصات |
Gen 8 Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 6317lm (Typ) | 1.05A | 25°C | 33.9V | 177 lm/W | 3A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | Flat |
|
|
BXRC-35G4000-C-83-SELED COB VERO SE 18C WH RND 3500K |
239 |
|
برگه مشخصات |
Gen 8 Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 5314lm (Typ) | 1.05A | 25°C | 33.9V | 149 lm/W | 3A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | Flat |
|
BXRC-50C10K1-D-74-SELED COB VERO SE 29 WHT RND 5000K |
2,962 |
|
برگه مشخصات |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 14371lm (Typ) | 2.1A | 25°C | 37.6V | 182 lm/W | 4.2A | 70 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-35E10K0-D-73-SELED COB VERO SE 29 WHT RND 3500K |
519 |
|
برگه مشخصات |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 12949lm (Typ) | 2.1A | 25°C | 37.6V | 164 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-30E10K0-D-73-SELED COB VERO WHT RND 3000K |
362 |
|
برگه مشخصات |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 12555lm (Typ) | 2.1A | 25°C | 37.6V | 159 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-40E10K0-D-73-SELED COB VERO SE 29 WHT RND 4000K |
202 |
|
برگه مشخصات |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 13028lm (Typ) | 2.1A | 25°C | 37.6V | 165 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-40G10K0-D-73-SELED COB VERO SE 29 WHT RND 4000K |
148 |
|
برگه مشخصات |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 9633lm (Typ) | 2.1A | 25°C | 37.6V | 142 lm/W | 4.2A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
