COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XHP70B-00-0000-0D0BP250E-SB01LED MOD XLAMP WH STARBOARD 5000K |
387 |
|
برگه مشخصات |
Xlamp® XHP70 | Tray | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Starboard | 1898lm (1830lm ~ 1965lm) | 1.05A | 85°C | 12V | 151 lm/W | 2.4A | 70 | 125° | - | 19.89mm Dia | 4.40mm | - | Domed |
|
BXRV-TR-2765G-40A0-A-23-S2LED COB VESTA WHITE ROUND 6500K |
255 |
|
برگه مشخصات |
Vesta™ SE Tunable White Gen 2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse | - | Round | 3193lm Warm White, 3623lm Cool White | 900mA | 25°C | 34.9V Warm White, 35.3V Cool White | 113 lm/W Warm White, 127 lm/W Cool White | 1.4A | 90 | 130° | With Holder | 45.00mm Dia | 3.80mm | 19.60mm Dia | Flat |
|
LST1-01G01-UV01-00LED COB SST-10 VIOLET STARBRD |
138 |
|
برگه مشخصات |
SST-10 | Tray | Active | Chip On Board (COB) | Violet | - | 365nm | Starboard | 875mW | 500mA | 25°C | 3.6V | - | - | - | 130° | - | - | - | - | - |
|
BXRC-40E10K0-D-73LED COB VERO 29 WHT RND 4000K |
383 |
|
برگه مشخصات |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 13094lm (Typ) | 2.1A | 25°C | 37.6V | 166 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-35E10K0-D-73LED COB VERO 29 WM WHT RND 3500K |
207 |
|
برگه مشخصات |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 13013lm (Typ) | 2.1A | 25°C | 37.6V | 165 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-30E10K0-D-73LED COB VERO 29 WM WH RND 3000K |
112 |
|
برگه مشخصات |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 12606lm (Typ) | 2.1A | 25°C | 37.6V | 160 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
BXRC-50C10K1-D-84LED COB VERO 29C WHT ROUND 5000K |
139 |
|
برگه مشخصات |
Gen 8 Vero® 29 Array | Bulk | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 12386lm (Typ) | 1.7A | 25°C | 36.4V | 200 lm/W | 5.5A | 70 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
BXRV-TR-2765G-1KA0-A-23-S2LED COB VESTA WHITE ROUND 6500K |
439 |
|
برگه مشخصات |
Vesta™ SE Tunable White Gen 2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse | - | Round | 5182lm Warm White, 7043lm Cool White | 1.05A | 25°C | 52.1V Warm White, 52.4V Cool White | 113 lm/W Warm White, 128 lm/W Cool White | 1.8A | 90 | 130° | With Holder | 49.20mm Dia | 3.80mm | 28.50mm Dia | Flat |
|
LST1-01G07-UV01-01LED MOD ULTRAVIOLET STARBOARD |
139 |
|
برگه مشخصات |
LST1 | Tray | Active | LED Module | UltraViolet | - | 281nm (275nm ~ 286nm) | Starboard | 35mW (Typ) | 350mA | 25°C | 6.45V | - | 500mA | - | 60° | - | 19.89mm Dia | 4.24mm | - | Domed |
|
AB-FC01206-19712-XA2LED MOD AB-FC RGB LNR STRIP |
33 |
|
برگه مشخصات |
AB-FC | Bag | Active | LED Module | Red, Green, Blue (RGB) | - | 630nm Red, 528nm Blue, 470nm Green | Linear Light Strip, Flexible | 90lm Red, 248lm Green, 56lm Blue | 840mA | - | 12V | 9 lm/W Red, 25 lm/W Green, 6 lm/W Blue | - | - | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
|
AB-FC02406-19712-XA2LED MOD AB-FC RGB LNR STRIP |
297 |
|
برگه مشخصات |
AB-FC | Bag | Active | LED Module | Red, Green, Blue (RGB) | - | 630nm Red, 528nm Blue, 470nm Green | Linear Light Strip, Flexible | 90lm Red, 248lm Green, 56lm Blue | 420mA | - | 24V | 9 lm/W Red, 25 lm/W Green, 6 lm/W Blue | - | - | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
CBT-90-B-L11-J101LED MOD CBT-90 BLUE RECT |
90 |
|
برگه مشخصات |
CBT-90 | Tray | Active | LED Module | Blue | - | 455nm (450nm ~ 460nm) | Rectangle | - | 13.5A | 40°C | 3.5V | - | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|

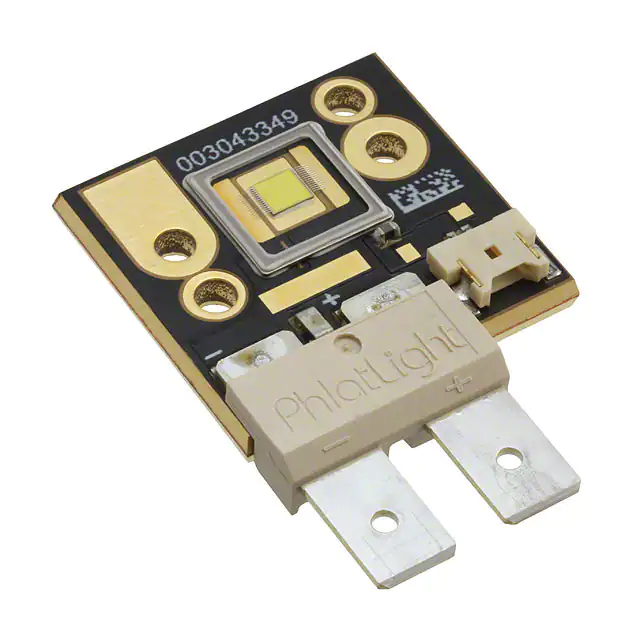

CBT-90-W65S-C11-NB102LED MOD CBT-90 CL WH RECT 6500K |
94 |
|
برگه مشخصات |
CBT-90 | Tray | Active | LED Module | White, Cool | 6500K | - | Rectangle | - | 9A | - | 3.6V | - | 18A | 70 (Typ) | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|

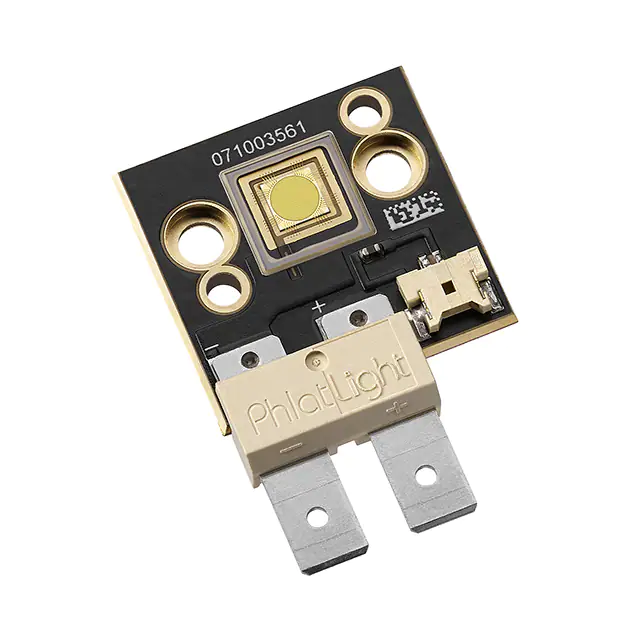

CBT-140-WCS-L16-UA120LED MOD CBT-140 WHT RECT 8500K |
58 |
|
برگه مشخصات |
CBT-140 | Tray | Active | LED Module | White, Cool | 6020K ~ 8500K | - | Rectangle | 3818lm (3680lm ~ 3955lm) | 21A | 85°C | 3.6V | 50 lm/W | 28A | 75 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat |
|
PT-121-G-L11-MPKLED MOD PT-121 GREEN RECT |
57 |
|
برگه مشخصات |
PT-121 | Bag | Active | LED Module | Green | - | 525nm | Rectangle | 5200lm (Typ) | 18A | 40°C | 5.2V | 56 lm/W | 27A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 3.00mm L x 4.00mm W | Flat |
|
CFT-90-WDS-X11-VB500LED MOD CFT90W CL WH RECT 5600K |
50 |
|
برگه مشخصات |
CFT-90-W | Tray | Active | LED Module | White, Cool | 5600K | - | Rectangle | 4703lm (4545lm ~ 4860lm) | 22.5A | 90°C | 3.5V | 60 lm/W | 27A | 65 (Typ) | 120° | With Connector | 28.00mm L x 26.75mm W | 3.93mm | 3.00mm L x 3.00mm W | Flat |
|
|
PT-121-G-L11-MPNLED MOD PT-121 GREEN RECT |
73 |
|
برگه مشخصات |
PT-121 | Tray | Active | LED Module | Green | - | 525nm | Rectangle | 5550lm (4900lm ~ 6200lm) | 18A | 40°C | 5.2V | 59 lm/W | 27A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 3.00mm L x 4.00mm W | Flat |
|
WLF12PXRGB1200SQPFLEXIBLE STRIP LIGHT, 1200MM |
80 |
|
برگه مشخصات |
WLF12 | Box | Active | LED Module | Red, Green, Blue (RGB) | - | 618nm Red, 520nm Green, 464nm Blue | Linear Light Strip, Flexible | 120lm Red, 220lm Green, 40lm Blue | - | 25°C | 12V Red, 12V Green, 12V Blue | - | 800mA Red, 800mA Green, 800mA Blue | - | 120° | Dimming, IP66, IP67, IP69K, With Connector | 1225.00mm L x 128.00mm W | 6.40mm | - | Flat |
|
12V-MB-CW-12MLED ENG CW 3LEDS 6000K 12M REEL |
4,298 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | LED Engine | White, Cool | 6000K | - | Linear Light Strip, Flexible | - | - | - | 12V | - | - | 92 | 120° | - | 12000.0mm L x 8.00mm W (25.40mm L per Segment) | 1.50mm | - | Flat |
|
12V-MB-PW-12MLED ENG NW 3LEDS 4200K 12M REEL |
3,376 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | LED Engine | White, Neutral | 4200K | - | Linear Light Strip, Flexible | - | - | - | 12V | - | - | 93 | 120° | - | 12000.0mm L x 8.00mm W (25.40mm L per Segment) | 1.50mm | - | Flat |
