COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLU028-1203C4-273H5K2LED COB CLU028 WARM WHT SQ 2700K |
106 |
|
برگه مشخصات |
CLU028 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1069lm (Typ) | 270mA | 85°C | 34.6V | 114 lm/W | 690mA | 90 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia | Flat |
|
XHP50A-0S-01-0D0BJ440ELED MOD XHP50A NEUT WHT SQ 4000K |
165 |
|
برگه مشخصات |
XHP50A | Tray | Not For New Designs | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Square | 1120lm (Typ) | 700mA | 85°C | 11.5V | 139 lm/W | 1.5A | 70 | - | - | 36.83mm L x 36.83mm W | - | - | Domed |
|
BXRE-35E2000-C-83LED COB V SER GEN 8 WHT SQ 3500K |
706 |
|
برگه مشخصات |
V Series™ Gen 8 | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | - | - | 25°C | - | 182 lm/W | - | 80 | - | - | - | - | 13.00mm Dia | Flat |
|
BXRE-30G20H0-C-83LED COB V13 WM WH SQUARE 3000K |
292 |
|
برگه مشخصات |
Gen 8 V13 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2533lm (Typ) | 500mA | 25°C | 33.4V | 152 lm/W | 1.75A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia | Flat |
|
|
BXRE-27E2000-C-83LED COB V13 WARM WHT SQU 2700K |
120 |
|
برگه مشخصات |
Gen 8 V13 Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2805lm (Typ) | 500mA | 25°C | 33.4V | 168 lm/W | 1.75A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia | Flat |
|
CDM-14-3018-90-36-DW02LED MOD CDM WARM WHT RECT 3000K |
264 |
|
برگه مشخصات |
CDM, Human Centric (HCL) | Tray | Active | LED Module | White, Warm | 1800K ~ 3000K | - | Rectangle | 1745lm (Typ) | 600mA | 85°C | 35.5V | 82 lm/W | 800mA | 97 | 130° | Dimming - Warm | 24.00mm L x 20.00mm W | 1.58mm | 15.50mm Dia | Flat |
|
BXRE-40E4000-B-73LED COB V18 NEUT WHT SQU 4000K |
447 |
|
برگه مشخصات |
Gen 7 V18 Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4528lm (Typ) | 900mA | 85°C | 34V | 148 lm/W | 1.8A | 80 | - | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia | Flat |
|
LSS1-01C22-4070-00LED MOD XHP50.2 NEUT WH SQ 4000K |
873 |
|
برگه مشخصات |
XHP50.2 | Tray | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Square | 1120lm (Typ) | 700mA | 85°C | 11.2V | 143 lm/W | 1.5A | 70 | - | - | 36.83mm L x 36.83mm W | - | - | Domed |
|
BXRE-65E2001-C-83LED COB V13 CL WHT SQUARE 6500K |
455 |
|
برگه مشخصات |
Gen 8 V13 Array | Tube | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 3015lm (Typ) | 500mA | 25°C | 33.4V | 181 lm/W | 1.75A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia | Flat |
|

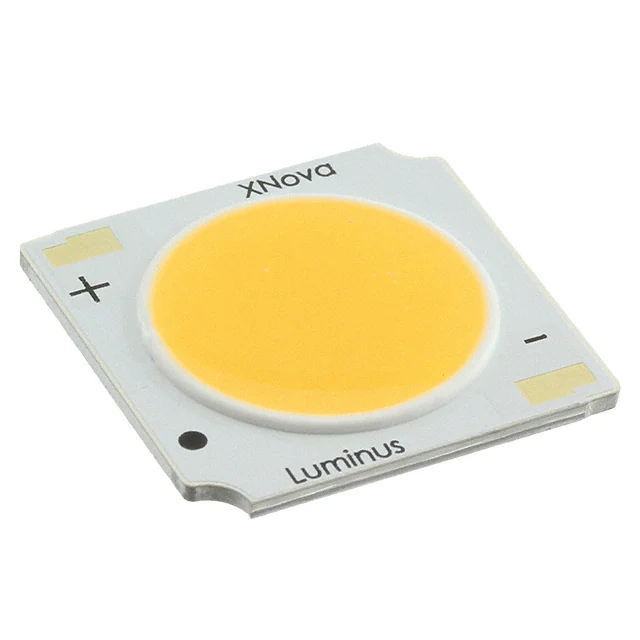

CXM-14-30-80-36-AC30-F4-3LED COB CXM-14 GEN3 WH SQ 3000K |
223 |
|
برگه مشخصات |
CXM-14 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3600lm (Typ) | 720mA | 85°C | 34V | 147 lm/W | 1.44A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 14.30mm Dia | Flat |
|
LST1-01F06-FRD1-00LED COB OSLON FAR RED STARBRD |
629 |
|
برگه مشخصات |
OSLON® SSL 120 Horticulture | Tray | Active | Chip On Board (COB) | Far Red | - | 735nm | Starboard | 282mW | 350mA | 25°C | 1.85V | - | - | - | 120° | - | - | - | - | - |
|
SPHWHAHDNH25YZP3D4LED COB D GEN4 COOL WHT SQ 6500K |
140 |
|
برگه مشخصات |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 5192lm (Typ) | 900mA | 85°C | 33.6V | 172 lm/W | 2.3A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.50mm Dia | Flat |
|
XPEBPA-L1-0000-00D01-SB01LED MOD XLAMP AMBER STARBOARD |
221 |
|
برگه مشخصات |
XLamp® XP-E2 | Tray | Active | LED Module | Amber | - | - | Starboard | 111lm (107lm ~ 114lm) | 350mA | 25°C | 3.05V | 104 lm/W | 1A | - | 110° | - | 19.89mm Dia | - | - | Domed |
|
SI-B8V05128HUSLED MOD LT-H282D LNR STRP 3000K |
650 |
|
برگه مشخصات |
LT-H282D | Bulk | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | 970lm (Typ) | 240mA | 50°C | 22.5V | 180 lm/W | - | 80 | - | With Connector | 275.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
CXA2530-0000-000N0HT440GLED COB XLAMP NEUT WHT SQU 4000K |
172 |
|
برگه مشخصات |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 800mA | 85°C | 36V | 124 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
SPHWHAHDNH25YZQ3D4LED COB D GEN4 COOL WHT SQ 5700K |
144 |
|
برگه مشخصات |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 5277lm (Typ) | 900mA | 85°C | 33.6V | 175 lm/W | 2.3A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.50mm Dia | Flat |
|
SI-B8T051280USLED ENG LT-Q282A LNR STRP 4000K |
258 |
|
برگه مشخصات |
LT-Q282A | Tray | Active | LED Engine | White, Neutral | 4000K | - | Linear Light Strip | 1000lm (Typ) | 450mA | 40°C | 11V | 202 lm/W | - | 80 | - | - | 275.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
SI-B8V051280USLED ENG LT-Q282A LNR STRP 3000K |
157 |
|
برگه مشخصات |
LT-Q282A | Tray | Active | LED Engine | White, Warm | 3000K | - | Linear Light Strip | 920lm (Typ) | 450mA | 40°C | 11V | 186 lm/W | - | 80 | - | - | 275.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
BXEB-L1120Z-35E4000-C-B3LED MOD EB SER WH LNR STRP 3500K |
291 |
|
برگه مشخصات |
EB Series™ Gen 2 | Bulk | Active | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 4780lm (Typ) | 700mA | 25°C | 39V | 175 lm/W | 1.4A | 80 | 120° | - | 1120.00mm L x 24.00mm W | 6.10mm | - | Flat |
|

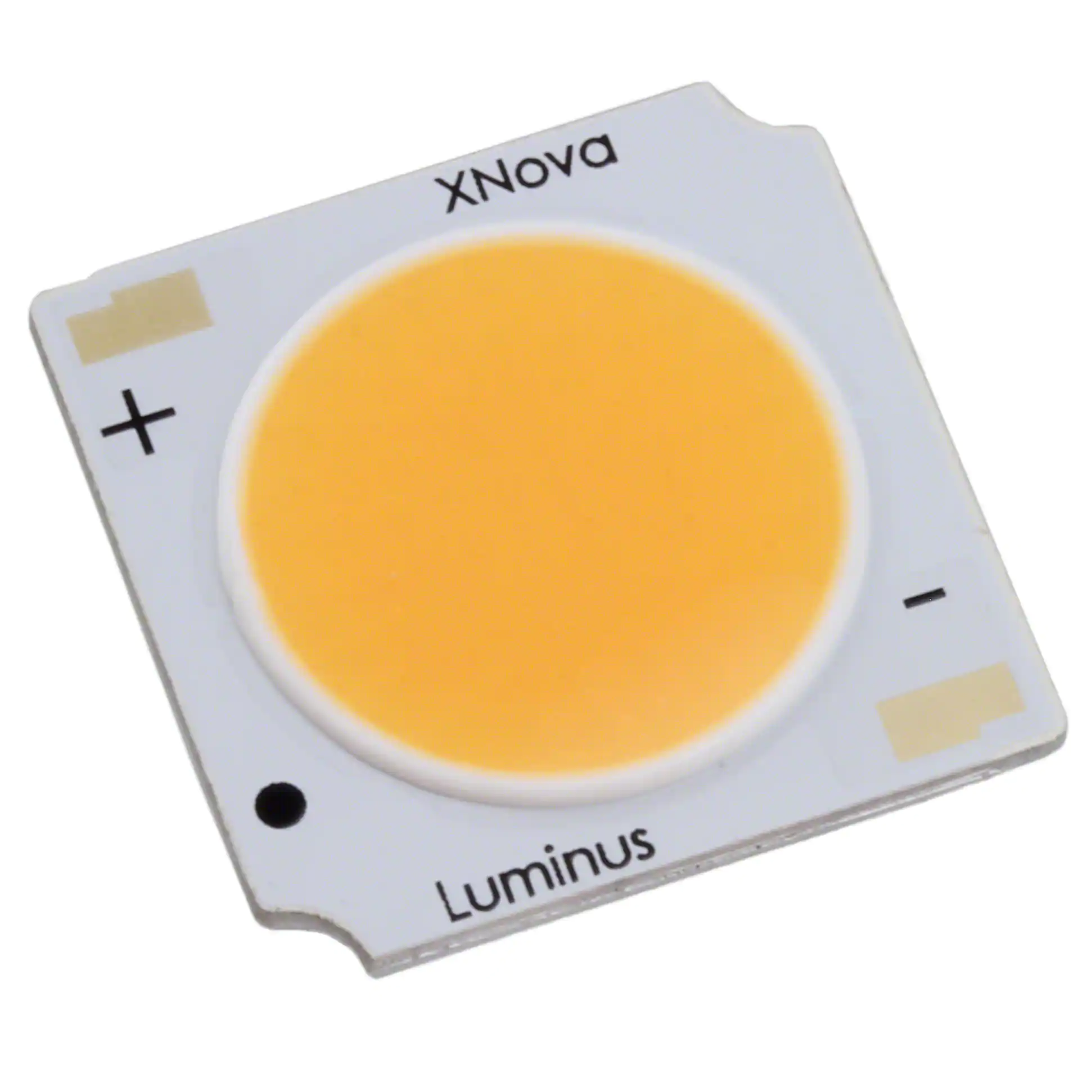

CVM-14-56-95-36-AC00-F2-2LED COB STUDIO COOL WHT SQ 5600K |
402 |
|
برگه مشخصات |
Studio | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5600K 2-Step MacAdam Ellipse | - | Square | 2800lm (Typ) | 1A | 100°C | 36V | 78 lm/W | 1A | 95 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 13.50mm Dia | Flat |
