COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWHAHDNL231ZR3DCLED COB D GEN3 COOL WHT SQ 5000K |
146 |
|
برگه مشخصات |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9870lm (Typ) | 1.08A | 85°C | 50.6V | 181 lm/W | 2.16A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL251ZR3DCLED COB D GEN3 COOL WHT SQ 5000K |
125 |
|
برگه مشخصات |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9546lm (Typ) | 1.08A | 85°C | 50.6V | 175 lm/W | 2.16A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
SPHWHAHDNM231ZR3DCLED COB D GEN3 COOL WHT SQ 5000K |
159 |
|
برگه مشخصات |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 14449lm (Typ) | 1.62A | 85°C | 50.6V | 177 lm/W | 3.24A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CXM-22-30-90-36-AC12-F3-3LED COB SENSUS WM WHT SQ 3000K |
350 |
|
برگه مشخصات |
Sensus™ | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4800lm (Typ) | 1.28A | 85°C | 35V | 107 lm/W | 2.56A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
CXM-14-30-90-36-TU31-F4-2LED COB 3000K |
225 |
|
برگه مشخصات |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CXM-14-50-90-36-TU31-F4-2LED COB 5000K |
225 |
|
برگه مشخصات |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CXM-14-35-90-36-TU31-F4-2LED COB 3500K |
225 |
|
برگه مشخصات |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BXRC-40C2001-C-83LED COB VERO 13C WHT ROUND 4000K |
129 |
|
برگه مشخصات |
Gen 8 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 3208lm (Typ) | 500mA | 25°C | 33.4V | 192 lm/W | 1.75A | 70 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia | Flat |
|
AB-L29D06W304N2LED ENG WH LNR STRIP 3000K |
197 |
|
برگه مشخصات |
- | Tray | Active | LED Engine | White, Warm | 3000K | - | Linear Light Strip | 1000lm | 260mA | 25°C | 24.4V | 158 lm/W | 600mA | 80 | - | - | 292.00mm L x 18.00mm W | - | - | Flat |
|
|
SPHWHAHDNM251ZQ3D4LED COB D GEN4 COOL WHT SQ 5700K |
138 |
|
برگه مشخصات |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 14336lm (Typ) | 1.62A | 85°C | 50.5V | 175 lm/W | 4.14A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
CDM-14-4027-90-36-DW02LED MOD CDM WHITE RECT 4000K |
134 |
|
برگه مشخصات |
CDM, Human Centric (HCL) | Tray | Active | LED Module | White, Warm / White, Neutral | 2700K ~ 4000K | - | Rectangle | 1980lm (Typ) | 600mA | 85°C | 35.5V | 93 lm/W | 800mA | 92 | 130° | Dimming - Warm | 24.00mm L x 20.00mm W | 1.58mm | 15.50mm Dia | Flat |
|
CLM-22-35-80-36-AC30-F4-3LED COB CLM-22 GEN3 WHT SQ 3500K |
389 |
|
برگه مشخصات |
CLM-22 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 5920lm (Typ) | 1.1A | 85°C | 33.8V | 159 lm/W | 2.4A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.37mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL251ZT3DCLED COB D GEN3 NEUT WHT SQ 4000K |
142 |
|
برگه مشخصات |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9383lm (Typ) | 1.08A | 85°C | 50.6V | 172 lm/W | 2.16A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMB1840-0000-000N0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
238 |
|
برگه مشخصات |
XLamp® CMB1840 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 4351lm | 1.1A | 85°C | 34.4V | 115 lm/W | 2.4A | 95 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 14.00mm Dia | Flat |
|

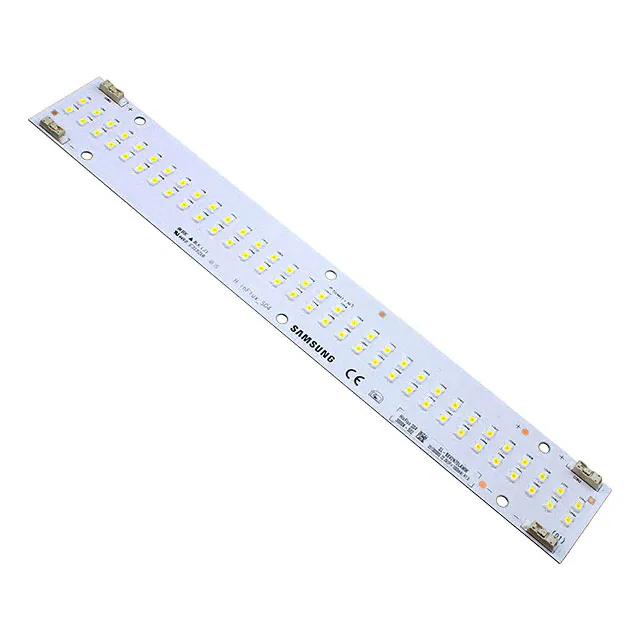

SL-B8V2N70LAWWLED MOD H INFLUX LNR STRP 3000K |
537 |
|
برگه مشخصات |
H inFlux | Tray | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | 3960lm (Typ) | 1A | 55°C | 22.3V | 178 lm/W | 1.6A | 80 | 118° | - | 281.00mm L x 41.00mm W | 5.20mm | - | Flat |
|
BXRC-50E4001-C-74LED COB VERO 18 WHT RND 5000K |
400 |
|
برگه مشخصات |
Gen 7 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 6066lm (Typ) | 1.17A | 85°C | 34.1V | 152 lm/W | 2.34A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-27E4000-C-73LED COB VERO 18 WM WHT RND 2700K |
182 |
|
برگه مشخصات |
Gen 7 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 5434lm (Typ) | 1.17A | 85°C | 34.1V | 136 lm/W | 2.34A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
SI-B8V101560USLED ENG LT-Q562A LNR STRP 3000K |
226 |
|
برگه مشخصات |
LT-Q562A | Tray | Active | LED Engine | White, Warm | 3000K | - | Linear Light Strip | 1840lm (Typ) | 450mA | 40°C | 21.9V | 187 lm/W | - | 80 | - | - | 560.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
|
SPHWHAHDNL231ZV3D4LED COB D GEN4 WM WHT SQ 3000K |
148 |
|
برگه مشخصات |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9894lm (Typ) | 1.08A | 85°C | 50.5V | 181 lm/W | 2.76A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL271ZV3D4LED COB D GEN4 WM WHT SQ 3000K |
147 |
|
برگه مشخصات |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 7745lm (Typ) | 1.08A | 85°C | 50.5V | 142 lm/W | 2.76A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
