COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-27G10K0-D-73LED COB VERO 29 WM WHT RND 2700K |
37 |
|
برگه مشخصات |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 9076lm (Typ) | 2.1A | 25°C | 37.6V | 128 lm/W | 4.2A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|

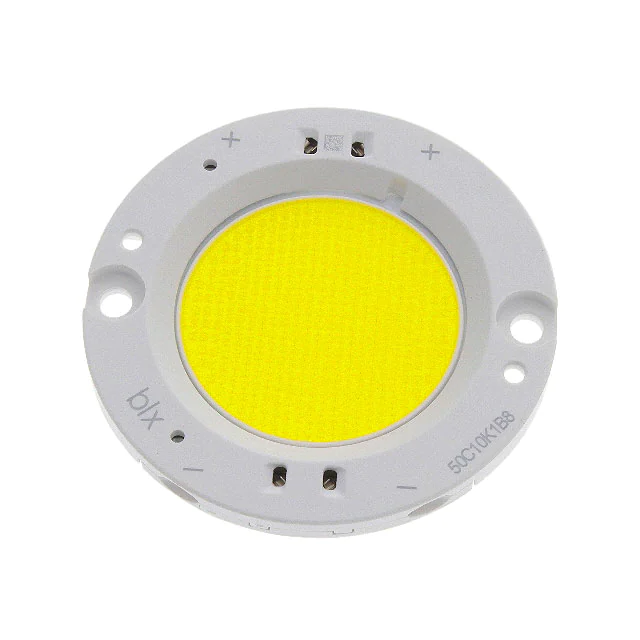

BXRC-50C10K1-B-83-SELED COB VERO SE 29C WH RND 5000K |
71 |
|
برگه مشخصات |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 14048lm (Typ) | 1.4A | 25°C | 50.2V | 200 lm/W | 4.75A | 70 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
SI-B8T502560WWLED MOD HORT R/W LNR STRP 3350K |
16 |
|
برگه مشخصات |
Horticulture L2 Gen2 | Tray | Active | LED Module | Red, White - Warm | 3350K (3070K ~ 3645K) | - | Linear Light Strip | 8960lm (Typ) | 1.2A | 25°C | 42V | 178 lm/W | 1.6A | 80 | 118° | - | 561.00mm L x 41.00mm W | 5.50mm | - | Flat |
|
|
NELM-85/12/20-35-90-FLED MOD WARM WHITE ROUND 3500K |
29 |
|
برگه مشخصات |
- | Bulk | Active | LED Module | White, Warm | 3500K | - | Round, Plug and Play | 865lm (Typ), 1292lm (Typ), 2031lm (Typ) | - | 55°C | 33.4V, 34.4V, 36.2V | - | 200mA, 320mA, 560mA | 90 | 86° | - | 88.20mm Dia | 30.00mm | 61.30mm Dia | Flat |
|
CBT-90-W65S-C11-NB100LED MOD CBT-90 CL WH RECT 6500K |
24 |
|
برگه مشخصات |
CBT-90 | Tray | Active | LED Module | White, Cool | 6500K | - | Rectangle | - | 9A | - | 3.6V | - | 18A | 70 (Typ) | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
12V-MB-WW-12MLED ENG WW 3LEDS 3000K 12M REEL |
1,077 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | LED Engine | White, Warm | 3000K | - | Linear Light Strip, Flexible | - | - | - | 12V | - | - | 92 | 120° | - | 12000.0mm L x 8.00mm W (25.40mm L per Segment) | 1.50mm | - | Flat |
|
|
AB-FC01265-19700-8A1LED MOD AB-FC WH LNR STRP 6500K |
1,018 |
|
برگه مشخصات |
AB-FC | Tape & Reel (TR) | Active | LED Module | White, Cool | 6500K | - | Linear Light Strip, Flexible | 334lm | 660mA | 25°C | 12V | 46 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W (25.00mm L per Segment) | 2.50mm | - | Flat |
|
|
24V-MB240-3000K-39FTLED MOD WM WHT LNR STRP 3000K |
1,043 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip, Flexible | - | - | - | 24V | - | - | 94 | - | - | 12000.0mm L x 8.00mm W (50.80mm L per Segment) | 1.52mm | - | Flat |
|
|
24V-COB-3000K-12MLED COB WH LNR STRP 3000K |
194 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | Chip On Board (COB) | White, Warm | 3000K | - | Linear Light Strip, Flexible | 2lm (Typ) | - | - | 24V | - | - | 91 | - | Dimming | 12000.0mm L x 8.00mm W (50.04mm L per Segment) | 1.78mm | - | Flat |
|
AB-FA02450-19700-8A1LED MOD AB-FA WH LNR STRP 5000K |
290 |
|
برگه مشخصات |
AB-FA | Tape & Reel (TR) | Active | LED Module | White, Cool | 5000K | - | Linear Light Strip, Flexible | 760lm | 330mA | 25°C | 24V | 96 lm/W | - | 80 | 120° | IP20 | 5000.00mm L x 8.00mm W (50.00mm L per Segment) | 1.60mm | - | Flat |
|

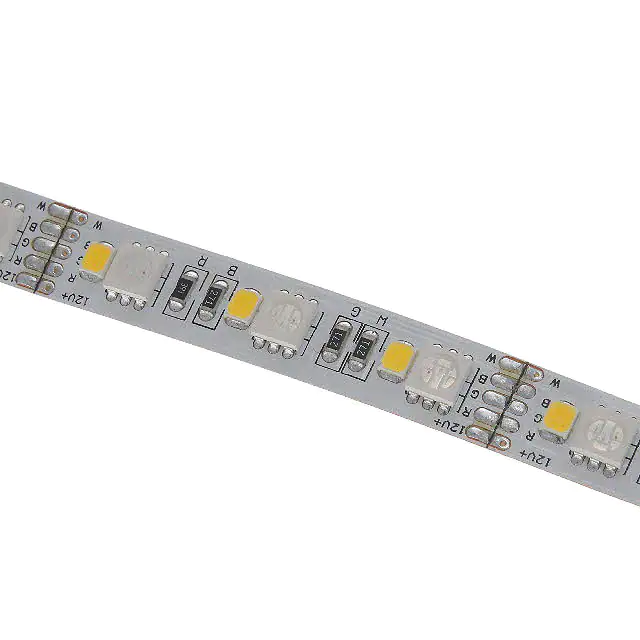

AB-FA01208-19700-8A2LED MOD AB-FA RGBW LNR STRIP |
1,014 |
|
برگه مشخصات |
AB-FA | Tape & Reel (TR) | Active | LED Module | Red, Green, Blue, White (RGBW) | - | - | Linear Light Strip, Flexible | - | 660mA | - | 12V | - | - | 80 | 120° | IP20 | 5000.00mm L x 8.00mm W (50.00mm L per Segment) | 1.60mm | - | Flat |
|
|
AB-FA01206-19700-XA2LED MOD AB-FA RGB LNR STRIP |
1,030 |
|
برگه مشخصات |
AB-FA | Tape & Reel (TR) | Active | LED Module | Red, Green, Blue (RGB) | - | - | Linear Light Strip, Flexible | - | 660mA | 25°C | 12V | - | - | - | 120° | IP20 | 5000.00mm L x 8.00mm W (50.00mm L per Segment) | 1.60mm | - | Flat |
|
A007-CG2H765S4LED MOD INDUS STARBRD 6500K |
92 |
|
برگه مشخصات |
Indus Star™ | Tray | Active | LED Module | White, Cool | 6500K | - | Starboard | - | - | 25°C | - | - | - | 70 | - | - | 20.20mm Dia | 3.75mm | - | Domed |
|
A007-CE20ROY37LED MOD INDUS STAR BLU STARBRD |
38 |
|
برگه مشخصات |
Indus Star™ | Tray | Active | LED Module | Blue | - | 455nm | Starboard | - | - | 25°C | - | - | - | - | - | - | 20.20mm Dia | 3.75mm | - | Domed |
|
BXRC-40E1000-D-73-SELED COB VERO SE 10 WHT RND 4000K |
86 |
|
برگه مشخصات |
Vero® SE 10 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 1278lm (Typ) | 350mA | 85°C | 25.3V | 144 lm/W | 700mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia | Flat |
|
|
CHA0410-0000-000D0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
94 |
|
برگه مشخصات |
XLamp® CHA0410 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 842lm (Typ) | 525mA | 85°C | 12V | 134 lm/W | 900mA | 80 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 4.20mm Dia | Flat |
|
BXRC-30G1000-B-73LED COB VERO WHT STARBRD 3000K |
69 |
|
برگه مشخصات |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1210lm (Typ) | 270mA | 25°C | 34.8V | 129 lm/W | 540mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-40E1000-B-73LED COB VERO WHT STARBOARD 4000K |
61 |
|
برگه مشخصات |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1510lm (Typ) | 270mA | 25°C | 34.8V | 161 lm/W | 540mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
BXRE-35E2000-B-73LED COB V13 WARM WHT SQU 3500K |
100 |
|
برگه مشخصات |
Gen 7 V13 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2243lm (Typ) | 450mA | 85°C | 33.9V | 147 lm/W | 900mA | 80 | - | - | 19.00mm L x 19.00mm W | 1.70mm | 14.00mm Dia | Flat |
|
CXB1512-0000-000N0HM430GLED COB XLAMP WARM WHT SQ 3000K |
61 |
|
برگه مشخصات |
XLamp® CXB1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 350mA | 85°C | 36V | 122 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
