| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | نوع اندازه گیری | محدوده اندازه گیری | نوع نمایشگر | تعداد کاراکترها در هر ردیف | نمایش شخصیت ها - ارتفاع | نوع خروجی | ولتاژ - منبع تغذیه | ابعاد برش پانل | نوع نصب | سبک خاتمه | حفاظت از ورود | ویژگی ها |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

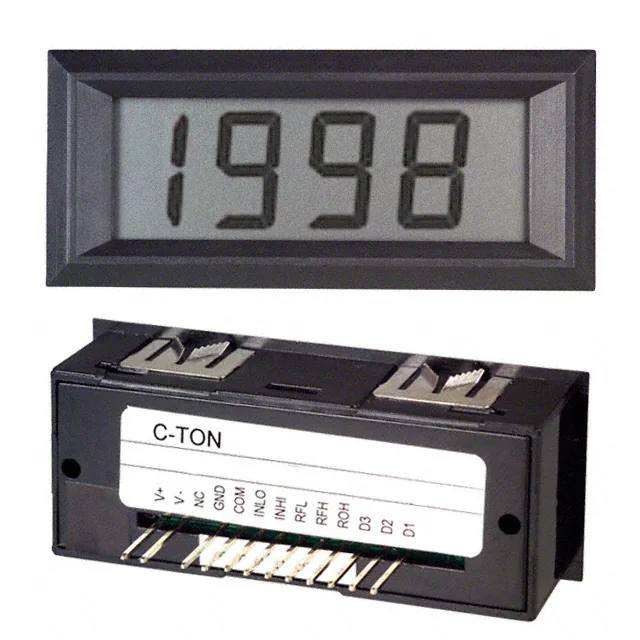

DK500VOLTMETER 200MVDC LCD PANEL MT |
43 |
|
برگه مشخصات |
DK500 | Bulk | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters | 3.5 | 0.472" (12.00mm) | Reference | 5VDC | Rectangular - 58.40mm x 22.40mm | Panel Mount | PC Pin | - | - |
|

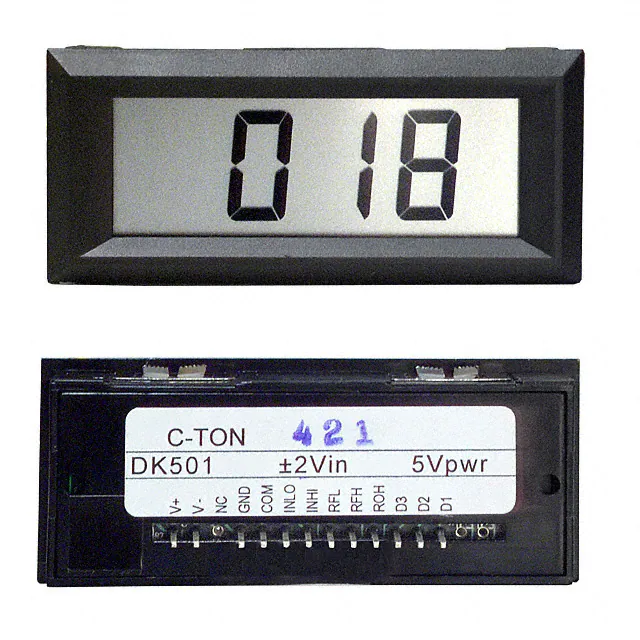

DK501VOLTMETER 2VDC LCD PANEL MOUNT |
141 |
|
برگه مشخصات |
DK500 | Bulk | Active | Voltmeter | Voltage | ±2VDC | LCD - Black Characters | 3.5 | 0.472" (12.00mm) | Reference | 5VDC | Rectangular - 58.40mm x 22.40mm | Panel Mount | PC Pin | - | - |
|
DK202VOLTMETER 2VDC LCD PANEL MOUNT |
40 |
|
برگه مشخصات |
DK200 | Bulk | Active | Voltmeter | Voltage | ±2VDC | LCD - Black Characters | 3.5 | 0.354" (9.00mm) | Reference | 5VDC | Rectangular - 40.90mm x 22.00mm | Panel Mount | PC Pin | - | - |
|
DMS-30LCD-1-5B-CVOLTMETER 2VDC LCD PANEL MOUNT |
145 |
|
برگه مشخصات |
DMS-30LCD | Box | Active | Voltmeter | Voltage | ±2VDC | LCD - Black Characters, Backlight | 3.5 | 0.401" (10.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |
|
MA501-110V-CU-ROHSLCD AC AMP METER BAR GRAPH |
57 |
|
برگه مشخصات |
MA501 | Box | Active | Ammeter | Current | 0 ~ 6200A | LCD - Blue Bar Graph | 4 | 0.560" (14.22mm) | - | 110VAC | Square - 46.50mm x 46.50mm | Panel Mount | Screw Terminal | - | - |
|
MV15-DC-200V-110V-CU-ROHSLED DIGITAL DC VOLT METER |
53 |
|
برگه مشخصات |
MV15 | Box | Active | Voltmeter | Voltage | 0 ~ 516VAC/DC | LED - Red Bar Graph | 3 | 0.560" (14.22mm) | - | 110VAC | Rectangular - 92.00mm x 46.00mm | Panel Mount | Screw Terminal | IP51 - Dust Protected | - |
|
VAF36A-110V-CUDIGITAL VAF METER LCD DISPLAY |
84 |
|
برگه مشخصات |
VAF36A | Box | Active | Ammeter, Voltmeter | Current (3-Phase), Voltage | - | LCD - Black Characters, Backlight | 3, 3, 3 | 0.560" (14.22mm) | - | 110VAC | Square - 91.50mm x 91.50mm | Panel Mount | Screw Terminal | - | - |
|

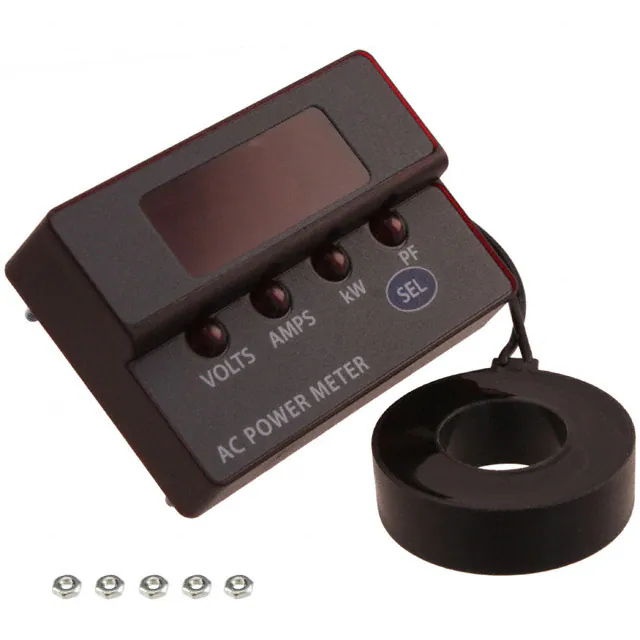

ACM20-4-AC1-R-F-CMULTI METER 0-100A LED PNL MOUNT |
94 |
|
برگه مشخصات |
ACM20 | Bulk | Active | Energy Monitor | Current, Frequency, Voltage, Wattage | 0 ~ 100A | LED - Red Characters | 4 | 0.360" (9.14mm) | - | 85 ~ 264VAC | Rectangular - 36.22mm x 22.10mm | Panel Mount - Surface | Screw Terminal | - | Built In Current Transformer (Primary) |
|
DMS-20PC-4/20P-CPROCESS METER 4-20MA LED PNL MT |
28 |
|
برگه مشخصات |
DMS-20PC-4/20 | Bulk | Active | Process Meter | Process | 4 ~ 20mA | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | - |
|
VAF39A-110V-CU-ROHSDIGITAL VAF METER LED DISPLAY |
60 |
|
برگه مشخصات |
VAF39A | Box | Active | Ammeter, Voltmeter | Current (3-Phase), Voltage | - | LED - Red Characters | 3, 3, 3 | 0.580" (14.73mm) | - | 110VAC | Square - 91.50mm x 91.50mm | Panel Mount | Screw Terminal | IP51 - Dust Protected | - |
|
DK852AVOLTMETER 2VDC LED PANEL MOUNT |
39 |
|
برگه مشخصات |
DK800/900 | Bulk | Active | Voltmeter | Voltage | ±2VDC | LED - Red Characters | 3.5 | 0.800" (20.32mm) | - | 5VDC | Rectangular - 92.00mm x 45.00mm | Panel Mount | PC Pin | IP66 - Dust Tight, Water Resistant | - |
|

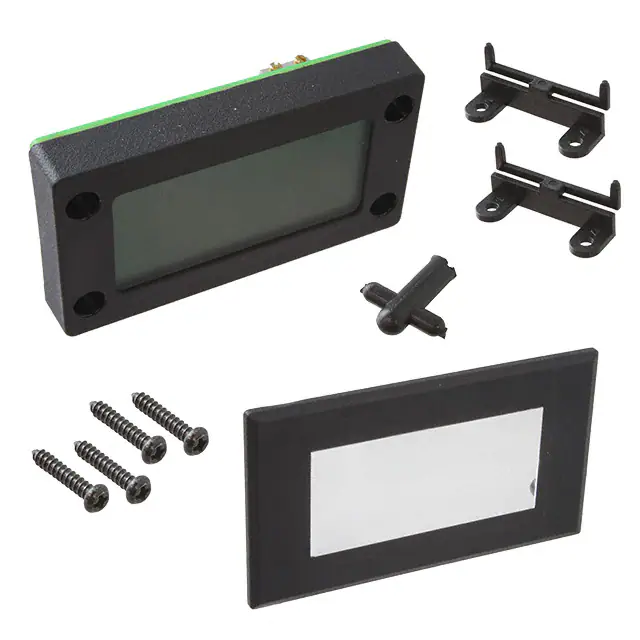

DTM 995BPROCESS METER LCD PNL MOUNT |
32 |
|
برگه مشخصات |
DTM | Box | Active | Temperature Meter | Thermocouple | -200°C ~ 1300°C | LCD - Black Characters, Green Backlight | 3.5 | 0.748" (19.00mm) | - | 4.75 ~ 5.25VDC | Rectangular - 72.00mm x 40.00mm | Panel Mount | Screw Terminal | - | - |
|
DMS-30798-CAMMETER 0-30A LED PANEL MOUNT |
36 |
|
برگه مشخصات |
ACA-20PC | Box | Active | Ammeter | Current | 0 ~ 30A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | Built In Current Transformer (Primary) |
|
DMS-40PC-1-GS-CVOLTMETER 2VDC LED PANEL MOUNT |
29 |
|
برگه مشخصات |
DMS-40PC-4/20S | Box | Active | Voltmeter | Voltage | ±2VDC | LED - Green Characters | 4.5 | 0.520" (13.20mm) | - | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |
|
DK197PROC METER/VOLTMETER LCD PNL MT |
101 |
|
برگه مشخصات |
DK190V EPIC | Bulk | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Green Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DMS-30PC-4/20S-24RH-I-CPROCESS METER 4-20MA LED PNL MT |
114 |
|
برگه مشخصات |
DMS-30PC-4/20S | Box | Active | Process Meter | Process | 4 ~ 20mA | LED - Red Characters | 3.5 | 0.560" (14.20mm) | - | 24VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | Screw Terminal | - | Bezel Sold Separately |
|
DK103VOLTMETER 20VDC LCD PANEL MOUNT |
80 |
|
برگه مشخصات |
DK100/300 | Bulk | Active | Voltmeter | Voltage | ±20VDC | LCD - Black Characters | 3.5 | 0.472" (12.00mm) | Reference | 9VDC | Rectangular - 58.40mm x 22.40mm | Panel Mount - Surface, Window | PC Pin | - | - |
|
|
DK102VOLTMETER 2VDC LCD PANEL MOUNT |
27 |
|
برگه مشخصات |
DK100/300 | Bulk | Active | Voltmeter | Voltage | 2VDC | LCD - Black Characters | 3.5 | 0.472" (12.00mm) | Reference | 9VDC | Rectangular - 58.40mm x 22.40mm | Panel Mount - Surface, Window | PC Pin | - | - |
|

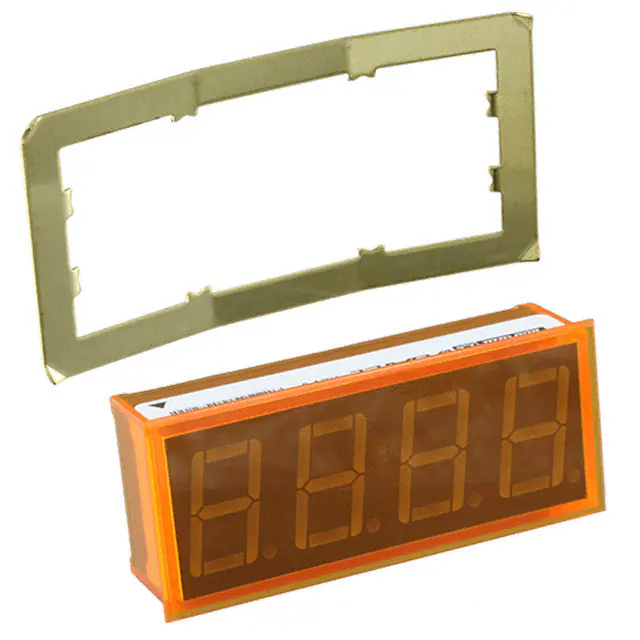

DMS-30PC-2-YS-CVOLTMETER 20VDC LED PANEL MOUNT |
42 |
|
برگه مشخصات |
DMS-30PC | Box | Active | Voltmeter | Voltage | ±20VDC | LED - Yellow Characters | 3.5 | 0.560" (14.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | Bezel Sold Separately |
|

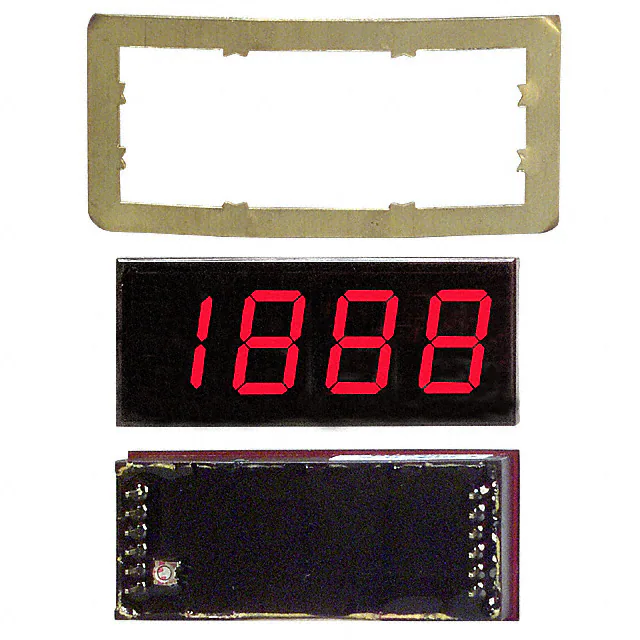

DLA-301HRLVOLTMETER 2VDC LED PANEL MOUNT |
41 |
|
برگه مشخصات |
DK630-640 | Bulk | Active | Voltmeter | Voltage | ±2VDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | Bezel Sold Separately |
