| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | نوع اندازه گیری | محدوده اندازه گیری | نوع نمایشگر | تعداد کاراکترها در هر ردیف | نمایش شخصیت ها - ارتفاع | نوع خروجی | ولتاژ - منبع تغذیه | ابعاد برش پانل | نوع نصب | سبک خاتمه | حفاظت از ورود | ویژگی ها |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

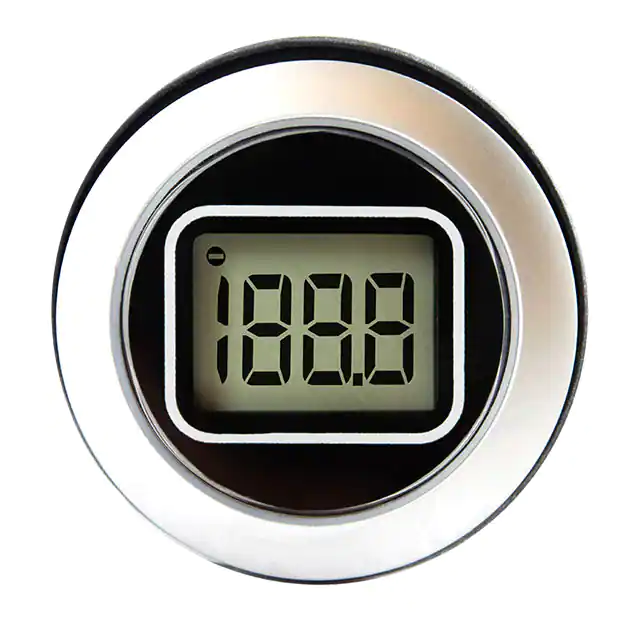

EM 32-1BROUND LCD VOLTMETER |
27 |
|
برگه مشخصات |
EM32 | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters | 3.5 | 0.315" (8.00mm) | - | 3.5 ~ 6.5VDC | Circular - 32.50mm Dia | Panel Mount | PC Pin | IP67 - Dust Tight, Waterproof | - |
|

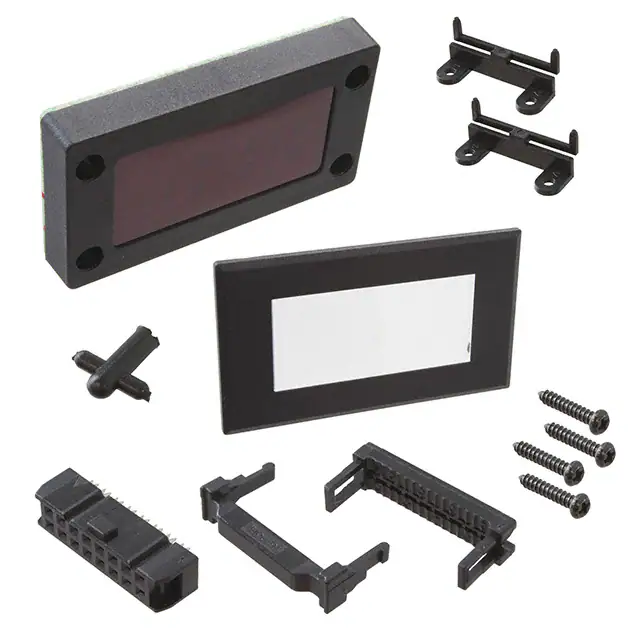

DPM 959BVOLTMETER 200MVDC LED PNL MT |
116 |
|
برگه مشخصات |
DPM | Box | Active | Voltmeter | Voltage | ±200mVDC | LED - Red Characters | 3.5 | 0.748" (19.00mm) | - | 4.75 ~ 5.25VDC | Rectangular - 72.00mm x 40.00mm | Panel Mount | PC Pin | - | - |
|
EM368-C-CU-ROHSKWH METER WITH LCD DISPLAY RS485 |
91 |
|
برگه مشخصات |
EM368-C | Box | Active | Energy Monitor | Current (3-Phase), Voltage, Wattage | - | LCD - Black Characters, Backlight | 8 | 0.360" (9.14mm) | - | 100 ~ 240VAC | Square - 91.50mm x 91.50mm | Panel Mount | Screw Terminal | IP51 - Dust Protected | - |
|
ACA-20PC-4-AC1-RL-CAMMETER 0-100A LED PANEL MOUNT |
29 |
|
برگه مشخصات |
ACA-20PC | Box | Active | Ammeter | Current | 0 ~ 100A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | Built In Current Transformer (Primary) |
|

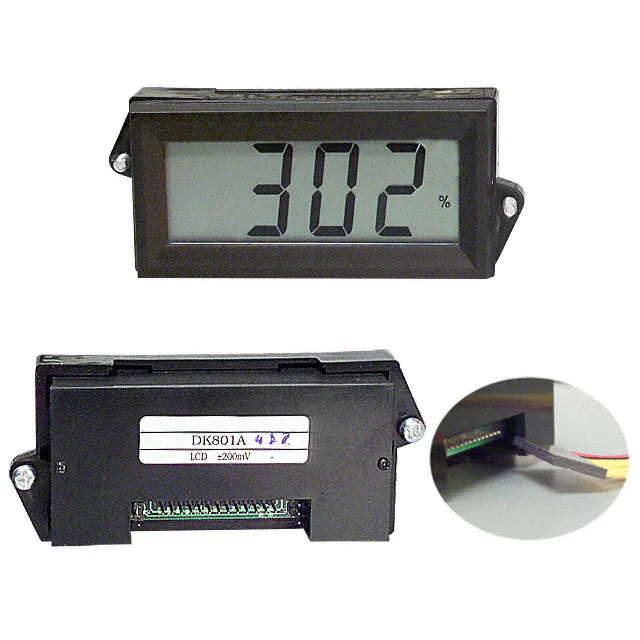

DK807APROCESS METER 4-20MA LCD PNL MT |
44 |
|
برگه مشخصات |
DK807 | Bulk | Active | Process Meter | Process | 4 ~ 20mA | LCD - Black Characters | 3.5 | 1.000" (24.90mm) | - | Loop Power | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|

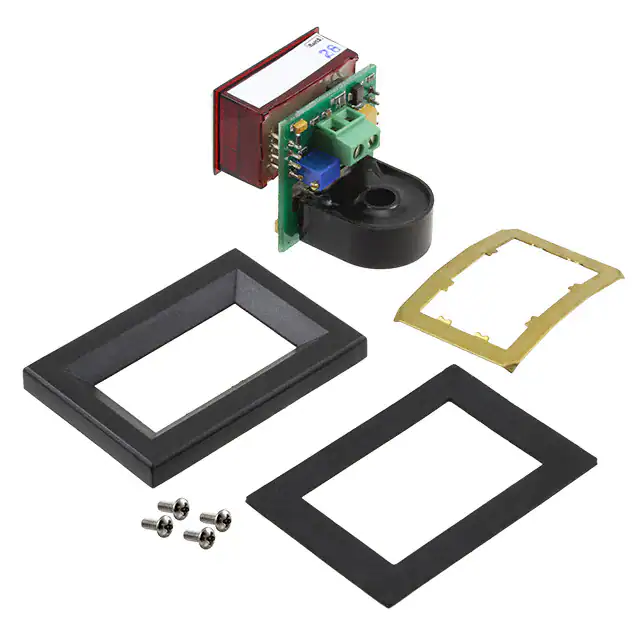

DLA20-ACA-R-2AMMETER 0-19.99A LED PANEL MOUNT |
30 |
|
برگه مشخصات |
DLA20-ACA | Bulk | Active | Ammeter | Current | 0 ~ 19.99A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
DMS-30PC-4/20S-24BS-I-CPROCESS METER 4-20MA LED PNL MT |
39 |
|
برگه مشخصات |
DMS-30PC-4/20S | Box | Active | Process Meter | Process | 4 ~ 20mA | LED - Blue Characters | 3.5 | 0.560" (14.20mm) | - | 24VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | Screw Terminal | - | - |
|

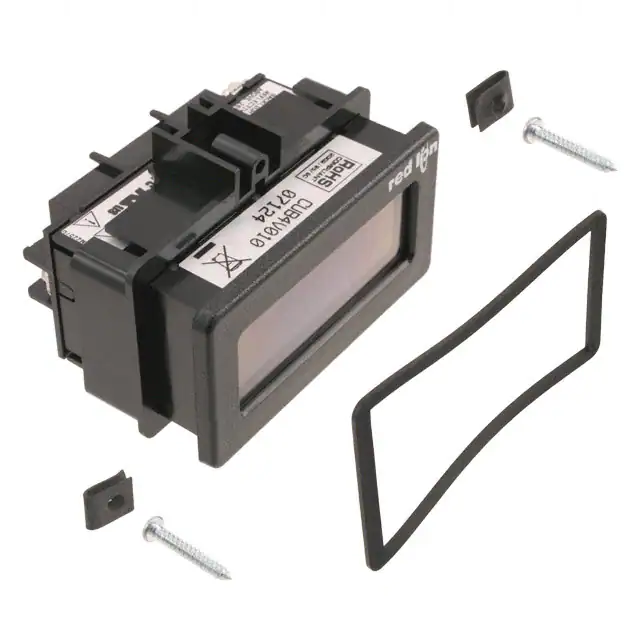

CUB4V010VOLTMETER 199.9VDC LCD PANEL MT |
32 |
|
برگه مشخصات |
CUB4V | Bulk | Active | Voltmeter | Voltage | ±199.9VDC | LCD - Black Characters, Green Backlight | 3.5 | 0.600" (15.20mm) | - | 9 ~ 28VDC | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
EM3063 KWH METER WITH LED DISPLAY, 85 |
29 |
|
برگه مشخصات |
EM306 | Box | Active | Energy Monitor | Current, Frequency, Voltage | 1 ~ 5A, 11 ~ 519VAC, 45 ~ 65Hz | LED - Red Characters | 6 | 0.560" (14.22mm) | Solid State | 100 ~ 240VAC | Square - 91.50mm x 91.50mm | Panel Mount - Bezel | Screw Terminal | IP54 - Dust Protected, Water Resistant | - |
|
|
MFM374-CUMULTI FUNCTION DIN MNT METER |
50 |
|
- |
MFM374 | Box | Active | Multifunction Meter | Frequency, Voltage | 11 ~ 519VAC, 45 ~ 65Hz | LED - Red Characters | 4, 4, 4 | 0.560" (14.22mm) | Solid State | 100 ~ 240VAC | Square - 91.50mm x 91.50mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
|
2500880000ENERGY METER 520-230 |
1 |
|
برگه مشخصات |
- | Bulk | Active | Energy Monitor | Current (3-Phase), Voltage | 1 ~ 5A, 277 ~ 480VAC | LCD - Black Characters, Backlight | 3, 3, 3 | - | Digital (4) | 90 ~ 277VAC, 90 ~ 250VDC | - | Panel Mount | Screw Terminal | IP40 | - |
|
DMS-30LCD-0-5-CVOLTMETER 200MVDC LCD PANEL MT |
45 |
|
برگه مشخصات |
DMS-30LCD | Box | Obsolete | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters | 3.5 | 0.401" (10.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |
|
DMS-20PC-3-DCM-CVOLTMETER 2-11VDC LED PANEL MT |
48 |
|
برگه مشخصات |
DMS-20PC-3-DCM | Box | Obsolete | Voltmeter | Voltage | 2 ~ 11VDC | LED - Red Characters | 3 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | - |
|
DMS-20PC-3-BL-CVOLTMETER 200VDC LED PANEL MOUNT |
93 |
|
برگه مشخصات |
DMS-20PC | Box | Obsolete | Voltmeter | Voltage | ±200VDC | LED - Blue Characters | 3.5 | 0.370" (9.40mm) | Reference | 5VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount | PC Pin | - | - |
|
|
DMS-20PC-1-BL-CVOLTMETER 2VDC LED PANEL MOUNT |
87 |
|
برگه مشخصات |
DMS-20PC | Box | Obsolete | Voltmeter | Voltage | ±2VDC | LED - Blue Characters | 3.5 | 0.370" (9.40mm) | Reference | 5VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount | PC Pin | - | - |
|
DMS-30PC-3-RL-CVOLTMETER 200VDC LED PANEL MOUNT |
36 |
|
برگه مشخصات |
DMS-30PC | Box | Obsolete | Voltmeter | Voltage | ±200VDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |
|

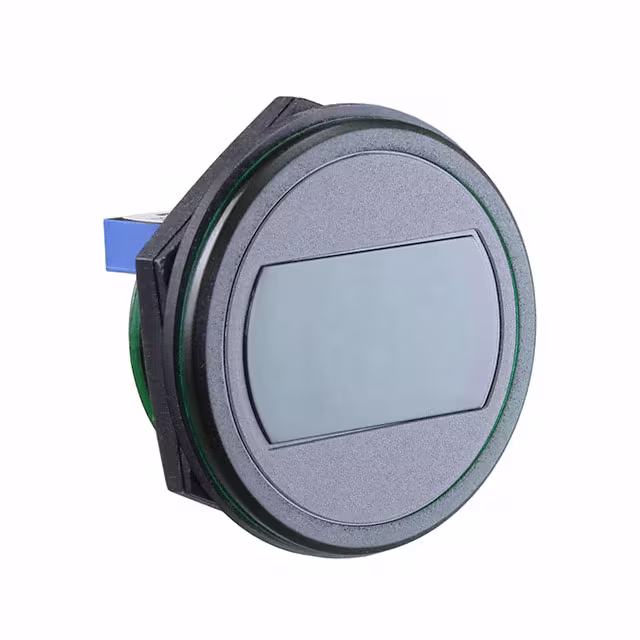

DMR20-4/20S-R-CPROCESS METER 4-20MA LED PNL MT |
76 |
|
برگه مشخصات |
DMR20-4/20 | Box | Obsolete | Process Meter | Process | 4 ~ 20mA | LED - Red Characters | 3.5 | 0.299" (7.60mm) | - | Loop Power | Circular - 30.73mm Dia | Panel Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - |
|
M4NS-NAMETER DIGITAL SCALING LED LOOP |
53 |
|
برگه مشخصات |
M4NS | Box | Active | Process Meter | Process | 0 ~ 20mA | LED - Red Characters | 4 | 0.394" (10.00mm) | - | Loop Power | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | - | - |
|
A5-VA-1-BLED DIGITAL VOLTMETER & AMPMETER |
27 |
|
برگه مشخصات |
- | Bulk | Active | Ammeter, Voltmeter | Current, Voltage | 0 ~ 25A, 7 ~ 33VDC | LED - Red Characters | 3 | - | - | 7 ~ 33VDC | - | Panel Mount | - | - | - |
|
DCA-20PC-6-DC4-BS-CAMMETER 0-19.99A LED PANEL MOUNT |
110 |
|
برگه مشخصات |
DCA-20PC | Box | Obsolete | Ammeter | Current | 0 ~ 19.99A | LED - Blue Characters | 3.5 | 0.370" (9.40mm) | - | 8 ~ 36VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | Built In Shunts |
