رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B07E932BC4-0262RELAY DPDT 10A 28V |
0 |
|
- |
07, CII | Bulk | Active | Panel Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Nom | - | 93.3 mA | Non Latching | - | Solder Hook, Stud | Sealed - Hermetically | - | 13 VDC | 7 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | Military | MIL-R-5757/23 |
|
|
B07D932BC4-0263B07D932BC4-0263 = MS27245-6 |
0 |
|
- |
07, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Nom | - | 88.3 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13 VDC | 1.8 VDC | 10 ms | 10 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
B07D111BC4-0202B07D111BC4-0202 = MS27247-2 |
0 |
|
- |
07, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Nom | - | 88.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13 VDC | 1.8 VDC | 10 ms | 10 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
5-1617602-6RP14142G20=RELAY |
0 |
|
- |
RP | Bulk | Active | - | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
|
HC-1RELAY GEN PURPOSE SPDT |
0 |
|
برگه مشخصات |
HC, KILOVAC | Bulk | Active | Panel Mount | - | SPDT (1 Form C) | - | - | - | - | Non Latching | - | Solder Turret | Sealed - Vacuum | - | - | - | 6 ms | 6 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|

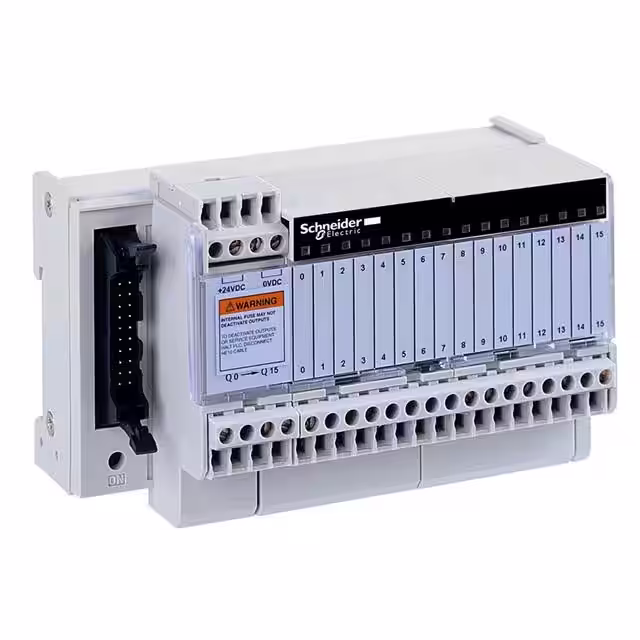

ABE7R16S111SUB-BASE - SOLDERED ELECTROMECHA |
0 |
|
برگه مشخصات |
Modicon ABE7 | Box | Active | DIN Rail | 24VDC | - | 12 A | 250VAC, 30VDC - Max | 3000VA, 360W | - | Non Latching | - | Screw Terminal | - | - | 19.2 VDC | 2.4 VDC | 10 ms | 6 ms | -5°C ~ 60°C | - | CSA, DNV, EAC, GL, UL | General Purpose | - | - |
|
|
1618006-9AP10A334=RELAY, VACUUM, SPST-N |
0 |
|
برگه مشخصات |
AP10, KILOVAC | Bulk | Discontinued | Chassis Mount | 28VDC | SPST-NO (1 Form A) | 10 A | 270VDC - Nom | - | 96.6 mA | Non Latching | - | PC Pin | Sealed - Vacuum | - | 20 VDC | 0.7 VDC | 7 ms | 10 ms | -55°C ~ 85°C | - | - | General Purpose | - | - |
|
B07D112BC4-0203RELAY GEN PURPOSE DPDT 10A 28V |
0 |
|
برگه مشخصات |
07, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Nom | - | 93.3 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13 VDC | 1.6 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | Military | MS27245 |
|
|
2-1423155-9RELAY GEN PURPOSE |
0 |
|
- |
GP, AGASTAT | Bulk | Active | Socketable | 125VDC | 4PDT (4 Form C) | 10 A | - | - | - | Non Latching | - | Plug In | - | - | 94 VDC | 12.5 VDC | 15 ms | 30 ms | 0°C ~ 60°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
4-1617001-5A07D013BZ1-0157 = RELAY. |
0 |
|
برگه مشخصات |
07, CII | Bulk | Active | Through Hole | - | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 1150VA, 280W | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 10 ms | 10 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
6-1617752-0FCA-325-123 |
0 |
|
- |
FCA-325, CII | Bulk | Active | Through Hole | 28VDC | 3PDT (3 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 87.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO), Gold (Au) | - | General Purpose | - | - |
|
|
2-1423155-6RELAY GEN PURP 4PDT 10A 125V |
0 |
|
- |
GP, AGASTAT | Bulk | Active | Socketable | 125VDC | 4PDT (4 Form C) | 10 A | - | - | - | Non Latching | - | Plug In | - | - | - | - | 15 ms | 30 ms | 0°C ~ 60°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
SF5A53145S02SF5A53145S02=SENSITIVE FULL SIZE |
0 |
|
- |
SF5 | Bulk | Active | Through Hole | - | DPDT (2 Form C) | 5 A | 115VAC, 28VDC - Max | 575VA, 140W | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 15 ms | 10 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
K41R332K41R332=RELAY, VACUUM, SPDT |
0 |
|
برگه مشخصات |
K41, KILOVAC | Bulk | Active | Chassis Mount | 26.5VDC | SPDT (1 Form C) | 30 A | 5000VDC - Nom | - | 331.3 mA | Latching, Single Coil | - | Wire Leads | Sealed - Vacuum | - | 16 VDC | - | 6 ms | - | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
1-1617752-7FCA-210-EY6 |
0 |
|
برگه مشخصات |
FCA-210, CII | Bulk | Active | Chassis Mount | 28VAC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 180 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 22 VAC | 1.25 VAC | 15 ms | 50 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
K41A534RELAY GEN PURPOSE SPST 115V |
0 |
|
- |
K41, KILOVAC | Bulk | Active | Panel Mount | 115VDC | SPST-NO (1 Form A) | 30 A | 5000VDC - Nom | - | 24.5 mA | Non Latching | - | Wire Leads | - | - | 80 VDC | 50 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
K41B534K41B534=RELAY, VACUUM, SPST-NC |
0 |
|
- |
K41, KILOVAC | Bulk | Active | Panel Mount | 115VDC | SPST-NC (1 Form B) | 30 A | 5000VDC - Nom | - | 24.5 mA | Non Latching | - | Wire Leads | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
K45C232K45C232=RELAY, VACUUM, SPDT |
0 |
|
- |
K45, KILOVAC | Bulk | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 20 A | - | - | 52.2 mA | Non Latching | - | Wire Leads | Sealed - Vacuum | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
K45C332RELAY SPDT 26.5V |
0 |
|
- |
K45, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 20 A | - | - | 28.8 mA | Non Latching | - | Wire Leads | Sealed - Vacuum | - | 16 VDC | 10 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
FCA-150-BX4FCA-150-BX4=RELAY |
0 |
|
- |
FCA-150, CII | Bulk | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | - | - | 96.6 mA | Non Latching | Diode | Solder Hook, Stud | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
