رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1618274-6HC-1/S122=RELAY, VACUUM, SPDT |
0 |
|
- |
HC, KILOVAC | Bulk | Active | Panel Mount | - | SPDT (1 Form C) | 25 A | - | - | - | Non Latching | - | Solder Turret | Sealed - Vacuum | - | - | - | 6 ms | 6 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
1129030000RSM-16 PLC C SW 1CO S |
0 |
|
برگه مشخصات |
RSM | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) x 16 | 2.5 A | 250VAC - Max | 625VA | 13 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE | General Purpose | - | - |
|
|
K41B532K41B532=RELAY, VACUUM, SPST-NC |
0 |
|
- |
K41, KILOVAC | Bulk | Active | Chassis Mount | 115VDC | SPST-NC (1 Form B) | 30 A | 5000VDC - Nom | - | 24.5 mA | Non Latching | - | Wire Leads | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
K81AA47RELAY SPST 12V |
0 |
|
برگه مشخصات |
K81A, KILOVAC | Bulk | Active | Panel Mount | 12VDC | SPST-NO (1 Form A) | - | 10000VDC - Nom | - | 171.4 mA | Non Latching | - | Stud | - | - | 8 VDC | 5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | - | General Purpose | - | - |
|
|
K41C532RELAY SPDT 115V |
0 |
|
برگه مشخصات |
K41, KILOVAC | Bulk | Active | Panel Mount | 115VDC | SPDT (1 Form C) | 30 A | 5000VDC - Nom | - | 24.5 mA | Non Latching | - | Wire Leads | - | - | 80 VDC | 50 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
1618013-3PD10B535=RELAY, VACUUM, SPST-N |
0 |
|
برگه مشخصات |
PD10, KILOVAC | Bulk | Active | Chassis Mount | 125VDC | SPST-NC (1 Form B) | 10 A | 320VDC - Max | 3200VA | 26.6 mA | Non Latching | - | PC Pin | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | - | General Purpose | - | - |
|
|
FCA-150-KX4FCA-150-KX4=50 AMP 1PST/NO DM |
0 |
|
- |
FCA-150, CII | Bulk | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | - | - | 96.6 mA | Non Latching | Diode | Solder Hook, Stud | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
FCA-150-KR4FCA-150-KR4=RELAY |
0 |
|
- |
FCA-150, CII | Bulk | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | - | - | 96.6 mA | Non Latching | Diode | Solder Hook, Stud | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
FCA-150-KU4FCA-150-KU4=50 AMP 1PST/NO DM |
0 |
|
برگه مشخصات |
FCA-150, CII | Bulk | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | - | - | 96.6 mA | Non Latching | Diode | Solder Hook, Stud | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
FCA-150-CU4FCA-150-CU4=RELAY |
0 |
|
- |
FCA-150, CII | Bulk | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | - | - | 96.6 mA | Non Latching | Diode | Solder Hook, Stud | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
1-1618274-3HC-1/S23=RELAY, VACUUM, SPDT |
0 |
|
- |
HC, KILOVAC | Bulk | Active | Panel Mount | - | SPDT (1 Form C) | 25 A | - | - | - | Non Latching | - | Solder Turret | Sealed - Vacuum | - | - | - | 6 ms | 6 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
5-1618274-3RELAY |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

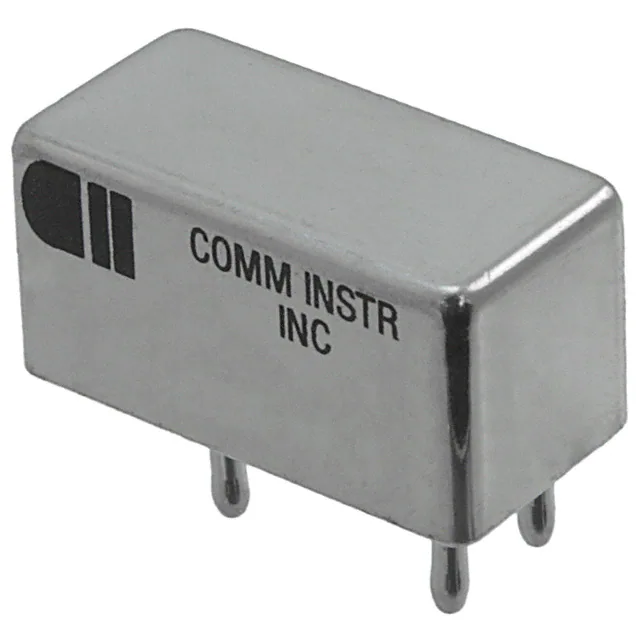

CAW-1C-6BRELAY GEN PURPOSE SPDT 10A 6V |
0 |
|
برگه مشخصات |
C, CII | Bulk | Active | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 28VDC - Nom | 280W | 32.1 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.5 VDC | 0.45 VDC | - | - | -65°C ~ 125°C | - | - | General Purpose | - | - |
|
|
CEW-1C-24ACEW-1C-24A = HALF 10A.1POLE.SI |
0 |
|
- |
CEW | Bulk | Active | Chassis Mount | 26.5VDC | SPDT (1 Form C) | 10 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - | - | General Purpose | - | - |
|
|
1-1618274-7HC-1/S42=RELAY, VACUUM, SPDT |
0 |
|
- |
HC, KILOVAC | Bulk | Active | Panel Mount | - | SPDT (1 Form C) | 25 A | - | - | - | Non Latching | - | Solder Turret | Sealed - Vacuum | - | - | - | 6 ms | 6 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
K41B932RELAY SPST 30A 115V |
0 |
|
برگه مشخصات |
K41, KILOVAC | Bulk | Active | Panel Mount | 115VDC | SPST-NC (1 Form B) | 30 A | 5000VDC - Nom | - | 24.5 mA | Non Latching | - | Solder Turret | - | - | 80 VDC | 50 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
K41A932K41A932=RELAY, VACCUM, SPST-NO |
0 |
|
- |
K41, KILOVAC | Bulk | Active | Chassis Mount | 115VDC | SPST-NO (1 Form A) | 30 A | 5000VDC - Nom | - | 24.5 mA | Non Latching | - | Solder Turret | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | - | General Purpose | - | - |
|
|
SR109AD01RELAY DPST 3A 24V |
1 |
|
- |
SR109AD | Bulk | Active | DIN Rail | 24VAC/DC | DPST-NO/NC (1 Form A, 1 Form B) | 3 A | 250VAC, 24VDC - Max | 750VA, 72W | 30 mA | Non Latching | - | Spring Terminal | - | - | - | - | - | - | -15°C ~ 40°C | - | CE, CUL, UL | General Purpose | - | - |
|
|
3-1618007-4AP5A334=RELAY, VACUUM, SPST-NO |
0 |
|
برگه مشخصات |
AP5, KILOVAC | Bulk | Active | Chassis Mount | 28VDC | SPST-NO (1 Form A) | 5 A | 270VDC - Nom | - | 96.6 mA | Non Latching | - | PC Pin | Sealed - Vacuum | - | 20 VDC | 0.7 VDC | 7 ms | 10 ms | -55°C ~ 85°C | - | - | General Purpose | - | - |
|
|
4-1618013-6RELAY SPDT 15A 12V |
0 |
|
برگه مشخصات |
PD5, KILOVAC | Bulk | Active | Panel Mount | 12VDC | SPDT (1 Form C) | 15 A | - | - | 171.4 mA | Non Latching | - | PC Pin | - | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | - | General Purpose | - | - |
