رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RYA30012RELAY GEN PURPOSE SPST 8A 12V |
0 |
|
برگه مشخصات |
RY, SCHRACK | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 19.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
T90N1D42-24RELAY GEN PURPOSE SPST 30A 24V |
0 |
|
برگه مشخصات |
T90 | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 36 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
T90N1D12-9RELAY GEN PURPOSE SPST 30A 9V |
0 |
|
برگه مشخصات |
T90 | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 93 mA | Non Latching | - | PC Pin | - | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
T90N1D12-110RELAY GEN PURPOSE SPST 30A 110V |
0 |
|
برگه مشخصات |
T90 | Bulk | Obsolete | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 8 mA | Non Latching | - | PC Pin | - | Class F | 82.5 VDC | 11 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
RM835012RELAY GEN PURPOSE DPDT 25A 12V |
0 |
|
برگه مشخصات |
RM, SCHRACK | Bulk | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 25 A | 400VAC - Max | 10000VA | 109 mA | Non Latching | Mechanical Indicator, Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -45°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
R10-R2Y2-J5.0KRELAY GEN PURPOSE DPDT 3A 24V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 20.5 VDC | 0.12 VDC | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
OZF-S-124LM1P,300RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
برگه مشخصات |
OZF, OEG | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 30VDC - Max | 3840VA, 480W | 21.8 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | Class A | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, TUV | General Purpose | - | - |
|
KHAU-11D11-12RELAY GEN PURPOSE DPDT 3A 12V |
0 |
|
برگه مشخصات |
KHA | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 3 A | 240VAC - Nom | - | 75 mA | Non Latching | - | Plug In | - | Class B | 9 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
KHAU-17D12-48RELAY GEN PURPOSE 4PDT 5A 48V |
0 |
|
برگه مشخصات |
KHA | Tray | Obsolete | Socketable | 48VDC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 18.8 mA | Non Latching | - | Plug In | - | Class B | 36 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
-SH-1(05,12)(D,L),394, OMI-SH-124(D,L),300, OUDH-SS-112D,000.jpg)
|
OMIH-SH-124D,394RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
برگه مشخصات |
OMIH, OEG | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC | - | 29.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
V23061A1007A402RELAY GEN PURPOSE SPST 8A 24V |
0 |
|
برگه مشخصات |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 10.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 16.3 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|

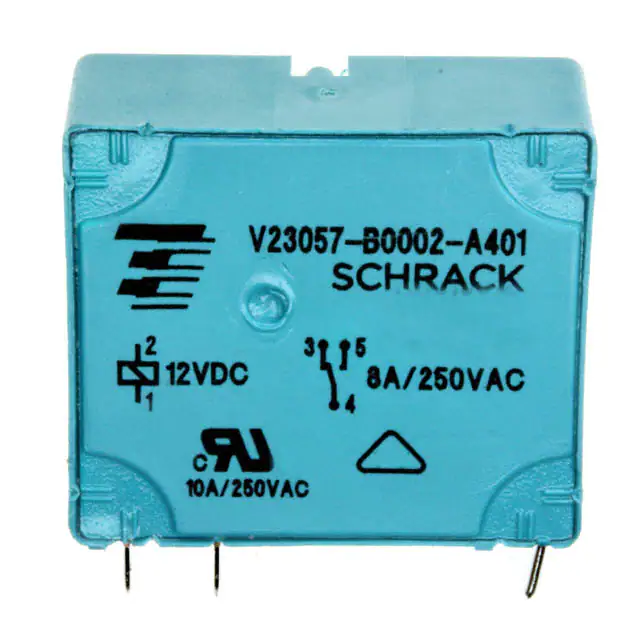

V23057B 2A401RELAY GEN PURPOSE SPDT 8A 12V |
0 |
|
برگه مشخصات |
V23057, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 36.3 mA | Non Latching | - | PC Pin | - | - | 8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
OZ-SH-105LM1,294RELAY GEN PURPOSE SPST 16A 5V |
0 |
|
برگه مشخصات |
OZ, OEG | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 106 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.75 VDC | 0.25 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
OZ-SS-112L,200RELAY GEN PURPOSE SPDT 16A 12V |
0 |
|
برگه مشخصات |
OZ, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 9 VDC | 0.6 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
OZ-SH-112LM1,294RELAY GEN PURPOSE SPST 16A 12V |
0 |
|
برگه مشخصات |
OZ, OEG | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 9 VDC | 0.6 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
SRUDH-SH-124DM1,000RELAY GEN PURPOSE SPST 12A 24V |
0 |
|
برگه مشخصات |
SRUDH, OEG | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 240VAC, 28VDC - Max | 2880VA, 336W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 18 VDC | 1.2 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | CSA, cURus, TUV | General Purpose | - | - |
|
RMC05024RELAY GEN PURPOSE SPDT 30A 24V |
0 |
|
برگه مشخصات |
RMC/D, SCHRACK | Bulk | Obsolete | Chassis Mount | 24VDC | SPDT (DB/DM) (1 Form Z) | 30 A | 440VAC - Max | 13200VA | 50 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
RM838024RELAY GEN PURPOSE DPDT 25A 24V |
0 |
|
برگه مشخصات |
RM, SCHRACK | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 25 A | 400VAC - Max | 10000VA | 50 mA | Non Latching | Mechanical Indicator, Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
RM707024RELAY GEN PURPOSE 3PDT 16A 24V |
0 |
|
برگه مشخصات |
RM, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 7040VA | 70.8 mA | Non Latching | Mechanical Indicator | PC Pin | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
RM503024RELAY GEN PURPOSE DPST 16A 24V |
0 |
|
برگه مشخصات |
RM, SCHRACK | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 7040VA | 70.8 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 5 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
