رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T7CV5D-48RELAY GEN PURPOSE SPDT 12A 48V |
0 |
|
برگه مشخصات |
T7C | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 12 A | 240VAC, 24VDC - Max | 2880VA, 288W | 10.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 2.4 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR, VDE | General Purpose | - | - |
-SH-1(05,12)(D,L),394, OMI-SH-124(D,L),300, OUDH-SS-112D,000.jpg)
|
OMIH-SH-112D,394RELAY GEN PURPOSE SPDT 16A 12V |
0 |
|
برگه مشخصات |
OMIH, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC | - | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
T7NS1D1-48RELAY GEN PURPOSE SPST 10A 48V |
0 |
|
برگه مشخصات |
T7N | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 4000VA | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 33.6 VDC | 4.8 VDC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
T7CS1D-12RELAY GEN PURPOSE SPST 12A 12V |
0 |
|
برگه مشخصات |
T7C | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 240VAC, 24VDC - Max | 2880VA, 288W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR, VDE | General Purpose | - | - |
|
|
OMI-SH-105L,300RELAY GEN PURPOSE SPDT 10A 5V |
0 |
|
برگه مشخصات |
OMI, OEG | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 108 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.75 VDC | 0.25 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, CSA, UR, VDE | General Purpose | - | - |
|
T75S5D112-48RELAY GEN PURPOSE SPDT 14A 48V |
0 |
|
برگه مشخصات |
T75 | Tube | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 14 A | 400VAC - Max | 5600VA | 5.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 34.5 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
SRUDH-SS-109D1,000RELAY GEN PURPOSE SPDT 12A 9V |
0 |
|
برگه مشخصات |
SRUDH, OEG | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 12 A | 240VAC, 28VDC - Max | 2880VA, 336W | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 6.75 VDC | 0.45 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | CSA, cURus, TUV | General Purpose | - | - |
|
|
T75S1D112-12RELAY GEN PURPOSE SPST 14A 12V |
0 |
|
برگه مشخصات |
T75 | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 14 A | 400VAC - Max | 5600VA | 18.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.5 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
T75S1D112-05RELAY GEN PURPOSE SPST 14A 5V |
0 |
|
برگه مشخصات |
T75 | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 14 A | 400VAC - Max | 5600VA | 42.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.6 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
SRUDH-SS-112D1,000RELAY GEN PURPOSE SPDT 12A 12V |
0 |
|
برگه مشخصات |
SRUDH, OEG | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 240VAC, 28VDC - Max | 2880VA, 336W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | CSA, cURus, TUV | General Purpose | - | - |
|
OZ-SH-124D,294RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
برگه مشخصات |
OZ, OEG | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 29.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 16.8 VDC | 1.2 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
G2RL-1ATP5-E DC12RELAY GEN PURPOSE SPST 16A 12V |
0 |
|
برگه مشخصات |
G2RL | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 33.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
G2RL-1ATP5-E DC24RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
برگه مشخصات |
G2RL | Tray | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 16.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
G2RL-1ATP7-E DC12RELAY GEN PURPOSE SPST 16A 12V |
0 |
|
برگه مشخصات |
G2RL | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 33.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
G2RL-1ATP7-E DC24RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
برگه مشخصات |
G2RL | Tray | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 16.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G2RV-SL500 AC110RELAY GEN PURPOSE SPDT 6A 110V |
0 |
|
برگه مشخصات |
G2RV | Bulk | Obsolete | DIN Rail | 110VAC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 7.1 mA | Non Latching | Socket Included | Spring Terminal | - | - | 88 VAC | 11 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn) | CE, cULus, TUV | General Purpose | - | - |
|

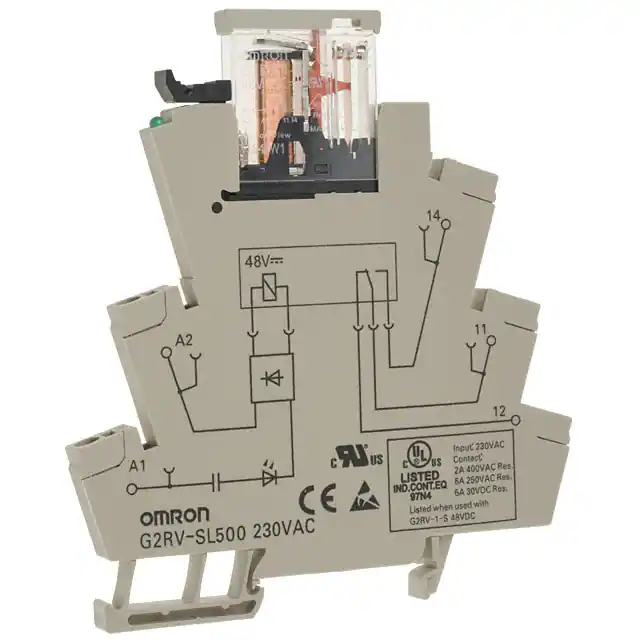

G2RV-SL500 AC230RELAY GEN PURPOSE SPDT 6A 230V |
0 |
|
برگه مشخصات |
G2RV | Bulk | Obsolete | DIN Rail | 230VAC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 7.3 mA | Non Latching | Socket Included | Spring Terminal | - | - | 184 VAC | 23 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn) | CE, cULus, TUV | General Purpose | - | - |
|
G2RV-SL500 AC/DC48RELAY GEN PURPOSE SPDT 6A 48V |
0 |
|
برگه مشخصات |
G2RV | Bulk | Obsolete | DIN Rail | 48VAC/DC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 5.2 mA | Non Latching | Socket Included | Spring Terminal | - | - | 38.4 VAC/DC | 4.8 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn) | CE, cULus, TUV | General Purpose | - | - |
|
G5LA-14 DC5RELAY GEN PURPOSE SPDT 5A 5V |
0 |
|
برگه مشخصات |
G5LA | Tray | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 5 A | 250VAC, 24VDC - Max | 1250VA, 120W | 72 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA | General Purpose | - | - |
|
|
G5LA-14 DC12RELAY GEN PURPOSE SPDT 5A 12V |
0 |
|
برگه مشخصات |
G5LA | Tray | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 250VAC, 24VDC - Max | 1250VA, 120W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA | General Purpose | - | - |
