رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KUE-90005RELAY GEN PURPOSE 10A |
0 |
|
برگه مشخصات |
KUE | Bulk | Obsolete | - | - | - | 10 A | 150VDC - Max | 1500VA | - | Non Latching | - | - | - | - | - | - | 15 ms | 10 ms | - | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|

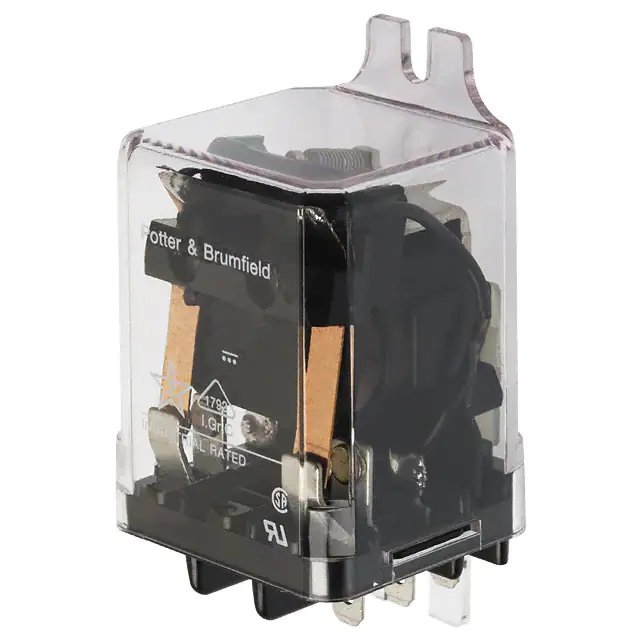

KUGP-7AT5-240RELAY GEN PURPOSE DPST 10A 240V |
0 |
|
برگه مشخصات |
KUGP | Bulk | Obsolete | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 10 A | 240VAC - Max | 2400VA | 12 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 204 VAC | - | 20 ms | 15 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KUH-4006-2RELAY |
0 |
|
- |
KUH | Bulk | Obsolete | - | - | - | - | 240VAC - Max | - | - | Non Latching | - | - | - | Class B | - | - | 20 ms | 20 ms | - | - | - | General Purpose | - | - |
|
|
KUL-14A15S-90RELAY GEN PURPOSE 3PDT 10A 90V |
0 |
|
برگه مشخصات |
KUL | Bulk | Obsolete | Socketable | 90VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | - | Latching, Single Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 76.5 VAC | - | 25 ms | 25 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KUM-1069RELAY |
0 |
|
- |
KUM | Bulk | Obsolete | - | - | SPST-NO (1 Form A) | 15 A | 277VAC - Max | 4155VA | - | Non Latching | - | - | - | - | - | - | 15 ms | 10 ms | - | - | CSA, UR | General Purpose | - | - |
|
|
KUM-4111RELAY |
0 |
|
- |
KUM | Bulk | Obsolete | - | - | SPST-NC (DB) (1 Form Y) | 15 A | 277VAC - Max | 4155VA | - | Non Latching | - | - | - | - | - | - | 15 ms | 10 ms | - | - | CSA, UR | General Purpose | - | - |
|
KUMP-14D58-36RELAY GEN PURPOSE 3PDT 15A 36V |
0 |
|
برگه مشخصات |
KUMP | Bulk | Obsolete | Chassis Mount | 36VDC | 3PDT (3 Form C) | 15 A | 277VAC - Max | 4155VA | 33.3 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 27 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KUP-14A55-42RELAY GEN PURPOSE 3PDT 10A 42V |
0 |
|
برگه مشخصات |
KUP | Bulk | Active | Chassis Mount | 42VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 64.3 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 35.7 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KUP-14D55-36RELAY GEN PURPOSE 3PDT 10A 36V |
0 |
|
برگه مشخصات |
KUP | Bulk | Active | Chassis Mount | 36VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 33.3 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 27 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KUP-3D55-42RELAY GEN PURPOSE SPST 10A 42V |
0 |
|
برگه مشخصات |
KUP | Bulk | Obsolete | Chassis Mount | 42VDC | SPST-NO (DM) (1 Form X) | 10 A | 240VAC - Max | 2400VA | 28.6 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 31.5 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KUP93-14A51-120RELAY GEN PURPOSE 3PDT 5A 120V |
0 |
|
برگه مشخصات |
KUP93 | Bulk | Obsolete | Chassis Mount | 120VAC | 3PDT (3 Form C) | 5 A | 240VAC, 28VDC - Max | 1200VA, 140W | 24 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
OJ-SS-109DM,000RELAY GENERAL PURPOSE SPST 5A 9V |
0 |
|
برگه مشخصات |
OJ, OEG | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 50 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.3 VDC | 0.45 VDC | 10 ms | 4 ms | -30°C ~ 85°C | Silver (Ag) | CQC, cULus, TUV, VDE | General Purpose | - | - |
-SH-1(05,12)(D,L),394, OMI-SH-124(D,L),300, OUDH-SS-112D,000.jpg)
|
OMI-SH-105LM,394RELAY GEN PURPOSE SPST 10A 5V |
0 |
|
برگه مشخصات |
OMI, OEG | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 108 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.75 VDC | 0.25 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
5-1419122-6RELAY GEN PURPOSE SPST 10A 12V |
0 |
|
برگه مشخصات |
OMI, OEG | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 9 VDC | 0.6 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
OMIH-SH-124L,000RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
برگه مشخصات |
OMIH, OEG | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC | - | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
OSA-SH-224DM5,600MRELAY GEN PURPOSE DPST 5A 24V |
0 |
|
برگه مشخصات |
OSA, OEG | Tube | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 1.2 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
OZ-SS-112LM1F,000RELAY GEN PURPOSE SPST 16A 12V |
0 |
|
برگه مشخصات |
OZ, OEG | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
OZ-SS-124LM1,200RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
برگه مشخصات |
OZ, OEG | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
|
PCF-105D2M,000RELAY GEN PURPOSE SPST 25A 5V |
0 |
|
برگه مشخصات |
PCF, OEG | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 25 A | 277VAC, 24VDC - Max | 6925VA, 600W | 180 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | - | 3.75 VDC | 0.25 VDC | 20 ms | 10 ms | -30°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, cURus, TUV | General Purpose | - | - |
|
R10-E1L2-115VRELAY GEN PURPOSE DPDT 7.5A 115V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 115VAC | DPDT (2 Form C) | 7.5 A | 120VAC - Nom | - | 12.8 mA | Non Latching | - | Plug In | - | - | 86 VAC | - | - | - | -55°C ~ 75°C | Gold Platinum Silver (AuPtAg) | CSA, UR | General Purpose | - | - |
