رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JQ1-12V-FRELAY GEN PURPOSE SPDT 5A 12V |
0 |
|
برگه مشخصات |
JQ | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 250VAC, 110VDC - Max | 1250VA, 550W | 33.3 mA | Non Latching | - | PC Pin | - | Class E | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JQ1-24V-FRELAY GEN PURPOSE SPDT 5A 24V |
0 |
|
برگه مشخصات |
JQ | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 250VAC, 110VDC - Max | 1250VA, 550W | 16.7 mA | Non Latching | - | PC Pin | - | Class E | 18 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JQ1P-12V-FRELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
برگه مشخصات |
JQ | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 110VDC - Max | 2500VA, 1100W | 33.3 mA | Non Latching | - | PC Pin | - | Class E | 9.6 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JQ1P-24V-FRELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
برگه مشخصات |
JQ | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 110VDC - Max | 2500VA, 1100W | 16.7 mA | Non Latching | - | PC Pin | - | Class E | 19.2 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G5LE-1-G DC9RELAY GEN PURPOSE SPDT 10A 9V |
0 |
|
برگه مشخصات |
G5LE-G | Tray | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 10 A | 35VDC - Max | 350W | 77.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | CSA, VDE, UR | General Purpose | - | - |
|
|
G5LE-1-G DC24RELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
برگه مشخصات |
G5LE-G | Tray | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 35VDC - Max | 350W | 29.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | CSA, VDE, UR | General Purpose | - | - |
|
156-14T100RELAY GEN PURPOSE 4PDT 5A 120V |
0 |
|
- |
156, CII | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 10 mA | Non Latching | - | Solder Lug | - | - | 93.5 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver (Ag) | CSA, TUV, UL | General Purpose | - | - |
|
|
49124B200RELAY GEN PURPOSE SPST 30A 12V |
0 |
|
- |
491, CII | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | - | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | 1.2 VDC | 20 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
49124T200RELAY GEN PURPOSE SPST 30A 120V |
0 |
|
- |
491, CII | Tray | Obsolete | Through Hole | 120VAC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | - | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class B | 102 VAC | 18 VAC | 20 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
9400-03U1999RELAY GEN PURPOSE SPDT 18A 240V |
0 |
|
برگه مشخصات |
9400, Products Unlimited | Bulk | Obsolete | Chassis Mount | 240VAC | SPDT (DB/DM) (1 Form Z) | 18 A | 277VAC - Max | 4986VA | - | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 204 VAC | - | - | - | -40°C ~ 65°C | Silver Alloy | - | General Purpose | - | - |
|
|
K10P-4002RELAY GEN PURPOSE 15A |
0 |
|
برگه مشخصات |
K10 | Tray | Obsolete | - | - | - | 15 A | 120VAC - Nom | - | - | Non Latching | - | - | - | Class B | - | - | 13 ms | 10 ms | -45°C ~ 70°C | - | - | General Purpose | - | - |
|
|
K10P-4323RELAY GEN PURPOSE 15A |
0 |
|
برگه مشخصات |
K10 | Bulk | Obsolete | - | - | - | 15 A | 120VAC - Nom | - | - | Non Latching | - | - | - | Class B | - | - | - | 13 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
KAP-14AG-120RELAY GEN PURPOSE 3PDT 10A 120V |
0 |
|
- |
KAP | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
KB-1228RELAY |
0 |
|
برگه مشخصات |
KB | Bulk | Obsolete | - | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - | - | UR | General Purpose | - | - |
|
|
KB-17DG-12RELAY GEN PURPOSE 4PDT 10A 12V |
0 |
|
برگه مشخصات |
KB | Bulk | Obsolete | Chassis Mount | 12VDC | 4PDT (4 Form C) | 10 A | 120VAC - Nom | - | 230 mA | Latching, Dual Coil | - | Solder Lug | - | - | 9 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|

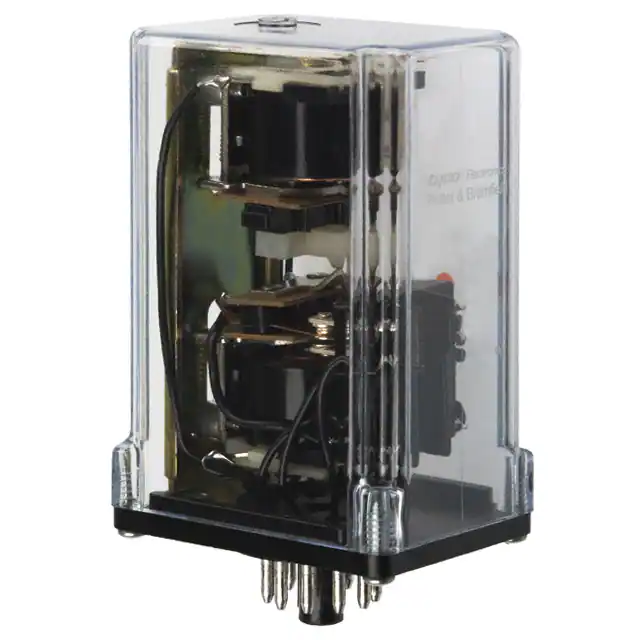

KBP-11DG-48RELAY GEN PURPOSE DPDT 10A 48V |
0 |
|
برگه مشخصات |
KBP | Bulk | Obsolete | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 120VAC - Nom | - | 56.5 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 36 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
KH-4271-5RELAY DRY CIRCUIT |
0 |
|
برگه مشخصات |
KH | Bulk | Obsolete | - | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
|
KH-4487-2RELAY DRY CIRCUIT |
0 |
|
برگه مشخصات |
KH | Bulk | Obsolete | - | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
|
KH-4641RELAY DRY CIRCUIT |
0 |
|
برگه مشخصات |
KH | Bulk | Obsolete | - | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
|
KH-4642-1RELAY DRY CIRCUIT |
0 |
|
برگه مشخصات |
KH | Bulk | Active | - | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - | - | - | General Purpose | - | - |
