رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM2C05PCM4LA22000GRELAY GEN PURPOSE DPDT 5A 220V |
1,000 |
|
برگه مشخصات |
AM | Box | Active | Socketable | 220VAC | DPDT (2 Form C) | 5 A | 277VAC, 28VDC - Max | 1385VA, 140W | 14.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 176 VAC | 33 VAC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Nickel (AgNi) | cURus, UL | General Purpose | - | - |
|
|
G2R-1A-H DC24RELAY GEN PURPOSE SPST 5A 24V |
107 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
4-1415538-9RELAY GEN PURPOSE SPST 16A 24V |
27 |
|
برگه مشخصات |
RT1, SCHRACK | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 9 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
RY532012RELAY GEN PURPOSE SPST 8A 12V |
950 |
|
برگه مشخصات |
RY, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 19.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
AM2C05SCM4LA22000GRELAY GEN PURPOSE DPDT 5A 220V |
1,000 |
|
برگه مشخصات |
AM | Box | Active | Socketable | 220VAC | DPDT (2 Form C) | 5 A | 277VAC, 28VDC - Max | 1385VA, 140W | 14.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 176 VAC | 33 VAC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Nickel (AgNi) | cURus, UL | General Purpose | - | - |
|
G5CA-1A-H DC12RELAY GEN PURPOSE SPST 10A 12V |
143 |
|
برگه مشخصات |
G5CA | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 12.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9.6 VDC | 1.2 VDC | 15 ms | 10 ms | -25°C ~ 70°C | - | CQC, CSA, TUV, UR | General Purpose | - | - |
|
L115F11AH12VDCS1.5RELAY GEN PURPOSE SPST 50A 12V |
390 |
|
برگه مشخصات |
L115F1 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 9.6 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
G6B-1114P-US DC3RELAY GEN PURPOSE SPST 5A 3V |
539 |
|
برگه مشخصات |
G6B | Bulk | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.1 VDC | 0.3 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
J1522CF120VACRELAY GEN PURPOSE DPDT 10A 120V |
142 |
|
برگه مشخصات |
J152 | Tray | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 10 A | 300VAC - Max | 3000VA | 26.4 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, TUV | General Purpose | - | - |
|
|
G6BK-1114P-1-US DC12RELAY GEN PURPOSE SPST 5A 12V |
882 |
|
برگه مشخصات |
G6B | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 23.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
|
L115F11AH24VDCS1.5RELAY GEN PURPOSE SPST 50A 24V |
273 |
|
برگه مشخصات |
L115F1 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 62.5 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 19.2 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
PE014048RELAY GEN PURPOSE SPDT 5A 48V |
250 |
|
برگه مشخصات |
PE, SCHRACK | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 4.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 36 VDC | 4.8 VDC | 8 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
G6C-2117P-US DC3RELAY GENERAL PURPOSE DPST 8A 3V |
1,818 |
|
برگه مشخصات |
G6C | Bulk | Active | Through Hole | 3VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 67 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 2.1 VDC | 0.3 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
J1511CF240VAC1.2RELAY GEN PURPOSE SPDT 20A 240V |
456 |
|
برگه مشخصات |
J151 | Tray | Active | Chassis Mount | 240VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 12.6 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|

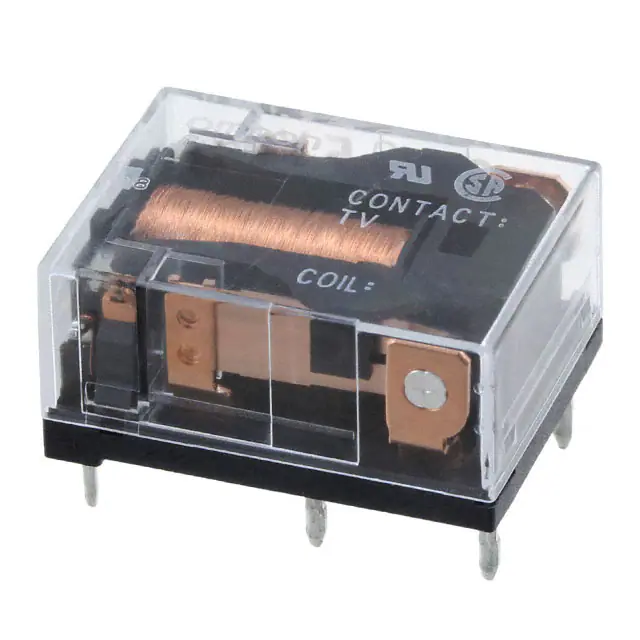

G6CU-1117P-FD-US DC12RELAY GEN PURPOSE SPST 10A 12V |
945 |
|
برگه مشخصات |
G6C | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 16.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Indium Tin (AgInSn) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
AM2C10SCLA22000GRELAY GEN PURPOSE DPDT 10A 220V |
1,000 |
|
برگه مشخصات |
AM | Box | Active | Socketable | 220VAC | DPDT (2 Form C) | 10 A | 277VAC, 28VDC - Max | 2770VA, 280W | 14.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 176 VAC | 33 VAC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Nickel (AgNi) | cURus, UL | General Purpose | - | - |
|
T9GV1L14-110RELAY GEN PURPOSE SPST 30A 110V |
335 |
|
برگه مشخصات |
T9G | Tube | Active | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 480VAC - Max | 14400VA | 8.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 82.5 VDC | 11 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
4-1419136-1RELAY GEN PURPOSE SPST 16A 5V |
7,425 |
|
برگه مشخصات |
RT1, SCHRACK | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 119 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 2.8 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
G6CU-1117P-US DC24RELAY GEN PURPOSE SPST 10A 24V |
829 |
|
برگه مشخصات |
G6C | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 8.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
L115F11CH5VDCS1.5RELAY GEN PURPOSE SPDT 50A 5V |
283 |
|
برگه مشخصات |
L115F1 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 299.4 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 4 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
