رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T9GV5L14-110RELAY GEN PURPOSE SPDT 20A 110V |
118 |
|
برگه مشخصات |
T9G | Tube | Active | Through Hole | 110VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 8.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 82.5 VDC | 11 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
AM4C05PCM4LA22000GRELAY GEN PURPOSE 4PDT 5A 220V |
1,000 |
|
برگه مشخصات |
AM | Box | Active | Socketable | 220VAC | 4PDT (4 Form C) | 5 A | 277VAC, 28VDC - Max | 1385VA, 140W | 14.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 176 VAC | 33 VAC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Nickel (AgNi) | cURus, UL | General Purpose | - | - |
|
|
AL2C10PCM4LD02400GRELAY GEN PURPOSE DPDT 10A 24V |
1,000 |
|
برگه مشخصات |
AL | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 277VAC, 28VDC - Max | 2770VA, 280W | 36.9 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Tin Oxide (AgSnO) | cURus, UL | General Purpose | - | - |
|
T9GS5L14-110RELAY GEN PURPOSE SPDT 20A 110V |
125 |
|
برگه مشخصات |
T9G | Bulk | Active | Through Hole | 110VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 8.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
2-1415898-6RELAY GEN PURPOSE SPST 16A 24V |
1,000 |
|
برگه مشخصات |
RT1, Inrush, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 480VAC - Max | 6400VA | 27.1 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | - | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
AL2C10SCM4LA22000GRELAY GEN PURPOSE DPDT 10A 220V |
1,000 |
|
برگه مشخصات |
AL | Box | Active | Socketable | 220VAC | DPDT (2 Form C) | 10 A | 277VAC, 28VDC - Max | 2770VA, 280W | 14.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 176 VAC | 33 VAC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Tin Oxide (AgSnO) | cURus, UL | General Purpose | - | - |
|
|
AM4C10SCM4LA22000GRELAY GEN PURPOSE 4PDT 10A 220V |
1,000 |
|
برگه مشخصات |
AM | Box | Active | Socketable | 220VAC | 4PDT (4 Form C) | 10 A | 277VAC, 28VDC - Max | 2770VA, 280W | 14.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 176 VAC | 33 VAC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Nickel (AgNi) | cURus, UL | General Purpose | - | - |
|
|
AL2C10PCM4LA22000GRELAY GEN PURPOSE DPDT 10A 220V |
1,000 |
|
برگه مشخصات |
AL | Box | Active | Socketable | 220VAC | DPDT (2 Form C) | 10 A | 277VAC, 28VDC - Max | 2770VA, 280W | 14.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 176 VAC | 33 VAC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Tin Oxide (AgSnO) | cURus, UL | General Purpose | - | - |
|
|
AL2C20PCM4LA22000GRELAY GEN PURPOSE DPDT 20A 220V |
1,000 |
|
برگه مشخصات |
AL | Box | Active | Socketable | 220VAC | DPDT (2 Form C) | 20 A | 277VAC, 28VDC - Max | 5540VA, 560W | 14.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 176 VAC | 33 VAC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Tin Oxide (AgSnO) | cURus, UL | General Purpose | - | - |
|

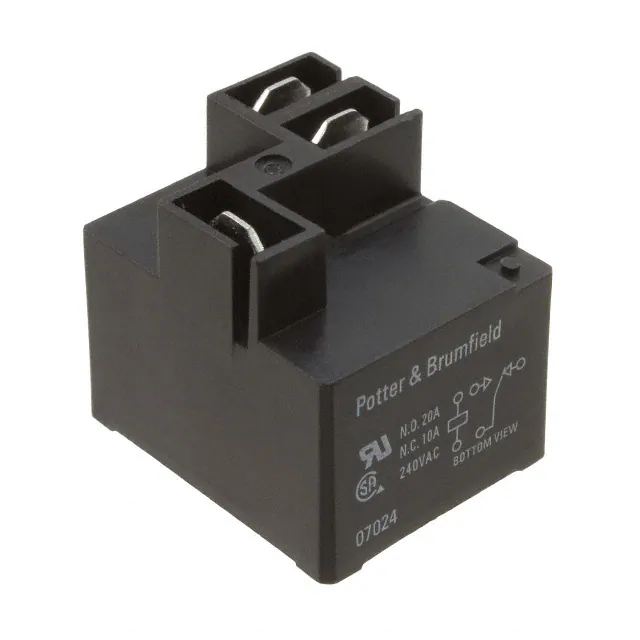

T9AS5L22-12RELAY GEN PURPOSE SPDT 20A 12V |
0 |
|
برگه مشخصات |
T9A | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
T9GV5L24-110RELAY GEN PURPOSE SPDT 20A 110V |
104 |
|
برگه مشخصات |
T9G | Bulk | Active | Through Hole | 110VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 8.2 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 82.5 VDC | 11 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
G6CU-1114P-US DC5RELAY GEN PURPOSE SPST 10A 5V |
173 |
|
برگه مشخصات |
G6C | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 40 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
T9GS5L24-110RELAY GEN PURPOSE SPDT 20A 110V |
105 |
|
برگه مشخصات |
T9G | Tube | Active | Through Hole | 110VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 8.2 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
3-1415402-1RELAY GEN PURPOSE SPDT 16A 12V |
1,240 |
|
برگه مشخصات |
RT1, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 6.6 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
G6CU-1114P-FD-US DC3RELAY GEN PURPOSE SPST 10A 3V |
2,980 |
|
برگه مشخصات |
G6C | Bulk | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 67 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 2.1 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Indium Tin (AgInSn) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G6B-2114P-FD-US DC24RELAY GEN PURPOSE DPST 5A 24V |
388 |
|
برگه مشخصات |
G6B | Bulk | Active | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 12.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Indium Tin (AgInSn) | CSA, TUV, UR | General Purpose | - | - |
|
G6CU-2114P-US DC3RELAY GEN PURPOSE DPST 8A 3V |
1,001 |
|
برگه مشخصات |
G6C | Bulk | Active | Through Hole | 3VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 67 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 2.1 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
8-1415528-1RELAY GEN PURPOSE SPST 16A 5V |
4,103 |
|
برگه مشخصات |
RT1, Inrush, SCHRACK | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 80 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | - | 10 ms | 10 ms | -10°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
AL4C12SCLD02400GRELAY GEN PURPOSE 4PDT 12A 24V |
1,000 |
|
برگه مشخصات |
AL | Box | Active | Socketable | 24VDC | 4PDT (4 Form C) | 12 A | 277VAC, 28VDC - Max | 3324VA, 336W | 36.9 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Tin Oxide (AgSnO) | cURus, UL | General Purpose | - | - |
|
AZ2850-2C-12DERELAY EV CHG SOLAR DPDT 3A 12V |
195 |
|
برگه مشخصات |
AZ2850 | Tray | Active | Through Hole | 12VDC | DPDT (2 Form C) | 3 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 140 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
