رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

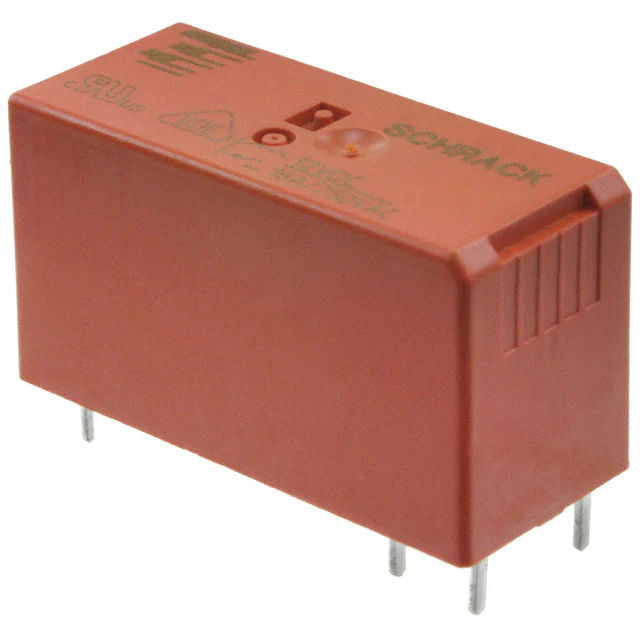

RTX3-1AT-B012RELAY GEN PURPOSE SPST 16A 12V |
101 |
|
برگه مشخصات |
RTX, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Nom | - | 54 mA | Latching, Single Coil | - | PC Pin | - | Class F | 9 VDC | - | - | - | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Tungsten (W) | cURus, VDE | General Purpose | - | - |
|
KHAU-17A12-24RELAY GEN PURPOSE 4PDT 5A 24V |
107 |
|
برگه مشخصات |
KHA | Tray | Active | Socketable | 24VAC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 52 mA | Non Latching | - | Plug In | - | Class B | 20.4 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
V23148-B0008-A101RELAY GEN PURPOSE SPDT 7A 48V |
2 |
|
برگه مشخصات |
V23148, SCHRACK | Bulk | Active | Through Hole | 48VDC | SPDT (1 Form C) | 7 A | 400VAC - Max | 2800VA | 16.7 mA | Latching, Single Coil | - | PC Pin | - | - | 37.4 VDC | - | 5 ms | 3 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
V23148-B0005-A101RELAY GEN PURPOSE SPDT 7A 12V |
242 |
|
برگه مشخصات |
V23148, SCHRACK | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 7 A | 400VAC - Max | 2800VA | 16.7 mA | Latching, Single Coil | - | PC Pin | - | - | 9.4 VDC | - | 5 ms | 3 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
T92S7D12-18RELAY GEN PURPOSE DPST 30A 18V |
235 |
|
برگه مشخصات |
T92 | Bulk | Active | Through Hole | 18VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 94.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
T92S7D22-110RELAY GEN PURPOSE DPST 30A 110V |
327 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 110VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 15.5 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 82.5 VDC | 11 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
KUP-14D11-24RELAY GEN PURPOSE 3PDT 5A 24V |
148 |
|
برگه مشخصات |
KUP | Bulk | Active | Socketable | 24VDC | 3PDT (3 Form C) | 5 A | 240VAC - Max | 1200VA | 51 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
SP2-L2-DC6VRELAY GEN PURPOSE DPDT 15A 6V |
193 |
|
برگه مشخصات |
SP | Box | Active | Socketable | 6VDC | DPDT (2 Form C) | 15 A | 250VAC, 30VDC - Max | 3750VA, 450W | 50 mA | Latching, Dual Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 4.2 VDC | - | 30 ms | 30 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
|
T92P7A22-277RELAY GEN PURPOSE DPST 30A 277V |
235 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 277VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 14.4 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 221.6 VAC | 27.7 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
KHAU-17A11-12RELAY GEN PURPOSE 4PDT 3A 12V |
225 |
|
برگه مشخصات |
KHA | Bulk | Active | Socketable | 12VAC | 4PDT (4 Form C) | 3 A | 240VAC - Nom | - | 100 mA | Non Latching | - | Plug In | - | Class B | 10.2 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
6-1423008-5T92S7D1X-24-99 |
0 |
|
برگه مشخصات |
T92 | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 68.6 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Alloy, Cadmium Free | UR | General Purpose | - | - |
|
G7L-2A-BJ AC200/240RELAY GEN PURPOSE DPST 25A 240V |
119 |
|
برگه مشخصات |
G7L | Bulk | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 10.2 mA | Non Latching | Test Button | Screw Terminal | - | - | 150 VAC | 36 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
KRPA-14AY-24RELAY GEN PURPOSE 3PDT 5A 24V |
146 |
|
برگه مشخصات |
KRPA | Tray | Active | Socketable | 24VAC | 3PDT (3 Form C) | 5 A | 240VAC - Max | 1200VA | 84 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | Class B | 20.4 VAC | - | - | - | -45°C ~ 55°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
7-1393234-3RELAY GEN PURPOSE DPDT 8A 12V |
980 |
|
برگه مشخصات |
RP II/2, SCHRACK | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 114.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | - | 9 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
KUP-11A11-120RELAY GEN PURPOSE DPDT 5A 120V |
123 |
|
برگه مشخصات |
KUP | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 5 A | 240VAC - Max | 1200VA | 17.5 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
6-1423008-8T92S7D2X-24-99 |
0 |
|
برگه مشخصات |
T92 | Tray | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 68.6 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Alloy, Cadmium Free | UR | General Purpose | - | - |
|
|
T92S7D12-110RELAY GEN PURPOSE DPST 30A 110V |
9 |
|
برگه مشخصات |
T92 | Bulk | Active | Through Hole | 110VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 15.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
KUP-5A15-240RELAY GEN PURPOSE SPDT 10A 240V |
124 |
|
برگه مشخصات |
KUP | Bulk | Active | Socketable | 240VAC | SPDT (1 Form C) | 10 A | 240VAC - Max | 2400VA | 8.8 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 204 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KUP-5D15-12RELAY GEN PURPOSE SPDT 10A 12V |
137 |
|
برگه مشخصات |
KUP | Bulk | Active | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 240VAC - Max | 2400VA | 100 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
T92S7A12-240RELAY GEN PURPOSE DPST 30A 240V |
229 |
|
برگه مشخصات |
T92 | Bulk | Active | Through Hole | 240VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 192 VAC | 24 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
