رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T92P11D24-24RELAY GEN PURPOSE DPDT 30A 24V |
170 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 68.6 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -55°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | UR | General Purpose | - | - |
|
KHAU-17D12-110RELAY GEN PURPOSE 4PDT 5A 110V |
151 |
|
برگه مشخصات |
KHA | Bulk | Active | Socketable | 110VDC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 8.2 mA | Non Latching | - | Plug In | - | Class B | 82.5 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KUP-14A55-12RELAY GEN PURPOSE 3PDT 10A 12V |
147 |
|
برگه مشخصات |
KUP | Bulk | Active | Chassis Mount | 12VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 230 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 10.2 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
TMR120-1H4-B012D10,03000RELAY GEN PURPOSE SPST 120A 12V |
1,064 |
|
برگه مشخصات |
TMR | Tray | Active | Free Hanging | 12VDC | SPST-NO (1 Form A) | 120 A | 24VDC - Nom | - | 250 mA | Latching, Single Coil | - | PC Pin, Solder Turret, Stud | - | Class F | 9.6 VDC | - | 30 ms | 30 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
T92P11D24-12RELAY GEN PURPOSE DPDT 30A 12V |
196 |
|
برگه مشخصات |
T92 | Tray | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 140 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | UR | General Purpose | - | - |
|
KRPA-11DYF-24RELAY GEN PURPOSE DPDT 5A 24V |
143 |
|
برگه مشخصات |
KRPA | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 240VAC - Max | 1200VA | 51 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 18 VDC | - | - | - | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
KRPA-11DG-6RELAY GEN PURPOSE DPDT 10A 6V |
147 |
|
برگه مشخصات |
KRPA | Tray | Active | Socketable | 6VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 188 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 4.5 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KRPA-11AY-24RELAY GEN PURPOSE DPDT 5A 24V |
108 |
|
برگه مشخصات |
KRPA | Tray | Active | Socketable | 24VAC | DPDT (2 Form C) | 5 A | 240VAC - Max | 1200VA | 84 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 20.4 VAC | - | - | - | -45°C ~ 55°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
T92S7D14-12RELAY GEN PURPOSE DPST 30A 12V |
230 |
|
برگه مشخصات |
T92 | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 139.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -55°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | UR | General Purpose | - | - |
|
|
7-1423008-5T92HS7D1X-24 |
120 |
|
برگه مشخصات |
T92H | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 50 A | 600VAC - Max | 30000VA | 68.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -55°C ~ 85°C | Silver Alloy, Cadmium Free | UR | General Purpose | - | - |
|
|
KRPA-11AY-12RELAY GEN PURPOSE DPDT 5A 12V |
131 |
|
برگه مشخصات |
KRPA | Tray | Active | Socketable | 12VAC | DPDT (2 Form C) | 5 A | 240VAC - Max | 1200VA | 168 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 10.2 VAC | - | - | - | -45°C ~ 55°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
KRPA-11AY-240RELAY GEN PURPOSE DPDT 5A 240V |
114 |
|
برگه مشخصات |
KRPA | Bulk | Active | Socketable | 240VAC | DPDT (2 Form C) | 5 A | 240VAC - Max | 1200VA | 8.8 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 204 VAC | - | - | - | -45°C ~ 55°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
T92HP7A2X-120POWER RELAYS, STANDARD, MONOSTAB |
115 |
|
برگه مشخصات |
T92H | Tray | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 45 A | 600VAC - Max | 27000VA | 130 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 96 VAC | 12 VAC | 25 ms | 25 ms | -55°C ~ 85°C | Silver Alloy, Cadmium Free | UR | General Purpose | - | - |
|
|
KRPA-5DG-12RELAY GEN PURPOSE SPDT 10A 12V |
102 |
|
برگه مشخصات |
KRPA | Bulk | Active | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 240VAC - Max | 2400VA | 100 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 9 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KUP-14A45F-120RELAY GEN PURPOSE 3PDT 10A 120V |
121 |
|
برگه مشخصات |
KUP | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 24 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO), Gold (Au) | CSA, UR | General Purpose | - | - |
|
R10-E2Y2-V52RELAY GEN PURPOSE DPDT 3A 6V |
1,744 |
|
برگه مشخصات |
R10 | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 115 mA | Non Latching | - | PC Pin | - | - | 4.5 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
KRPA-5AG-24RELAY GEN PURPOSE SPDT 10A 24V |
146 |
|
برگه مشخصات |
KRPA | Tray | Active | Socketable | 24VAC | SPDT (1 Form C) | 10 A | 240VAC - Max | 2400VA | 84 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 20.4 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KRPA-5AY-120RELAY GEN PURPOSE SPDT 5A 120V |
132 |
|
برگه مشخصات |
KRPA | Tray | Active | Socketable | 120VAC | SPDT (1 Form C) | 5 A | 240VAC - Max | 1200VA | 17.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 55°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|

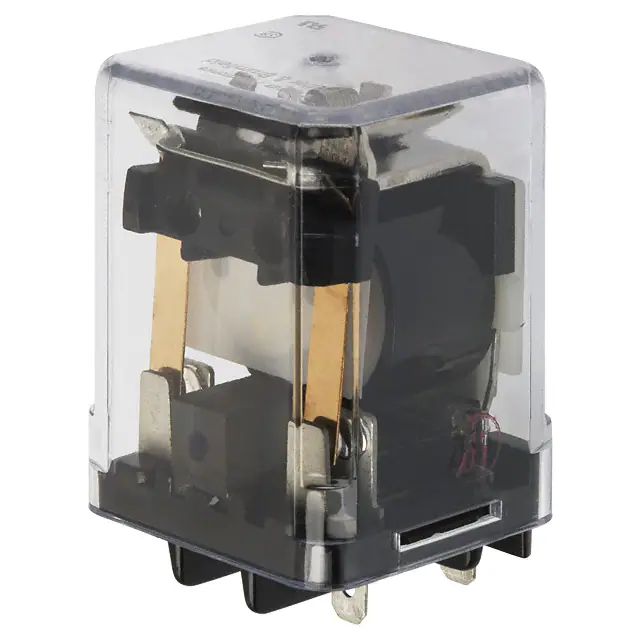

KUEP-3D15-48RELAY GEN PURPOSE SPST 10A 48V |
106 |
|
برگه مشخصات |
KUEP | Bulk | Active | Socketable | 48VDC | SPST-NO (DM) (1 Form X) | 10 A | 150VDC - Max | 1500VA | 26.7 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 36 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
R10-E1Y2-J1.0KRELAY GEN PURPOSE DPDT 3A 12V |
329 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 45 mA | Non Latching | - | Plug In | - | - | 8.5 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
