رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T92P7D14-12RELAY GEN PURPOSE DPST 12V |
0 |
|
- |
T92 | Bulk | Active | Socketable | 12VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 140 mA | Non Latching | - | Plug In | - | Class F | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -55°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | UR | General Purpose | - | - |
|
|
RER-J1C-D24RELAY GEN PURPOSE SPDT 10A 24V |
876 |
|
- |
RER-J1C | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | - | 21.8 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
RMD05024RELAY GEN PURPOSE SPST 30A 24V |
0 |
|
برگه مشخصات |
RMC/D, SCHRACK | Bulk | Obsolete | Chassis Mount | 24VDC | SPST-NO (DM) (1 Form X) | 30 A | 440VAC - Max | 13200VA | 50 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
G6B-1177P-ND-US DC24RELAY GEN PURPOSE SPST 8A 24V |
2,784 |
|
برگه مشخصات |
G6B | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
KRPA-5DG-24RELAY GEN PURPOSE SPDT 10A 24V |
112 |
|
برگه مشخصات |
KRPA | Tray | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 18 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
1393230-4RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
برگه مشخصات |
RP3SL, SCHRACK | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 52 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | - | 30 ms | 25 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
KRPA-14AY-240RELAY GEN PURPOSE 3PDT 5A 240V |
121 |
|
برگه مشخصات |
KRPA | Bulk | Obsolete | Socketable | 240VAC | 3PDT (3 Form C) | 5 A | 240VAC - Max | 1200VA | 8.8 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | Class B | 204 VAC | - | - | - | -45°C ~ 55°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
T92S11A22-12RELAY GEN PURPOSE DPDT 30A 12V |
0 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 12VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 333 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 9.6 VAC | 1.2 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
SR4M4015RELAY GEN PURPOSE 4PST 8A 15V |
0 |
|
برگه مشخصات |
SR4M, SCHRACK | Tube | Active | Through Hole | 15VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 8 A | 400VAC - Max | 3200VA | 53.4 mA | Non Latching | - | PC Pin | - | - | 11.3 VDC | 1.5 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO) | CCC, cURus, TUV, VDE | General Purpose | - | - |
|
RUMF22B7HARMONY, UNIVERSAL PLUG-IN RELAY |
267 |
|
برگه مشخصات |
Harmony | Box | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 333.3 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VAC | 3.6 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|
1415430-3RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
برگه مشخصات |
430 3mm, SCHRACK | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 41 mA | Non Latching | - | PC Pin | - | - | 15.6 VDC | 1.2 VDC | - | - | -20°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|

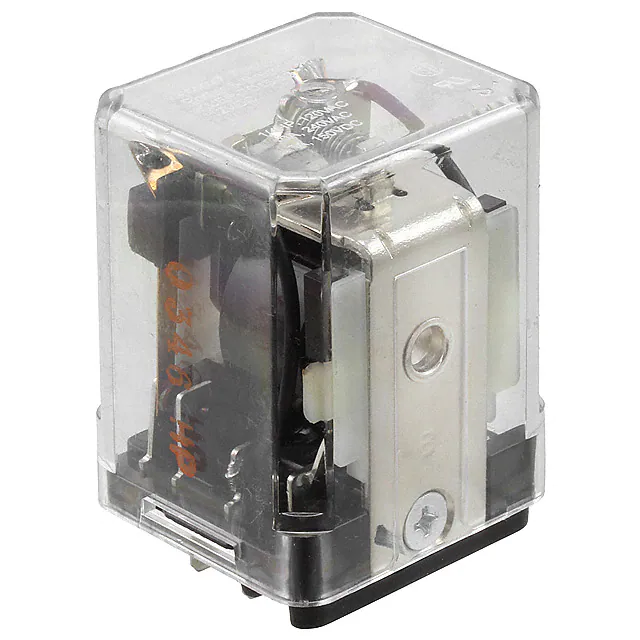

KUEP-7D15-12RELAY GEN PURPOSE DPST 10A 12V |
104 |
|
برگه مشخصات |
KUEP | Bulk | Obsolete | Socketable | 12VDC | DPST-NO (2 Form A) | 10 A | 150VDC - Max | 1500VA | 150 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
.jpg)
|
KUP-11AA5-24RELAY GEN PURPOSE DPDT 10A 24V |
148 |
|
برگه مشخصات |
KUP | Bulk | Obsolete | Chassis Mount | 24VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 84 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
2-1393216-5RELAY GEN PURPOSE SPDT 8A 12V |
0 |
|
برگه مشخصات |
V23057, SCHRACK | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 36.4 mA | Non Latching | - | PC Pin | - | - | 8.3 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
MT336115RELAY GEN PURPOSE 3PDT 10A 115V |
0 |
|
برگه مشخصات |
MT, SCHRACK | Bulk | Obsolete | Socketable | 115VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 2500VA | 57.5 mA | Non Latching | Test Button | Plug In, 11 Pin (Octal) | - | Class B | 92 VAC | 46 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
RUMF32JDHARMONY, UNIVERSAL PLUG-IN RELAY |
199 |
|
برگه مشخصات |
Harmony | Box | Obsolete | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 100 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|
|
KUIP-11D55-12RELAY GEN PURPOSE DPDT 10A 12V |
0 |
|
برگه مشخصات |
KUIP | Bulk | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 100 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 20 ms | 15 ms | -45°C ~ 95°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
8-1415537-6SR6B6L10 |
0 |
|
برگه مشخصات |
SR6, SCHRACK | Bulk | Active | Through Hole | 110VDC | 6PST-4NO/2NC (4 Form A, 2 Form B) | 8 A | 400VAC - Max | 3200VA | 7.3 mA | Non Latching | - | PC Pin | - | - | 82.5 VDC | 11 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | cURus, TUV, VDE | General Purpose | - | - |
|
KU-11A31-120RELAY GEN PURPOSE DPDT 5A 120V |
105 |
|
برگه مشخصات |
KU | Bulk | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 5 A | 240VAC - Max | - | 17.5 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
6-1415537-4RELAY GEN PURPOSE 6PST 8A 21V |
0 |
|
برگه مشخصات |
SR6A, SCHRACK | Tube | Active | Through Hole | 21VDC | 6PST-3NO/3NC (3 Form A, 3 Form B) | 8 A | 400VAC - Max | 3200VA | 38.1 mA | Non Latching | - | PC Pin | - | - | 16 VDC | 2.1 VDC | - | - | -25°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | CCC, cURus, TUV, VDE | General Purpose | - | - |
