رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R10-E1Y4-JJ1.0KRELAY GEN PURPOSE 4PDT 3A 5V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 5VDC | 4PDT (4 Form C) | 3 A | 120VAC - Nom | - | 45 mA | Non Latching | - | Plug In | - | - | 4.5 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
KUP-11A55-240RELAY GEN PURPOSE DPDT 10A 240V |
72 |
|
برگه مشخصات |
KUP | Bulk | Obsolete | Chassis Mount | 240VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 8.8 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 204 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KA-5AG-120RELAY GEN PURPOSE SPDT 10A 120V |
0 |
|
برگه مشخصات |
KA | Bulk | Obsolete | Chassis Mount | 120VAC | SPDT (1 Form C) | 10 A | 240VAC - Nom | - | 17.5 mA | Non Latching | - | Solder Lug | - | Class B | 102 VAC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
RER-110-5BRELAY GEN PURPOSE SPDT 6A 60V |
150 |
|
برگه مشخصات |
RER-110 | Bulk | Active | DIN Rail | 110VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 30VDC - Max | - | 3.4 mA | Non Latching | Lighted Indicator, Surge Protection | Spring Terminal | - | - | - | - | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
ADQM26024RELAY GEN PURPOSE SPST 60A 24V |
32 |
|
برگه مشخصات |
ADQM | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 60 A | 250VAC - Max | 15000VA | 41.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 19.2 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free | - | General Purpose | - | - |
|
|
R10S-E1P1-J1.0KRELAY GEN PURPOSE SPDT 3A 5V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 5VDC | SPDT (1 Form C) | 3 A | 120VAC - Nom | - | 3.2 mA | Non Latching | - | Plug In | - | - | 3.25 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
PRD-5DY3-110RELAY GEN PURPOSE SPDT 25A 110V |
0 |
|
برگه مشخصات |
PRD | Bulk | Obsolete | Chassis Mount | 110VDC | SPDT (1 Form C) | 25 A | 600VAC, 125VDC - Nom | - | 18.2 mA | Non Latching | - | Screw Terminal, Quick Connect - 0.250" (6.3mm) | - | Class B | 82.5 VDC | 11 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
KHU-17A11-24RELAY GEN PURPOSE 4PDT 3A 24V |
0 |
|
برگه مشخصات |
KH | Bulk | Obsolete | Socketable | 24VAC | 4PDT (4 Form C) | 3 A | 240VAC - Nom | - | 52 mA | Non Latching | - | Plug In | - | Class B | 20.4 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
KUP-17A55-120RELAY GEN PURPOSE 4PDT 10A 120V |
121 |
|
برگه مشخصات |
KUP | Bulk | Obsolete | Chassis Mount | 120VAC | 4PDT (4 Form C) | 10 A | 240VAC - Max | 2400VA | 24 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KRPA-11AG-12RELAY GEN PURPOSE DPDT 10A 12V |
0 |
|
برگه مشخصات |
KRPA | Tray | Obsolete | Socketable | 12VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 168 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 10.2 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KUP-14AT5-24RELAY GEN PURPOSE 3PDT 10A 24V |
93 |
|
برگه مشخصات |
KUP | Tray | Obsolete | Chassis Mount | 24VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 115 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KA-5DG-6RELAY GEN PURPOSE SPDT 10A 6V |
0 |
|
برگه مشخصات |
KA | Bulk | Obsolete | Chassis Mount | 6VDC | SPDT (1 Form C) | 10 A | 240VAC - Nom | - | 188 mA | Non Latching | - | Solder Lug | - | Class B | 4.5 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KUMP-7D58-36RELAY GEN PURPOSE DPST 15A 36V |
0 |
|
برگه مشخصات |
KUMP | Bulk | Obsolete | Chassis Mount | 36VDC | DPST-NO (2 Form A) | 15 A | 277VAC - Max | 4155VA | 33.3 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 27 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KUMP-11A18-24RELAY GEN PURPOSE DPDT 15A 24V |
0 |
|
برگه مشخصات |
KUMP | Bulk | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 15 A | 277VAC - Max | 4155VA | 115 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
R10-E1Y4-JJ2.5KRELAY GEN PURPOSE 4PDT 3A 12V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 12VDC | 4PDT (4 Form C) | 3 A | 120VAC - Nom | - | 28 mA | Non Latching | - | Plug In | - | - | 10.2 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
KA-5DG-110RELAY GEN PURPOSE SPDT 10A 110V |
63 |
|
برگه مشخصات |
KA | Tray | Obsolete | Chassis Mount | 110VDC | SPDT (1 Form C) | 10 A | 240VAC - Nom | - | 11.5 mA | Non Latching | - | Solder Lug | - | Class B | 82.5 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KA-5AY-120RELAY GEN PURPOSE SPDT 5A 120V |
0 |
|
برگه مشخصات |
KA | Bulk | Obsolete | Chassis Mount | 120VAC | SPDT (1 Form C) | 5 A | 240VAC - Nom | - | 17.5 mA | Non Latching | - | Solder Lug | - | Class B | 102 VAC | - | - | - | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
PRD-7DH0-12RELAY GEN PURPOSE DPST 20A 12V |
29 |
|
برگه مشخصات |
PRD | Bulk | Obsolete | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 20 A | 600VAC, 125VDC - Nom | - | 169 mA | Non Latching | - | Screw Terminal | - | Class B | 9 VDC | 1.2 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|

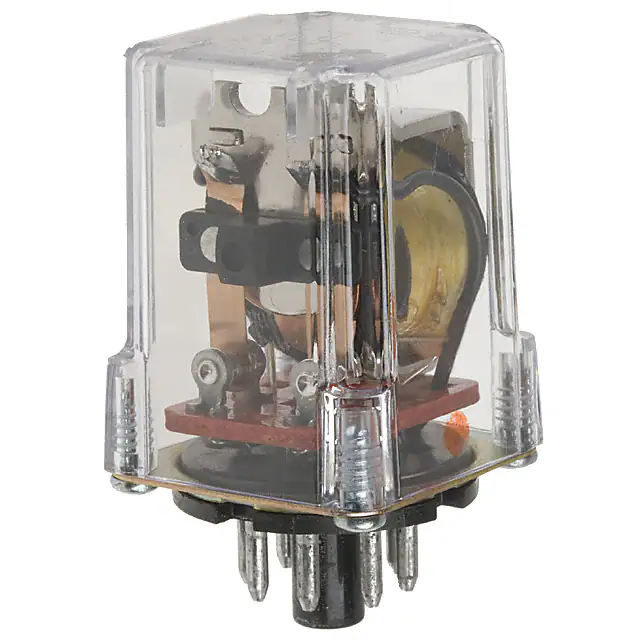

KRP-11DG-12RELAY GEN PURPOSE DPDT 10A 12V |
7 |
|
برگه مشخصات |
KRP | Bulk | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 100 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 9 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KRP-11DG-24RELAY GEN PURPOSE DPDT 10A 24V |
79 |
|
برگه مشخصات |
KRP | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 18 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
