رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RH1B-ULD-DC24VRELAY GEN PURPOSE SPDT 10A 24V |
26 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 32 mA | Non Latching | Diode, Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
RV8H-L-AD24RELAY GEN PURPOSE SPDT 6A 24V |
59 |
|
برگه مشخصات |
RV8 | Bulk | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 400VAC, 125VDC - Max | 2400VA, 750W | 13.7 mA | Non Latching | Socket Included | Screw Terminal | - | - | 21.6 VAC/DC | 1.68 VAC/DC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, cULus | General Purpose | - | - |
|
K10P-11D55-24RELAY GEN PURPOSE DPDT 15A 24V |
32 |
|
برگه مشخصات |
K10 | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 15 A | 120VAC - Nom | - | 37 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 2.4 VDC | 13 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
, G2R-1-S-DC12S, G2R-1-S-DC24S, G2R-1-S-DC48(S).jpg)
|
G2R-1-SNDI DC24(S)RELAY GEN PURPOSE SPDT 10A 24V |
72 |
|
برگه مشخصات |
G2RS | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 21.6 mA | Non Latching | Diode, Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 16.8 VDC | 3.6 VDC | 15 ms | 20 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|
G2R-2-SN AC120(S)RELAY GEN PURPOSE DPDT 5A 120V |
58 |
|
برگه مشخصات |
G2RS | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 7.5 mA | Non Latching | Lighted Indicator | Plug In | - | - | 96 VAC | 36 VAC | 15 ms | 15 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|
2900305RELAY GEN PURPOSE SPDT 6A 230V |
71 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 3.2 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 7 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|
24612-03-BXCVP RELAY |
52 |
|
برگه مشخصات |
- | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 200 A | 14VDC - Max | - | 3.2 A | Non Latching | - | Stud | - | - | - | - | - | - | -40°C ~ 59°C | Copper | - | General Purpose | - | - |
|
KUP-11A55-24RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
برگه مشخصات |
KUP | Bulk | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 84 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
2967109RELAY GEN PURPOSE DPST 6A 24V |
54 |
|
برگه مشخصات |
PLC-RSC | Bulk | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 6 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 8 ms | 10 ms | -25°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|

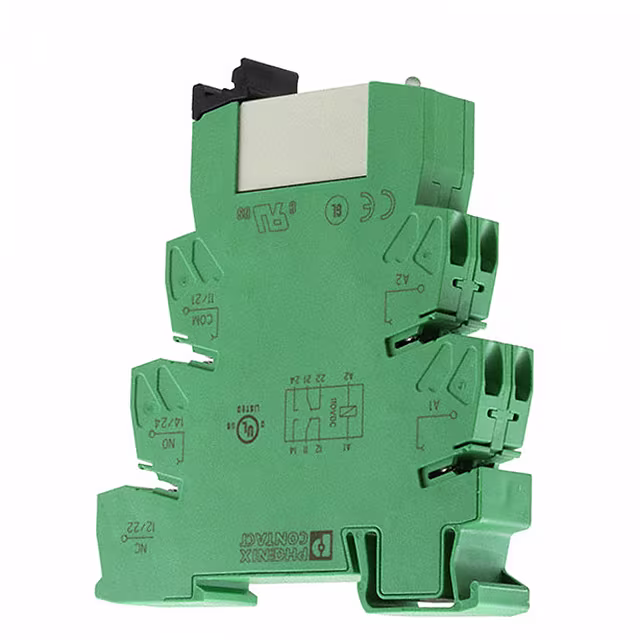

2900335RELAY GEN PURPOSE DPDT 6A 120V |
91 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 120VAC/DC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 4.5 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 7 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|

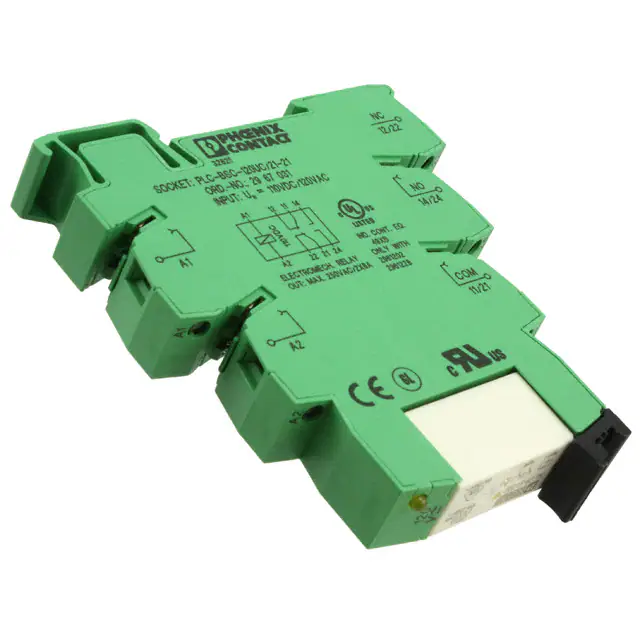

2967086RELAY GEN PURPOSE DPDT 6A 120V |
9 |
|
برگه مشخصات |
PLC-RSC | Bulk | Active | DIN Rail | 120VAC/DC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 4.5 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 7 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
KUP-14D15-24RELAY GEN PURPOSE 3PDT 10A 24V |
89 |
|
برگه مشخصات |
KUP | Bulk | Active | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KUP-14D15-12RELAY GEN PURPOSE 3PDT 10A 12V |
83 |
|
برگه مشخصات |
KUP | Bulk | Active | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 100 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
T92S7A22-120RELAY GEN PURPOSE DPST 30A 120V |
91 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 33.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 96 VAC | 12 VAC | 15 ms | 15 ms | -55°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
2900332RELAY GEN PURPOSE DPDT 6A 24V |
70 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 24VAC/DC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 17.5 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
|
KUP-14A15-120RELAY GEN PURPOSE 3PDT 10A 120V |
70 |
|
برگه مشخصات |
KUP | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 24 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
2900290RELAY GEN PURPOSE SPDT 10A 12V |
16 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
KRPA-11DG-24RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
برگه مشخصات |
KRPA | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 18 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

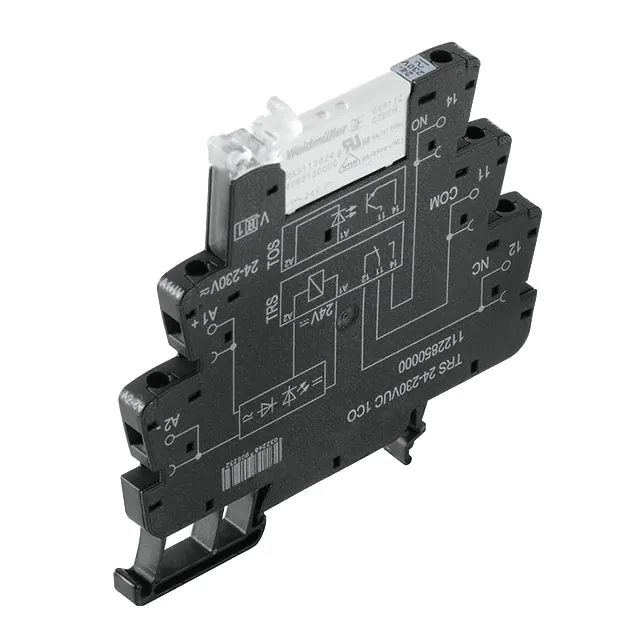

1122850000RELAY GEN PURPOSE SPDT 6A 24V |
31 |
|
برگه مشخصات |
TERMSERIES | Bulk | Active | DIN Rail | 24 ~ 230VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | - | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 30 ms | 140 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, cULus, EAC | General Purpose | - | - |
|
LY4N-DC24RELAY GEN PURPOSE 4PDT 10A 24V |
71 |
|
برگه مشخصات |
LY | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 69 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 40°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
