رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KUHP-11A51-240RELAY GEN PURPOSE DPDT 20A 240V |
100 |
|
برگه مشخصات |
KUHP | Bulk | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 12 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 204 VAC | - | 20 ms | 20 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
20.22.9.024.0000RELAY IMPULSE DPST 16A 24V |
62 |
|
برگه مشخصات |
20 | Bulk | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 16 A | 400VAC - Max | 6400VA | 230 mA | Latching, Single Coil | Mechanical Indicator, Test Button | Screw Terminal | - | - | 21.6 VDC | - | - | - | -40°C ~ 40°C | Silver Nickel (AgNi) | CE, cULus, EAC, RINA, UKCA | Impulse | - | - |
|
22.22.9.024.4000RELAY GEN PURPOSE DPST 20A 24V |
10 |
|
برگه مشخصات |
22 | Bulk | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 20 A | 400VAC - Max | 8000VA | 52.2 mA | Non Latching | Test Button | Screw Terminal | - | - | 21.6 VDC | - | 15 ms | 8 ms | -40°C ~ 40°C | Silver Tin Oxide (AgSnO) | CE, EAC | General Purpose | - | - |
|
SP4-DC24VRELAY GEN PURPOSE 4PDT 10A 24V |
39 |
|
برگه مشخصات |
SP | Box | Active | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 12.5 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 16.8 VDC | 2.4 VDC | 30 ms | 20 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
1094764RELAY GEN PURPOSE SPST 6A 5V |
52 |
|
برگه مشخصات |
- | Bulk | Active | DIN Rail | 5VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 1 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 5 ms | 7 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
2910537PLC-RPT- 24DC/2X21/FG |
43 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 30 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | 20.2 VDC | - | 10 ms | 10 ms | -20°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
G7J-4A-B-W1 DC24RELAY GEN PURPOSE 4PST 25A 24V |
21 |
|
برگه مشخصات |
G7J | Bulk | Active | Chassis Mount | 24VDC | 4PST-NO (DM) (4 Form X) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 83 mA | Non Latching | Bracket Included, Test Button | Screw Terminal | - | - | 18 VDC | 2.4 VDC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
|
R10-E1X2-V700RELAY GEN PURPOSE DPDT 5A 24V |
25 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 120VAC - Nom | - | 34.3 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
G9KA-1A DC24RELAY GEN PURPOSE SPST 200A 24V |
6 |
|
برگه مشخصات |
G9KA | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 260 A | 800VAC, 60VDC - Max | 208000VA, 12000W | 208 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, TUV, UL | General Purpose | - | - |
|
|
2900347RELAY GEN PURPOSE DPDT 6A 72V |
15 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 72VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 6 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 5 ms | 11 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|

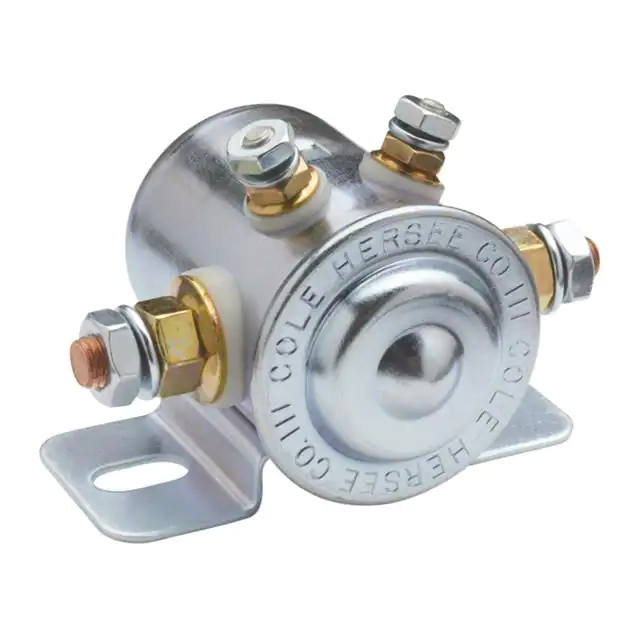

24213RELAY GEN PURPOSE SPST 200A 12V |
19 |
|
برگه مشخصات |
- | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 200 A | - | - | 685.7 mA | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -40°C ~ 85°C | Silver (Ag) | - | General Purpose | - | - |
|
29-211-12RELAY GEN PURPOSE SPST 220A 28V |
23 |
|
برگه مشخصات |
29, KISSLING | Box | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 220 A | - | 10W | 451.6 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 4 VDC | 40 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
FCB-405-0625MRELAY GEN PURPOSE 4PDT 5A 28V |
10 |
|
برگه مشخصات |
FCB-405, CII | Bulk | Active | Socketable | 28VDC | 4PDT (4 Form C) | 5 A | 115VAC, 28VDC - Max | 575VA, 140W | 70 mA | Non Latching | - | Plug In | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 6 ms | 6 ms | -70°C ~ 125°C | - | - | General Purpose | Military | MIL-R-83536/6 |
|

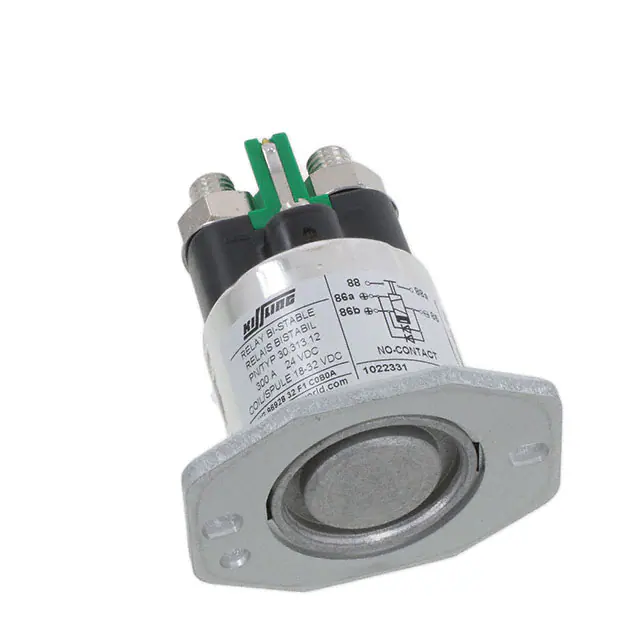

30-313-12RELAY GEN PURPOSE SPST 300A 28V |
13 |
|
برگه مشخصات |
30, KISSLING | Box | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 300 A | - | - | - | Latching, Dual Coil | Diode | Screw Terminal | - | - | 13 VDC | 10 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
|
29-311-11RELAY GEN PURPOSE SPST 300A 12V |
20 |
|
برگه مشخصات |
29, KISSLING | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (DM) (1 Form X) | 300 A | - | 10W | 800 mA | Non Latching | Diode | Screw Terminal | - | - | 9 VDC | 2 VDC | 40 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
29-311-12RELAY GEN PURPOSE SPST 300A 28V |
19 |
|
برگه مشخصات |
29, KISSLING | Box | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 300 A | - | 10W | 451.6 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 4 VDC | 40 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
FCB-205-0222MRELAY GEN PURPOSE DPDT 5A 28V |
12 |
|
برگه مشخصات |
FCB-205, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | - | - | 56 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | Military | MIL-R-83536/2 |
|
FCA-210-0924MRELAY GEN PURPOSE DPDT 10A 28V |
2 |
|
برگه مشخصات |
FCA-210, CII | Bulk | Active | Socketable | 28VDC | DPDT (2 Form C) | 10 A | - | - | 87.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 5.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|

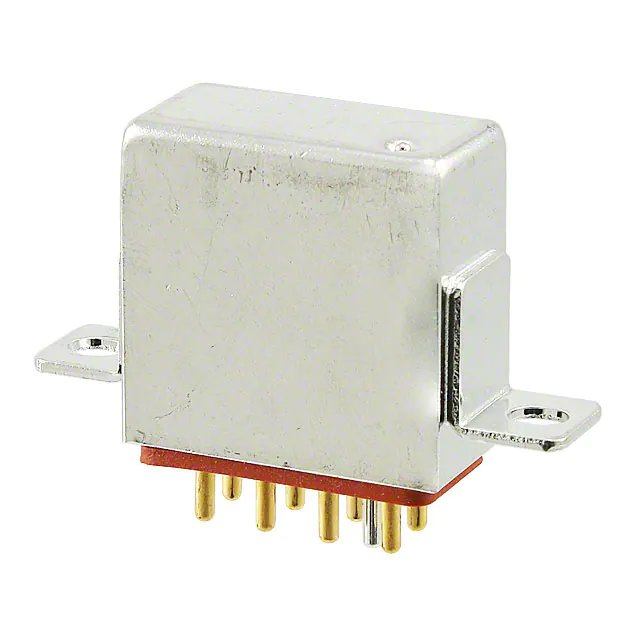

FCA-210-1024MRELAY GEN PURPOSE DPDT 10A 28V |
16 |
|
برگه مشخصات |
FCA-210, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 87.5 mA | Non Latching | - | Plug In | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | Military | MIL-R-83536/10 |
|

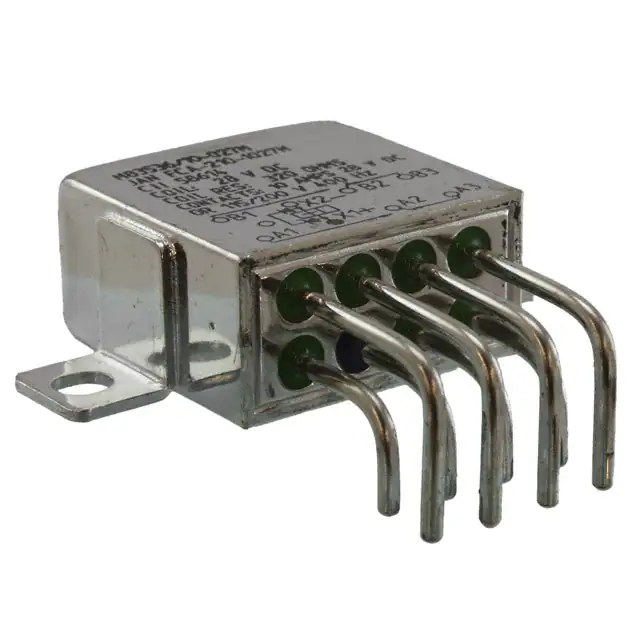

FCA-210-1027MRELAY GEN PURPOSE DPDT 10A 28V |
14 |
|
برگه مشخصات |
FCA-210, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | 87.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | Military | MIL-R-83536/10 |
