رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G7J-3A1B-P AC200/240RELAY GEN PURPOSE 4PST 25A 240V |
2 |
|
برگه مشخصات |
G7J | Bulk | Active | Through Hole | 240VAC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 10.8 mA | Non Latching | Test Button | PC Pin | - | - | 150 VAC | 36 VAC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
|
G7J-3A1B-PZ DC12RELAY GEN PURPOSE 4PST 25A 12V |
5 |
|
برگه مشخصات |
G7J | Bulk | Active | Through Hole | 12VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 167 mA | Non Latching | Test Button | PC Pin | - | - | 9 VDC | 1.2 VDC | 50 ms | 50 ms | -25°C ~ 60°C | - | CE, CSA, UR | General Purpose | - | - |
|

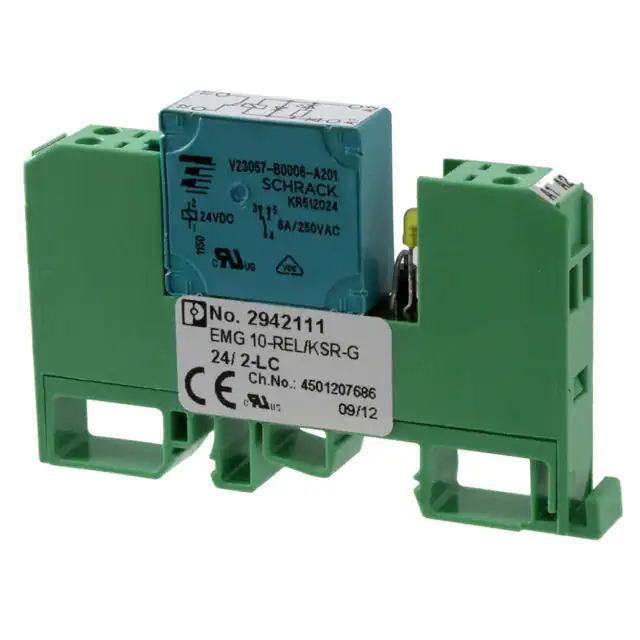

2942111RELAY GEN PURPOSE SPST 6A 24V |
7 |
|
برگه مشخصات |
EMG 10-REL | Bulk | Active | DIN Rail | 24VDC | SPST-NC (1 Form B) | 6 A | 250VAC, 250VDC - Max | 1500VA, 140W | 21 mA | Non Latching | Socket Included | Screw Terminal | - | - | - | - | 7 ms | 11 ms | -20°C ~ 40°C | Silver Nickel (AgNi) | cULus, EAC, UL | General Purpose | - | - |
|
789-304RELAY SPDT 12A 24V |
11 |
|
برگه مشخصات |
789 | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 12 A | 250VAC - Max | 3000VA | 19 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 8 ms | 6 ms | -25°C ~ 40°C | Silver Nickel (AgNi) | EAC | General Purpose | - | - |
|
RY2KS-UAC120VRELAY GEN PURPOSE DPDT 3A 120V |
7 |
|
برگه مشخصات |
RY2KS | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 10.8 mA | Latching, Dual Coil | - | Plug In | - | - | 96 VAC | - | 25 ms | 25 ms | -5°C ~ 40°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
288-364RELAY 5A 24V |
7 |
|
برگه مشخصات |
288 | Box | Last Time Buy | DIN Rail | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC - Max | 1250VA | 20 mA | Non Latching | - | Spring Terminal | - | - | - | - | 4 ms | 6 ms | -25°C ~ 40°C | Silver Nickel (AgNi) | EAC | General Purpose | - | - |
|
MY2K-US-AC120RELAY GEN PURPOSE DPDT 3A 120V |
5 |
|
برگه مشخصات |
MYK | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 5.6 mA | Latching, Dual Coil | - | Plug In | - | - | 96 VAC | - | 30 ms | 30 ms | -55°C ~ 60°C | - | CE, CSA, LR, UR, TUV, VDE | General Purpose | - | - |
|
MGN2C-AC120RELAY GEN PURPOSE DPDT 30A 120V |
3 |
|
برگه مشخصات |
MGN | Bulk | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 79 mA | Non Latching | - | Screw Terminal | - | Class F | 102 VAC | - | 30 ms | 30 ms | -45°C ~ 80°C | - | cURus | General Purpose | - | - |
|

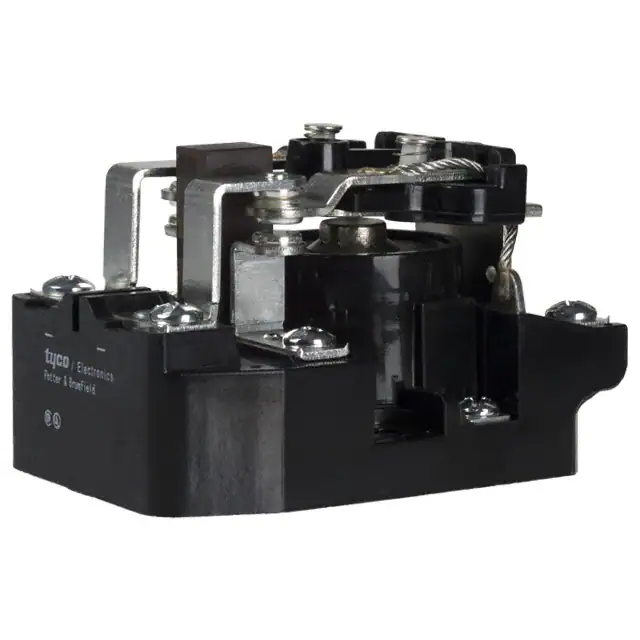

PRD-11DY0-12RELAY GEN PURPOSE DPDT 25A 12V |
16 |
|
برگه مشخصات |
PRD | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 25 A | 600VAC, 125VDC - Nom | - | 169 mA | Non Latching | - | Screw Terminal | - | Class B | 9 VDC | 1.2 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
RR2KP-UDC12VRELAY GEN PURPOSE DPDT 10A 12V |
11 |
|
برگه مشخصات |
RR2KP | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 120 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 9.6 VDC | - | 25 ms | - | -5°C ~ 40°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
RR2KP-UDC48VRELAY GEN PURPOSE DPDT 10A 48V |
5 |
|
برگه مشخصات |
RR2KP | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 30 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 38.4 VDC | - | 25 ms | - | -5°C ~ 40°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
RR2KP-UDC110VRELAY GEN PURPOSE DPDT 10A 110V |
4 |
|
برگه مشخصات |
RR2KP | Bulk | Active | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 13.8 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 88 VDC | - | 25 ms | - | -5°C ~ 40°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
RR2KP-UAC24VRELAY GEN PURPOSE DPDT 10A 24V |
3 |
|
برگه مشخصات |
RR2KP | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 92 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 19.2 VAC | - | 25 ms | - | -5°C ~ 40°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
RR2KP-UAC6VRELAY GEN PURPOSE DPDT 10A 6V |
3 |
|
برگه مشخصات |
RR2KP | Bulk | Active | Socketable | 6VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 429 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 4.8 VAC | - | 25 ms | - | -5°C ~ 40°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|

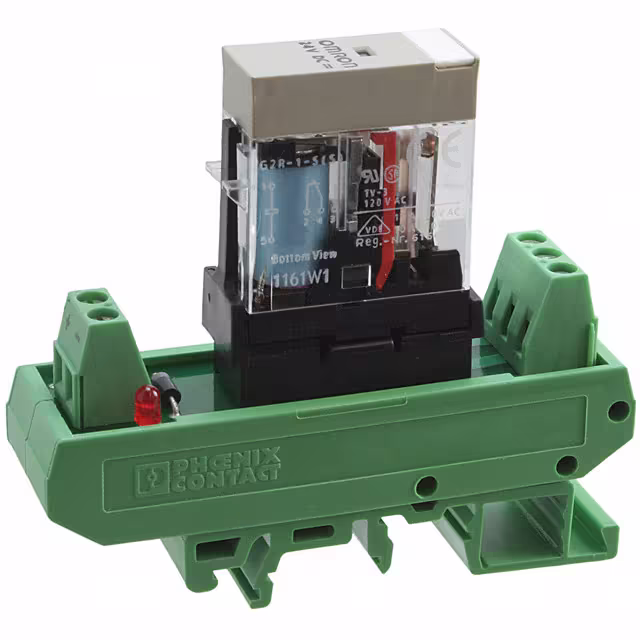

5520695RELAY GEN PURPOSE SPDT 10A 24V |
5 |
|
برگه مشخصات |
- | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | - | - | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | - | - | -20°C ~ 65°C | - | - | General Purpose | - | - |
|
24612-10RELAY GEN PURPOSE SPST 100A 12V |
24 |
|
برگه مشخصات |
- | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 100 A | - | - | - | Non Latching | - | Screw Terminal | - | - | - | - | 5 ms | 5 ms | -40°C ~ 60°C | Silver (Ag) | - | General Purpose | - | - |
|
8501RSD43P14V53PLUG IN RELAY, TYPE R, MINIATURE |
21 |
|
برگه مشخصات |
Square D 8501R | Box | Active | Socketable | 24VDC | 3PDT (3 Form C) | 15 A | 300VAC, 30VDC - Max | 4500VA, 450W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, UL | General Purpose | - | - |
|
G6D-F4PU DC24RELAY GEN PURPOSE SPST 5A 24V |
17 |
|
برگه مشخصات |
G6D-F4PU | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) x 4 | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 10.5 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 55°C | - | CSA, UR, VDE | General Purpose | - | - |
|
2964380RELAY GEN PURPOSE SPDT 6A 230V |
4 |
|
برگه مشخصات |
EMG 10-REL | Bulk | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | 1500VA, 140W | 5 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | - | - | 7 ms | 11 ms | -20°C ~ 40°C | Silver Nickel (AgNi) | cULus, EAC, UL | General Purpose | - | - |
|
2964445RELAY GEN PURPOSE SPDT 6A 120V |
2 |
|
برگه مشخصات |
EMG 10-REL | Bulk | Active | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | 1500VA, 140W | 5 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | - | - | 7 ms | 11 ms | -20°C ~ 40°C | Silver Nickel (AgNi) | cULus, EAC, UL | General Purpose | - | - |
