رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PRD-11AG0-240RELAY GEN PURPOSE DPDT 30A 240V |
11 |
|
برگه مشخصات |
PRD | Bulk | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 30 A | 600VAC, 125VDC - Nom | - | 43 mA | Non Latching | - | Screw Terminal | - | Class B | 204 VAC | 24 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
|

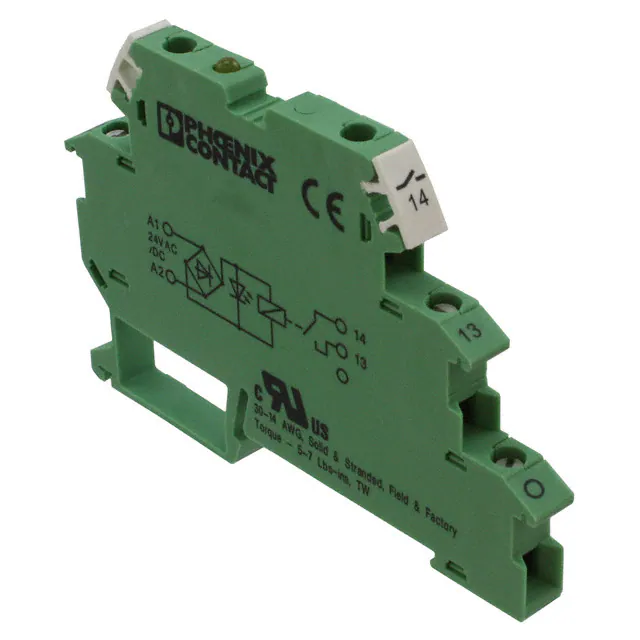

2964063RELAY GEN PURPOSE SPST 3A 24V |
2 |
|
برگه مشخصات |
- | Bulk | Active | DIN Rail | 24VAC/DC | SPST-NO (1 Form A) | 3 A | 250VAC, 250VDC - Max | - | 6.5 mA | Non Latching | - | Screw Terminal | - | - | - | - | 5 ms | 15 ms | -20°C ~ 50°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
2949240RELAY GEN PURPOSE SPST 24V |
3 |
|
برگه مشخصات |
- | Bulk | Active | DIN Rail | 24VAC/DC | SPST-NO (1 Form A) | - | - | - | - | - | Socket Included | Screw Terminal | - | - | - | - | - | - | - | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
MY4ZH-DC24RELAY GEN PURPOSE 4PDT 3A 24V |
4 |
|
برگه مشخصات |
MY | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 3 A | 125VAC, 125VDC - Max | 330VA, 72W | 36.9 mA | Non Latching | - | Plug In | Sealed - Hermetically | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 60°C | Silver Alloy | CE, CSA, UR, VDE | General Purpose | - | - |
|
ALT115-SRELAY IMPULSE SPDT 115V |
5 |
|
برگه مشخصات |
ALT | Bulk | Active | Socketable | 115VAC | SPDT (1 Form C) | - | 240VAC - Nom | - | - | Latching, Single Coil | Debounce Delay | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -40°C ~ 50°C | - | CSA, UL | Impulse | - | - |
|
2940391RELAY GEN PURPOSE DPDT 5A 24V |
3 |
|
برگه مشخصات |
- | Bulk | Active | DIN Rail | 24VAC/DC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Socket Included | Screw Terminal | - | - | - | - | 8 ms | 10 ms | -20°C ~ 40°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
MGN2C-DC24RELAY GEN PURPOSE DPDT 30A 24V |
2 |
|
برگه مشخصات |
MGN | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 83.3 mA | Non Latching | - | Screw Terminal | - | Class F | 18 VDC | - | 30 ms | 30 ms | -40°C ~ 115°C | - | cURus | General Purpose | - | - |
|

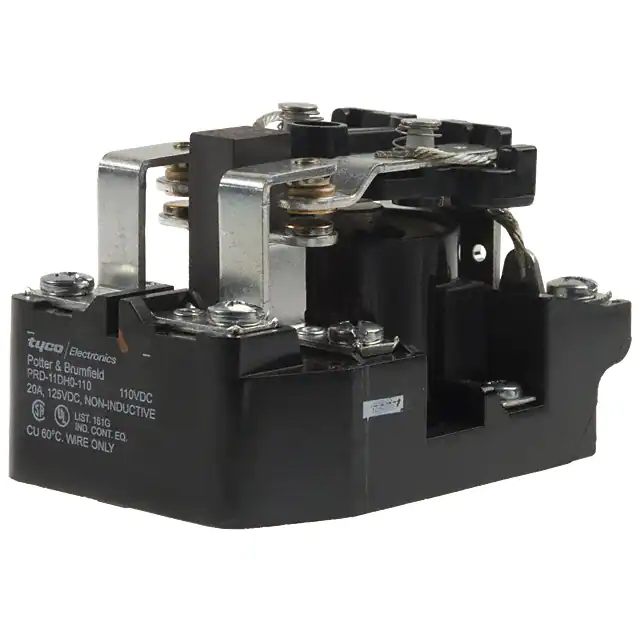

PRD-11DH0-110RELAY GEN PURPOSE DPDT 20A 110V |
19 |
|
برگه مشخصات |
PRD | Bulk | Active | Chassis Mount | 110VDC | DPDT (2 Form C) | 20 A | 600VAC, 125VDC - Nom | - | 18.2 mA | Non Latching | - | Screw Terminal | - | Class B | 82.5 VDC | 11 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
8501RSD44P14V53PLUG IN RELAY, TYPE R, MINIATURE |
6 |
|
برگه مشخصات |
Square D 8501R | Box | Active | Socketable | 24VDC | 4PDT (4 Form C) | 15 A | 300VAC, 30VDC - Max | 4500VA, 450W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, UL | General Purpose | - | - |
|

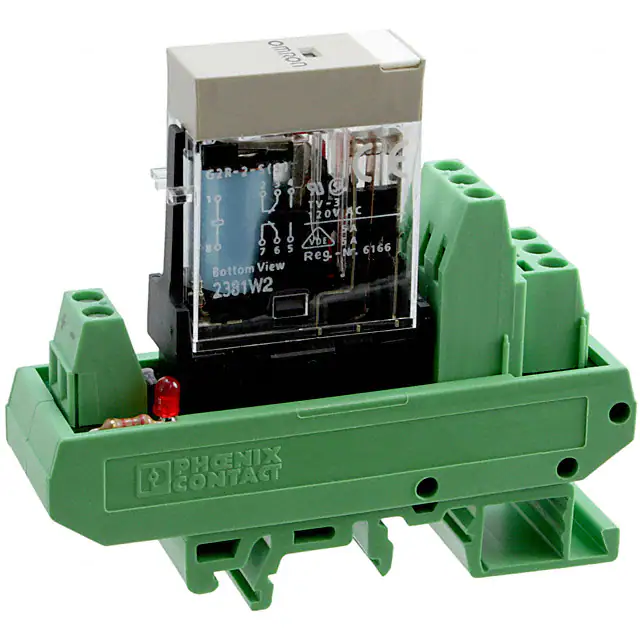

5520734RELAY GEN PURPOSE DPDT 5A 24V |
6 |
|
برگه مشخصات |
- | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | - | - | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | - | - | -20°C ~ 65°C | - | - | General Purpose | - | - |
|
2946560RELAY GEN PURPOSE SPDT 5A 24V |
14 |
|
برگه مشخصات |
- | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 5 A | 250VAC, 250VDC - Max | - | 22 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 7 ms | 11 ms | -20°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
2940427RELAY GEN PURPOSE DPDT 5A 120V |
2 |
|
برگه مشخصات |
- | Bulk | Active | DIN Rail | 120VAC/DC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | 6 mA | Non Latching | Socket Included | Screw Terminal | - | - | - | - | 8 ms | 10 ms | -20°C ~ 40°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
3RQ30181AB00RELAY GEN PURPOSE SPDT 3A 24V |
11 |
|
برگه مشخصات |
SIRIUS 3RQ3 | Bulk | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | 12 ms | 14 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
|

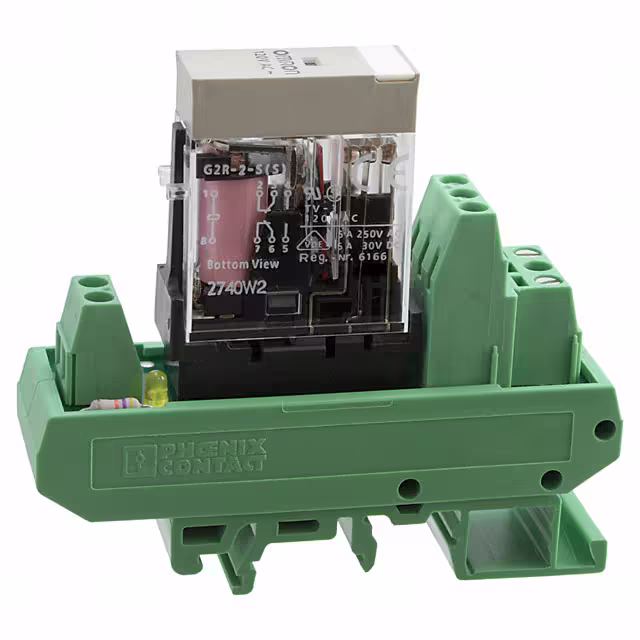

5520721RELAY GEN PURPOSE DPDT 5A 120V |
3 |
|
برگه مشخصات |
- | Bulk | Active | DIN Rail | 120VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | - | - | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | - | - | -20°C ~ 65°C | - | - | General Purpose | - | - |
|

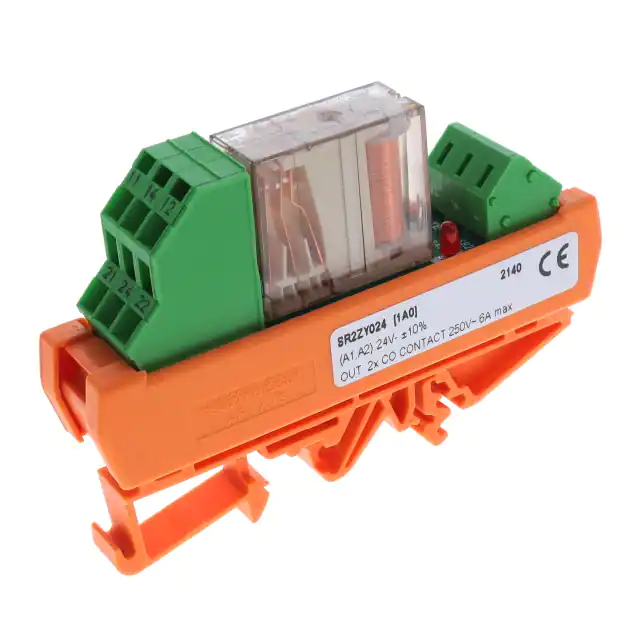

9-1415536-1RELAY GEN PURPOSE DPDT 6A 24V |
7 |
|
برگه مشخصات |
SR2Z, SCHRACK | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 6 A | 250VAC - Max | 1500VA | 29.2 mA | Non Latching | Socket Included | Spring Terminal | - | - | 21.6 VDC | 2.4 VDC | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE | General Purpose | - | - |
|
PJRX110ARELAY IMPULSE DPDT 10A 110V |
19 |
|
برگه مشخصات |
JR | Bulk | Active | Socketable | 110VAC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | 2200VA, 80W | - | Latching, Single Coil | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -10°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | Impulse | - | - |
|

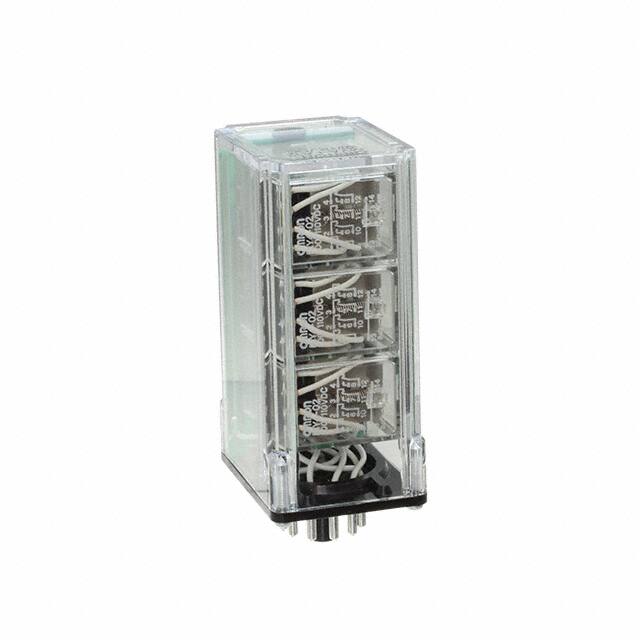

MYA-LA12 DC100/110RELAY 110V |
7 |
|
برگه مشخصات |
MYA | Bulk | Active | - | 110VDC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2949787RELAY GEN PURPOSE SPDT 5A 24V |
3 |
|
برگه مشخصات |
- | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 5 A | 250VAC, 250VDC - Max | - | 21 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 9 ms | 10 ms | -20°C ~ 50°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|

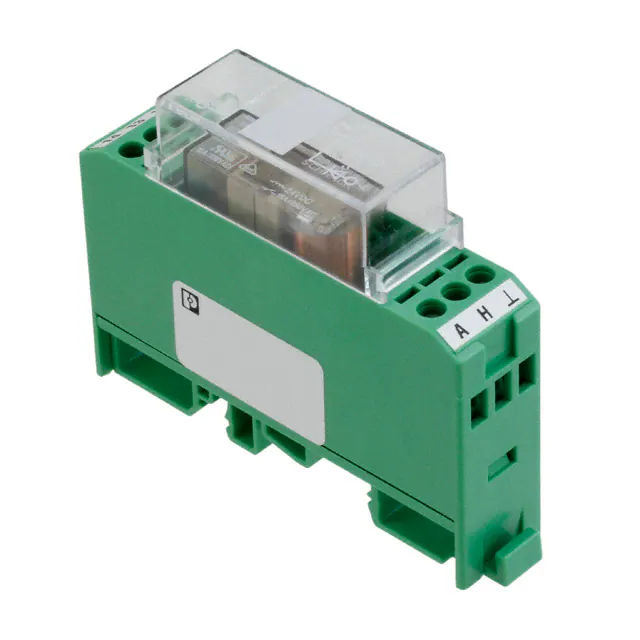

2941646RELAY GEN PURPOSE SPST 10A 24V |
2 |
|
برگه مشخصات |
- | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 250VDC - Max | - | 23 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 9 ms | 10 ms | -25°C ~ 50°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
AR120A-3095RELAY IMPULSE SPDT 10A 120V |
2 |
|
برگه مشخصات |
ARP | Bulk | Active | Socketable | 120VAC | SPDT (1 Form C) | 10 A | 250VAC - Max | - | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 60°C | - | - | Impulse | - | - |
