رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1123080000RELAY GEN PURPOSE SPDT 6A 230V |
10 |
|
برگه مشخصات |
TERMSERIES | Bulk | Active | DIN Rail | 230VAC | SPDT (1 Form C) | 6 A | 250VAC - Max | 1500VA | 8.5 mA | Non Latching | - | Screw Terminal | - | - | - | - | 16 ms | 41 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, cULus, EAC | General Purpose | - | - |
|
1123200000RELAY GEN PURPOSE SPDT 6A 230V |
10 |
|
برگه مشخصات |
TERMSERIES | Bulk | Active | DIN Rail | 230VAC | SPDT (1 Form C) | 6 A | 250VAC - Max | 1500VA | 8.5 mA | Non Latching | - | Spring Terminal | - | - | - | - | 16 ms | 41 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, cULus, EAC | General Purpose | - | - |
|
1220080000RELAY GEN PURPOSE SPST 16A 220V |
10 |
|
برگه مشخصات |
DRH | Bulk | Active | Socketable | 220VDC | SPST-NC (1 Form B) | 16 A | 400VAC - Max | 6400VA | 6.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 154 VDC | 22 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
1220190000RELAY GEN PURPOSE DPST 16A 220V |
10 |
|
برگه مشخصات |
DRH | Bulk | Active | Socketable | 220VDC | DPST-NO (2 Form A) | 16 A | 250VAC - Max | 4000VA | 6.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 154 VDC | 22 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
8920970000RELAY GEN PURPOSE DPDT 12A 230V |
10 |
|
برگه مشخصات |
RCM KIT | Bulk | Active | DIN Rail | 230VAC | DPDT (2 Form C) | 12 A | 250VAC - Max | 3000VA | 4.3 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 184 VAC | 69 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
8636230000RELAY GEN PURPOSE 4PDT 6A 220V |
10 |
|
برگه مشخصات |
RCM | Bulk | Active | Socketable | 220VDC | 4PDT (4 Form C) | 6 A | 240VAC - Max | 1440VA | 3.5 mA | Non Latching | Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 165 VDC | 22 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, cURus, UKCA, VDE | General Purpose | - | - |
|
2909529RELAY GEN PURPOSE SPDT 6A 120V |
10 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 3.5 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 6 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|
2765430000DRL373524L |
10 |
|
برگه مشخصات |
DRL | Box | Active | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 250VAC - Max | 2500VA, 300W | 80 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | - | - | 20 ms | 20 ms | -25°C ~ 55°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
1123690000RELAY GEN PURPOSE DPDT 8A 230V |
30 |
|
برگه مشخصات |
TERMSERIES | Bulk | Active | DIN Rail | 230VAC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | - | Non Latching | - | Spring Terminal | - | - | - | - | 10 ms | 16 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, cULus, EAC | General Purpose | - | - |
|
1123930000RELAY GEN PURPOSE DPDT 8A 230V |
10 |
|
برگه مشخصات |
TERMSERIES | Bulk | Active | DIN Rail | 230VAC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | - | Non Latching | - | Spring Terminal | - | - | - | - | 10 ms | 16 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, cULus, EAC | General Purpose | - | - |
|
|
2765600000DRW273024LT |
13 |
|
برگه مشخصات |
DRW | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 16 A | 400VAC, 250VDC - Max | 6400VA, 384W | 60 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | - | - | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
1123820000RELAY GEN PURP DPDT 8A 24-230V |
10 |
|
برگه مشخصات |
TERMSERIES | Bulk | Active | DIN Rail | 24 ~ 230VAC/DC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | - | Non Latching | - | Screw Terminal | - | - | - | - | 40 ms | 85 ms | -40°C ~ 40°C | Silver Nickel (AgNi) | CE, cULus, EAC | General Purpose | - | - |
|
9AS3A120ELECTROMECHNICAL POWER RELAYS, S |
16 |
|
برگه مشخصات |
Harmony | Box | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 28VDC - Max | 8310VA, 840W | 48 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | - | 102 VAC | 24 VAC | 20 ms | 10 ms | -40°C ~ 40°C | Silver Alloy | UL | General Purpose | - | - |
|

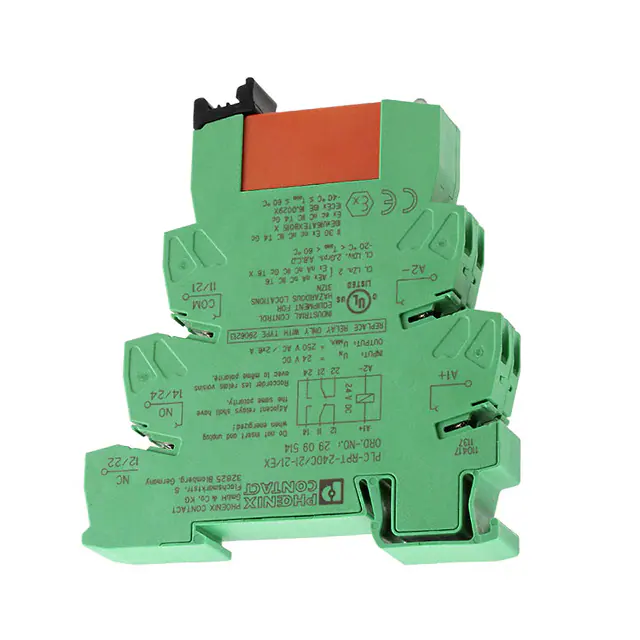

2909514RELAY GEN PURPOSE DPDT 6A 24V |
12 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
|
ABR7S21ELECTROMECHANICAL RELAY- STD. PA |
8 |
|
برگه مشخصات |
Telefast ABE7 | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 130VDC - Max | 1250VA, 650W | 15 mA | Non Latching | - | PC Pin | - | - | 19.7 VDC | 2.4 VDC | - | - | - | - | - | General Purpose | - | - |
|
|
2909666PLC-RPT- 12DC/21/MS |
20 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 12VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 15.3 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | Sealed - Fully | Class A | 9.7 VDC | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|
2909530RELAY GEN PURPOSE SPDT 6A 230V |
10 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 3.2 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 7 ms | 15 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|

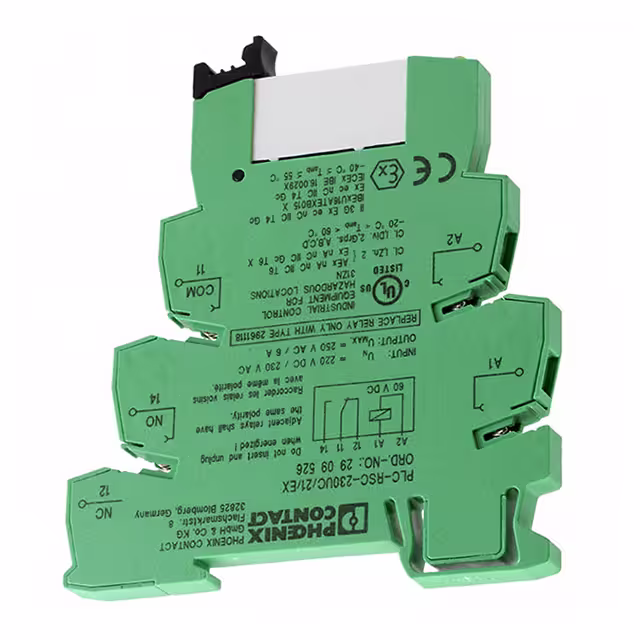

2909526RELAY GEN PURPOSE SPDT 6A 230V |
7 |
|
برگه مشخصات |
PLC-RSC | Bulk | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 3.2 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 7 ms | 15 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|
|
T92P7D24-12RELAY GEN PURPOSE DPST 30A 12V |
63 |
|
برگه مشخصات |
T92 | Tray | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 139.5 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -55°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | UR | General Purpose | - | - |
|
RSL1PVFUHARMONY, SLIM INTERFACE RELAY PR |
12 |
|
برگه مشخصات |
Harmony | Box | Active | DIN Rail | 60VDC | SPDT (1 Form C) | 6 A | 277VAC - Max | 1662VA | 2.9 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | 3 VDC | 12 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, GOST, UL | General Purpose | - | - |
