رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G7EB-1AP1-E DC12RELAY GEN PURPOSE SPST 100A 12V |
28 |
|
برگه مشخصات |
G7EB | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 120 A | 800VAC, 60VDC - Max | 48000VA, 6000W | 235.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, TUV, UL | General Purpose | - | - |
|
8921130000RELAY GEN PURPOSE 4PDT 6A 24V |
10 |
|
برگه مشخصات |
RCM KITP | Bulk | Active | DIN Rail | 24VAC | 4PDT (4 Form C) | 6 A | 250VAC - Max | 1500VA | 41.6 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
8920960000RELAY GEN PURPOSE DPDT 12A 115V |
10 |
|
برگه مشخصات |
RCM KIT | Bulk | Active | DIN Rail | 115VAC | DPDT (2 Form C) | 12 A | 250VAC - Max | 3000VA | 8.8 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 92 VAC | 34.5 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
|
AHEA3192HE-A RELAY SERIES 1 FORM A 24VDC |
15 |
|
برگه مشخصات |
HE-A | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 90 A | 800VAC, 60VDC - Max | 44000VA, 5400W | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 1.2 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
G9KC-4A DC12RELAY GEN PURPOSE 4PST 40A 12V |
80 |
|
برگه مشخصات |
G9KC | Tray | Active | Through Hole | 12VDC | 4PST-NO (4 Form A) | 40 A | 480VAC - Max | 19200VA | 417 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 50 ms | 30 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, cULus, TUV | General Purpose | - | - |
|
|
6652000MIRO 6,2-1OUTPUT-REL.24VDC-1U-FK |
50 |
|
- |
- | Bag | Active | DIN Rail | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 6 A | 250VAC, 250VDC - Max | 1500VA, 144W | - | Non Latching | LED Indicator | Screw Terminal | - | - | - | - | 10 ms | 15 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, CCC, CSA, cURus | General Purpose | - | - |
|
2909534RELAY GEN PURPOSE SPDT 10A 230V |
10 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | - | 4.5 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 7 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
|
2910530PLC-BPT- 24DC/21HC/H |
10 |
|
برگه مشخصات |
PLC-BPT | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 10 ms | 10 ms | -20°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
2900297RELAY GEN PURPOSE SPDT 10A 230V |
9 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | - | 4.5 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 7 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
|
2154980000TRZ 24-230VUC 1CO AGSNO |
10 |
|
برگه مشخصات |
TRZ | Box | Active | DIN Rail | 24 ~ 230VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | 1500VA, 144W | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 30 ms | 140 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, cULus, DNV-GL, PRS, UKCA | General Purpose | - | - |
|
|
G7EB-1A-E2 DC24150A, 800VAC / 60VDC PCB RELAY |
53 |
|
برگه مشخصات |
G7EB | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 100 A | 800VAC, 60VDC - Max | 80000VA, 6000W | 235.3 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, TUV, UR | General Purpose | - | - |
|
|
2909680PLC-RPT-230UC/ 1AU/MS/SEN |
30 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 230VAC/DC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 3.2 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | Class A | - | - | 7 ms | 15 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO), Gold (Au) | CE, UKCA | General Purpose | - | - |
|
|
2966126RELAY GEN PURPOSE SPDT 6A 48V |
10 |
|
برگه مشخصات |
PLC-RSC | Bulk | Active | DIN Rail | 48VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 9.2 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | CE, UKCA | General Purpose | - | - |
|
|
RXM2AB2B7PVMRXM RLY MIXED SCKT2C/O 10A 24VAC |
24 |
|
برگه مشخصات |
Harmony | Box | Active | DIN Rail | 24VAC | DPDT (2 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 133.3 mA | Non Latching | - | Screw Terminal | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CE, CSA, IECEE, GOST, Lloyd's, UL | General Purpose | - | - |
|

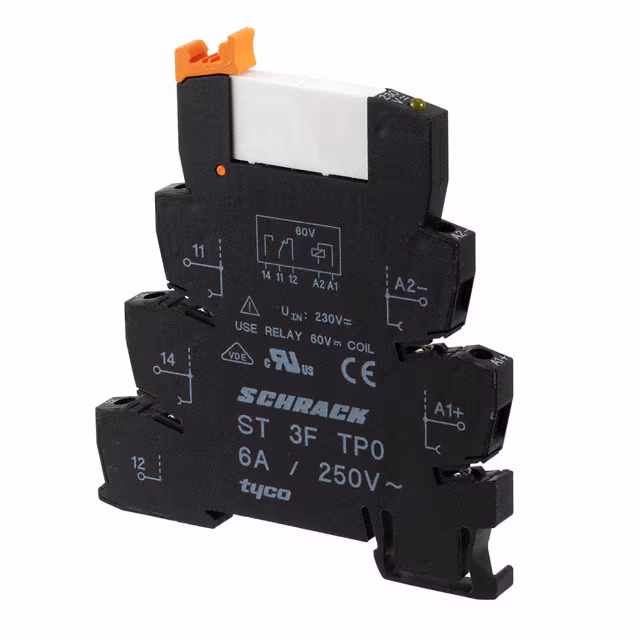

ST3P3TP0RELAY GEN PURPOSE SPDT 6A 230V |
50 |
|
برگه مشخصات |
SNR, SCHRACK | Bulk | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 3.2 mA | Non Latching | Socket Included | Screw Terminal | Sealed - Fully | - | 160 VAC/DC | 15 VAC/DC | 12 ms | 5 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
RXM2AB2P7PVSRXM RLY SEPARATE SCKT2C/O 10A 23 |
25 |
|
برگه مشخصات |
Harmony | Box | Active | DIN Rail | 230VAC | DPDT (2 Form C) | 12 A | 250VAC, 28VDC - Max | 3000VA, 336W | 15.3 mA | Non Latching | Lighted Indicator, Test Button | Screw Terminal | - | - | 184 VAC | 69 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CE, CSA, IECEE, GOST, Lloyd's, UL | General Purpose | - | - |
|
|
20.24.9.012.0000RELAY STEP DPST 16A 12V |
17 |
|
برگه مشخصات |
20 | Bulk | Active | DIN Rail | 12VDC | DPST-NO (2 Form A) | 16 A | 400VAC - Max | 6400VA | 440 mA | Latching, Single Coil | Mechanical Indicator, Test Button | Screw Terminal | - | - | 10.8 VDC | - | - | - | -40°C ~ 40°C | Silver Nickel (AgNi) | CE, cULus, EAC, RINA, UKCA | Step (Sequence) | - | - |
|
|
2909660PLC-RSC-230UC/21AU/MS |
10 |
|
برگه مشخصات |
PLC-RSC | Bulk | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 3.2 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | Class A | - | - | 7 ms | 15 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO), Gold (Au) | CE, UKCA | General Purpose | - | - |
|
52015MIRO 6,2-1OUTPUT-REL.24V-1S, MIR |
20 |
|
برگه مشخصات |
- | Box | Active | DIN Rail | 24VAC/DC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | 1500VA, 120W | 17 mA | Non Latching | - | Screw Terminal | - | - | 19.2 VAC/DC | - | 15 ms | 10 ms | -20°C ~ 55°C | Silver Tin Oxide (AgSnO) | CCC, cCSAus, CE, cURus, UKCA | General Purpose | - | - |
|
|
2706290000TRS 24VUC 2CO FG |
6 |
|
برگه مشخصات |
TRS | Box | Active | DIN Rail | 24VAC/DC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | 1500VA, 144W | 24.4 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | 30 ms | 20 ms | -25°C ~ 60°C | Silver Nickel (AgNi) | CE, cULus, UKCA | General Purpose | - | - |
