رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OJE-SS-112LMH,000RELAY GEN PURPOSE SPST 8A 12V |
0 |
|
برگه مشخصات |
OJE, OEG | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 277VAC, 30VDC - Max | 2216VA, 240W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 15 ms | 4 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CQC, cULus, TUV, VDE | General Purpose | - | - |
|
ALDP1F12WRELAY GEN PURPOSE SPST 5A 12V |
0 |
|
برگه مشخصات |
ALDP | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURuus, VDE | General Purpose | - | - |
|
OJS-SH-105HEF, 00000RELAY GEN PURPOSE SPST 16A 5V |
3 |
|
برگه مشخصات |
OJS, OEG | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 4000VA | 89.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.25 VDC | 15 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CQC, cURus, TUV | General Purpose | - | - |
|
JW1FSN-DC18VRELAY GEN PURPOSE SPDT 10A 18V |
0 |
|
برگه مشخصات |
JW | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 29 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 12.6 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
J115F21CL12VDCS.9RELAY GEN PURPOSE SPDT 40A 12V |
0 |
|
برگه مشخصات |
J115F2 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|

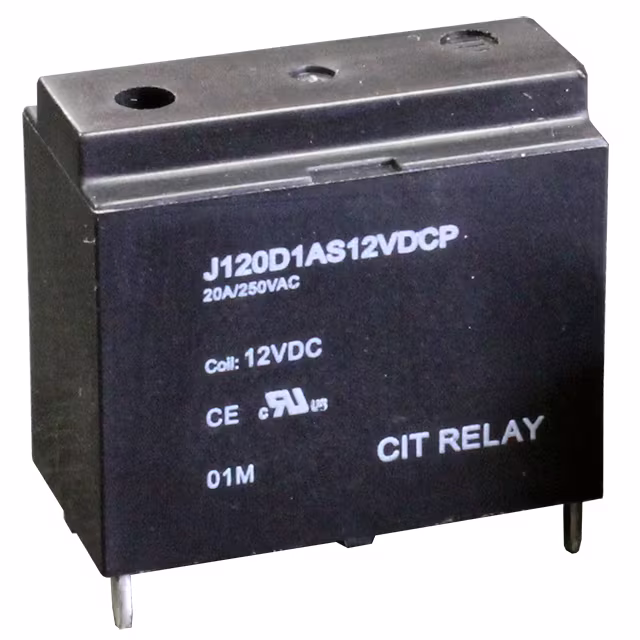

J120D1AS12VDCPRELAY GEN PURPOSE SPST 20A 12V |
0 |
|
برگه مشخصات |
J120D | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 300VAC - Max | 6000VA | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -30°C ~ 55°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
J115F11C5VDCSH.6RELAY GEN PURPOSE SPDT 40A 5V |
8 |
|
برگه مشخصات |
J115F1 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 119 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
ALZN5F12WRELAY GEN PURPOSE SPST 16A 12V |
0 |
|
برگه مشخصات |
ALZN | Tray | Last Time Buy | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
G2RL-1 DC48RELAY GEN PURPOSE SPDT 12A 48V |
0 |
|
برگه مشخصات |
G2RL | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 12 A | 440VAC, 300VDC - Max | 5280VA, 3600W | 9 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G2RL-1A-E-CF DC24RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
برگه مشخصات |
G2RL | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
J116F11A12VDCS.9RELAY GEN PURPOSE SPST 50A 12V |
0 |
|
برگه مشخصات |
J116F1 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC - Max | 13850VA | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
G2RL-1A-E DC18RELAY GEN PURPOSE SPST 16A 18V |
0 |
|
برگه مشخصات |
G2RL | Tube | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 12.6 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G2RL-14-CF DC24RELAY GEN PURPOSE SPDT 12A 24V |
25 |
|
برگه مشخصات |
G2RL | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 440VAC, 300VDC - Max | 5280VA, 3600W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|

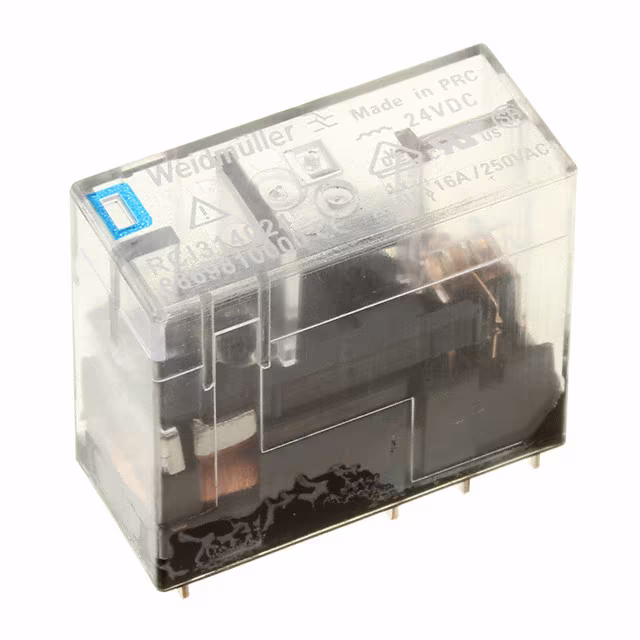

8869810000RELAY GEN PURPOSE SPDT 16A 24V |
2 |
|
برگه مشخصات |
RCI | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 16.7 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, cULus, VDE | General Purpose | - | - |
|
|
J116F11AW5VDCS.9RELAY GEN PURPOSE SPST 50A 5V |
6 |
|
برگه مشخصات |
J116F1 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 50 A | 277VAC - Max | 13850VA | 178.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
J116F11AW12VDCS.9RELAY GEN PURPOSE SPST 50A 12V |
0 |
|
برگه مشخصات |
J116F1 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC - Max | 13850VA | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
G2RL-1-E DC48RELAY GEN PURPOSE SPDT 16A 48V |
11 |
|
برگه مشخصات |
G2RL | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 9 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
L114FL1AS12VDC.60DRELAY GEN PURPOSE SPST 20A 12V |
0 |
|
برگه مشخصات |
L114FL | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 300VAC - Max | 6000VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
G2RL-1A4-E DC18RELAY GEN PURPOSE SPST 16A 18V |
21 |
|
برگه مشخصات |
G2RL | Tube | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 12.6 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
J1511CP24VAC1.2RELAY GEN PURPOSE SPDT 20A 24V |
0 |
|
برگه مشخصات |
J151 | Tray | Active | Through Hole | 24VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 130.4 mA | Non Latching | - | PC Pin | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
