رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSB1A120P7HARMONY, INTERFACE PLUG-IN RELAY |
25 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 230VAC | SPDT (1 Form C) | 12 A | 250VAC, 300VDC - Max | 3000VA, 3600W | 7 mA | Non Latching | - | Plug In | - | - | 184 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|

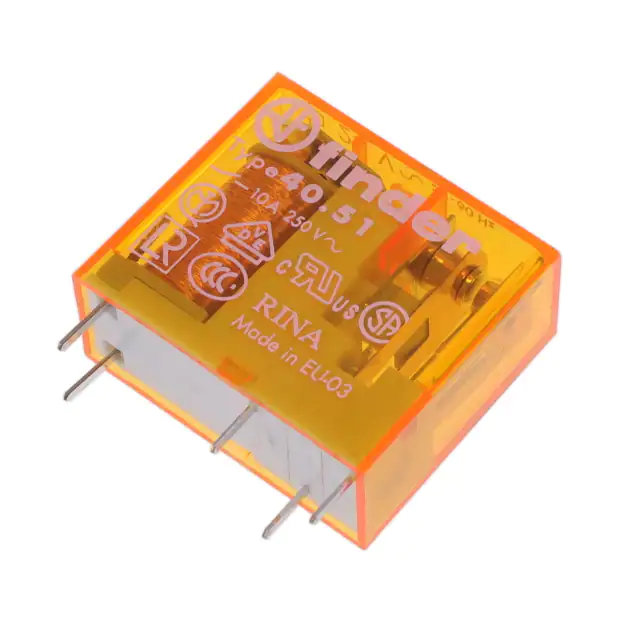

40.51.8.024.0000RELAY GEN PURPOSE SPDT 10A 24V |
4 |
|
برگه مشخصات |
40 | Bulk | Active | Socketable | 24VAC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 45 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 19.2 VAC | 4.8 VAC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
3-1393240-9RELAY GEN PURPOSE SPST 16A 12V |
0 |
|
برگه مشخصات |
RT1, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 6.6 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
G2R-1A-T DC48RELAY GEN PURPOSE SPST 10A 48V |
8 |
|
برگه مشخصات |
G2R | Tray | Active | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 11.5 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 33.6 VDC | 7.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
40.62.9.012.0000RELAY GEN PURPOSE DPDT 10A 12V |
4 |
|
برگه مشخصات |
40 | Box | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 55 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 8.8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA | General Purpose | - | - |
|
2987969RELAY GEN PURPOSE DPDT 8A 120V |
0 |
|
برگه مشخصات |
REL-MR | Tube | Active | Through Hole | 120VAC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 7 mA | Non Latching | Mechanical Indicator, Test Button | PC Pin | - | - | - | - | 12 ms | 8 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cULus, EAC, UR | General Purpose | - | - |
|
RJ1V-A-A120RELAY GEN PURPOSE SPST 12A 120V |
10 |
|
برگه مشخصات |
RJ | Bulk | Active | Through Hole | 120VAC | SPST-NO (1 Form A) | 12 A | 250VAC - Nom | - | 7.5 mA | Non Latching | - | PC Pin | - | - | 96 VAC | 36 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
T9AS5D12-18RELAY GEN PURPOSE SPDT 20A 18V |
17 |
|
برگه مشخصات |
T9A | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 55.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
RJ1S-CD-D12RELAY GEN PURPOSE SPDT 12A 12V |
10 |
|
برگه مشخصات |
RJ | Bulk | Active | Socketable | 12VDC | SPDT (1 Form C) | 12 A | 250VAC - Nom | - | 44.2 mA | Non Latching | Diode | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 8.4 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
RJ2V-C-A24RELAY GEN PURPOSE DPDT 8A 24V |
4 |
|
برگه مشخصات |
RJ | Bulk | Active | Through Hole | 24VAC | DPDT (2 Form C) | 8 A | 250VAC - Nom | - | 37.5 mA | Non Latching | - | PC Pin | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
2476850000RELAY GEN PURPOSE DPDT 5A 24V |
4 |
|
برگه مشخصات |
DRI | Bulk | Active | DIN Rail | 24VAC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1250VA | 50 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
2476780000RELAY GEN PURPOSE SPDT 10A 24V |
5 |
|
برگه مشخصات |
DRI | Bulk | Active | DIN Rail | 24VAC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | 2500VA, 2500W | 50 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|

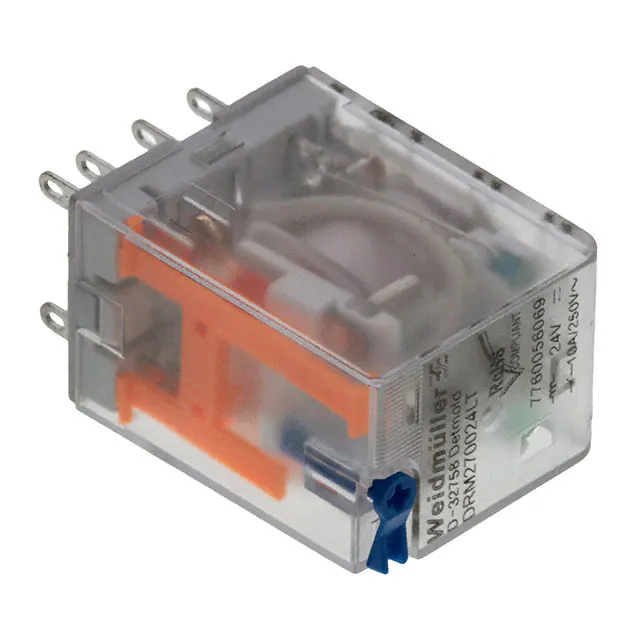

7760056069RELAY GEN PURPOSE DPDT 10A 24V |
23 |
|
برگه مشخصات |
DRM | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | 36.9 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Alloy | cURus | General Purpose | - | - |
|
RSB2A080P7HARMONY, INTERFACE PLUG-IN RELAY |
0 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 230VAC | DPDT (2 Form C) | 8 A | 250VAC, 300VDC - Max | 2000VA, 2240W | 7 mA | Non Latching | - | Plug In | - | - | 184 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|
DSP1A-L2-DC24VRELAY GEN PURPOSE SPST 8A 24V |
0 |
|
برگه مشخصات |
DSP | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 12.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 19.2 VDC | - | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
DSP1-DC9V-FRELAY GEN PURPOSE DPST 5A 9V |
0 |
|
برگه مشخصات |
DSP | Bulk | Active | Through Hole | 9VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 7.2 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
2961545RELAY GEN PURPOSE SPDT 16A 24V |
10 |
|
برگه مشخصات |
REL-MR | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 250VDC - Max | - | 17 mA | Non Latching | - | PC Pin | - | - | - | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cULus, EAC, UR | General Purpose | - | - |
|
2961406RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
برگه مشخصات |
REL-MR | Bulk | Active | Through Hole | 24VAC | SPDT (1 Form C) | 16 A | 250VAC, 250VDC - Max | - | 24 mA | Non Latching | - | PC Pin | - | - | - | - | 12 ms | 9 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cULus, EAC, UR | General Purpose | - | - |
|
|
G2R-2-H DC12RELAY GEN PURPOSE DPDT 3A 12V |
8 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 12VDC | DPDT (2 Form C) | 3 A | 380VAC, 125VDC - Max | 1140VA, 375W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
ADW1212TWRELAY GEN PURPOSE SPST 8A 12V |
0 |
|
برگه مشخصات |
DW | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 33.3 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
