رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ2151-1C-48DEFRELAY GEN PURPOSE SPDT 40A 48V |
0 |
|
برگه مشخصات |
AZ2151 | Box | Active | Through Hole | 48VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 10000VA, 900W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 12 ms | 5 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) | cURus, UL, VDE | General Purpose | - | - |
|

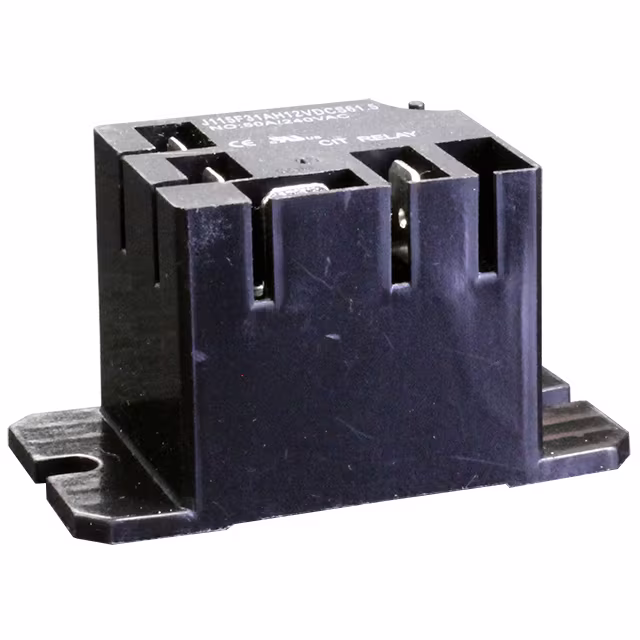

J115F31AH12VDCS61.5RELAY GEN PURPOSE SPST 50A 12V |
0 |
|
برگه مشخصات |
J115F | Tray | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
ALZ51F05WRELAY GEN PURPOSE SPST 16A 5V |
0 |
|
برگه مشخصات |
ALZ | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
ALZ52F24TWRELAY GEN PURPOSE SPST 16A 24V |
0 |
|
برگه مشخصات |
ALZ | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
JW1AFSN-DC24V-TUV-FRELAY GEN PURPOSE SPST 5A 24V |
0 |
|
برگه مشخصات |
JW | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 22 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
JW1AFSN-DC36V-FRELAY GEN PURPOSE SPST 5A 36V |
0 |
|
برگه مشخصات |
JW | Box | Active | Through Hole | 36VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | - | Non Latching | - | PC Pin | Sealed - Fully | Class E | 25.2 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CQC, CSA, UR, VDE | General Purpose | - | - |
|
J115F21AH48VDCS61.5URELAY GEN PURPOSE SPST 50A 48V |
0 |
|
برگه مشخصات |
J115F | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 31.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
AZ762FH-1AB-24DFRELAY GEN PURPOSE SPST 20A 24V |
0 |
|
- |
AZ762F | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 440VAC, 150VDC - Max | 5540VA, 600W | 16.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class F | 16.8 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 125°C | Silver Nickel (AgNi) | CUR, UL, VDE | General Purpose | - | - |
|
G2RL-1A-E DC48RELAY GEN PURPOSE SPST 16A 48V |
0 |
|
برگه مشخصات |
G2RL | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 9 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G2RL-2A DC18RELAY GEN PURPOSE DPST 8A 18V |
0 |
|
برگه مشخصات |
G2RL | Tube | Active | Through Hole | 18VDC | DPST-NO (2 Form A) | 8 A | 440VAC, 300VDC - Max | 3520VA, 2400W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 12.6 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
G5PA-1DC12(PF)RELAY GEN PURPOSE SPST 5A 12V |
0 |
|
برگه مشخصات |
G5PA-1 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 20.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9.6 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | - | CSA, IEC, SEMKO, UL, VDE | General Purpose | - | - |
|
|
G5PA-1-M DC5 BY OMZ (PF)RELAY GEN PURPOSE SPST 5A 5V |
0 |
|
برگه مشخصات |
G5PA-1 | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 108 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 70°C | - | CSA, IEC, SEMKO, UL, VDE | General Purpose | - | - |
|
L114FL1CS9VDC.60RDURELAY GEN PURPOSE SPDT 20A 9V |
0 |
|
برگه مشخصات |
L114FL | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 66.7 mA | Latching, Dual Coil | Reverse Coil Polarity | PC Pin | Sealed - Fully | - | 6.3 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
L114FL1CS9VDC.60DURELAY GEN PURPOSE SPDT 20A 9V |
0 |
|
برگه مشخصات |
L114FL | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 66.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 6.3 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
L114FL1CS9VDC.60RDAURELAY GEN PURPOSE SPDT 20A 9V |
0 |
|
برگه مشخصات |
L114FL | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 66.7 mA | Latching, Dual Coil | Reverse Coil Polarity | PC Pin | Sealed - Fully | - | 6.3 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
L114FL1CS5VDC.60RDURELAY GEN PURPOSE SPDT 20A 5V |
0 |
|
برگه مشخصات |
L114FL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 119 mA | Latching, Dual Coil | Reverse Coil Polarity | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
L114FL1CS12VDC.60DAURELAY GEN PURPOSE SPDT 20A 12V |
0 |
|
برگه مشخصات |
L114FL | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
L114FL1CS5VDC.60DURELAY GEN PURPOSE SPDT 20A 5V |
0 |
|
برگه مشخصات |
L114FL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 119 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
L114FL1CS12VDC.60RDURELAY GEN PURPOSE SPDT 20A 12V |
0 |
|
برگه مشخصات |
L114FL | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 50 mA | Latching, Dual Coil | Reverse Coil Polarity | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
L114FL1CS5VDC.60RDAURELAY GEN PURPOSE SPDT 20A 5V |
0 |
|
برگه مشخصات |
L114FL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 119 mA | Latching, Dual Coil | Reverse Coil Polarity | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
