رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2RL-1-E-CF DC9RELAY GEN PURPOSE SPDT 16A 9V |
0 |
|
برگه مشخصات |
G2RL | Tube | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
OZ-SS-124LF,000RELAY GEN PURP |
0 |
|
برگه مشخصات |
OZ, OEG | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
V23105A5305A201RELAY TELECOM DPDT 3A 24V |
0 |
|
برگه مشخصات |
V23105, AXICOM | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 8.3 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 1.2 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | Telecom | - | - |
|
|
AZ743-2C-115AEFRELAY GEN PURPOSE DPDT 10A 115V |
0 |
|
برگه مشخصات |
AZ743 | Box | Active | Through Hole | 115VAC | DPDT (2 Form C) | 10 A | 400VAC, 150VDC - Max | 2770VA, 240W | 6.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 86.3 VAC | 17.25 VAC | 7 ms | 4 ms | -40°C ~ 100°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
AZ2280-1B-240AEFRELAY GEN PURPOSE SPST 15A 240V |
0 |
|
برگه مشخصات |
AZ2280 | Box | Active | Chassis Mount | 240VAC | SPST-NC (1 Form B) | 15 A | 277VAC, 28VDC - Max | 11080VA, 840W | 17.8 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 187 VAC | 48 VAC | 15 ms | 10 ms | -55°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
|
AZ2280-1AT-220AFRELAY GEN PURPOSE SPST 40A 220V |
0 |
|
برگه مشخصات |
AZ2280 | Box | Active | Chassis Mount | 220VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 28VDC - Max | 11080VA, 840W | 16.3 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 187 VAC | 44 VAC | 15 ms | 10 ms | -55°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
|
AZ2280-1AT-240AERELAY GEN PURPOSE SPST 40A 240V |
0 |
|
برگه مشخصات |
AZ2280 | Box | Active | Chassis Mount | 240VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 28VDC - Max | 11080VA, 840W | 17.8 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 187 VAC | 48 VAC | 15 ms | 10 ms | -55°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
|
V23105A5005A201RELAY TELECOM DPDT 3A 24V |
0 |
|
برگه مشخصات |
V23105, AXICOM | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 6.3 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 1.2 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | Telecom | - | - |
|
JW2HN-B-DC24VRELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
- |
JW | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 22 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
G8P-1ATP DC48RELAY GEN PURPOSE SPST 30A 48V |
0 |
|
برگه مشخصات |
G8P | Bulk | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 19 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|
|
G8P-1C4P-V DC24RELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
برگه مشخصات |
G8P | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
G5PA-1-SA DC12 BY OMZ (PF)RELAY GEN PURPOSE SPST 5A 12V |
0 |
|
برگه مشخصات |
G5PA-1 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 20.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | - | CSA, IEC, SEMKO, UL, VDE | General Purpose | - | - |
|
VF4A-11F11RELAY GEN PURPOSE SPST 40A 12V |
0 |
|
برگه مشخصات |
VF4A | Bulk | Obsolete | Socketable | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | - | 16.7 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
J115F11CH5VDCSH1.5URELAY GEN PURPOSE SPDT 50A 5V |
0 |
|
برگه مشخصات |
J115F | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 299.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
J115F11CH9VDCSH1.5URELAY GEN PURPOSE SPDT 50A 9V |
0 |
|
برگه مشخصات |
J115F | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 166.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
AZ7621P-1A-12DRELAY GEN PURPOSE SPST 16A 12V |
0 |
|
برگه مشخصات |
AZ7621P | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 4000VA | 58.25 mA | Latching, Single Coil | - | PC Pin | - | - | - | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, UL | General Purpose | - | - |
|

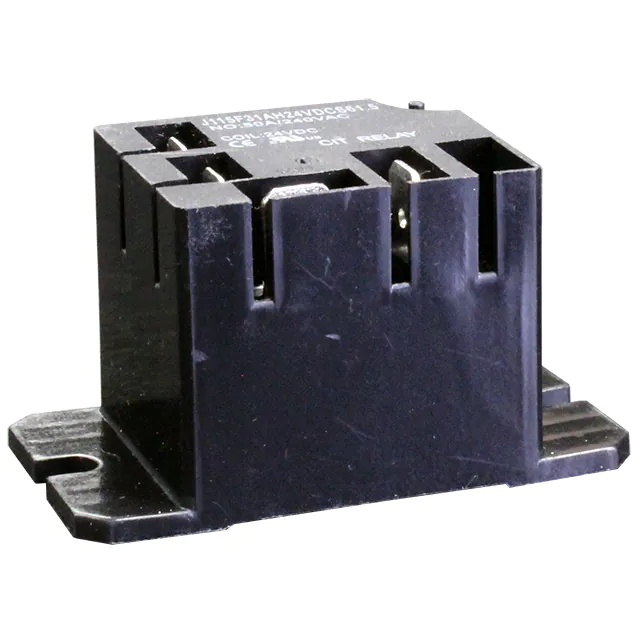

J115F31AH24VDCS61.5RELAY GEN PURPOSE SPST 50A 24V |
0 |
|
برگه مشخصات |
J115F | Tray | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 62.5 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
J115F31AH9VDCS61.5URELAY GEN PURPOSE SPST 50A 9V |
0 |
|
برگه مشخصات |
J115F | Tray | Active | Chassis Mount | 9VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 166.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
ALZ51F18TWRELAY GEN PURPOSE SPST 16A 18V |
0 |
|
برگه مشخصات |
ALZ | Box | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 22.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 12.6 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
3-1414974-4V23086R1821A502-EV-USBX |
0 |
|
- |
V23086, AXICOM | Box | Active | Through Hole | - | SPST-NO (1 Form A) | 30 A | 16VDC - Max | 480W | - | Non Latching | - | PC Pin | - | - | - | - | 3 ms | 1.5 ms | -40°C ~ 105°C | Silver Alloy | - | General Purpose | - | - |
