رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J1511CP48VAC1.2RELAY GEN PURPOSE SPDT 20A 48V |
0 |
|
برگه مشخصات |
J151 | Tray | Active | Through Hole | 48VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 65.3 mA | Non Latching | - | PC Pin | - | - | 38.4 VAC | 14.4 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
5-1415400-1RT114F24 |
0 |
|
برگه مشخصات |
RT, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 16.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
G8P-1C4P-AS DC24RELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
برگه مشخصات |
G8P | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
1393222-3RELAY GEN PURPOSE SPST 8A 5V |
0 |
|
برگه مشخصات |
MSR, SCHRACK | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 42.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | - | cURus, VDE | General Purpose | - | - |
|

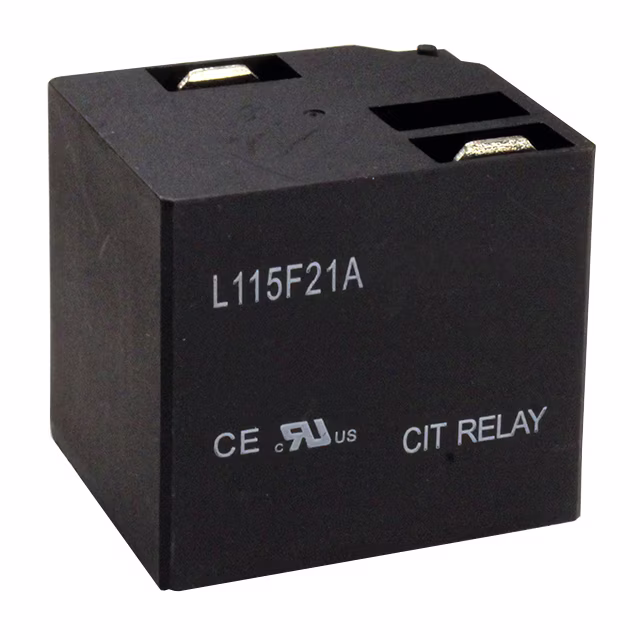

L115F21AH12VDCS1.5URELAY GEN PURPOSE SPST 50A 12V |
0 |
|
برگه مشخصات |
L115F2 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Latching, Single Coil | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9.6 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
RP430024RELAY GEN PURPOSE SPST 12A 24V |
0 |
|
برگه مشخصات |
RP II/1, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 8 ms | 2 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
RTE44615RELAY GEN PURPOSE DPST 8A 115V |
0 |
|
برگه مشخصات |
RT2, SCHRACK | Tube | Obsolete | Through Hole | 115VAC | DPST-NO (2 Form A) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 86.3 VAC | 17.3 VAC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
AZ165-2C-12DRELAY GEN PURPOSE DPDT 7A 12V |
0 |
|
برگه مشخصات |
AZ165 | Box | Active | Socketable | 12VDC | DPDT (2 Form C) | 7 A | 250VAC, 30VDC - Max | 1750VA, 210W | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Cerium (AgCe) | CE, CUR, TUV, UL | General Purpose | - | - |
|
|
G2RL-24-CF DC12RELAY GEN PURPOSE DPDT 8A 12V |
0 |
|
برگه مشخصات |
G2RL | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 440VAC, 300VDC - Max | 3520VA, 2400W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
L115F11CM24VDCS.9URELAY GEN PURPOSE SPDT 30A 24V |
0 |
|
برگه مشخصات |
L115F1 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 8310VA, 3300W | 37.5 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 19.2 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
L115F11AK24VDCS.9URELAY GEN PURPOSE SPST 40A 24V |
0 |
|
برگه مشخصات |
L115F1 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 37.5 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 19.2 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
G5LE-14-ACD-DC12RELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
برگه مشخصات |
G5LE | Tray | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G5LE-14-ACD-DC24RELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
برگه مشخصات |
G5LE | Tray | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
4-1393238-7RELAY GEN PURPOSE SPST 10A 9V |
0 |
|
برگه مشخصات |
RT1, SCHRACK | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 4000VA | 28.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.8 VDC | 0.9 VDC | 10 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
J1522CF110VDCRELAY GEN PURPOSE DPDT 10A 110V |
0 |
|
برگه مشخصات |
J152 | Tray | Active | Chassis Mount | 110VDC | DPDT (2 Form C) | 10 A | 300VAC - Max | 3000VA | 10 mA | Non Latching | - | Plug In | - | - | 82.5 VDC | 11 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, TUV | General Purpose | - | - |
|
J1512CF12VAC1.2RELAY GEN PURPOSE DPDT 20A 12V |
0 |
|
برگه مشخصات |
J151 | Tray | Active | Chassis Mount | 12VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 260.9 mA | Non Latching | - | Plug In | - | - | 9.6 VAC | 3.6 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
AZ21501P-1AH-24DRELAY GEN PURPOSE SPST 30A 24V |
0 |
|
برگه مشخصات |
AZ21501P | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 1200W | 37.5 mA | Latching, Single Coil | - | PC Pin | - | Class F | 19.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, UL | General Purpose | - | - |
|
|
AZ762-1A-24AERELAY GEN PURPOSE SPST 20A 24V |
0 |
|
برگه مشخصات |
AZ762 | Box | Active | Through Hole | 24VAC | SPST-NO (1 Form A) | 20 A | 440VAC, 125VDC - Max | 5540VA, 480W | 31.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VAC | 3.6 VAC | 10 ms | 8 ms | -40°C ~ 70°C | - | CUR, UL, VDE | General Purpose | - | - |
|
|
AZ762-1A-24AEFRELAY GEN PURPOSE SPST 16A 24V |
0 |
|
برگه مشخصات |
AZ762 | Box | Active | Through Hole | 24VAC | SPST-NO (1 Form A) | 16 A | 440VAC, 150VDC - Max | 5540VA, 480W | 31.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VAC | 3.6 VAC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
|
ALZN5B48RELAY |
0 |
|
برگه مشخصات |
- | Bulk | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
