رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6RL-14-ASI DC48RELAY GEN PURPOSE SPDT 8A 48V |
0 |
|
برگه مشخصات |
G6RL | Bulk | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 33.6 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | cURus, VDE | General Purpose | - | - |
|
G6B-1114P-US-P6B DC12RELAY GEN PURPOSE SPST 5A 12V |
0 |
|
برگه مشخصات |
G6B | Bulk | Active | Socketable | 12VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 16.7 mA | Non Latching | - | Plug In | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
3-1393225-5RY613060 |
0 |
|
برگه مشخصات |
RY, SCHRACK | Tube | Active | Through Hole | 60VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 4.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 42 VDC | 6 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
1-1393223-1V23061B1006A301=MINISTARKSTROM |
0 |
|
برگه مشخصات |
V23061, AXICOM | Tube | Active | Through Hole | - | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | - | Class A | - | - | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
ALZN1F48RELAY |
0 |
|
برگه مشخصات |
- | Bulk | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

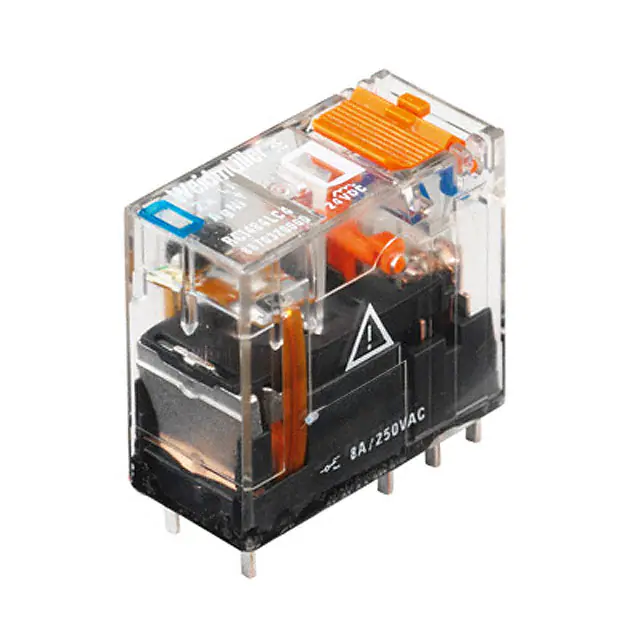

8869960000RELAY GEN PURPOSE SPDT 16A 24V |
20 |
|
برگه مشخصات |
RCI | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 16.7 mA | Non Latching | Test Button | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, cULus, VDE | General Purpose | - | - |
|
|
RT114060RELAY GEN PURPOSE SPDT 12A 60V |
0 |
|
برگه مشخصات |
RT1, SCHRACK | Tube | Active | Through Hole | 60VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 42 VDC | 6 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
RP310024RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
برگه مشخصات |
RP II/1, SCHRACK | Box | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 8 ms | 2 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
AZ762P2-1AT-5DERELAY GEN PURPOSE SPST 20A 5V |
0 |
|
- |
AZ762P | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 20 A | 277VAC - Max | 5000VA | 119 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO), Tungsten (W) | CUR, UL | General Purpose | - | - |
|
L115F11CK12VDCS.9URELAY GEN PURPOSE SPDT 40A 12V |
0 |
|
برگه مشخصات |
L115F1 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 75 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 9.6 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
L115F11AH48VDCS1.5URELAY GEN PURPOSE SPST 50A 48V |
0 |
|
برگه مشخصات |
L115F1 | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 31.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 38.4 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
L115F11CK5VDCS.9URELAY GEN PURPOSE SPDT 40A 5V |
0 |
|
برگه مشخصات |
L115F1 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 178.6 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 4 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
G8P-1C4P-VAS DC18RELAY GEN PURPOSE SPDT 10A 18V |
0 |
|
برگه مشخصات |
G8P | Bulk | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
J1511CF12VAC1.2DRELAY GEN PURPOSE SPDT 20A 12V |
0 |
|
برگه مشخصات |
J151 | Tray | Active | Chassis Mount | 12VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 260.9 mA | Non Latching | Lighted Indicator | Plug In | - | - | 9.6 VAC | 3.6 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
G8P-1111P-US-DC24RELAY GEN PURPOSE SPST 30A 24V |
0 |
|
برگه مشخصات |
G8P | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 36 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
J1522CF110VDCDRELAY GEN PURPOSE DPDT 10A 110V |
0 |
|
برگه مشخصات |
J152 | Tray | Active | Chassis Mount | 110VDC | DPDT (2 Form C) | 10 A | 300VAC - Max | 3000VA | 10 mA | Non Latching | Lighted Indicator | Plug In | - | - | 82.5 VDC | 11 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, TUV | General Purpose | - | - |
|
|
AZ21501P-1AJ-12DRELAY GEN PURPOSE SPST 40A 12V |
0 |
|
برگه مشخصات |
AZ21501P | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 1200W | 75 mA | Latching, Single Coil | - | PC Pin | - | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, UL | General Purpose | - | - |
|
|
AZ21501P-1CH-12DRELAY GEN PURPOSE SPDT 30A 12V |
0 |
|
برگه مشخصات |
AZ21501P | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 1200W | 75 mA | Latching, Single Coil | - | PC Pin | - | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, UL | General Purpose | - | - |
|
TX2-LT-6V-THRELAY GEN PURPOSE DPDT 7.5A 6V |
0 |
|
برگه مشخصات |
TX-TH | Tube | Active | Through Hole | 6VDC | DPDT (2 Form C) | 7.5 A | 250VAC, 220VDC - Max | 1875VA, 1650W | 23.3 mA | Latching, Dual Coil | - | PC Pin | - | - | 4.2 VDC | 0.6 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | BSI, cURus | General Purpose | - | - |
|
DSP1-DC5V-R-FRELAY GEN PURPOSE DPST 5A 5V |
0 |
|
برگه مشخصات |
DSP | Box | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | - | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
