رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ2705-1A-24DRELAY GEN PURPOSE SPST 30A 24V |
0 |
|
برگه مشخصات |
AZ2705 | Box | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC, 150VDC - Max | 8310VA, 840W | 80 mA | Non Latching | - | Screw Terminal | - | Class B | 18 VDC | 1.2 VDC | 30 ms | 30 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2701-1A-48ATWFRELAY GEN PURPOSE SPST 30A 48V |
0 |
|
برگه مشخصات |
AZ2701 | Box | Active | Chassis Mount | 48VAC | SPST-NO (1 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 40 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | Class F | 38.4 VAC | 7.2 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2701-1A-24ATWFRELAY GEN PURPOSE SPST 30A 24V |
0 |
|
برگه مشخصات |
AZ2701 | Box | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 80 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | Class F | 19.2 VAC | 3.6 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2850-2CE-12DERELAY GEN PURPOSE DPDT 40A 12V |
0 |
|
برگه مشخصات |
AZ2850 | Box | Active | Through Hole | 12VDC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 140 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, UL, VDE | General Purpose | - | - |
|
|
AZ2702-1A-120AERELAY GEN PURPOSE SPST 30A 120V |
0 |
|
برگه مشخصات |
AZ2702 | Box | Active | Chassis Mount | 120VAC | SPST-NO (DM) (1 Form X) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 23 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class B | 96 VAC | 18 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2702-1A-12DERELAY GEN PURPOSE SPST 30A 12V |
0 |
|
برگه مشخصات |
AZ2702 | Box | Active | Chassis Mount | 12VDC | SPST-NO (DM) (1 Form X) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 120 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class B | 9 VDC | 0.6 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
2903672RELAY GEN PURPOSE 4PDT 6A 60V |
0 |
|
برگه مشخصات |
REL-IR | Bulk | Active | Socketable | 60VDC | 4PDT (4 Form C) | 6 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | - | - | 13 ms | 14 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | cULus, EAC, UL, VDE | General Purpose | - | - |
|
|
2903675RELAY GEN PURPOSE 4PDT 6A 220V |
0 |
|
برگه مشخصات |
REL-IR | Bulk | Active | Socketable | 220VDC | 4PDT (4 Form C) | 6 A | 250VAC, 250VDC - Max | - | 4 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | - | - | 13 ms | 14 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | cULus, EAC, UL, VDE | General Purpose | - | - |
|
RPM11P7HARMONY, POWER PLUG-IN RELAY, 15 |
0 |
|
برگه مشخصات |
Harmony | Box | Obsolete | Socketable | 230VAC | SPDT (1 Form C) | 15 A | 250VAC, 28VDC - Max | 3750VA, 420W | 14.1 mA | Non Latching | Test Button | Plug In | - | - | 184 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|
|
RM84-2012-25-1110RELAY GEN PURPOSE DPDT 8A 110V |
0 |
|
- |
RM84 | Bulk | Active | Through Hole | 110VDC | DPDT (2 Form C) | 8 A | 440VAC - Max | 3520VA | 4.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 77 VDC | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CE, CSA, UR, VDE | General Purpose | - | - |
|
|
RM84-2012-35-1110RELAY GEN PURPOSE DPDT 8A 110V |
0 |
|
- |
RM84 | Bulk | Active | Through Hole | 110VDC | DPDT (2 Form C) | 8 A | 440VAC - Max | 3520VA | 4.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 77 VDC | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CE, CSA, UR, VDE | General Purpose | - | - |
|
|
RM84-2012-35-5012RELAY GEN PURPOSE DPDT 8A 12V |
0 |
|
- |
RM84 | Bulk | Active | Through Hole | 12VAC | DPDT (2 Form C) | 8 A | 440VAC - Max | 3520VA | 120 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9.6 VAC | - | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, UR, VDE | General Purpose | - | - |
|
|
RM87N-2011-25-1110RELAY GEN PURPOSE SPDT 12A 110V |
0 |
|
- |
RM87N | Bulk | Active | Through Hole | 110VDC | SPDT (1 Form C) | 12 A | 440VAC - Max | 5280VA | 4.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 77 VDC | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CE, CSA, UR, VDE | General Purpose | - | - |
|
|
RM87N-2011-35-1110RELAY GEN PURPOSE SPDT 12A 110V |
0 |
|
- |
RM87N | Bulk | Active | Through Hole | 110VDC | SPDT (1 Form C) | 12 A | 440VAC - Max | 5280VA | 4.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 77 VDC | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CE, CSA, UR, VDE | General Purpose | - | - |
|

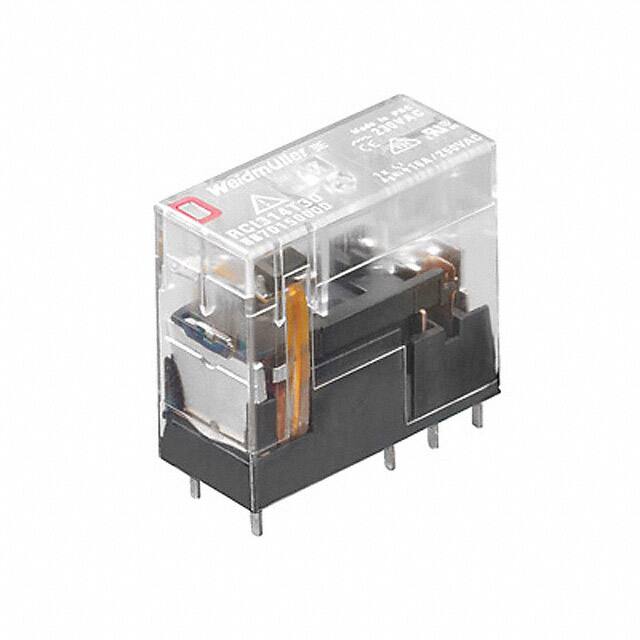

8869830000RELAY GEN PURPOSE SPDT 16A 110V |
0 |
|
برگه مشخصات |
RCI | Bulk | Active | Through Hole | 110VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 4.1 mA | Non Latching | - | PC Pin | - | - | 77 VDC | 11 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, cULus, VDE | General Purpose | - | - |
|
|
AZ2700-2A-110DTFRELAY GEN PURPOSE DPST 30A 110V |
0 |
|
برگه مشخصات |
AZ2700 | Box | Active | Chassis Mount | 110VDC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 17.5 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 82.5 VDC | 5.5 VDC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2700-1A-120AWRELAY GEN PURPOSE SPST 30A 120V |
0 |
|
برگه مشخصات |
AZ2700 | Box | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 23 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 96 VAC | 18 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2702-1A-24ARELAY GEN PURPOSE SPST 30A 24V |
0 |
|
برگه مشخصات |
AZ2702 | Box | Active | Chassis Mount | 24VAC | SPST-NO (DM) (1 Form X) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 80 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | Class B | 19.2 VAC | 3.6 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2704-2A-3DTFRELAY GEN PURPOSE DPST 30A 3V |
0 |
|
برگه مشخصات |
AZ2704 | Box | Active | Through Hole | 3VDC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 600 mA | Non Latching | - | PC Pin | - | Class F | 2.25 VDC | 0.15 VDC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2704-2A-3DTWFRELAY GEN PURPOSE DPST 30A 3V |
0 |
|
برگه مشخصات |
AZ2704 | Box | Active | Through Hole | 3VDC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 600 mA | Non Latching | - | PC Pin | - | Class F | 2.25 VDC | 0.15 VDC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
