رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RY2KS-UDC24VRELAY GEN PURPOSE DPDT 3A 24V |
56 |
|
برگه مشخصات |
RY2KS | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 50 mA | Latching, Dual Coil | - | Plug In | - | - | 19.2 VDC | - | 25 ms | 25 ms | -5°C ~ 40°C | Silver (Ag), Gold (Au) | CSA, UR | General Purpose | - | - |
|
AEP52012RELAY GEN PURPOSE SPST 20A 12V |
45 |
|
برگه مشخصات |
AEP | Box | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 20 A | 277VAC, 400VDC - Nom | 5540VA | 327 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Hermetically | - | 9 VDC | 0.5 VDC | 50 ms | 30 ms | -40°C ~ 80°C | - | cURus | General Purpose | - | - |
|

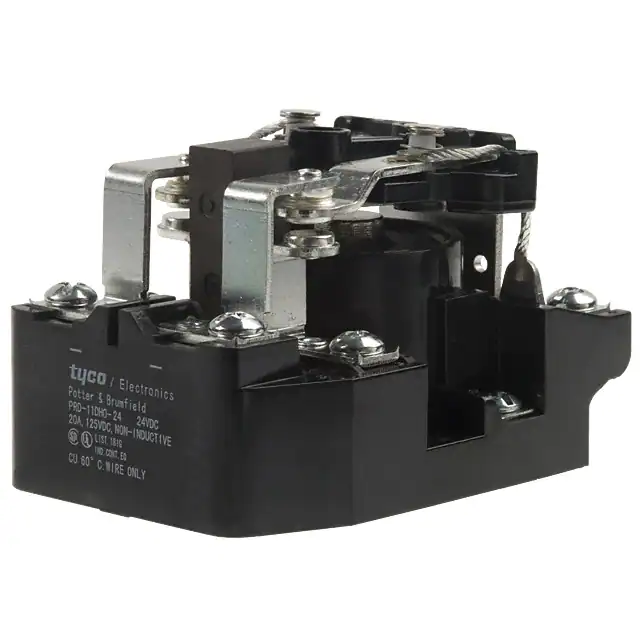

PRD-11DH0-24RELAY GEN PURPOSE DPDT 20A 24V |
96 |
|
برگه مشخصات |
PRD | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 20 A | 600VAC, 125VDC - Nom | - | 84 mA | Non Latching | - | Screw Terminal | - | Class B | 18 VDC | 2.4 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
24117RELAY GEN PURPOSE SPST 85A 12V |
66 |
|
برگه مشخصات |
- | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 85 A | - | - | 685.7 mA | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -40°C ~ 85°C | Copper | - | General Purpose | - | - |
|
KHU-17A11-120RELAY GEN PURPOSE 4PDT 3A 120V |
95 |
|
برگه مشخصات |
KH | Tray | Active | Socketable | 120VAC | 4PDT (4 Form C) | 3 A | 240VAC - Nom | - | 11 mA | Non Latching | - | Plug In | - | Class B | 102 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
24612RELAY GEN PURPOSE SPST 225A 12V |
56 |
|
برگه مشخصات |
- | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 225 A | - | - | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -40°C ~ 60°C | Silver (Ag) | - | General Purpose | - | - |
|

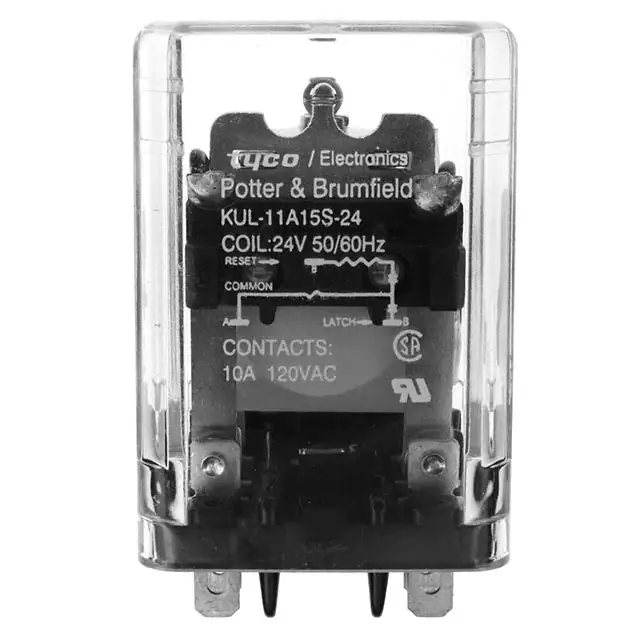

KUL-11A15S-24RELAY GEN PURPOSE DPDT 10A 24V |
355 |
|
برگه مشخصات |
KUL | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 136.4 mA | Latching, Single Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | - | 25 ms | 25 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

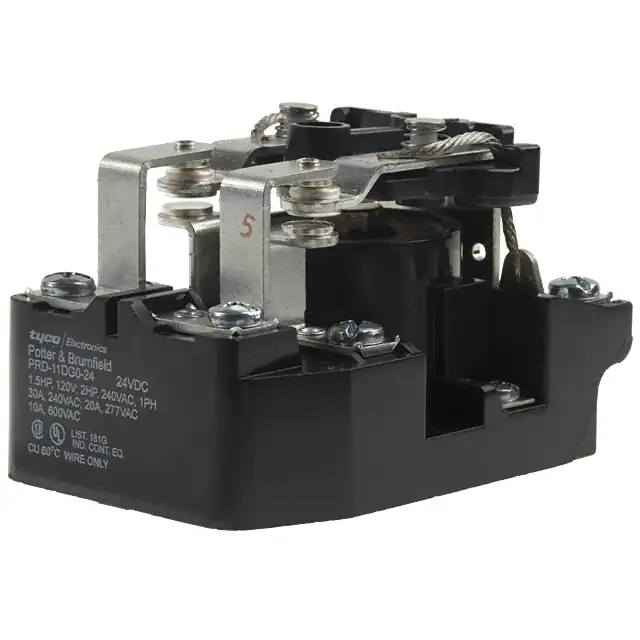

PRD-11DG0-24RELAY GEN PURPOSE DPDT 30A 24V |
1 |
|
برگه مشخصات |
PRD | Tray | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 30 A | 600VAC, 125VDC - Nom | - | 84 mA | Non Latching | - | Screw Terminal | - | Class B | 18 VDC | 2.4 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
|
PRD-11DY0-24RELAY GEN PURPOSE DPDT 25A 24V |
30 |
|
برگه مشخصات |
PRD | Bulk | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 25 A | 600VAC, 125VDC - Nom | - | 84 mA | Non Latching | - | Screw Terminal | - | Class B | 18 VDC | 2.4 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
RR2KP-UAC120VRELAY GEN PURPOSE DPDT 10A 120V |
27 |
|
برگه مشخصات |
RR2KP | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 22 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 96 VAC | - | 25 ms | - | -5°C ~ 40°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
PRD-11AG0-120RELAY GEN PURPOSE DPDT 30A 120V |
39 |
|
برگه مشخصات |
PRD | Bulk | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 30 A | 600VAC, 125VDC - Nom | - | 85 mA | Non Latching | - | Screw Terminal | - | Class B | 102 VAC | 12 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
|
|
PRD-11AY0-24RELAY GEN PURPOSE DPDT 25A 24V |
35 |
|
برگه مشخصات |
PRD | Bulk | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 25 A | 600VAC, 125VDC - Nom | - | 410 mA | Non Latching | - | Screw Terminal | - | Class B | 20.4 VAC | 2.4 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
R10-E1X2-115VRELAY GEN PURPOSE DPDT 5A 115V |
327 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 115VAC | DPDT (2 Form C) | 5 A | 120VAC - Nom | - | 12.8 mA | Non Latching | - | Plug In | - | - | 86 VAC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
PRD-11AY0-240RELAY GEN PURPOSE DPDT 25A 240V |
24 |
|
برگه مشخصات |
PRD | Bulk | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 25 A | 600VAC, 125VDC - Nom | - | 43 mA | Non Latching | - | Screw Terminal | - | Class B | 204 VAC | 24 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
24117-01RELAY GEN PURPOSE SPST 65A 12V |
34 |
|
برگه مشخصات |
- | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 65 A | - | - | 685.7 mA | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -40°C ~ 85°C | Copper | - | General Purpose | - | - |
|

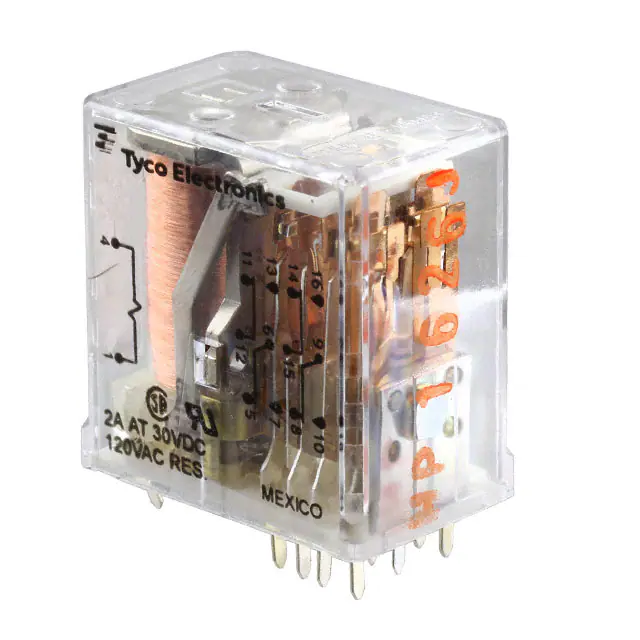

R10-E2P4-V700RELAY GEN PURPOSE 4PDT 3A 24V |
206 |
|
برگه مشخصات |
R10 | Bulk | Active | Through Hole | 24VDC | 4PDT (4 Form C) | 3 A | 120VAC - Nom | - | 34.3 mA | Non Latching | - | PC Pin | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|

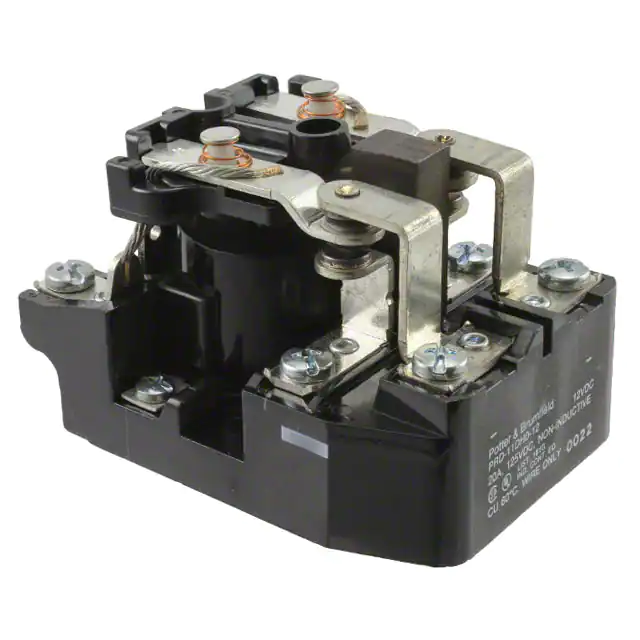

PRD-11DH0-12RELAY GEN PURPOSE DPDT 20A 12V |
56 |
|
برگه مشخصات |
PRD | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 20 A | 600VAC, 125VDC - Nom | - | 169 mA | Non Latching | - | Screw Terminal | - | Class B | 9 VDC | 1.2 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
MJN2C-E-AC120RELAY GEN PURPOSE DPDT 20A 120V |
57 |
|
برگه مشخصات |
MJN | Bulk | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 20 A | 600VAC, 28VDC - Max | 12000VA, 560W | 14.2 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 102 VAC | - | 20 ms | 10 ms | -45°C ~ 60°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|

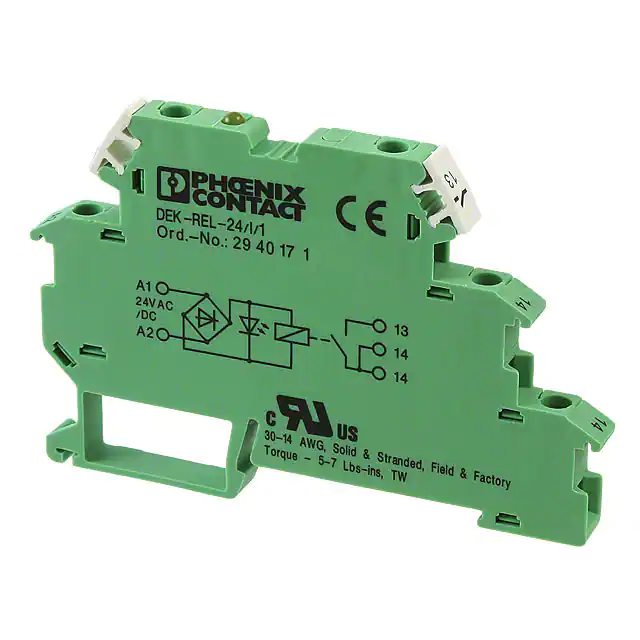

2940171RELAY GEN PURPOSE SPST 3A 24V |
74 |
|
برگه مشخصات |
- | Bulk | Active | DIN Rail | 24VAC/DC | SPST-NO (1 Form A) | 3 A | 250VAC, 250VDC - Max | - | 6.5 mA | Non Latching | - | Screw Terminal | - | - | - | - | 5 ms | 15 ms | -20°C ~ 50°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
24452-BXCVP RELAY |
45 |
|
برگه مشخصات |
- | Bulk | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 50 A | 14VDC - Max | - | - | Non Latching | - | Stud | Sealed - Fully | - | 7.8 VDC | - | - | - | -40°C ~ 85°C | - | - | General Purpose | - | - |
