رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PR2-12V-450-1ARELAY GEN PURPOSE SPST 10A 12V |
931 |
|
برگه مشخصات |
PR2 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 37.5 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR2-5V-450-1ARELAY GEN PURPOSE SPST 10A 5V |
904 |
|
برگه مشخصات |
PR2 | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 90.9 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR12-24V-360-1ARELAY GEN PURPOSE SPST 15A 24V |
609 |
|
برگه مشخصات |
PR12 | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 15 A | 250VAC, 28VDC - Max | 3750VA, 420W | 15 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
AZ9403-1A-12DERELAY GEN PURPOSE SPST 10A 12V |
2,232 |
|
برگه مشخصات |
AZ9403 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 400VAC, 150VDC - Max | 2770VA, 150W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 8 ms | 5 ms | -40°C ~ 110°C | Silver Tin Oxide (AgSnO) | UL, VDE | General Purpose | - | - |
|

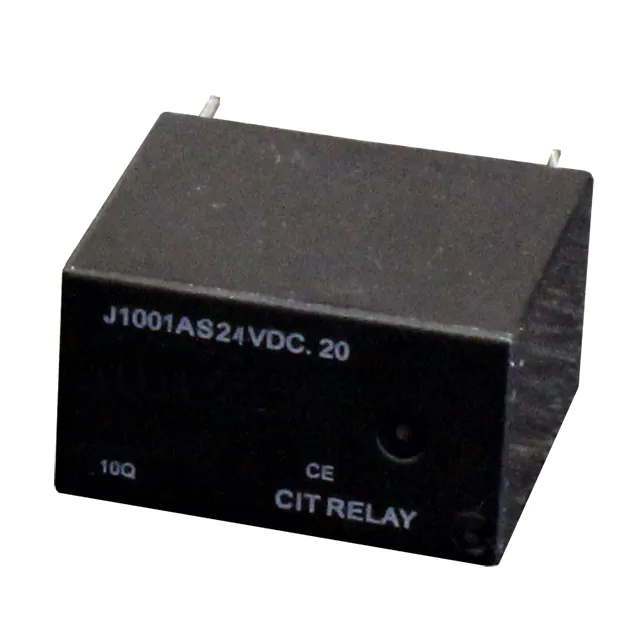

J1001AS24VDC.20RELAY GEN PURPOSE SPST 10A 24V |
1,774 |
|
برگه مشخصات |
J100 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
AZ9322-1CH-12DRELAY GEN PURPOSE SPDT 15A 12V |
974 |
|
برگه مشخصات |
AZ9322 | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 15 A | 277VAC - Max | 1800VA | 30 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | - | 10 ms | 5 ms | - | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
G5Q-1A4 DC22RELAY GEN PURPOSE SPST 10A 22V |
362 |
|
برگه مشخصات |
G5Q | Tray | Active | Through Hole | 22VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 9.1 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.5 VDC | 1.1 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
PR4-24V-450-1ARELAY GEN PURPOSE SPST 5A 24V |
2,144 |
|
برگه مشخصات |
PR4 | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 18.8 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR12-24V-360-1CRELAY GEN PURPOSE SPDT 15A 24V |
719 |
|
برگه مشخصات |
PR12 | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 15 A | 250VAC, 28VDC - Max | 3750VA, 420W | 15 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR5-12V-200-1ARELAY GEN PURPOSE SPST 5A 12V |
336 |
|
برگه مشخصات |
PR5 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 16.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
J105D1AS12VDC.45RELAY GEN PURPOSE SPST 10A 12V |
2,728 |
|
برگه مشخصات |
J105D | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
PR6-12V-450-1ARELAY GEN PURPOSE SPST 10A 12V |
1,262 |
|
برگه مشخصات |
PR6 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 37.5 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
G5LE-1A DC5RELAY GEN PURPOSE SPST 10A 5V |
564 |
|
برگه مشخصات |
G5LE | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | - | 79.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
J105D1AS3VDC.45RELAY GEN PURPOSE SPST 10A 3V |
1,905 |
|
برگه مشخصات |
J105D | Tray | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 150 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
G5NB-1A-HA DC5 (N)(A)RELAY GEN PURPOSE SPST 3A 5V |
609 |
|
برگه مشخصات |
G5NB | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 250VAC, 30VDC - Max | 750VA, 90W | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
G5LE-1A-S DC24RELAY GEN PURPOSE SPST 10A 24V |
1,017 |
|
برگه مشخصات |
G5LE | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | - | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
AZ9322-1CH-5DRELAY GEN PURPOSE SPDT 15A 5V |
956 |
|
برگه مشخصات |
AZ9322 | Tray | Active | Through Hole | 5VDC | SPDT (1 Form C) | 15 A | 277VAC - Max | 1800VA | 71.43 mA | Non Latching | - | PC Pin | - | Class B | 3.8 VDC | - | 10 ms | 5 ms | - | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
J104A2C3VDC.40SRELAY GEN PURPOSE DPDT 3A 3V |
3,630 |
|
برگه مشخصات |
J104 | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 130.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | General Purpose | - | - |
|

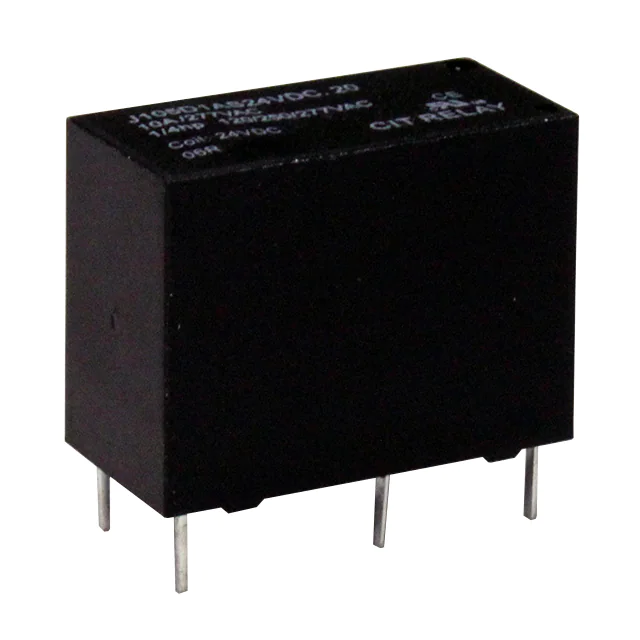

J105D1AS24VDC.20RELAY GEN PURPOSE SPST 10A 24V |
709 |
|
برگه مشخصات |
J105D | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
ALQ109RELAY GEN PURPOSE SPDT 10A 9V |
928 |
|
برگه مشخصات |
ALQ | Box | Active | Through Hole | 9VDC | SPDT (1 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 44.4 mA | Non Latching | - | PC Pin | - | Class B | 6.75 VDC | 0.45 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURuus, VDE | General Purpose | - | - |
