رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7940117605RELAY SPDT RH1B-VAC 220-230 |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
KRP-11AN-120RELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
برگه مشخصات |
KRP | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
R10-E1W4-V2.5KRELAY GEN PURPOSE 4PDT 7.5A 48V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 48VDC | 4PDT (4 Form C) | 7.5 A | 120VAC - Nom | - | 19.2 mA | Non Latching | - | Plug In | - | - | 36 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
PRD-70230POWER RELAY ASSEMBLY |
0 |
|
- |
PRD | Bulk | Obsolete | Chassis Mount | - | - | 50 A | 600VAC, 125VDC - Nom | - | - | Non Latching | - | - | - | Class B | - | - | 40 ms | 20 ms | - | - | CSA, UL | General Purpose | - | - |
|
MY4H-0-AC110/120RELAY GEN PURPOSE 4PDT 3A 120V |
0 |
|
برگه مشخصات |
MY | Bulk | Active | Through Hole | 120VAC | 4PDT (4 Form C) | 3 A | 125VAC, 125VDC - Max | 330VA, 72W | 9.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -25°C ~ 60°C | Silver Alloy | CE, CSA, UR, VDE | General Purpose | - | - |
|
8501RSD44V53RELAY, TYPE R, PLUG IN, MINIATUR |
0 |
|
برگه مشخصات |
Square D 8501R | Box | Active | Socketable | 24VDC | 4PDT (4 Form C) | 15 A | 300VAC, 30VDC - Max | 4500VA, 450W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, UL | General Purpose | - | - |
|
PRD-7DY0-110RELAY GEN PURPOSE DPST 25A 110V |
0 |
|
برگه مشخصات |
PRD | Bulk | Obsolete | Chassis Mount | 110VDC | DPST-NO (2 Form A) | 25 A | 600VAC, 125VDC - Nom | - | 18.2 mA | Non Latching | - | Screw Terminal | - | Class B | 82.5 VDC | 11 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
|
7940102817RS32 24VAC/VDC DPDT 4A |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R10-E1P4-V15.0KRELAY GEN PURPOSE 4PDT 3A 115V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 115VDC | 4PDT (4 Form C) | 3 A | 120VAC - Nom | - | 7.7 mA | Non Latching | - | Plug In | - | - | 86 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|

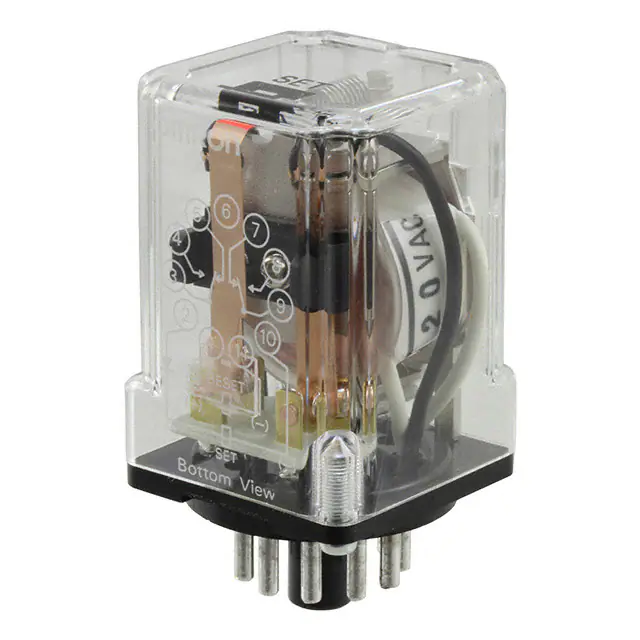

MK2KP-UA-AC120RELAY GEN PURPOSE DPDT 5A 120V |
0 |
|
برگه مشخصات |
MKK | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1100VA, 72W | 19 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 96 VAC | - | 30 ms | 30 ms | -10°C ~ 40°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MK2KP-UA-DC12RELAY GEN PURPOSE DPDT 5A 12V |
0 |
|
برگه مشخصات |
MKK | Bulk | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1100VA, 72W | 205 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 9.6 VDC | - | 30 ms | 30 ms | -10°C ~ 40°C | Silver (Ag) | - | General Purpose | - | - |
|
MK2KP-UA-DC24RELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
برگه مشخصات |
MKK | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1100VA, 72W | 110 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 19.2 VDC | - | 30 ms | 30 ms | -10°C ~ 40°C | Silver (Ag) | - | General Purpose | - | - |
|
KRP-14DG-24RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
برگه مشخصات |
KRP | Bulk | Obsolete | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | Class B | 18 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KRP-14DG-12RELAY GEN PURPOSE 3PDT 10A 12V |
0 |
|
برگه مشخصات |
KRP | Bulk | Obsolete | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 100 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | Class B | 9 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
LZS:PT5D5S15PLUG-IN RELAY COMPACT UNIT |
0 |
|
برگه مشخصات |
SIRIUS LZS | Box | Active | DIN Rail | 115VAC | 4PDT (4 Form C) | - | - | - | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | 103.5 VAC | - | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, EAC, UKCA, VDE | General Purpose | - | - |
|
|
LZS:PT5D5T30PLUG-IN RELAY COMPACT UNIT |
0 |
|
- |
SIRIUS LZS | Box | Active | DIN Rail | 230VAC | 4PDT (4 Form C) | - | - | - | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | 207 VAC | - | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, EAC, UKCA, VDE | General Purpose | - | - |
|
|
CAD32FC7RELAY GEN PURPOSE 5PST 10A 127V |
0 |
|
برگه مشخصات |
TeSys | Box | Active | DIN Rail | 127VAC | 5PST-3NO/2NC (3 Form A, 2 Form B) | 10 A | 690VAC - Max | - | - | Non Latching | - | Screw Terminal | - | - | 108 VAC | 38.1 VAC | 22 ms | 17 ms | -40°C ~ 70°C | - | CB, CCC, CE, CSA, EAC, UKCA, UL | General Purpose | - | - |
|
|
CAD32FE7RELAY GEN PURPOSE 5PST 10A 115V |
0 |
|
برگه مشخصات |
TeSys | Box | Active | DIN Rail | 115VAC | 5PST-3NO/2NC (3 Form A, 2 Form B) | 10 A | 690VAC - Max | - | - | Non Latching | - | Screw Terminal | - | - | 97.8 VAC | 34.5 VAC | 22 ms | 17 ms | -40°C ~ 70°C | - | CB, CCC, CE, CSA, EAC, UKCA, UL | General Purpose | - | - |
|
|
CAD32E7RELAY GEN PURPOSE 5PST 10A 48V |
0 |
|
- |
TeSys | Box | Active | DIN Rail | 48VAC | 5PST-3NO/2NC (3 Form A, 2 Form B) | 10 A | 690VAC - Max | - | - | Non Latching | - | Screw Terminal | - | - | 40.8 VAC | 14.4 VAC | 22 ms | 17 ms | -40°C ~ 70°C | - | CB, CCC, CE, CSA, EAC, UKCA, UL | General Purpose | - | - |
|
|
CAD323B7RELAY GEN PURPOSE 5PST 10A 24V |
0 |
|
برگه مشخصات |
TeSys | Box | Active | DIN Rail | 24VAC | 5PST-3NO/2NC (3 Form A, 2 Form B) | 10 A | 690VAC - Max | - | - | Non Latching | - | Spring Terminal | - | - | 20.4 VAC | 7.2 VAC | 22 ms | 17 ms | -40°C ~ 70°C | - | CB, CCC, CE, CSA, EAC, UKCA, UL | General Purpose | - | - |
