آنتن های RF
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | RF Family/Standard | گروه فرکانس | فرکانس (مرکز/باند) | محدوده فرکانس | نوع آنتن | تعداد باندها | VSWR | ضرر برگشتی | به دست آوردن | قدرت - حداکثر | ویژگی ها | فسخ | حفاظت از ورود | درجه | صلاحیت | نوع نصب | ارتفاع (حداکثر) | برنامه های کاربردی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

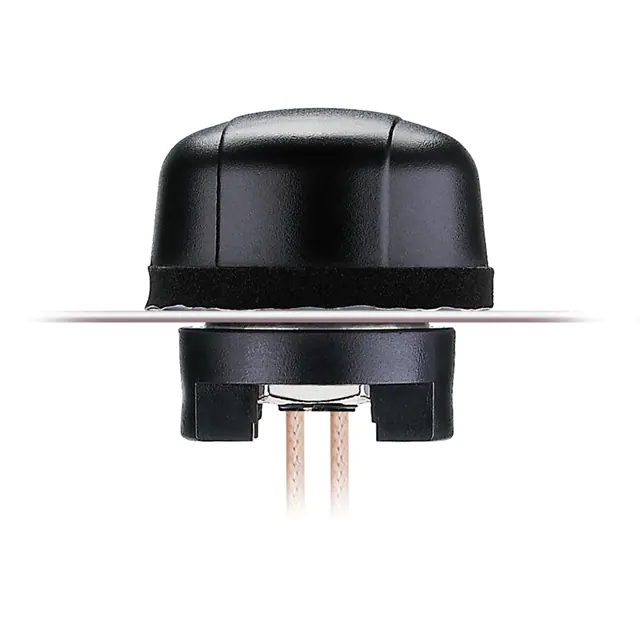

MA510.C.CG.005RF ANT 2.4GHZ/5.3GHZ DOME RP-SMA |
746 |
|
برگه مشخصات |
Hercules | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.3GHz | 2.4GHz ~ 2.5GHz, 4.8GHz ~ 5.8GHz | Dome | 2 | 2 | -10dB | 3.9dBi, 3dBi | 2 W | - | RP-SMA Male | IP69K | - | - | Panel Mount | 1.142" (29.00mm) | Bluetooth, WLAN, Zigbee™ |
|

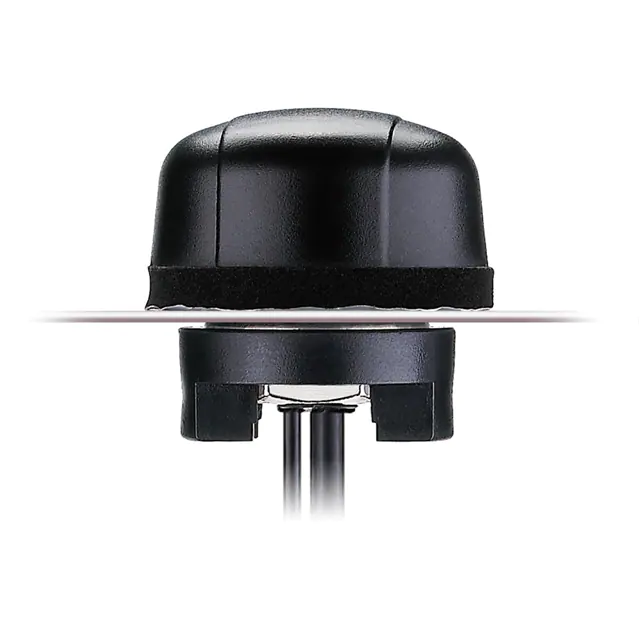

MA520.A.BC.008RF ANT 850MHZ/900MHZ DOME PNL MT |
245 |
|
برگه مشخصات |
Hercules | Bag | Active | Cellular, WiFi | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 5GHz | 850MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.483GHz, 5GHz ~ 5.825GHz | Dome | 7 | - | -8.1dB, -8.5dB, -16.5dB, -20.3dB, -19.5dB, -18.0dB, -15.0dB | 1.0dBi, 1.5dBi, 0.4dBi, -0.5dBi, -1.1dBi, 2.1dBi, -3.2dBi | 10 W | Cable - 2m | SMA Male, RP-SMA Male (2) | IP67, IP69K | - | - | Panel Mount | 1.122" (28.50mm) | CDMA, EVDO, GPRS, GSM, HSPA, UMTS, WCDMA, Wi-Fi |
|

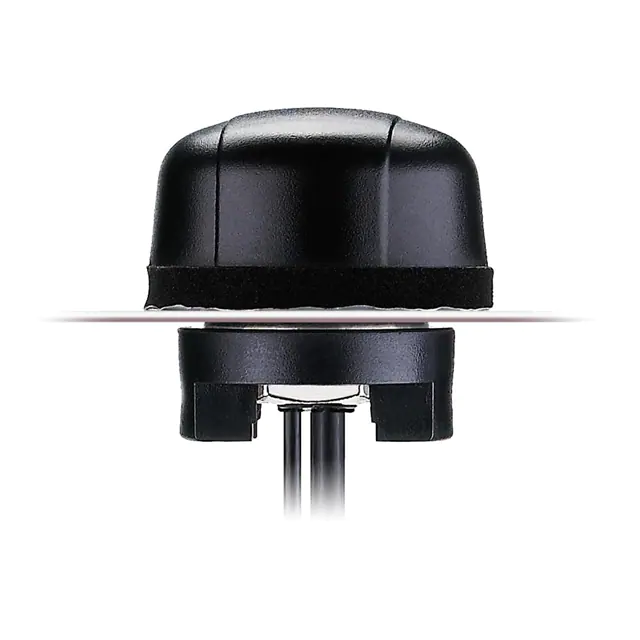

MA501.C.AC.001RF ANT 1.575GHZ/2.4GHZ DOME CAB |
184 |
|
برگه مشخصات |
- | Bag | Active | 802.15.4, Bluetooth, Navigation, WiFi | Wide Band | 1.575GHz, 2.4GHz, 5.2GHz | 1.57GHz ~ 1.58GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.35GHz | Dome | 3 | 2, 1.8 | -12.1dB, -15.3dB | 2dBi, 4.05dBi, 4.37dBi | - | Cable - 3m, LNA, Filter | SMA Male (1), RP-SMA Male (1) | IP67, IP69K | - | - | Panel Mount | 1.142" (29.00mm) | Bluetooth, GPS, WLAN, Zigbee™ |
|
PCTP915RF ANT 915MHZ WHP STR TNC M CONN |
50 |
|
برگه مشخصات |
PCTP | Bulk | Active | Bluetooth, Cellular, WiFi | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 2dBi | 5 W | - | TNC Male | IP67 | - | - | Connector Mount | 12.992" (330.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, LTE, LMR/TETRA/P25, Wi-Fi |
|
MA841.A.BI.002RF ANT DOME SMA MALE |
53 |
|
برگه مشخصات |
- | Box | Active | Cellular | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz | 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Dome | 7 | 3.5 | - | 1.51dBi, 3.56dBi, 2.09dBi, 1.95dBi, 2.72dBi, 1.95dBi, 1.98dBi, 2.37dBi, 1.32dBi, 1.79dBi, 1.04dBi, 2.36dBi, 5.91dBi, 4.99dBi | - | Cable - 1m | SMA Male | IP67 | - | - | Panel Mount | 2.260" (57.40mm) | 2G, 3G, 4G, LTE |
|
OMB.6912.03F21RF ANT 829MHZ/2.2GHZ WHIP STR N |
1,366 |
|
برگه مشخصات |
- | Tube | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 2 | 3 | - | 4.5dBi | 150 W | - | N Type Female | IP65 | - | - | Bracket Mount | 12.598" (320.00mm) | - |
|
33-2710-00-5000RF ANT 1.561/1.575GHZ DOME MAGNT |
36 |
|
برگه مشخصات |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.557GHz ~ 1.606GHz | Dome | 1 | 1.5 | - | 4.75dBic | - | Cable - 5m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic, Chassis Mount | 0.594" (15.10mm) | Beidou, Galileo, GLONASS, GPS |
|
33-3142-14-01PRE-FILTERED TIMING ANTENNA |
341 |
|
برگه مشخصات |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 2 | - | 4.5dBic | - | LNA, Filter | - | IP67 | - | - | Panel Mount | 1.870" (47.50mm) | GPS |
|

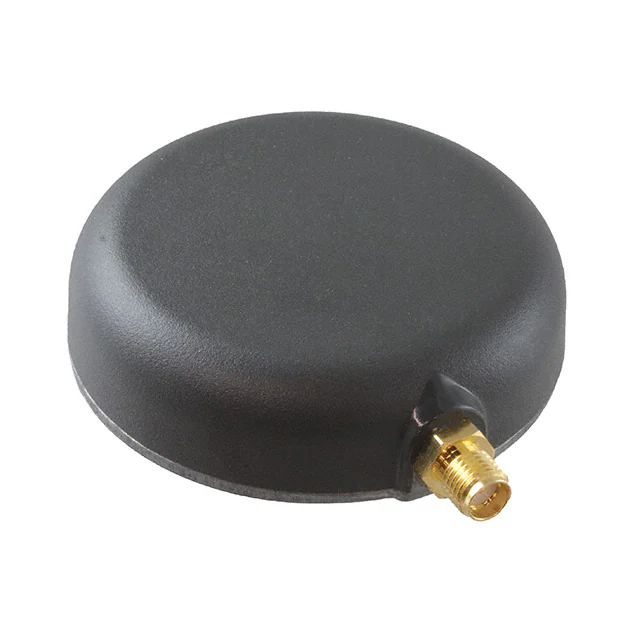

33-2712-00-5000PRE-FILTERED, BEIDOU B1 / GALILE |
32 |
|
برگه مشخصات |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5815GHz | 1.557GHz ~ 1.606GHz | Dome | 1 | 1.8 | - | 4.75dBi | - | Cable - 5m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.591" (15.00mm) | Beidou, Galileo, GLONASS, GPS, SBAS |
|

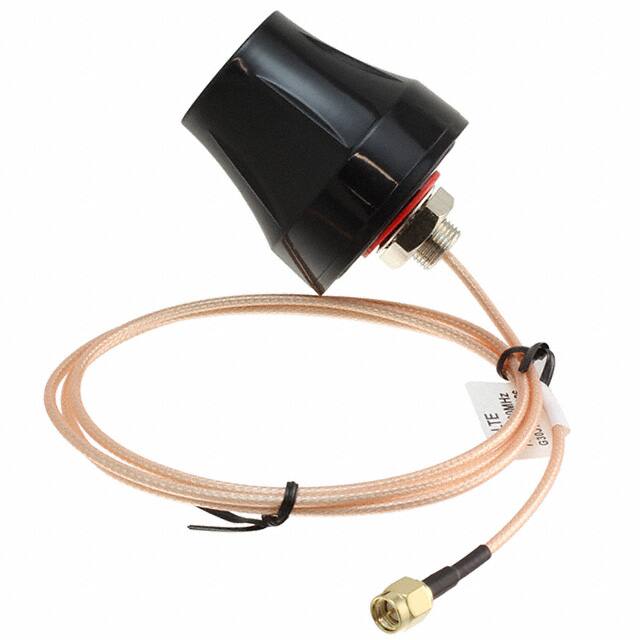

ANT-G30B108111RF ANT 700/850MHZ WHIP STR PANEL |
117 |
|
برگه مشخصات |
Olympian | Bulk | Active | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.483GHz, 2.5GHz ~ 2.8GHz | Whip, Straight | 4 | 3 | - | 1.2dBi, 3.2dBi, 2.5dBi, 1.5dBi | 5 W | Cable - 1m | SMA Male | IP67, IP69K | - | - | Panel Mount | 1.890" (48.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, IMT, LTE, UMTS, WCDMA |
|
33-3710-01-01RF ANT 1.561GHZ/1.575GHZ DOME |
34 |
|
برگه مشخصات |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.557GHz ~ 1.606GHz | Dome | 1 | 1.5 | - | 28dB | - | LNA, Filter | TNC Female | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GPS |
|
WDMP.2458.AWDMP.2458.A 2.4/5.8GHZ MECHANICA |
338 |
|
برگه مشخصات |
- | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Ceramic Patch | 2 | - | -6dB, -7dB | 5.5dBi, 7.3dBi | 10 W | - | SMA Female | - | - | - | Adhesive | 0.278" (7.07mm) | Wi-Fi |
|
BGYD890KRF ANT 925MHZ YAGI N TYPE F POLE |
48 |
|
برگه مشخصات |
BGYD | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Yagi, 7-Element | 1 | - | - | 10dBd | 200 W | Cable - 609.6mm | N Type Female | - | - | - | Pole Mount | 23.800" (604.52mm) | ISM, LoRa, LPWAN |
|

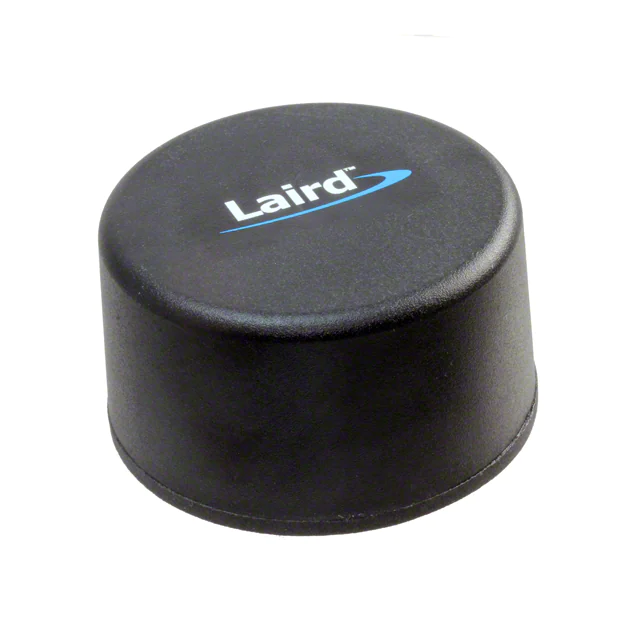

GPSU15MRF ANT 1.575GHZ DOME NMO 1.5" |
80 |
|
برگه مشخصات |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | - | - | 26dB | - | - | NMO | - | - | - | Base Mount | 1.500" (38.10mm) | GPS |
|
MA140.A.LB.001RF ANT 829MHZ/1.575GHZ DOME 1M |
262 |
|
برگه مشخصات |
Olympian | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.602GHz, 2.1GHz, 2.65GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.8GHz | Dome | 5 | 3, 1.5, 1.5, 3, 3 | - | 1.58dBi, 2dBic 2.7dBi, 1.11dBi | 5 W | Cable - 1m, LNA, Filter | SMA Male (2) | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | 2G, 3G, 4G, GLONASS, GPS, LTE |
|
PCTHPDLTE-SFRF ANT 657.5MHZ DOME SMA MALE |
97 |
|
برگه مشخصات |
PCTHPDLTE-SF | Bulk | Active | Cellular, Navigation | Wide Band | 657.5MHz, 750MHz, 892MHz, 1.955GHz, 2.495GHz, 2.45GHz, 3.6GHz, 5.4GHz, 5.55GHz | 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.925GHz, 5.15GHz ~ 5.95GHz | Dome | 9 | - | - | 3.8dBi, 5.2dBi, 6.2dBi, 7.5dBi, 8.9dBi, 9.4dBi, 5.4dBi, 9.4dBi, 8.1dBi | 50 W | Cable - 5.1816m | SMA Male | IP67 | - | - | Panel Mount | 5.197" (132.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LTE, Wi-Fi |
|
FG9023RF ANT 915MHZ WHIP STR N FEM |
84 |
|
برگه مشخصات |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 5dBi | 200 W | - | N Type Female | - | - | - | Bracket Mount | 23.125" (587.40mm) | - |
|
MA850.A.LBICG.001RF ANT 829MHZ/1.94GHZ DOME SMA |
51 |
|
برگه مشخصات |
- | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.94GHz, 2.59GHz, 5.38GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 4.9GHz ~ 5.85GHz | Dome | 4 | 3 | -10dB | 4.3dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 2.260" (57.40mm) | BEIDOU, GLONASS, GPS, LTE, WLAN |
|
OMB.915.B03F21RF ANT 915MHZ WHIP STR N FEM |
252 |
|
برگه مشخصات |
- | Tube | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 3.5dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 12.598" (320.00mm) | - |
|
33-1829-05-0150EMBEDDED, LIGHTWEIGHT GPS L1/L2 |
34 |
|
برگه مشخصات |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2276GHz, 1.248GHz, 1.575GHz, 1.602GHz | 1.215GHz ~ 1.261GHz, 1.557GHz ~ 1.606GHz | Ceramic Patch | 4 | 1.8 | - | 3.7dBi, 4dBi | - | Cable - 150mm, LNA | MCX Male | IP67 | - | - | Chassis Mount | 0.382" (9.70mm) | Beidou, Galileo, GLONASS, GPS |
