آنتن های RF
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | RF Family/Standard | گروه فرکانس | فرکانس (مرکز/باند) | محدوده فرکانس | نوع آنتن | تعداد باندها | VSWR | ضرر برگشتی | به دست آوردن | قدرت - حداکثر | ویژگی ها | فسخ | حفاظت از ورود | درجه | صلاحیت | نوع نصب | ارتفاع (حداکثر) | برنامه های کاربردی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A.93.A.101111BOLT - LOW PROFILE HIGH RF IMMUN |
88 |
|
برگه مشخصات |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Dome | 3 | - | - | 4.49dBi, 4.84dBi, 5.09dBi | - | Cable - 1m, LNA | SMA Male | IP67 | - | - | Panel Mount | 1.000" (25.40mm) | GPS |
|
33-HC871-28DUAL BAND ANTENNA |
117 |
|
برگه مشخصات |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2345GHz, 1.5825GHz | 1.215GHz ~ 1.254GHz, 1.559GHz ~ 1.606GHz | Helical | 2 | 1.8 | - | 28dB | - | - | SMA Male | IP67 | - | - | Connector Mount | 2.488" (63.20mm) | Beidou, Galileo, GLONASS, GPS |
|
MA700.W.A.ABC.001RF ANT 750MHZ/850MHZ DOME PNL MT |
202 |
|
برگه مشخصات |
Pantheon | Box | Active | Cellular, Navigation | Wide Band | 750MHz, 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | 700MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz | Dome | 12 | 2, 1.7 | - | 2.4dBi, 1.6dBi, 1.7dBi, 2.1dBi, 2.4dBi, 2.1dBi, 2.9dBi, 3.8dBi, 2.8dBi | - | Cable - 3m, LNA, Filter | SMA Male (3) | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | GLONASS, GPS, LTE |
|
GPSGL-TMG-SPI-40NCBRF ANT GNSS 40DB NF SURGEP BRKT |
59 |
|
برگه مشخصات |
Timing Ref | Bulk | Active | PNT | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.56GHz ~ 1.62GHz | Dome | 1 | 2 | - | 40dBi | - | LNA, Filter | N Type Female | IP67 | - | - | Bracket Mount, Through Hole | 7.244" (184.00mm) | Galileo, GLONASS, GNSS, GPS |
|
EAHP.125.01.0100DEMBEDDED ACTIVE QUAD HELIX ANTEN |
82 |
|
برگه مشخصات |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MA710.A.ABI.001RF ANT 742/892MHZ DOME SMA MALE |
248 |
|
برگه مشخصات |
Pantheon | Box | Active | Cellular, Navigation | Wide Band | 742MHz, 892MHz, 1.575GHz, 1.9GHz, 2.8GHz | 698MHz ~ 787MHz, 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.6GHz ~ 3.5GHz | Dome | 6 | 2.5, 3, 2.5, 3, 2.5, 2 | - | 2.52dBi, 1.48dBi, 32dBi, 1.22dBi, 0.15dBi, 3.2dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | CDMA, GPS, GSM, LTE, UMTS |
|
MA741.B.BI.001RF ANT 829MHZ/1.94GHZ DOM SMA 3M |
119 |
|
برگه مشخصات |
Pantheon | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Dome | 3 | - | -6dB | 4.16dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | CDMA, GPS, GSM, LTE, UMTS |
|

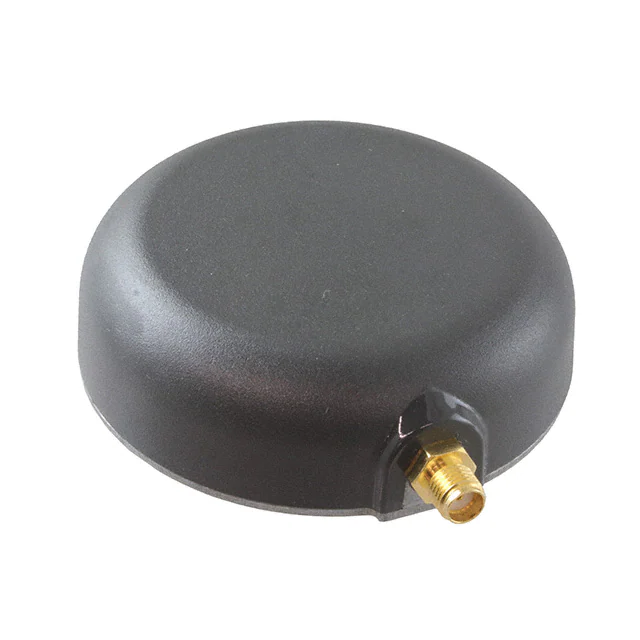

33-7872-07GPS L1/L2+GLONASS G1/G2 + GALILE |
47 |
|
برگه مشخصات |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.237GHz, 1.5815GHz | 1.213GHz ~ 1.261GHz, 1.557GHz ~ 1.606GHz | Dome | 2 | 1.8 | - | 3.8dBi, 4.5dBi | - | LNA | SMA Female | IP67 | - | - | Magnetic | 0.866" (22.00mm) | Beidou, Galileo, GLONASS, GPS |
|
MA760.A.ABIC.003RF ANT DOME SMA MALE PANEL MT |
193 |
|
برگه مشخصات |
Pantheon | Box | Active | Cellular, Navigation, WiFi | Wide Band | - | 698MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz, 4.7GHz ~ 5.9GHz | Dome | 5 | 3, 1.7, 2 | - | 2.1dBi, 2.9dBi, 3.8dBi, 2.8dBi | - | Cable - 3m, LNA, Filter | SMA Male (3), RP-SMA (1) | IP67 | - | - | Panel Mount | 3.138" (79.70mm) | GLONASS, GPS, LTE, Wi-Fi |
|
MA750.A.ABICG.003RF ANT 829MHZ/1.6GHZ DOME SMA ML |
82 |
|
برگه مشخصات |
Pantheon | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.6GHz, 1.9GHz, 2.5GHz, 3.2GHz, 4.7GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz, 4.5GHz ~ 4.85GHz | Dome | 6 | 3, 2 | - | 32dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | GLONASS, GPS, LTE, WLAN |
|
GNSS-L125-TNCRF ANT GNSS 28DB PRECIS TNCF LP |
53 |
|
برگه مشخصات |
Precision | Bulk | Active | PNT | Wide Band | 1.22GHz, 1.5575GHz | 1.16GHz ~ 1.3GHz, 1.52GHz ~ 1.615GHz | Dome | 2 | 2 | - | 28dBi | - | LNA, Filter | TNC Female | IP67 | - | - | Bracket Mount, Through Hole | 1.460" (37.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
MA673.A.CGH.004RF ANT 2.4/5.38GHZ DOME RP-SMA |
45 |
|
برگه مشخصات |
Spartan | Box | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.38GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Dome | 2 | - | - | 5.64dBi | 5 W | - | RP-SMA Male | IP67 | - | - | Panel Mount | 1.575" (40.00mm) | - |
|
PLTE7027MRF ANT 600-960/1710-2700 PNL NF |
49 |
|
برگه مشخصات |
FP | Bulk | Active | Cellular/LTE | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Panel | 2 | 2 | - | 8.2dBi, 8dBi | 50 W | - | N Type Female (2) | IP67 | - | - | Pole Mount, Wall Mount | 4.402" (111.80mm) | 2G, 3G, 5G, Cellular, LTE |
|
XAHP.50.A.301111ACTIVE MULTI-BAND GNSS ANTENNA 3 |
68 |
|
- |
- | Box | Active | Navigation | Wide Band | 1.176GHz, 1.2276GHz, 1.27875GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Dome | 6 | 1.3, 1.4, 1.5 | - | 7.4dBi, 6.2dBi, 6.8dBi, 3.2dBi, 4.2dBi, 4.2dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 2.283" (58.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
33-HC977-35TRIPLE BAND ANTENNA + L BAND |
66 |
|
برگه مشخصات |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.209GHz, 1.565GHz | 1.164GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Helical | 3 | 1.8 | - | 0.3dBi, 1.4dBi, 1.5dBi, 2dBi, 2.1dBi, 2.2dBi, 2.5dBi | - | LNA, Filter | SMA | IP67 | - | - | Screw | 2.457" (62.40mm) | Beidou, Galileo, GLONASS, GPS |
|
|
MA1504.AK.0016 IN 1 BRAIDED ANT |
42 |
|
برگه مشخصات |
- | Bulk | Active | Cellular | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.47GHz, 1.79GHz, 1.92GHz, 2.05GHz, 2.49GHz, 4.15GHz, 5.54GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.43GHz ~ 1.52GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.93GHz | Dome | 10 | - | - | -2.7dBi, -1.6dBi, 1.8dBi, 2.3dBi, 2.7dBi, 2.9dBi, 3.3dBi, 4.5dBi, 1.6dBi, 2.4dBi | 2 W | Cable - 300mm | SMA Male | IP67 | - | - | Bracket Mount | 2.263" (57.47mm) | 4G, 5G |
|
MA750.W.A.ABICG.003PANTHEON MA750 WHITE 5-IN-1 PERM |
32 |
|
برگه مشخصات |
Pantheon | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.57542GHz, 1.602GHz, 1.94GHz, 2.45GHz, 2.5GHz, 3.2GHz, 5.175GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.4GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz, 4.5GHz ~ 5.85GHz | Dome | 8 | 2, 3 | - | 4dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | 2G, 3G, 4G, Galileo, GLONASS, GPS, LTE |
|
OMB.868.B12F21868MHZ 12DBI OMNI ANTENNA WITH N |
45 |
|
برگه مشخصات |
- | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 865MHz | 860MHz ~ 870MHz | Whip, Straight | 1 | 2 | - | 11.4dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 0.087" (2.20mm) | ISM |
|
33-7972-00-3000TRI-BAND + L-BAND (PRE-FILTERED) |
46 |
|
برگه مشخصات |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.209GHz, 1.5655GHz | 1.164GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Dome | 2 | 1.8 | - | -1.5dBi, 2.5dBi, 3dBi, 4dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.866" (22.00mm) | Beidou, Galileo, GLONASS, GPS |
|

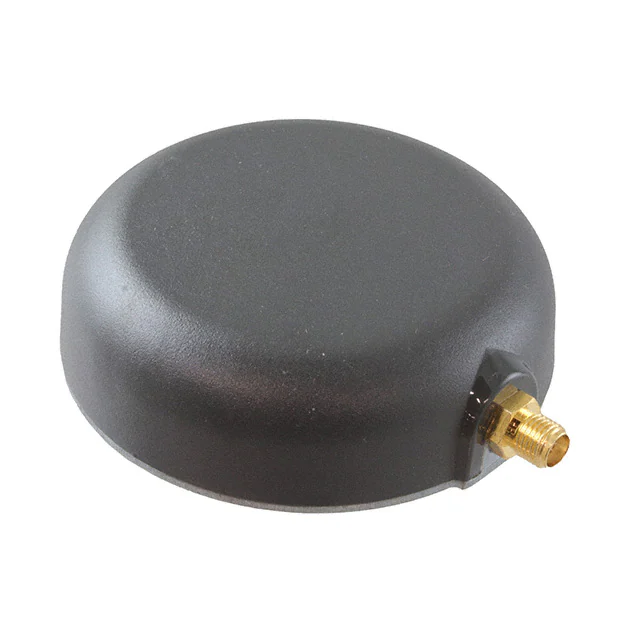

33-7972-07TRI-BAND + L-BAND (PRE-FILTERED) |
32 |
|
برگه مشخصات |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.209GHz, 1.5655GHz | 1.164GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Dome | 2 | 1.8 | - | -1.5dBi, 2.5dBi, 3dBi, 4dBi | - | LNA | SMA Female | IP67 | - | - | Magnetic | 0.866" (22.00mm) | Beidou, Galileo, GLONASS, GPS |
