سوئیچ های راکر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | مدار | عملکرد سوئیچ | رتبه فعلی (آمپر) | رتبه بندی ولتاژ - AC | رتبه بندی ولتاژ - DC | نوع محرک | رنگ - محرک/درپوش | علامت گذاری محرک | نوع روشنایی، رنگ | ولتاژ روشنایی (اسمی) | سبک خاتمه | حفاظت از ورود | ویژگی ها | ابعاد برش پانل | دمای عملیاتی | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

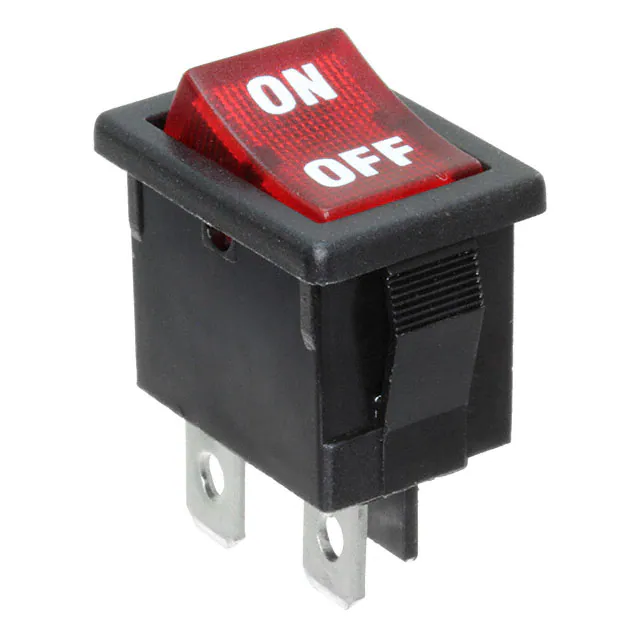

R1973ABLKRILIF1SWITCH ROCKER SPST 9A 125V |
1 |
|
برگه مشخصات |
R1973 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | ON OFF, Vertical | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|
R4DBLKREDEFOSWITCH ROCKER SPDT 15A 125V |
20 |
|
برگه مشخصات |
R4 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|

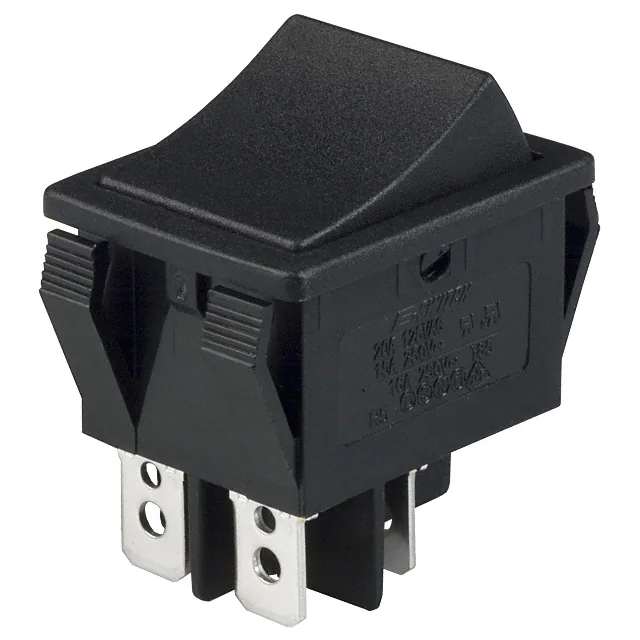

R5ABLKBLKEF0SWITCH ROCKER DPST 20A 125V |
0 |
|
برگه مشخصات |
R5 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|
H8553VBNAOSWITCH ROCKER DPST 15A 250V |
2 |
|
برگه مشخصات |
8553 | - | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) | - | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | - | CSA, UL |
|
R1966IBLKBLKESSWITCH ROCKER SPDT 15A 125V |
0 |
|
برگه مشخصات |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
400AWMDP1R1M2QESWITCH ROCKER DPDT 3A 120V |
0 |
|
برگه مشخصات |
400A | Bulk | Active | Through Hole | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
400UDP1R1BLKM2RESWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
برگه مشخصات |
400U | Tube | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
400UDP1L1BLKM2RESWITCH ROCKER DPDT 0.4VA 20V |
0 |
|
برگه مشخصات |
400U | Tube | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
400AWMSP3R1BLKM6QESWITCH ROCKER SPDT 3A 120V |
0 |
|
برگه مشخصات |
400A | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
400MSP1R1BLKVS2RESWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
برگه مشخصات |
400 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 8.89mm | -30°C ~ 85°C | cULus |
|

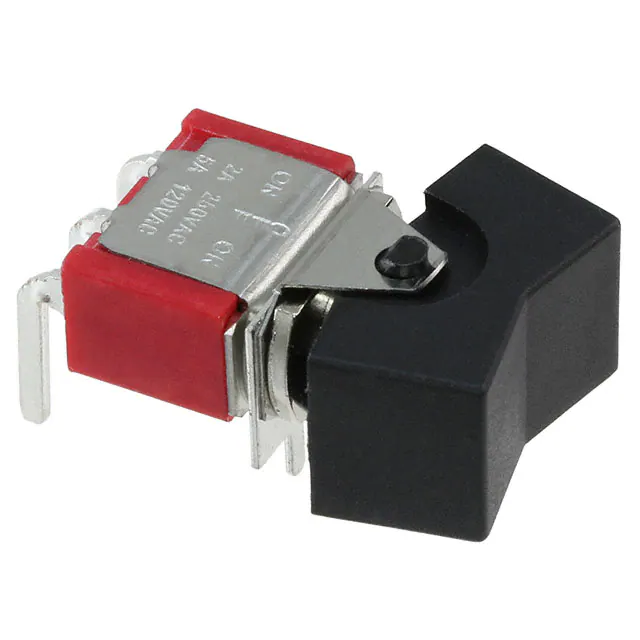

300SP3J1BLKM6QESWITCH ROCKER SPDT 5A 120V |
0 |
|
برگه مشخصات |
300 | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|

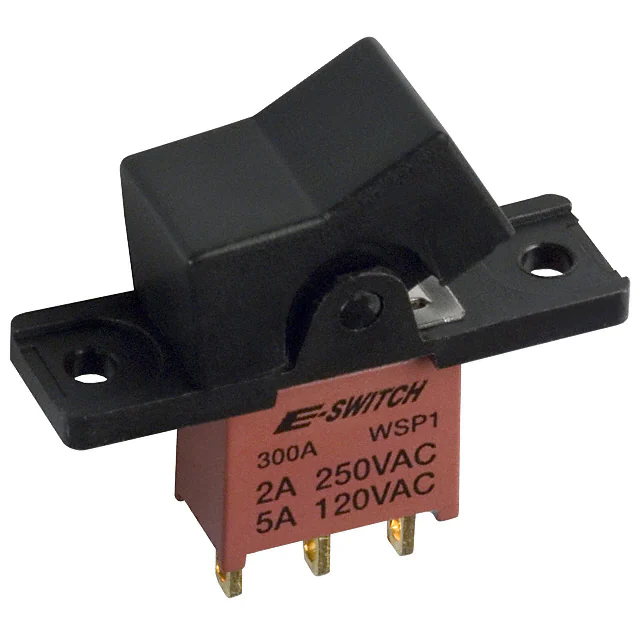

300AWSP1R1BLKM1QESWITCH ROCKER SPDT 5A 120V |
0 |
|
برگه مشخصات |
300A | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 13.14mm x 7.20mm | -30°C ~ 85°C | - |
|

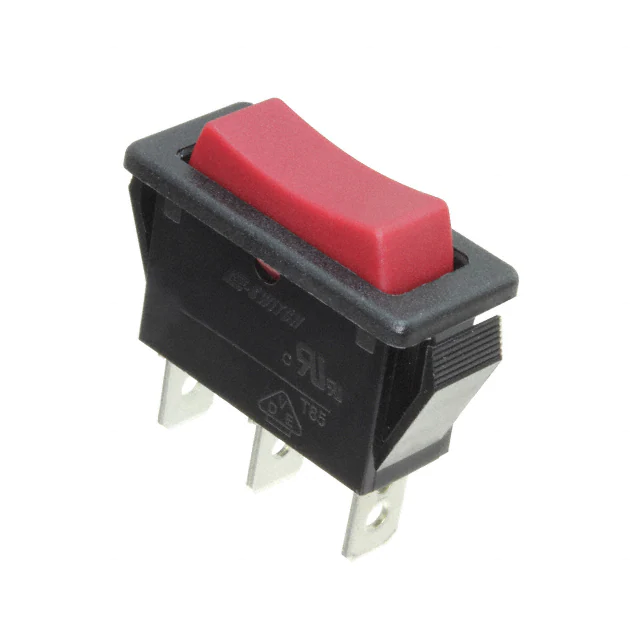

R4GBLKREDEFOSWITCH ROCKER SPDT 15A 125V |
19 |
|
برگه مشخصات |
R4 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
D502J12S215DQASWITCH ROCKER SPST 10A 125V |
0 |
|
برگه مشخصات |
D | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
300SP4J6M7QESWITCH ROCKER SPDT 5A 120V |
0 |
|
برگه مشخصات |
300 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|

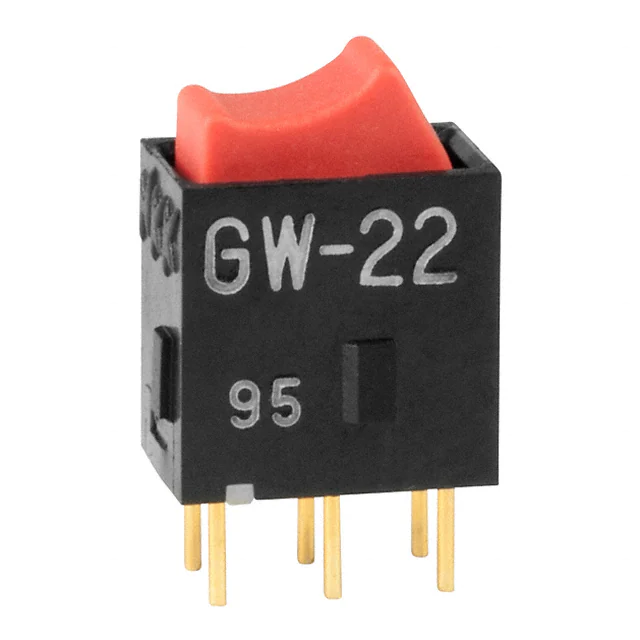

GW22RCPSWITCH ROCKER DPDT 0.4VA 28V |
11 |
|
برگه مشخصات |
GW | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

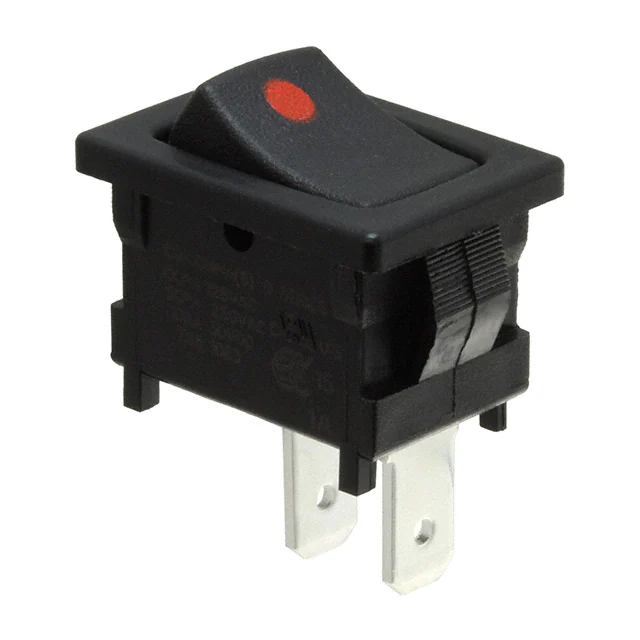

D502J12S215NQASWITCH ROCKER SPST 10A 125V |
9 |
|
برگه مشخصات |
D | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|

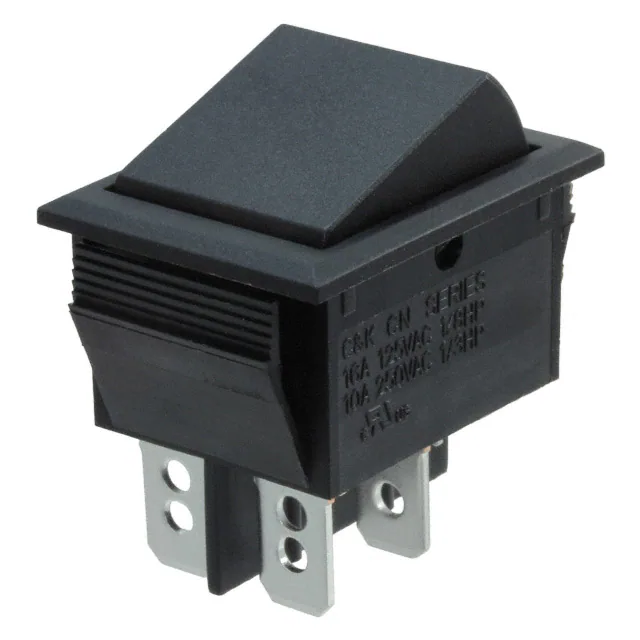

CN202J62S405QASWITCH ROCKER DPST 16A 125V |
0 |
|
برگه مشخصات |
CN | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Flat | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.40mm x 22.20mm | -20°C ~ 85°C | cULus |
|
GW12LJPCSWITCH ROCKER SPDT 0.4VA 28V |
16 |
|
برگه مشخصات |
GW | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle - Illuminated | Clear | No Marking | LED, Red | 2 VDC | PC Pin | - | Sealed - Flux Protection | - | -25°C ~ 55°C | CSA, UL |
|

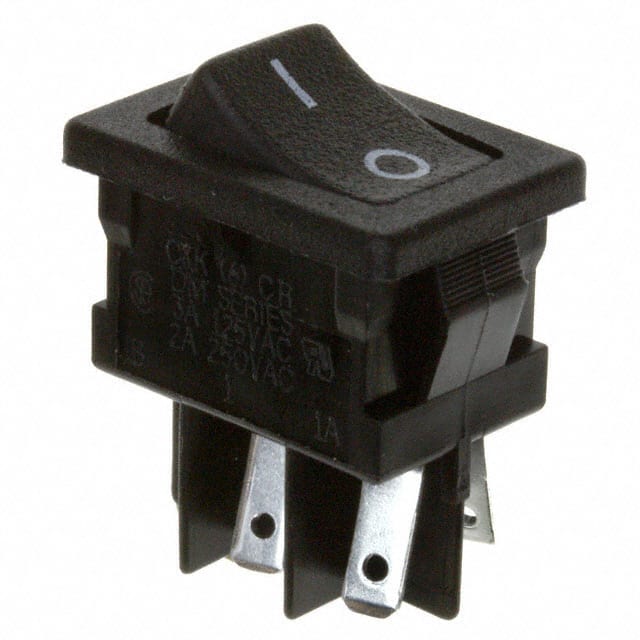

DM22J12S205PQSWITCH ROCKER DPST 3A 125V |
19 |
|
برگه مشخصات |
DM | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 3A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 65°C | cULus |
