سوئیچ های راکر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | مدار | عملکرد سوئیچ | رتبه فعلی (آمپر) | رتبه بندی ولتاژ - AC | رتبه بندی ولتاژ - DC | نوع محرک | رنگ - محرک/درپوش | علامت گذاری محرک | نوع روشنایی، رنگ | ولتاژ روشنایی (اسمی) | سبک خاتمه | حفاظت از ورود | ویژگی ها | ابعاد برش پانل | دمای عملیاتی | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

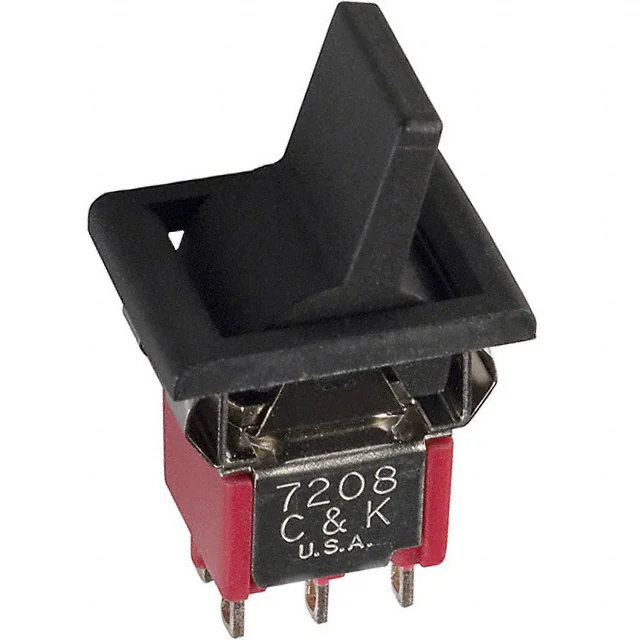

7208J61ZQE22SWITCH ROCKER DPDT 5A 120V |
1 |
|
برگه مشخصات |
7000 | Tray | Active | Panel Mount, Snap-In | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|

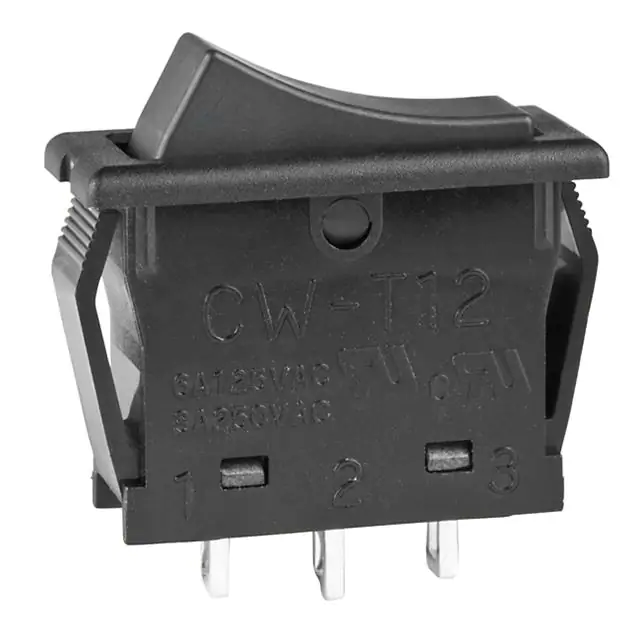

CWT12AAS1/CUL-WLSWITCH ROCKER SPDT 6A 125V |
19 |
|
برگه مشخصات |
CW | Box | Active | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | Dust Proof | - | Rectangular - 19.20mm x 6.80mm | -25°C ~ 70°C | cULus |
|
7103J37ZQE22SWITCH ROCKER SPDT 5A 120V |
9 |
|
برگه مشخصات |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | cULus |
|
A8GS-C1310SWITCH ROCKER DPST 16A 125V |
6 |
|
برگه مشخصات |
A8GS | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Connector, Solder Lug | - | - | Rectangular - 27.70mm x 15.20mm | -10°C ~ 55°C | cULus, EN, UL |
|
6050.5525SWITCH ROCKER DPST 15A 125V |
0 |
|
برگه مشخصات |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | IP40 | - | Rectangular - 27.50mm x 25.50mm | -25°C ~ 70°C | CSA, IEC, UL |
|
A8GS-D1210SWITCH ROCKER DPST 16A 125V |
0 |
|
برگه مشخصات |
A8GS | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder Lug | - | - | Rectangular - 27.70mm x 15.20mm | -10°C ~ 55°C | cULus, EN, UL |
|
A8GS-C1280SWITCH ROCKER DPST 16A 125V |
13 |
|
برگه مشخصات |
A8GS | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Connector, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 27.70mm x 15.20mm | -10°C ~ 55°C | cULus, EN, UL |
|

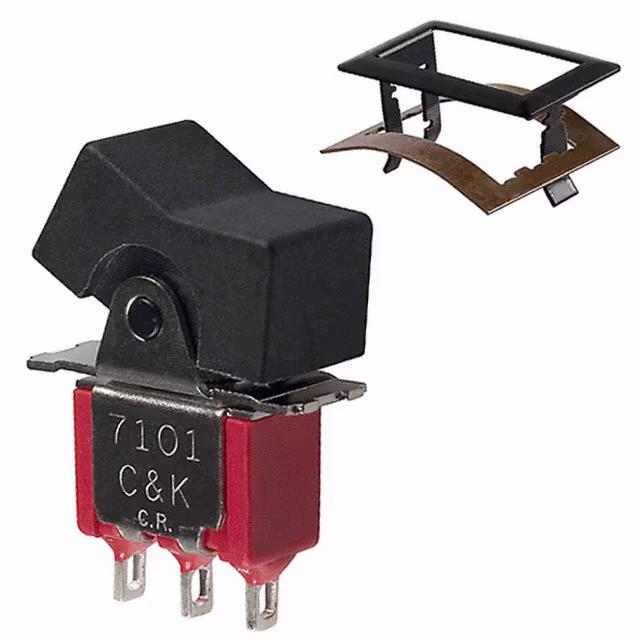

7101J11ZQE22SWITCH ROCKER SPDT 5A 120V |
0 |
|
برگه مشخصات |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 19.05mm x 10.41mm | -30°C ~ 85°C | cULus |
|
|
A8GS-P1310SWITCH ROCKER SPST 16A 125V |
0 |
|
برگه مشخصات |
A8GS | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder Lug | - | - | Rectangular - 27.70mm x 15.20mm | -10°C ~ 55°C | cULus, EN, UL |
|
|
A8A-204-1SWITCH ROCKER DPST 16A 125V |
3 |
|
برگه مشخصات |
A8A | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Flat | Blue | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP00 | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 50°C | CSA, EN, UL |
|
7105J37ZBE22SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
برگه مشخصات |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 30.99mm x 17.15mm | -30°C ~ 85°C | cULus |
|
E101J1ZQE2SWITCH ROCKER SPDT 7.5A 125V |
0 |
|
برگه مشخصات |
E | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
7105J16ZQE22SWITCH ROCKER SPDT 5A 120V |
0 |
|
برگه مشخصات |
7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 20.32mm x 12.70mm | -30°C ~ 85°C | cULus |
|
JWM21RCA/UCSWITCH ROCKER DPST 10A 125V |
8 |
|
برگه مشخصات |
JW | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
6050.5512SWITCH ROCKER DPST 15A 125V |
0 |
|
برگه مشخصات |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | IP40 | - | Rectangular - 27.50mm x 25.50mm | -25°C ~ 70°C | CSA, IEC, UL |
|
|
6050.5530SWITCH ROCKER DPST 15A 125V |
0 |
|
برگه مشخصات |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | IP40 | - | Rectangular - 27.50mm x 25.50mm | -25°C ~ 70°C | CSA, IEC, UL |
|
A8GS-C1180SWITCH ROCKER DPST 16A 125V |
0 |
|
برگه مشخصات |
A8GS | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Connector, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 27.70mm x 15.20mm | -10°C ~ 55°C | cULus, EN, UL |
|
7101J1AV2BE2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
برگه مشخصات |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
A8GS-D1315SWITCH ROCKER DPST 16A 125V |
2 |
|
برگه مشخصات |
A8GS | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder Lug | - | Remote Reset Function | Rectangular - 27.70mm x 15.20mm | -10°C ~ 55°C | cULus, EN, UL |
|
T101J6AVGE2SWITCH ROCKER SPDT 3A 120V |
0 |
|
برگه مشخصات |
T | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | UL |
