بلندگوها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تکنولوژی | تایپ کنید | محدوده فرکانس | فرکانس - خود رزونانس | امپدانس | کارایی - dBA | کارایی - آزمایش | کارایی - نوع | قدرت - دارای رتبه | قدرت - حداکثر | موقعیت بندر | شکل | مواد - مخروط | مواد - آهنربا | حفاظت از ورود | رتبه بندی ها | فسخ | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSR-28N08A-JQSPEAKER 8OHM 250MW TOP PORT 89DB |
9,163 |
|
برگه مشخصات |
PSR | Bulk | Active | Magnetic | General Purpose | 700 Hz ~ 8 kHz | 700Hz | 8 Ohms | 89.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.102" Dia (28.00mm) | 0.169" (4.30mm) |
|
SP-1504SPEAKER 8OHM 800MW TOP PORT 93DB |
232 |
|
برگه مشخصات |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1000Hz | 8 Ohms | 93.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 800 mW | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B-N38 | - | - | Wire Leads | 0.591" Dia (15.00mm) | 0.248" (6.30mm) |
|
CDM-20008SPEAKER 8OHM 300MW TOP PORT 92DB |
3,898 |
|
برگه مشخصات |
CDM | Tray | Active | Magnetic | General Purpose | 448 Hz ~ 7 kHz | 560Hz | 8 Ohms | 92.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) | 0.122" (3.10mm) |
|
CMS-15113-076S-67SPEAKER 6OHM 700MW TOP PORT 92DB |
2,506 |
|
برگه مشخصات |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.118" (3.00mm) |
|
SP-1609SSPEAKER 8OHM 700MW TOP PORT 92DB |
3,001 |
|
برگه مشخصات |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 5 kHz | 850Hz | 8 Ohms | 92.00 | 100mW | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.181" (4.60mm) |
|
AS02008MR-RSPEAKER 8OHM 500MW TOP PORT 86DB |
2,400 |
|
برگه مشخصات |
AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 4 kHz | 500Hz | 8 Ohms | 86.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) | 0.118" (3.00mm) |
|
E-12041808SPEAKER 8OHM 2W TOP PORT 87DB |
13,923 |
|
برگه مشخصات |
- | Tray | Active | Magnetic | Exciter | 400 Hz ~ 20 kHz | 400Hz | 8 Ohms | 87.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | - | - | - | - | Solder Eyelet(s) | 0.728" Dia (18.50mm) | 0.346" (8.80mm) |
|

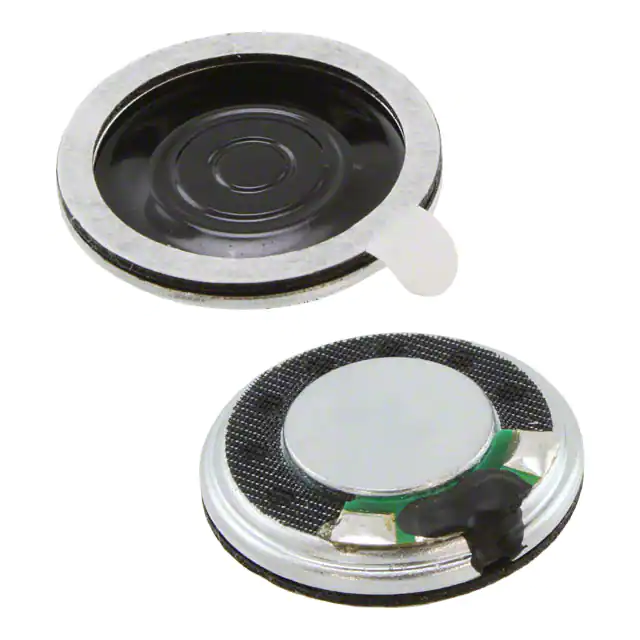

AS02008MR-5-RSPEAKER 8OHM 500MW TOP PORT 86DB |
971 |
|
برگه مشخصات |
AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 4 kHz | 500Hz | 8 Ohms | 86.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) | 0.150" (3.80mm) |
|
AR027150MR-2-RSPEAKER 150OHM 15MW TOP PT 118DB |
1,007 |
|
برگه مشخصات |
- | Tray | Active | Magnetic | Receiver | 20 Hz ~ 10 kHz | 150Hz | 150 Ohms | 118.00 | 1mW | Sound Pressure Level (SPL) | 15 mW | 30 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.055" Dia (26.80mm) | 0.335" (8.50mm) |
|
AS01808AO-3-RSPEAKER 8OHM 1W TOP PORT 94DB |
9,847 |
|
برگه مشخصات |
Slim Line Micro | Tray | Active | Magnetic | General Purpose | 420 Hz ~ 14 kHz | 420Hz | 8 Ohms | 94.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.106" (2.70mm) |
|
AS03008MR-RSPEAKER 8OHM 500MW TOP PORT 82DB |
9,489 |
|
برگه مشخصات |
AS | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 15 kHz | 650Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.181" Dia (30.00mm) | 0.189" (4.80mm) |
|

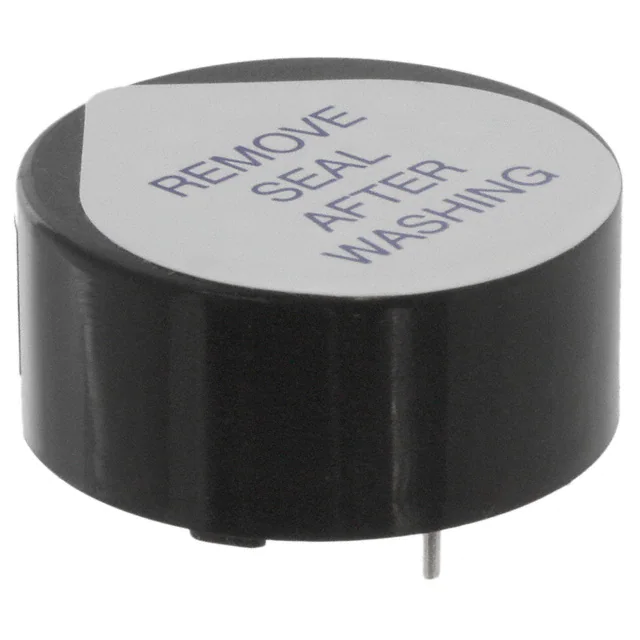

AST-03208MR-RSPEAKER 8OHM 100MW TOP PORT 82DB |
1,663 |
|
برگه مشخصات |
AST | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 1500Hz | 8 Ohms | 82.00 | 100mW/500mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.256" Dia (31.90mm) | 0.594" (15.10mm) |
|
AS01508MR-6-RSPEAKER 8OHM 1.2W TOP PORT 88DB |
15,063 |
|
برگه مشخصات |
AS | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 20 kHz | 900Hz | 8 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.2 W | 1.8 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" Dia (15.00mm) | 0.173" (4.40mm) |
|
CVS-1508SPEAKER 8OHM 300MW TOP PORT 73DB |
6,100 |
|
برگه مشخصات |
CVS | Tray | Active | Magnetic | General Purpose | 1.36 kHz ~ 20 kHz | 1700Hz | 8 Ohms | 73.00 | 1W/1M | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | Washable | PC Pins | 0.591" Dia (15.00mm) | 0.295" (7.50mm) |
|
AST-02308MR-RSPEAKER 8OHM 100MW TOP PORT 75DB |
6,321 |
|
برگه مشخصات |
AST | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 1500Hz | 8 Ohms | 75.00 | 100mW/500mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 0.906" Dia (23.00mm) | 0.335" (8.50mm) |
|
CVS-1708SPEAKER 8OHM 200MW TOP PORT 74DB |
1,538 |
|
برگه مشخصات |
CVS | Tray | Active | Magnetic | General Purpose | 1.2 kHz ~ 20 kHz | 1500Hz | 8 Ohms | 74.00 | 1W/1M | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | Washable | PC Pins | 0.669" Dia (17.00mm) | 0.315" (8.00mm) |
|
AS02708CO-WR-RSPEAKER 8OHM 1W TOP PORT 80DB |
53,420 |
|
برگه مشخصات |
AS | Tray | Active | Magnetic | General Purpose | 250 Hz ~ 20 kHz | 750Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 1.063" L x 0.787" W (27.00mm x 20.00mm) | 0.248" (6.30mm) |
|

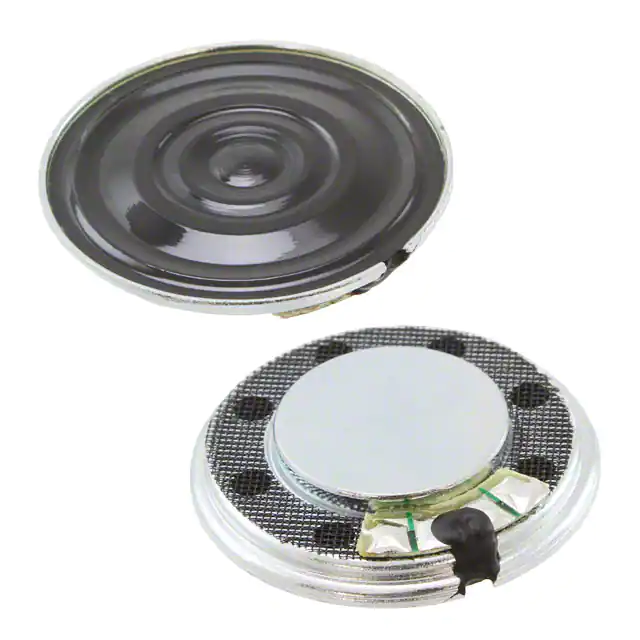

AS02808MR-2-RSPEAKER 8OHM 500MW TOP PORT 85DB |
1,402 |
|
برگه مشخصات |
AS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 85.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.102" Dia (28.00mm) | 0.185" (4.70mm) |
|

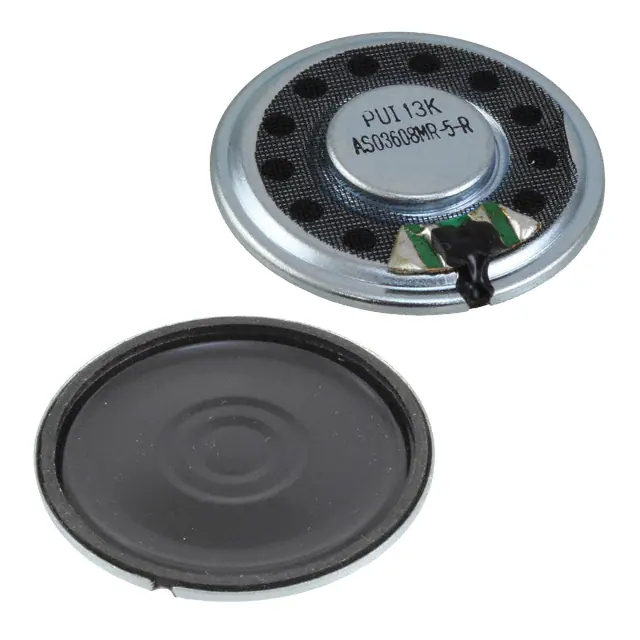

AS03608MR-5-RSPEAKER 8OHM 500MW TOP PORT 91DB |
1,017 |
|
برگه مشخصات |
AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 4.5 kHz | 500Hz | 8 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N38 | - | - | Solder Pads | 1.417" Dia (36.00mm) | 0.193" (4.90mm) |
|
AST-03008MR-RSPEAKER 8OHM 150MW TOP PORT 72DB |
2,115 |
|
برگه مشخصات |
AST | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 1400Hz | 8 Ohms | 72.00 | 100mW/500mm | Sound Pressure Level (SPL) | 150 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.175" Dia (29.85mm) | 0.492" (12.50mm) |
