بلندگوها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تکنولوژی | تایپ کنید | محدوده فرکانس | فرکانس - خود رزونانس | امپدانس | کارایی - dBA | کارایی - آزمایش | کارایی - نوع | قدرت - دارای رتبه | قدرت - حداکثر | موقعیت بندر | شکل | مواد - مخروط | مواد - آهنربا | حفاظت از ورود | رتبه بندی ها | فسخ | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PX 10 HF - 4 OHMSPEAKER 4OHM 20W TOP PORT 85DB |
3 |
|
برگه مشخصات |
- | Bulk | Active | Piezo | Full Range | 70 Hz ~ 13 kHz | 136Hz | 4 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 20 W | 30 W | Top | Round, Square Frame | Polypropylene (PP) | - | Waterproof | - | Quick Connect | - | 1.929" (49.00mm) |
|

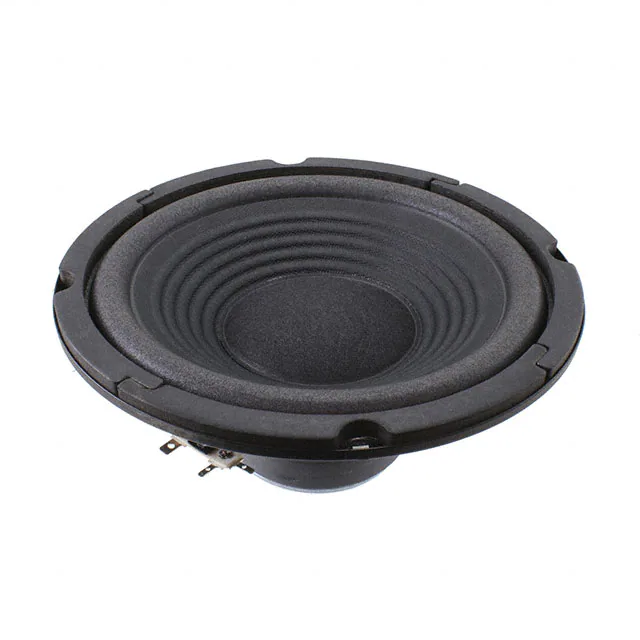

W 200 - 8 OHMSPEAKER 8OHM 50W TOP PORT 88DB |
5 |
|
برگه مشخصات |
- | Bulk | Active | Magnetic | General Purpose | 46 Hz ~ 8 kHz | 46Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 50 W | 80 W | Top | Round | - | - | - | - | Quick Connect | 8.110" Dia (206.00mm) | 3.425" (87.00mm) |
|
FC-23265-000SPEAKR 1.055 KOHM TOP PORT 103DB |
0 |
|
برگه مشخصات |
FC | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5.8 kHz | - | 1.055 kOhms | 103.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.204" L x 0.140" W (5.18mm x 3.55mm) | 0.120" (3.05mm) |
|
|
HC-23769-000SPEAKER 281OHM TOP PORT 101DB |
0 |
|
برگه مشخصات |
HC | Bulk | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 5.5 kHz | - | 281 Ohms | 101.00 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.203" L x 0.138" W (5.16mm x 3.51mm) | 0.203" (5.15mm) |
|
W 130 X - 2 X 4 OHMSPEAKER 8OHM 60W TOP PORT 78DB |
0 |
|
برگه مشخصات |
- | Bulk | Active | Magnetic | Subwoofer | 40 Hz ~ 6 kHz | 40Hz | 8 Ohms | 78.00 | 1W/1M | Sound Pressure Level (SPL) | 60 W | 90 W | Top | Round | Polypropylene (PP) | - | - | - | Quick Connect | 5.835" Dia (148.20mm) | 2.835" (72.00mm) |
|
SP-1511SSPEAKER 8OHM 700MW TOP PORT 83DB |
12 |
|
برگه مشخصات |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 3.4 kHz | 850Hz | 8 Ohms | 83.00 | 100mW | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.177" (4.50mm) |
|
AS02008MR-HT-RSPEAKER 8OHM 500MW TOP PORT 87DB |
12 |
|
برگه مشخصات |
AS | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 10 kHz | 800Hz | 8 Ohms | 87.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) | 0.130" (3.30mm) |
|
SP-1511-2SPEAKER 8OHM 500MW TOP PORT |
0 |
|
برگه مشخصات |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | - | 8 Ohms | - | 100mW | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.157" (4.00mm) |
|
AS03608MR-4-HT-RSPEAKER 8OHM 800MW TOP PORT 85DB |
5 |
|
برگه مشخصات |
AS | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 8 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N35 | - | - | Solder Pads | 1.417" Dia (36.00mm) | 0.169" (4.30mm) |
|
AS02850MR-RSPEAKR 50OHM 500MW TOP PORT 92DB |
14 |
|
برگه مشخصات |
AS | Tray | Active | Magnetic | General Purpose | 950 Hz ~ 7 kHz | 950Hz | 50 Ohms | 92.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.102" Dia (28.00mm) | 0.220" (5.60mm) |
|
AS01708MR-2-LW100-RSPEAKER 8OHM 500MW TOP PORT 90DB |
10 |
|
برگه مشخصات |
AS | Tray | Active | Magnetic | General Purpose | 850 Hz ~ 10 kHz | 850Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.669" Dia (17.00mm) | 0.217" (5.50mm) |
|
AS01608MS-SP16-WP-RSPEAKER 8OHM 700MW TOP PORT 90DB |
12 |
|
برگه مشخصات |
AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 950Hz | 8 Ohms | 90.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) | 0.118" (3.00mm) |
|

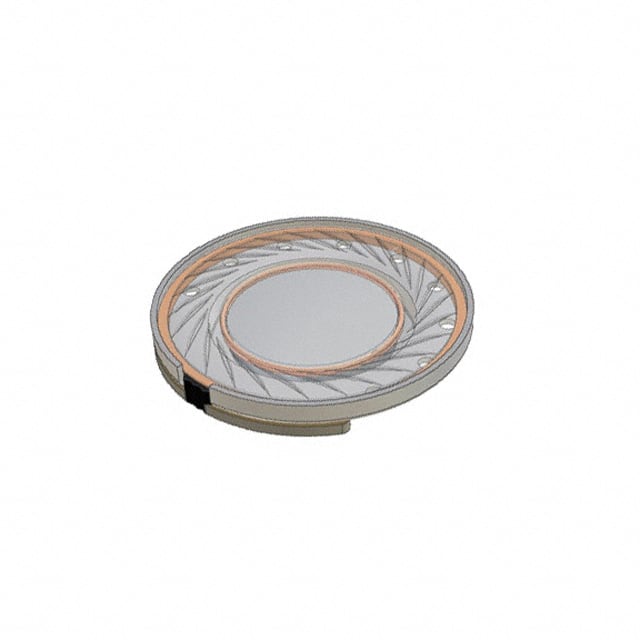

AS01308MR-RSPEAKER 8OHM 200MW TOP PORT 86DB |
12 |
|
برگه مشخصات |
AS | Tray | Active | Magnetic | General Purpose | 1.05 kHz ~ 20 kHz | 1050Hz | 8 Ohms | 86.00 | 200mW/100mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.512" Dia (13.00mm) | 0.087" (2.20mm) |
|

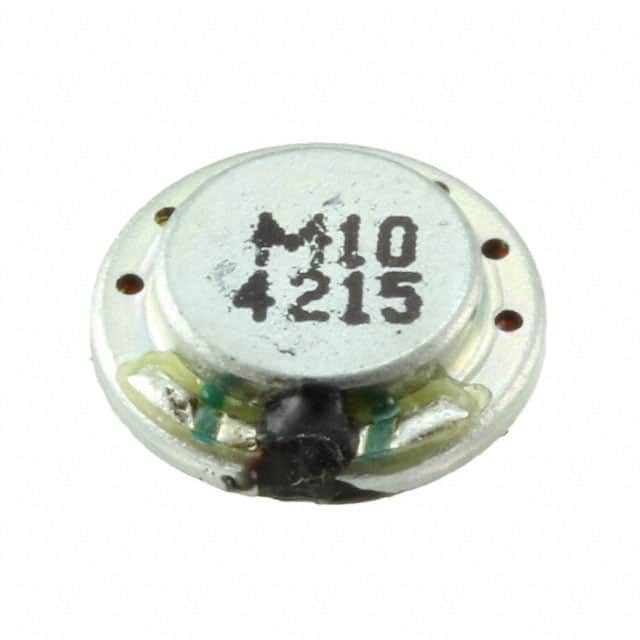

PSR10N08AKSPEAKER 8OHM 300MW TOP PORT 72DB |
15 |
|
برگه مشخصات |
PSR | Bulk | Active | Magnetic | General Purpose | 1.2 kHz ~ 20 kHz | 1200Hz | 8 Ohms | 72.00 | 1W/1M | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.394" Dia (10.00mm) | 0.114" (2.90mm) |
|
AS02708CO-LW100-RSPEAKER 8OHM 1W TOP PORT 80DB |
6 |
|
برگه مشخصات |
AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 650Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 3 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 1.063" L x 0.787" W (27.00mm x 20.00mm) | 0.256" (6.50mm) |
|
|
PSR-13N08A-SYQSPEAKER 8OHM 250MW TOP PORT 74DB |
0 |
|
برگه مشخصات |
PSR | Box | Active | Magnetic | General Purpose | 1.05 kHz ~ 20 kHz | 1.05kHz | 8 Ohms | 74.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.512" Dia (13.00mm) | 0.130" (3.30mm) |
|

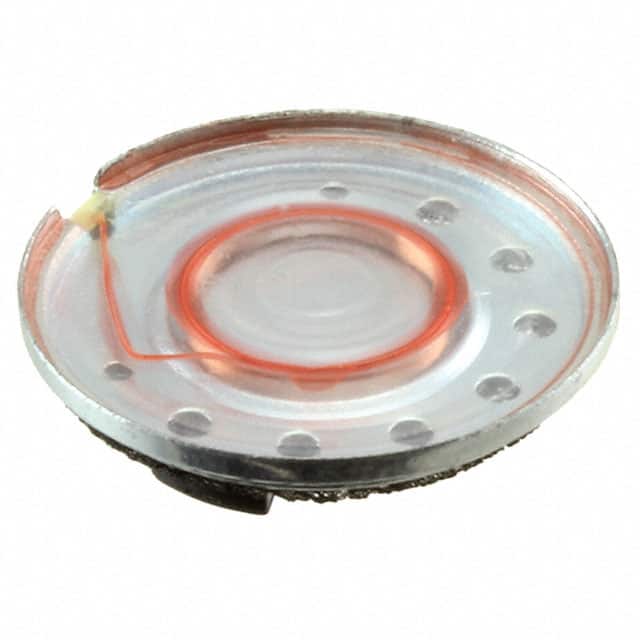

AS01708MR-SC-2-RSPEAKER 8OHM 300MW TOP PORT 88DB |
6 |
|
برگه مشخصات |
AS | Tray | Active | Magnetic | General Purpose | 750 Hz ~ 5 kHz | 750Hz | 8 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.669" Dia (17.00mm) | 0.173" (4.40mm) |
|
SP-1635N-1SPEAKER 8OHM 1W TOP PORT 89DB |
0 |
|
برگه مشخصات |
SP | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 20 kHz | 700Hz | 8 Ohms | 89.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.378" L x 0.630" W (35.00mm x 16.00mm) | 0.236" (6.00mm) |
|
SP-1625NSPEAKER 8OHM 1W TOP PORT 80DB |
0 |
|
برگه مشخصات |
SP | Tray | Active | Magnetic | General Purpose | 750 Hz ~ 20 kHz | 750Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 0.984" L x 0.630" W (25.00mm x 16.00mm) | 0.252" (6.40mm) |
|
AS01508MS-SP15-WP-RSPEAKER 8OHM 700MW TOP PORT 91DB |
0 |
|
برگه مشخصات |
AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 91.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.098" (2.50mm) |
