سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-FPX030030035-84-C3-R0HEATSINK 30X30X35MM R-TAB FP |
100 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 7.19°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX030030020-51-C2-R0HEATSINK 30X30X20MM L-TAB FP |
62 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 14.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX035035030-179-C2-R0HEATSINK 35X35X30MM R-TAB CP |
100 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 3.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-43-C2-R0HEATSINK 25X25X10MM L-TAB T766 |
100 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 28.85°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
CR301-50AEALUMINUM HEATSINK 50MM BLK ANODI |
100 |
|
برگه مشخصات |
CR | Box | Active | Board Level, Vertical | TO-301 | 2 Clips and PC Pin | Rectangular, Fins | 1.969" (50.00mm) | 2.362" (60.00mm) | - | - | - | - | 5.70°C/W | Aluminum Alloy | Black Anodized |
|
XL25D-TO3P-25-20-1CERAMIC HEAT SPREADER 25X20X1MM |
79 |
|
برگه مشخصات |
XL-25 | Bulk | Active | Heat Spreader | TO-3P | Thermal Tape | Rectangular | 0.984" (25.00mm) | 0.787" (20.00mm) | - | 0.039" (1.00mm) | - | - | - | Ceramic | - |
|
960-19-23-F-AB-0HEATSINK 19X23MM FRONT PUSH PIN |
56 |
|
برگه مشخصات |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.905" (23.00mm) | - | 4.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-FPX035035030-89-C2-R0HEATSINK 35X35X30MM R-TAB FP |
85 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 7.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040035-186-C3-R0HEATSINK 40X40X35MM R-TAB CP |
100 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 2.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX060060010-129-C1-R0HEATSINK 60X60X10MM XCUT CP |
100 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 8.64°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

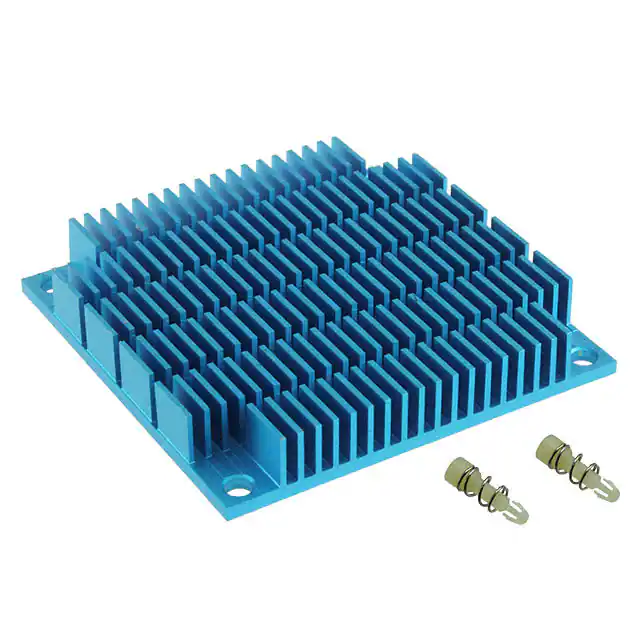

ATS-P1-205-C2-R0HEATSINK 60X60X6MM XCUT T766 |
53 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.236" (6.00mm) | - | 13.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-01F-138-C2-R0HEATSINK 25X25X15MM L-TAB T766 |
55 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 12.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

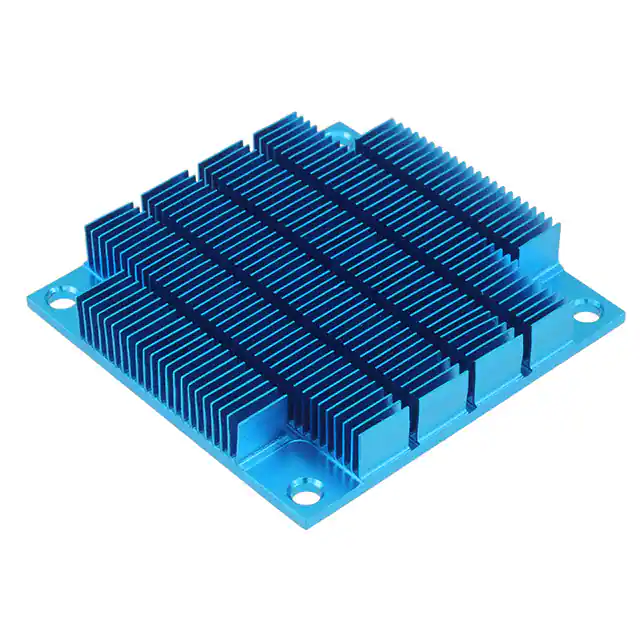

ATS-FPX054054010-109-C1-R1HEATSINK 54X54X9.5MM XCUT SFP |
78 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.374" (9.50mm) | - | 27.68°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

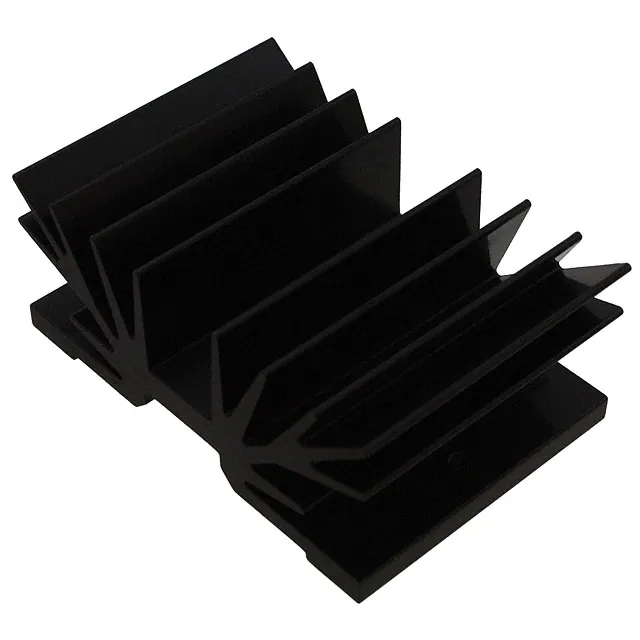

V5224CHEATSINK ALUM ANOD |
70 |
|
برگه مشخصات |
- | Bulk | Active | Board Level | SOT-32, TO-220 | Bolt On | Rectangular, Fins | 1.476" (37.50mm) | 2.126" (54.00mm) | - | 0.886" (22.50mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-P1-17-C2-R0HEATSINK 54X54X12.7MM XCUT T766 |
100 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.500" (12.70mm) | - | 15.44°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-05H-74-C2-R0HEATSINK 25X25X15MM R-TAB T766 |
96 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 20.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040030-95-C2-R0HEATSINK 40X40X30MM R-TAB FP |
50 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 7.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
960-31-12-F-AB-0HEATSINK 31X12MM FRONT PUSH PIN |
90 |
|
برگه مشخصات |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.472" (12.00mm) | - | 5.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

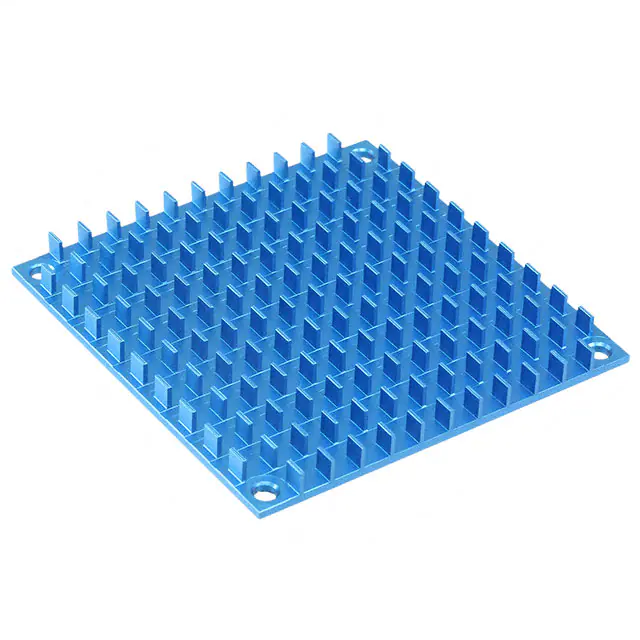

ATS-CPX070070006-208-C1-R0HEATSINK 70X70X6MM XCUT CP |
26 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.236" (6.00mm) | - | 10.49°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
CR201-50AEALUMINUM HEATSINK 50MM BLK ANODI |
79 |
|
برگه مشخصات |
CR | Box | Active | Board Level, Vertical | TO-201 | 3 Clips and PC Pin | Rectangular, Fins | 1.969" (50.00mm) | 2.953" (75.00mm) | - | - | - | - | 3.30°C/W | Aluminum Alloy | Black Anodized |
