سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

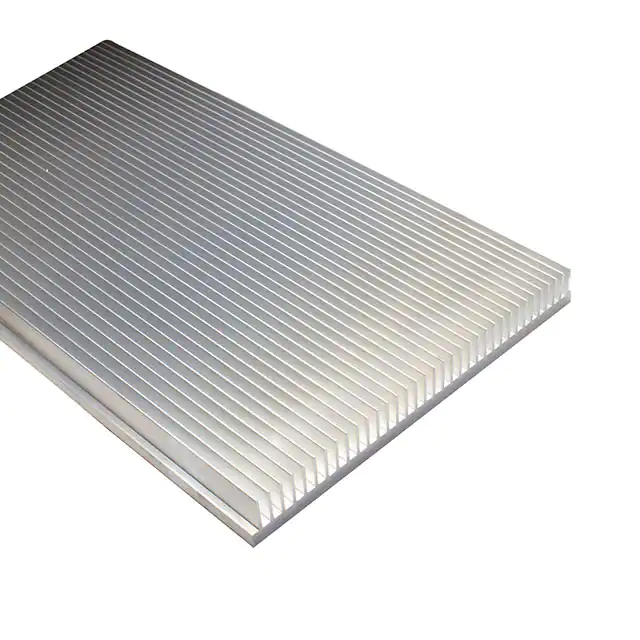

12778011.578" WIDE X 36" FLATBACK HEAT |
13 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 11.578" (294.08mm) | - | 1.320" (33.53mm) | - | - | 0.21°C/W | Aluminum | - |
|
ATS-EXL103-1220-R0HEATSINK AL6063 1220X115X33.6MM |
12 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 4.528" (115.00mm) | - | 1.323" (33.60mm) | - | 1.12°C/W @ 200 LFM | 4.61°C/W | Aluminum | Degreased |
|
|
ATS-EXL100-1220-R0HEATSINK AL6063 1220X130X33.5MM |
15 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 5.118" (130.00mm) | - | 1.319" (33.50mm) | - | 0.98°C/W @ 200 LFM | 4.26°C/W | Aluminum | Degreased |
|
|
ATS-EXL98-1220-R0HEATSINK AL6063 1220X120X36MM |
7 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 4.724" (120.00mm) | - | 1.417" (36.00mm) | - | 0.95°C/W @ 200 LFM | 4.69°C/W | Aluminum | Degreased |
|

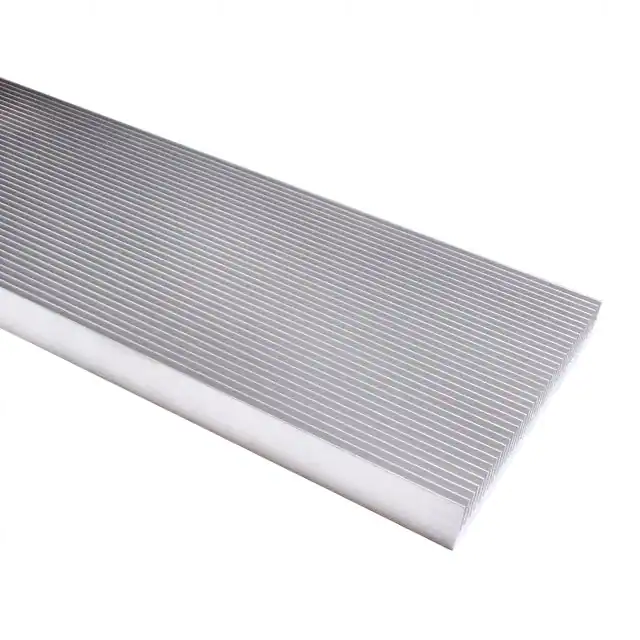

701652F00000G70165 EXTRUSION 1.78X12"X4' |
2 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.000" (1219.20mm) | 12.000" (304.80mm) | - | 1.780" (45.21mm) | - | 0.20°C/W @ 700 LFM | - | Aluminum | - |
|
ATS-PCB1001HEATSINK TO-220 CLIPON W/TAB |
310 |
|
برگه مشخصات |
- | Bulk | Active | Board Level, Vertical | TO-220, TO-262 | Clip and PC Pin | Rectangular, Fins | 0.748" (19.00mm) | 0.504" (12.80mm) | - | 0.500" (12.70mm) | - | 10.20°C/W @ 200 LFM | 27.30°C/W | Aluminum | Black Anodized |
|

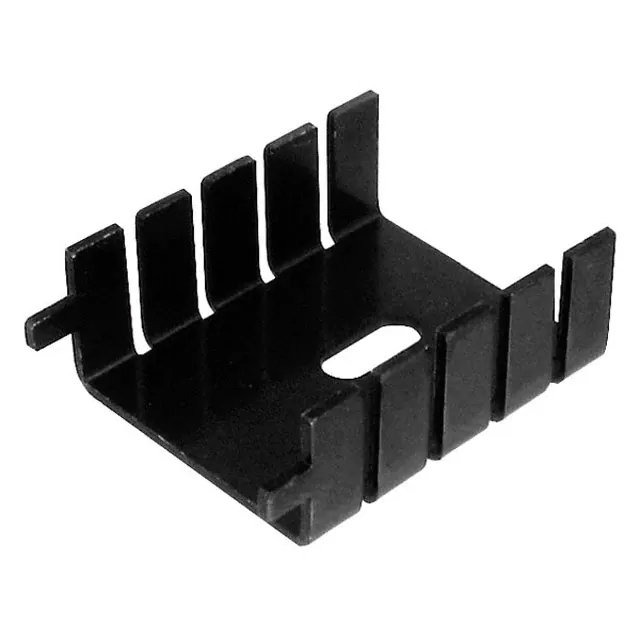

V5640A-THEATSINK ALUM ANOD |
623 |
|
برگه مشخصات |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 1.340" (34.04mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | - | - | 20.00°C/W | Aluminum | Black Anodized |
|
V8508CHEAT SINK ANOD ALUM TO-220 |
92 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | PC Pin | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.500" (12.70mm) | 3.0W @ 60°C | 6.00°C/W @ 600 LFM | 21.00°C/W | Aluminum | Black Anodized |
|

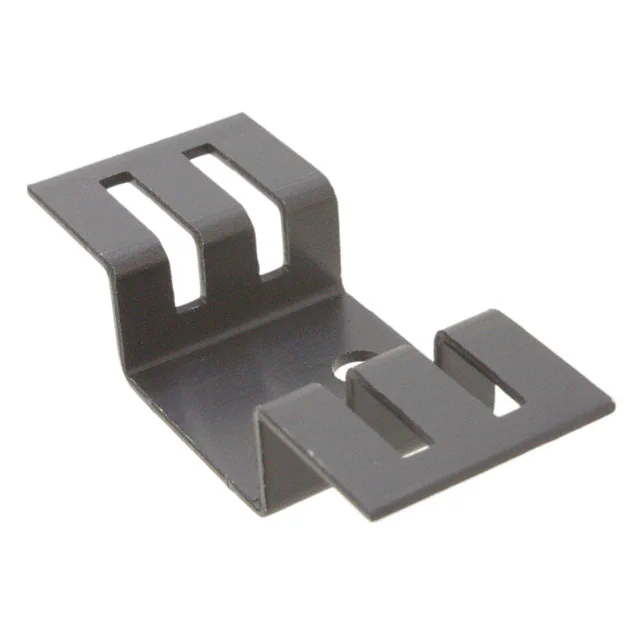

V2007BHEATSINK TO-220 17.78X44.45MM |
312 |
|
برگه مشخصات |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.700" (17.78mm) | 1.750" (44.45mm) | - | 0.375" (9.52mm) | - | - | 17.00°C/W | Aluminum | Black Anodized |
|
HSS-B20-NP-10HEATSINK TO-220 2.9W ALUMINUM |
631 |
|
برگه مشخصات |
HSS | Bag | Active | Board Level | TO-220 | - | Rectangular, Fins | 0.748" (19.00mm) | 0.504" (12.80mm) | - | 0.500" (12.70mm) | 2.9W @ 75°C | 7.24°C/W @ 200 LFM | 25.92°C/W | Aluminum | Black Anodized |
|
|
XL25W-TO3P-25-20-0.64CERAMIC HEAT SPREADER 25X20MM WH |
820 |
|
برگه مشخصات |
XL-25 | Bulk | Active | Heat Spreader | TO-3P | Thermal Tape | Rectangular | 0.984" (25.00mm) | 0.787" (20.00mm) | - | 0.025" (0.64mm) | - | - | - | Ceramic | - |
|
ATS-PCBT1094HEATSINK TO-220 |
512 |
|
برگه مشخصات |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.748" (19.00mm) | 0.835" (21.21mm) | - | 0.394" (10.00mm) | - | 11.20°C/W @ 200 LFM | 21.20°C/W | Aluminum | Black Anodized |
|

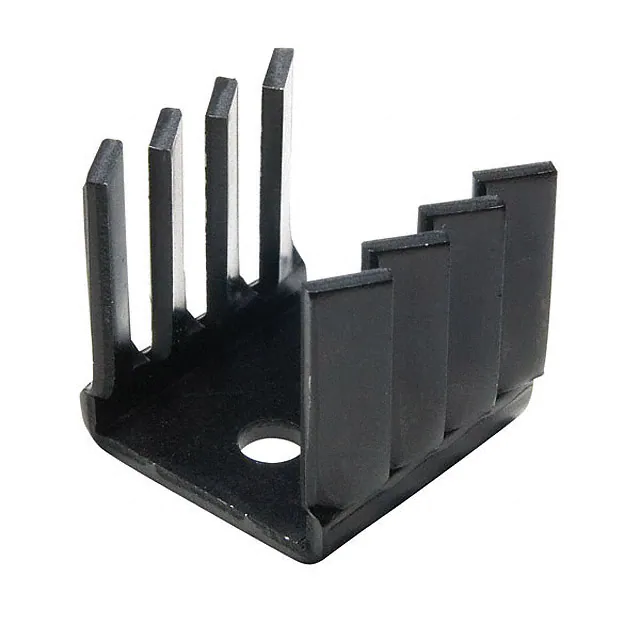

V2003XHEAT SINK BLK ANOD ALUM TO-220 |
283 |
|
برگه مشخصات |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.748" (19.00mm) | 0.866" (22.00mm) | - | 0.748" (19.00mm) | - | - | 22.00°C/W | Aluminum | Black Anodized |
|

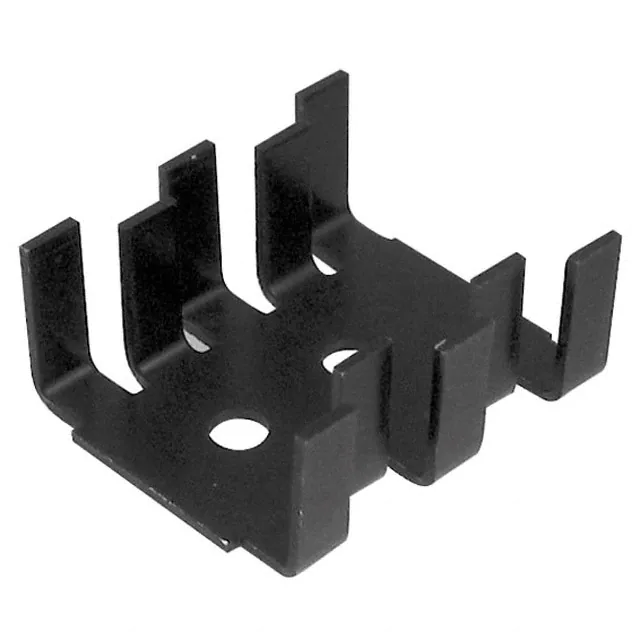

V5237B-THEATSINK ALUM ANOD |
570 |
|
برگه مشخصات |
- | Bulk | Active | Board Level | SOT-32, TO-220 | Bolt On | Rectangular, Fins | 1.189" (30.20mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | - | - | 15.00°C/W | Aluminum | Black Anodized |
|
V5640B-THEATSINK ALUM ANOD |
331 |
|
برگه مشخصات |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 1.340" (34.04mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | - | - | 20.00°C/W | Aluminum | Tin |
|
ATS-PCBT1090HEATSINK TO-220 (DUAL) |
516 |
|
برگه مشخصات |
- | Bulk | Active | Board Level | TO-220 (Dual) | Bolt On | Rectangular, Fins | 1.450" (36.83mm) | 1.750" (44.45mm) | - | 0.375" (9.52mm) | - | 3.00°C/W @ 200 LFM | 9.60°C/W | Aluminum | Black Anodized |
|
ATS-PCBT1092HEATSINK TO-220 |
485 |
|
برگه مشخصات |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.181" (30.00mm) | 1.772" (45.00mm) | - | 0.079" (2.00mm) | - | 11.00°C/W @ 200 LFM | 23.00°C/W | Aluminum | - |
|
HSS-B20-NP-15HEATSINK TO-220 4.1W ALUMINUM |
145 |
|
برگه مشخصات |
HSS | Bag | Active | Board Level | TO-220 | - | Rectangular, Fins | 0.625" (15.90mm) | 0.866" (22.00mm) | - | 0.440" (11.18mm) | 4.1W @ 75°C | 6.50°C/W @ 200 LFM | 18.34°C/W | Aluminum | Black Anodized |
|
ATS-PCBT1075HEATSINK TO-126 BLACK |
1,000 |
|
برگه مشخصات |
- | Bulk | Active | Board Level | TO-126 | Bolt On | Rectangular, Fins | 0.520" (13.20mm) | 0.775" (19.68mm) | - | 0.319" (8.10mm) | - | 25.00°C/W @ 200 LFM | 35.80°C/W | Aluminum | Black Anodized |
|
V8502AHEATSINK TO-220 30X25.40MM |
203 |
|
برگه مشخصات |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.181" (30.00mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 3.0W @ 60°C | 8.00°C/W @ 600 LFM | 20.00°C/W | Aluminum | Black Anodized |
