سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-55450W-C1-R0HEAT SINK 45MM X 45MM X 24.5MM |
99 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.965" (24.50mm) | - | 2.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-H1-132-C2-R0HEATSINK 60X60X25MM XCUT T766 |
70 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.66°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-52400P-C1-R0HEAT SINK 40MM X 40MM X 17.5MM |
23 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.689" (17.50mm) | - | 2.00°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

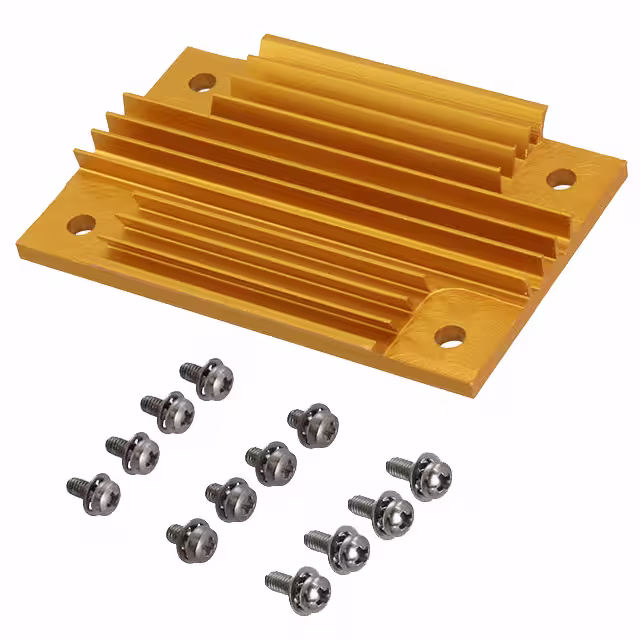

ATS-1098-C1-R01/4 BRICK HEATSINK 58X37X6.1MM |
79 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | Quarter Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.283" (58.00mm) | 1.457" (37.00mm) | - | 0.240" (6.10mm) | - | 12.10°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
ATS-52425P-C1-R0HEAT SINK 42.5 X 42.5 X 17.5MM |
100 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.689" (17.50mm) | - | 1.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
1276971.26" X 12" FLATBACK HEATSINK EX |
50 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 1.000" (25.40mm) | - | 1.000" (25.40mm) | - | - | 1.60°C/W | Aluminum | - |
|
ATS-50350B-C1-R0HEAT SINK 35MM X 35MM X 7.5MM |
68 |
|
برگه مشخصات |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.295" (7.50mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
1252891.75WX12" EXTRUS 16249 XX8260-65 |
73 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | BGA | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 1.750" (44.45mm) | - | 0.650" (16.51mm) | - | - | 1.95°C/W | Aluminum | - |
|
401KHEATSINK POWER NO MNT HOLES BLK |
44 |
|
برگه مشخصات |
401 | Bulk | Active | Board Level | TO-3, Stud Mount | Press Fit | Rectangular, Fins | 1.500" (38.10mm) | 4.750" (120.65mm) | - | 1.250" (31.75mm) | 30.0W @ 80°C | 1.50°C/W @ 250 LFM | 3.00°C/W | Aluminum | Black Anodized |
|
ATS-1143-C1-R01/2 BRICK HEATSINK 58X61X6.1MM |
45 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | Half Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.283" (58.00mm) | 2.401" (61.00mm) | - | 0.240" (6.10mm) | - | 9.40°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
ATS-X50270P-C1-R0SUPERGRIP HEATSINK 27X27X17.5MM |
97 |
|
برگه مشخصات |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.689" (17.50mm) | - | 3.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53270P-C1-R0SUPERGRIP HEATSINK 27X27X17.5MM |
54 |
|
برگه مشخصات |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.689" (17.50mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

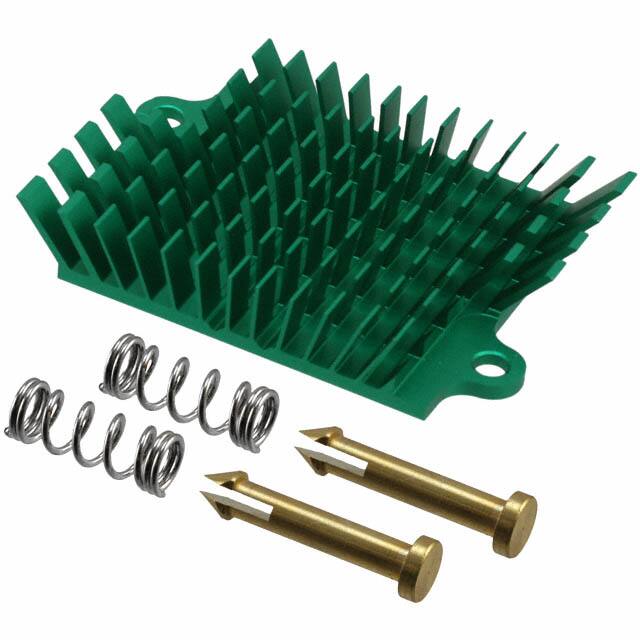

ATS-1041-C2-R0HEATSINK 41X45X10MM BRASSPUSHPIN |
58 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.610" (40.89mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 3.90°C/W @ 300 LFM | - | Aluminum | Green Anodized |
|
ATS-X50150P-C1-R0SUPERGRIP HEATSINK 15X15X17.5MM |
100 |
|
برگه مشخصات |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.689" (17.50mm) | - | 8.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53310G-C1-R0SUPERGRIP HEATSINK 31X31X12.5MM |
63 |
|
برگه مشخصات |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.492" (12.50mm) | - | 6.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

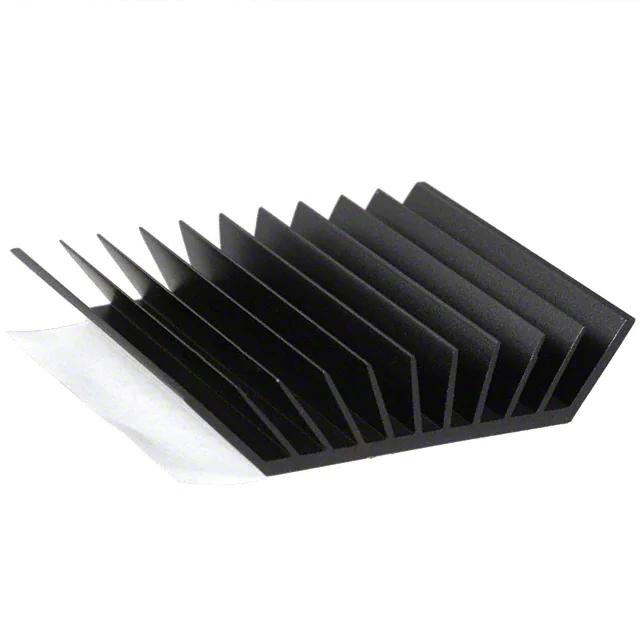

ATS-56009-C3-R0HEAT SINK 58MM X 30MM X 9MM |
85 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Included) | Rectangular, Angled Fins | 2.283" (58.00mm) | 1.181" (30.00mm) | - | 0.354" (9.00mm) | - | 4.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-56004-C1-R0HEAT SINK 40MM X 30MM X 5MM |
87 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Included) | Rectangular, Angled Fins | 1.575" (40.00mm) | 1.181" (30.00mm) | - | 0.197" (5.00mm) | - | 7.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-61400D-C1-R0MAXIGRIP FANSINK 40X40X9.5MM |
52 |
|
برگه مشخصات |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.374" (9.50mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
1276921.40" WIDE X 12" BGA HEATSINK EX |
25 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | BGA | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 1.400" (35.56mm) | - | 0.650" (16.51mm) | - | - | 1.55°C/W | Aluminum | - |
|
1253432.22WX12" EXTRUSION 14192 |
36 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | DC/DC Converter | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 2.220" (56.39mm) | - | 0.930" (23.62mm) | - | - | 3.66°C/W | Aluminum | - |
