سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TXBE032031BHEATSINK PRESS ON BLACK TO-5 |
0 |
|
برگه مشخصات |
- | Tray | Obsolete | Top Mount | TO-5 | Press Fit | Cylindrical | 0.310" (7.87mm) | 0.380" (9.65mm) | 0.380" (9.65mm) OD | - | - | - | 82.00°C/W | Brass | Black Cadmium |
|

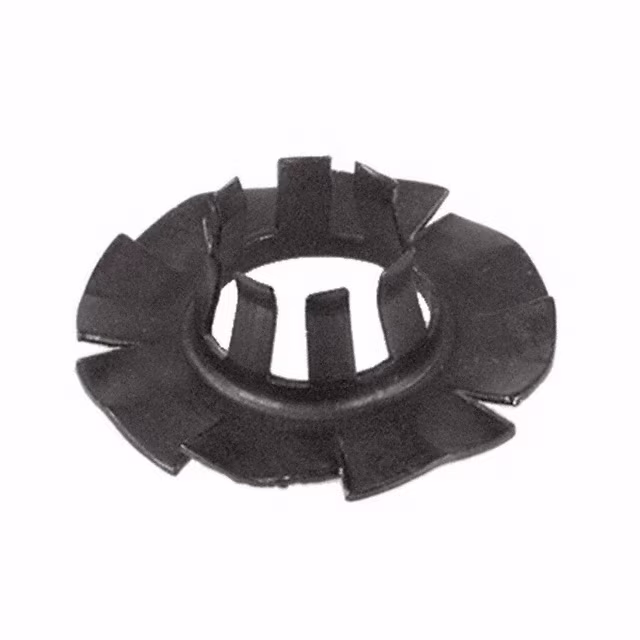

TXBF032025BTHERMAL LINK PRESSON TO-5 |
0 |
|
برگه مشخصات |
Fan Top | - | Obsolete | Top Mount | TO-5 | Press Fit | Cylindrical | - | - | 0.750" (19.05mm) OD | 0.250" (6.35mm) | - | - | 81.10°C/W | Beryllium Copper | Black Cadmium |
|
TXP1808BTHERMAL LINK PRESS ON BLACK TO-1 |
0 |
|
برگه مشخصات |
- | Tray | Obsolete | Top Mount | TO-18 | Bolt On | Cylindrical | 0.340" (8.64mm) | 0.220" (5.59mm) | 0.220" (5.59mm) OD | - | - | - | - | Brass | Black Cadmium |
|
LB66B1BHEATSINK PWR .50"H BLACK TO-3 |
0 |
|
برگه مشخصات |
- | - | Obsolete | Board Level | TO-66 | Bolt On | Rhombus | 1.321" (33.56mm) | 1.120" (28.45mm) | - | 0.500" (12.70mm) | - | - | 17.10°C/W | Aluminum | Black Anodized |
|
|
508322B00000GHEAT SINK |
0 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | TO-220 (Dual) | Bolt On | Square, Fins | 1.780" (45.21mm) | 1.780" (45.21mm) | - | 1.250" (31.75mm) | 7.0W @ 40°C | 6.00°C/W @ 600 LFM | 6.20°C/W | Aluminum | Black Anodized |
|
|
7-438-X44-BAHEATSINK |
0 |
|
برگه مشخصات |
7 | - | Obsolete | Board Level | TO-66 | Bolt On | Rhombus | 1.550" (39.37mm) | 1.040" (26.42mm) | - | 0.750" (19.05mm) | 6.0W @ 60°C | - | 12.00°C/W | Aluminum | Black Anodized |
|
680-125220HEATSINK TO-220 OMNIDIRECT BLK |
0 |
|
برگه مشخصات |
680 | Bulk | Active | Board Level | TO-220 (Dual) | Bolt On | Square, Pin Fins | 1.810" (45.97mm) | 1.810" (45.97mm) | - | 1.250" (31.75mm) | 7.5W @ 45°C | 1.50°C/W @ 400 LFM | - | Aluminum | Black Anodized |
|
528-45AB-MS4HEATSINK BXB50,75,100,150.45"VRT |
0 |
|
برگه مشخصات |
528 | Bulk | Obsolete | Board Level | Half Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 2.402" (61.00mm) | 2.280" (57.91mm) | - | 0.450" (11.43mm) | 7.0W @ 60°C | 3.20°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
|
508122B00000GHEATSINK DUAL MNT TO-220 |
0 |
|
برگه مشخصات |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Square, Fins | 1.780" (45.21mm) | 1.780" (45.21mm) | - | 0.750" (19.05mm) | 5.0W @ 40°C | 2.00°C/W @ 500 LFM | 8.00°C/W | Aluminum | Black Anodized |
|
206-1PABHEHEATSINK VERT ALUM BLK TO-220 |
0 |
|
- |
206 | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 4.0W @ 56°C | 7.30°C/W @ 200 LFM | 14.00°C/W | Aluminum | Black Anodized |
|
634-15ABPHEATSINK SLIM VERT BLACK TO-220 |
0 |
|
برگه مشخصات |
634 | Bulk | Obsolete | Board Level, Vertical | TO-220, TO-218 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 0.640" (16.26mm) | - | 0.640" (16.26mm) | 3.0W @ 50°C | 2.00°C/W @ 300 LFM | 50.00°C/W | Aluminum | Black Anodized |
|
658-60ABT4HEATSINK CPU 27.9MM SQ W/ADH BLK |
0 |
|
برگه مشخصات |
658 | - | Obsolete | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.598" (15.20mm) | 2.5W @ 30°C | 2.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
|
TXBF2-050-033BSINGLE FAN TO BLACK TO8 |
0 |
|
برگه مشخصات |
Fan Top | - | Obsolete | Top Mount | TO-8 | Press Fit | Cylindrical | - | - | 1.250" (31.75mm) OD | 0.330" (8.38mm) | - | - | 41.00°C/W | Brass | Black Cadmium |
|
|
APR27-27-12CB/SHEATSINK FORGED WITH SMALL CLIP |
0 |
|
برگه مشخصات |
APR | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Clip | Square, Pin Fins | 1.047" (26.60mm) | 1.047" (26.60mm) | - | 0.457" (11.60mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

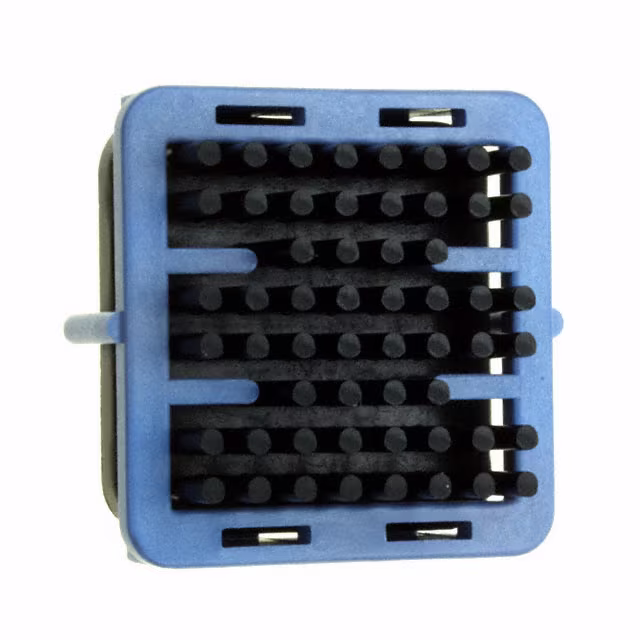

APR27-27-12CB/MHEATSINK FORGED WITH MEDIUM CLIP |
0 |
|
برگه مشخصات |
APR | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Clip | Square, Pin Fins | 1.047" (26.60mm) | 1.047" (26.60mm) | - | 0.457" (11.60mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

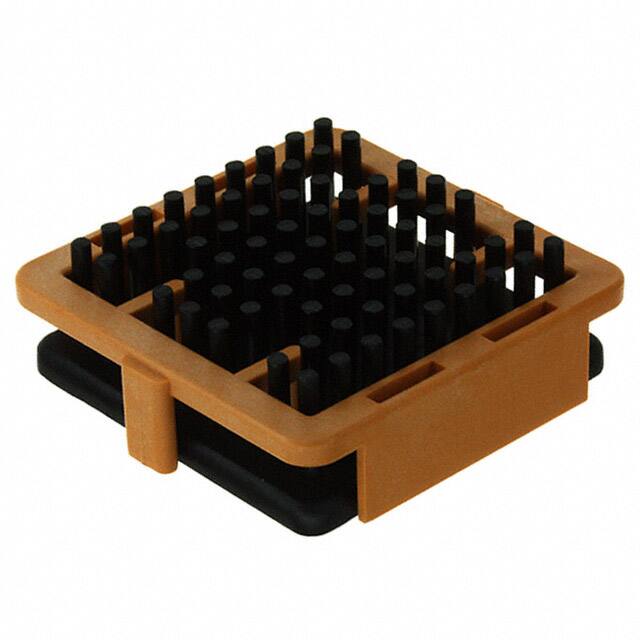

APR33-33-12CB/SHEATSINK FORGED WITH SMALL CLIP |
0 |
|
برگه مشخصات |
APR | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Clip | Square, Pin Fins | 1.283" (32.60mm) | 1.283" (32.60mm) | - | 0.457" (11.60mm) | - | 3.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

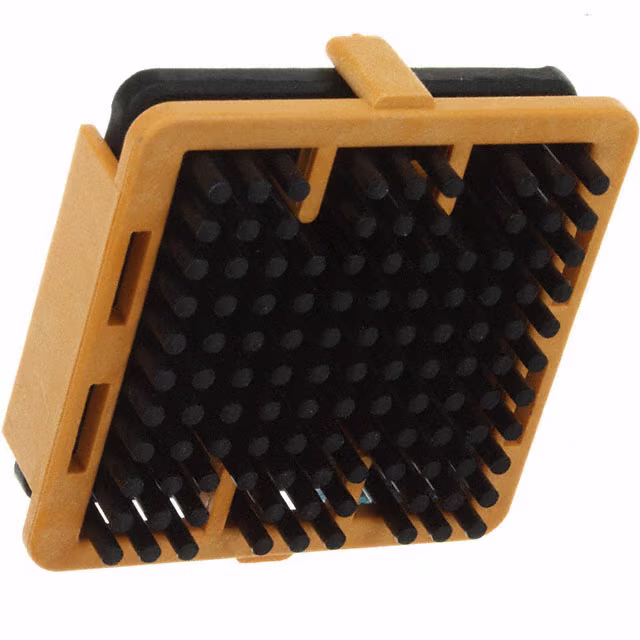

APR38-38-12CB/SHEATSINK FORGED WITH SMALL CLIP |
0 |
|
برگه مشخصات |
APR | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Clip | Square, Pin Fins | 1.461" (37.10mm) | 1.461" (37.10mm) | - | 0.457" (11.60mm) | - | 3.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

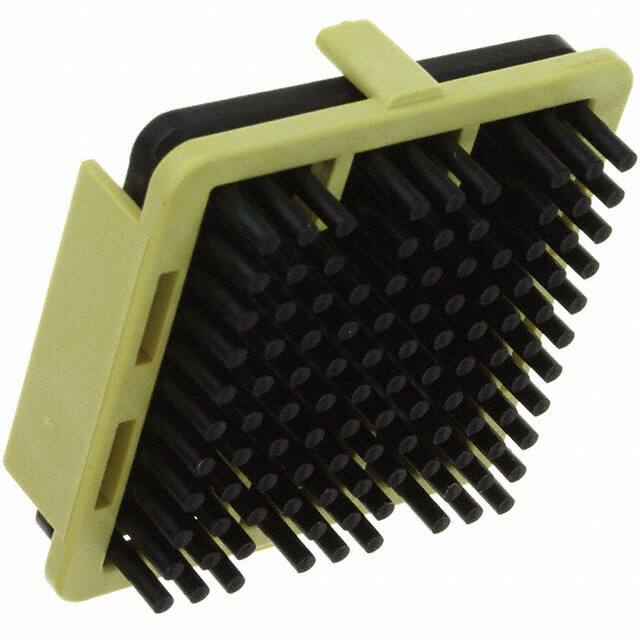

APR38-38-12CB/THEATSINK FORGED WITH TALL CLIP |
0 |
|
برگه مشخصات |
APR | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Clip | Square, Pin Fins | 1.461" (37.10mm) | 1.461" (37.10mm) | - | 0.457" (11.60mm) | - | 3.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
MHSL02525HEATSINK 2.28L X.225"H EXTRUSION |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | Board Level | - | Bolt On | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.225" (5.71mm) | - | - | - | Aluminum | Black Anodized |
|
|
MHSL02540HEATSINK 2.39L X.235"H EXTRUSION |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | Board Level | - | Bolt On | Rectangular, Fins | 2.390" (60.71mm) | 2.280" (57.91mm) | - | 0.235" (5.97mm) | - | - | - | Aluminum | Black Anodized |
