سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OMNI-UNI-32-58UNIVERSAL TO HEATSINK 32X58MM |
806 |
|
برگه مشخصات |
OmniKlip™ | Tray | Active | Board Level, Vertical | TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 2.280" (57.90mm) | 1.250" (31.75mm) | - | 1.823" (46.30mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-51250K-C1-R0HEAT SINK 25MM X 25MM X 14.5MM |
145 |
|
برگه مشخصات |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.571" (14.50mm) | - | 5.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-01H-41-C2-R0HEATSINK 57.9X60.96X17.78MM T766 |
297 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.700" (17.78mm) | - | 10.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
2-1542006-3HS 21MM ASSY ULTEM CL |
0 |
|
برگه مشخصات |
- | Box | Active | Top Mount | BGA | Clip | Cylindrical | - | - | 1.000" (25.40mm) OD | 0.550" (13.97mm) | - | - | - | Aluminum | Black Anodized |
|

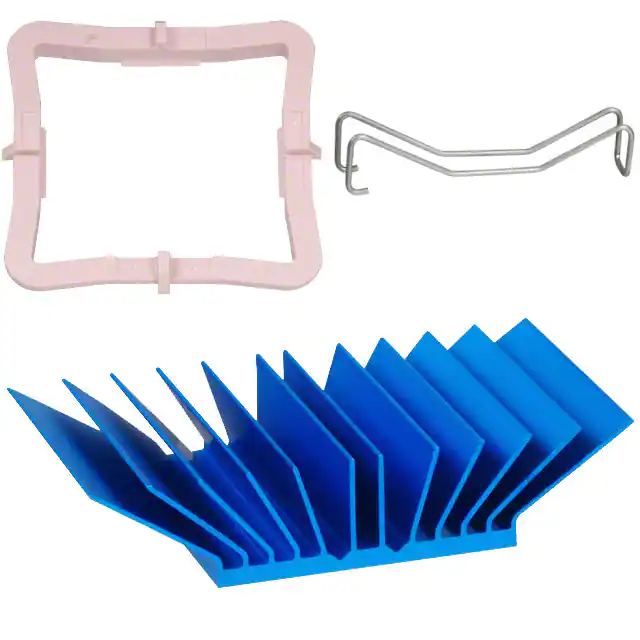

ATS-50330G-C1-R0HEAT SINK 33MM X 33MM X 12.5MM |
159 |
|
برگه مشخصات |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.492" (12.50mm) | - | 3.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
PCI101550.7X36.6MM AL HEAT SINK |
105 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-07A-27-C2-R0HEATSINK 70X70X12.7MM XCUT T766 |
300 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.500" (12.70mm) | - | 12.24°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-51210R-C1-R0HEAT SINK 21MM X 21MM X 19.5MM |
178 |
|
برگه مشخصات |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.768" (19.50mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
OMNI-220-18-75-3CHEATSINK 18X75MM 3-CLIP TO-220 |
1,710 |
|
برگه مشخصات |
OmniKlip™ | Tray | Active | Board Level, Vertical | TO-220 | Clip, Solder Foot | Rectangular, Fins | 2.953" (75.00mm) | 0.710" (18.03mm) | - | 1.500" (38.10mm) | - | - | - | Aluminum | Black Anodized |
|

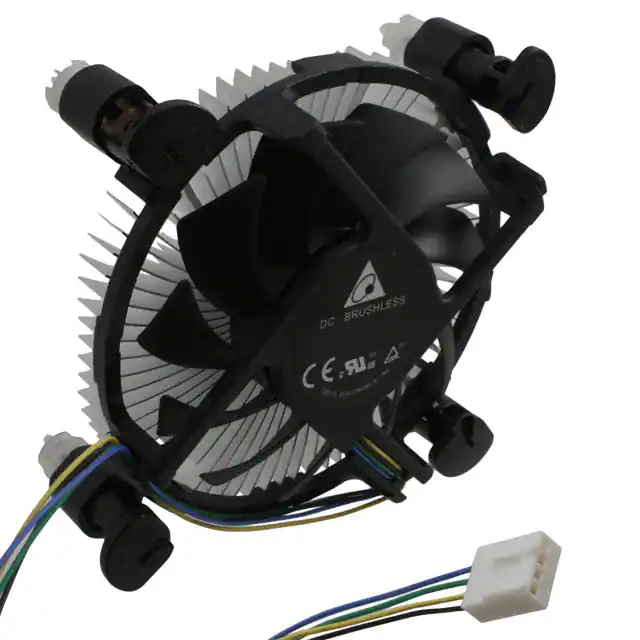

FHS-A9015S00FAN CPU COOLER 90X30MM 12VDC |
130 |
|
برگه مشخصات |
FHS | Box | Obsolete | Board Level | Intel LGA1156 & LGA1155 Cooler | Bolt On | Round | - | - | 3.543" (90.00mm) OD | 1.181" (30.00mm) | - | - | 0.52°C/W | Aluminum, Plastic | - |
|
PCI109452X50MM AL HEAT SINK ASSEMBLY |
400 |
|
- |
- | Bulk | Active | Top Mount | PCI Express™ | Push Pin | Rectangular, Pin Fins | 2.047" (52.00mm) | 1.970" (50.00mm) | - | 0.287" (7.30mm) | - | 5.16°C/W @ 200 LFM | - | Aluminum | - |
|
ATS-X53170D-C1-R0STR FIN 16.25X16.25X9.5MM T766 |
124 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-X53190D-C1-R0STR FIN 18.25X18.25X9.5MM T766 |
124 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RAS-HS50-KITHEATSINK RASPBERRY PI KIT 50PCS |
553 |
|
برگه مشخصات |
- | Retail Package | Active | Top Mount Kit | Development Boards, Raspberri Pi | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-X53210D-C1-R0STR FIN 20.25X20.25X9.5MM T766 |
124 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-X53230D-C1-R0STR FIN 22.25X22.25X9.5MM T766 |
124 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-X53250D-C1-R0STR FIN 24.25X24.25X9.5MM T766 |
124 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

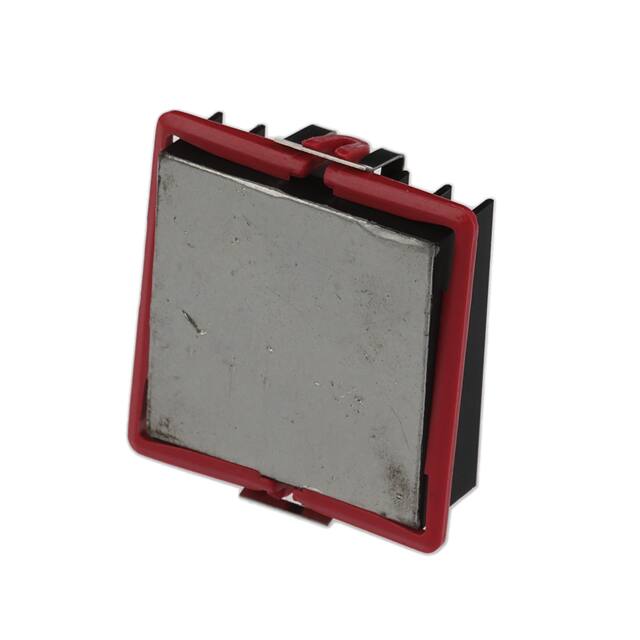

ATS-X53270D-C1-R0STR FIN 26.25X26.25X9.5MM T766 |
124 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-X53290D-C1-R0STR FIN 28.25X28.25X9.5MM T766 |
124 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-X53300D-C1-R0STR FIN 29.25X29.25X9.5MM T766 |
124 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
