کویل شارژ بی سیم
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تابع | تایپ کنید | اندوکتانس | تحمل | مقاومت DC (DCR) | Q @ فرکانس | رتبه فعلی (آمپر) | جاری - اشباع (Isat) | فرکانس - خود رزونانس | دمای عملیاتی | اندازه / ابعاد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
760308103146WE-WPCC WIRELESS POWER CHARGING |
9 |
|
برگه مشخصات |
WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 8.5µH | ±10% | 56mOhm Max | 140 @ 125kHz | 8A | 16A | 11MHz | -20°C ~ 60°C | 2.01" L x 1.85" W x 0.18" H (51.0mm x 47.0mm x 4.5mm) |
|

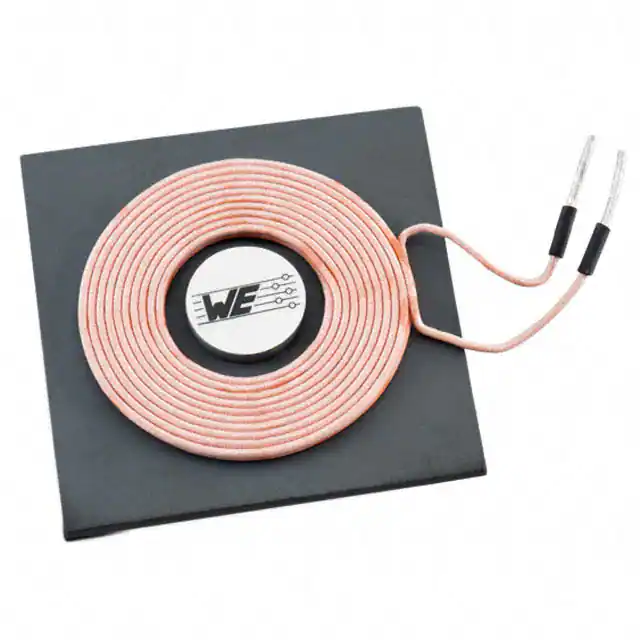

760308101TX 1 COIL 2 LAYER 24UH 6A |
22 |
|
برگه مشخصات |
WE-WPCC | Tray | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 100mOhm Max | 90 @ 125kHz | 6A | 10A | 6MHz | -20°C ~ 105°C | 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm) |
|

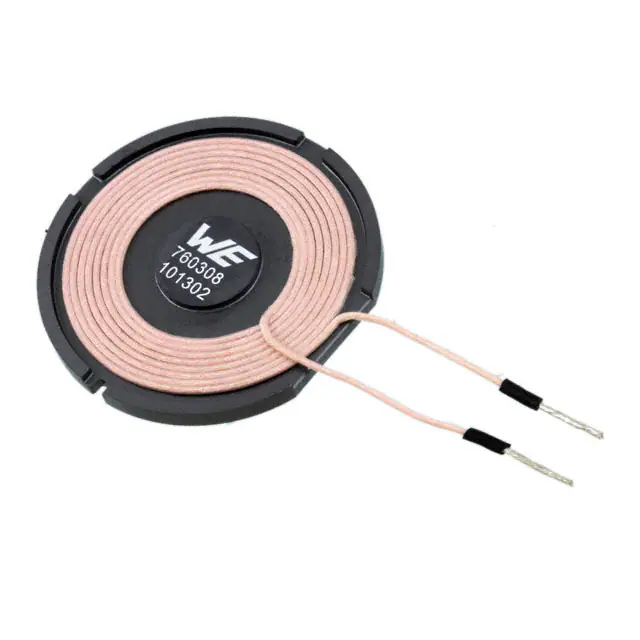

760308101302TX 1 COIL 1 LAYER 5.3UH 8A |
33 |
|
برگه مشخصات |
WE-WPCC | Box | Active | Transmitter | 1 Coil, 1 Layer | 5.3µH | ±10% | 33mOhm | 100 @ 125kHz | 8A | 10A | 27MHz | -20°C ~ 105°C | 1.97" Dia x 0.19" H (50.0mm x 4.7mm) |
|
760308100143TX 1 COIL 2 LAYER 6UH 12A |
15 |
|
برگه مشخصات |
WE-WPCC | Box | Active | Transmitter | 1 Coil, 2 Layer | 6µH | ±10% | 18mOhm Max | 180 @ 125kHz | 12A | 24A | 16MHz | -20°C ~ 105°C | 1.97" Dia x 0.26" H (50.0mm x 6.7mm) |
|
WCT38466-N0E0SST101PATTERNED TX COIL FOR WPT |
49 |
|
برگه مشخصات |
WCT | Tray | Active | Transmitter | 1 Coil, 2 Layer | 10.6µH | ±0.5µH | 149mOhm Max | - | - | - | - | -40°C ~ 85°C | 3.35" L x 2.64" W x 0.03" H (85.1mm x 67.0mm x 0.8mm) |
|
760308100141TX 1 COIL 2 LAYER 10UH 9A |
20 |
|
برگه مشخصات |
WE-WPCC | Box | Active | Transmitter | 1 Coil, 2 Layer | 10µH | ±10% | 30mOhm Max | 180 @ 125kHz | 9A | 16A | 11MHz | -20°C ~ 105°C | 1.97" L x 1.89" W x 0.24" H (50.0mm x 48.0mm x 6.0mm) |
|
760308141TX 1 COIL 2 LAYER 10UH 9A |
13 |
|
برگه مشخصات |
WE-WPCC | Box | Active | Transmitter | 1 Coil, 2 Layer | 10µH | ±10% | 30mOhm Max | 140 @ 125kHz | 9A | 16A | 11MHz | -20°C ~ 105°C | 2.10" L x 2.10" W x 0.26" H (53.3mm x 53.3mm x 6.5mm) |
|

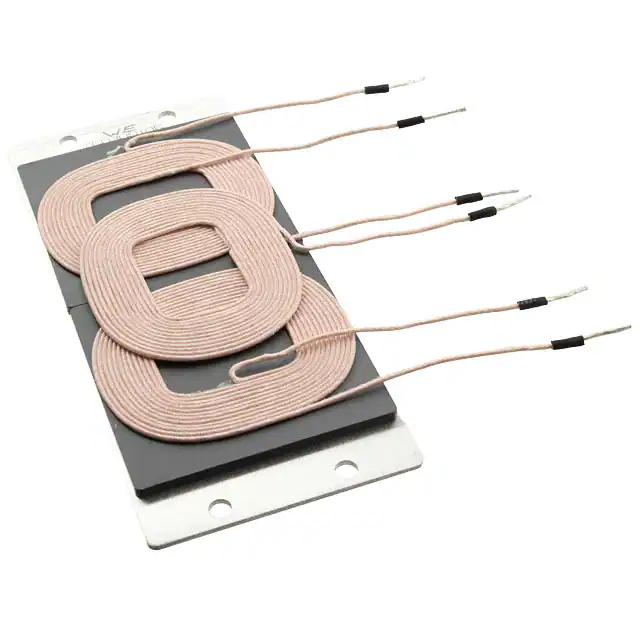

760308106TX 3 COIL 1 LAYER 10A |
18 |
|
برگه مشخصات |
WE-WPCC | Box | Active | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | - | 65mOhm | 140 @ 125kHz | 10A | 10A | - | - | 5.12" L x 0.28" W x 2.15" H (130.0mm x 7.0mm x 54.7mm) |
|
WTSC-6R3K-A11SINGLE-COIL WIRELESS CHARGING CO |
32 |
|
برگه مشخصات |
WCC | Box | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 40mOhm Max | - | 6A | 10A | - | -20°C ~ 85°C | 1.97" Dia x 0.14" H (50.0mm x 3.5mm) |
|

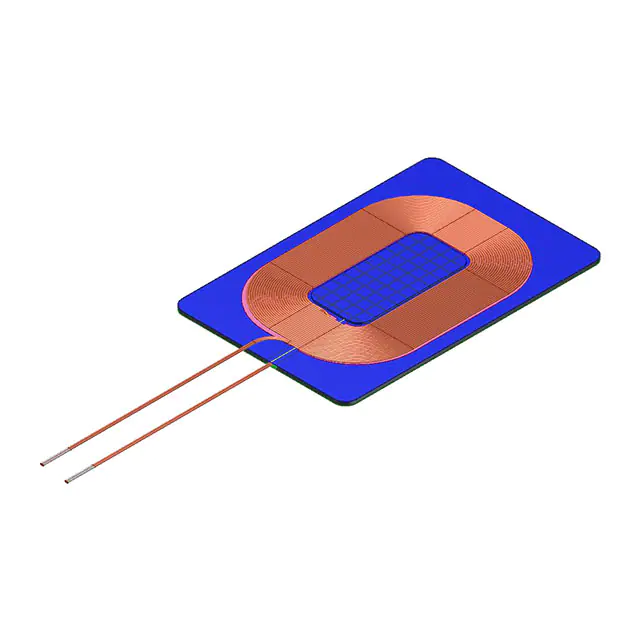

WR483265-13F5-GRX 1 COIL, 1 LYR 10.1UH |
39 |
|
برگه مشخصات |
WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 10.1µH | - | 270mOhm | - | - | - | - | - | 1.90" L x 1.27" W x 0.05" H (48.2mm x 32.2mm x 1.3mm) |
|

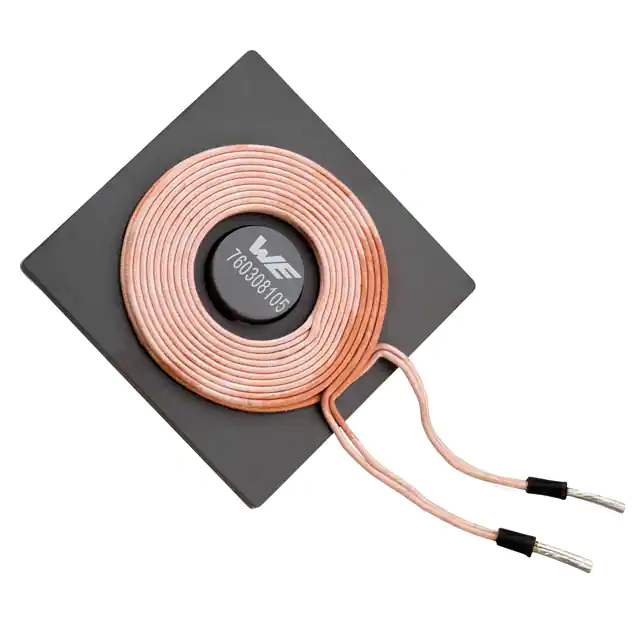

760308105TX 1 COIL 2 LYR BILFILAR 6.3UH |
21 |
|
برگه مشخصات |
WE-WPCC | Tray | Active | Transmitter | 1 Coil, 2 Layer, Bifilar | 6.3µH | ±10% | 24mOhm Max | 55 @ 125kHz | 13A | 16A | 20MHz | -20°C ~ 105°C | 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm) |
|

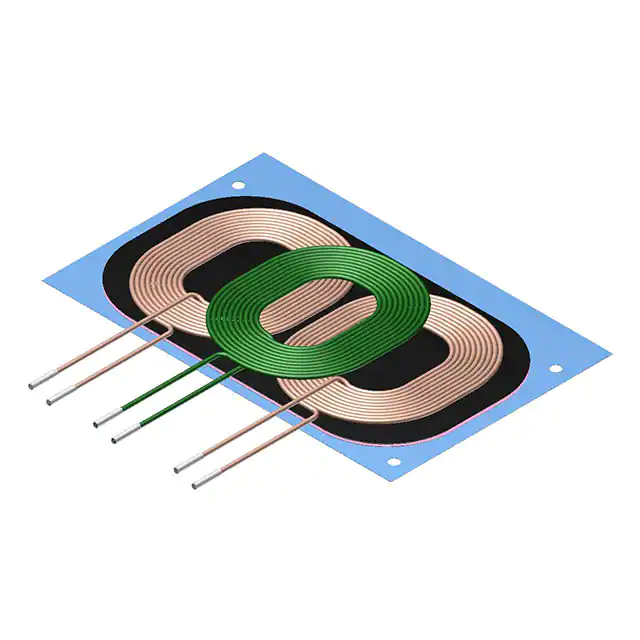

WT1005690-10F2-M8-G2TX 3 COIL, 1 LYR 7.5UH, 8.5UH |
82 |
|
برگه مشخصات |
WT | Tray | Active | Transmitter | 3 Coil, 1 Layer | 7.5µH, 8.5µH | - | 50mOhm | - | - | - | - | - | 4.01" L x 2.26" W x 0.18" H (101.8mm x 57.3mm x 4.7mm) |
|
760308103148WE-WPCC WIRELESS POWER CHARGING |
6 |
|
برگه مشخصات |
WE-WPCC | Bulk | Active | Receiver, Transmitter | 2 Coil, 1 Layer | 6.9µH, 6.4µH | ±10% | 52mOhm Max | 120 @ 125kHz, 115 @ 125kHz | 8.5A | 20A | 15MHz, 19MHz | -20°C ~ 105°C | 2.80" L x 2.40" W x 0.16" H (71.0mm x 61.0mm x 4.0mm) |
.jpg)
|

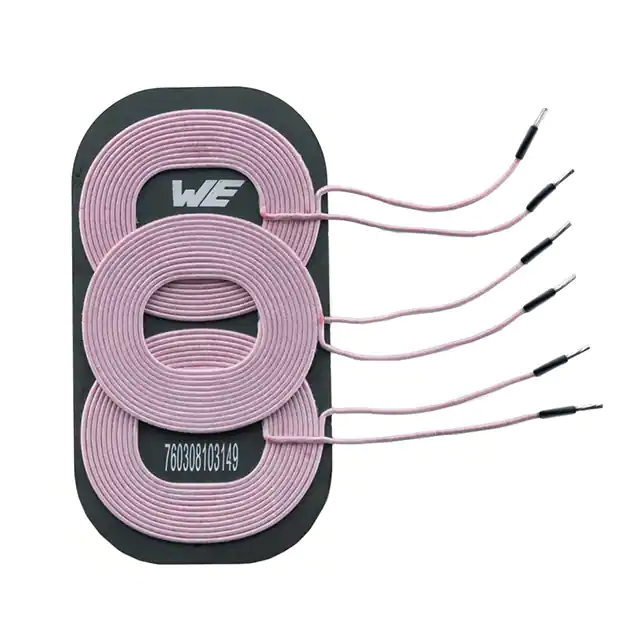

760308103149WE-WPCC WIRELESS POWER CHARGING |
16 |
|
برگه مشخصات |
WE-WPCC | Tray | Active | Transmitter | 3 Coil, 1 Layer | 10.2µH, 9.8µH, 10.2µH | ±10% | 55mOhm | 110 @ 125kHz | 9A | 18A | 8MHz | -20°C ~ 105°C | 4.17" L x 2.24" W x 0.17" H (106.0mm x 57.0mm x 4.2mm) |
|

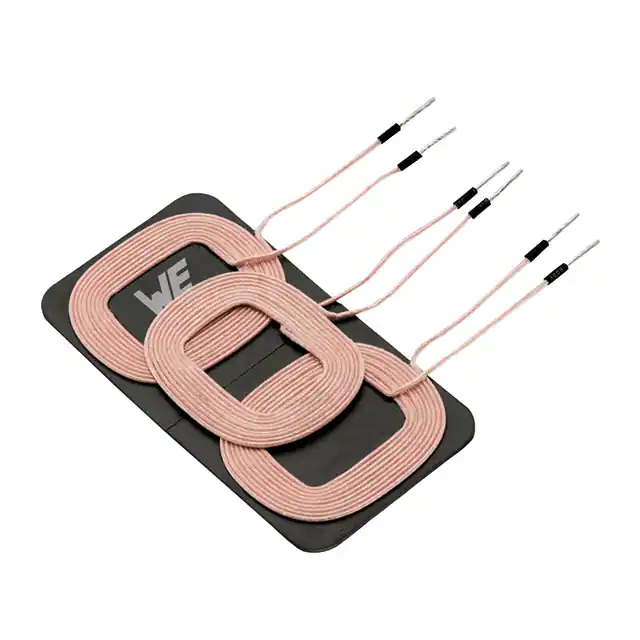

760308104120WE-WPCC WIRELESS POWER CHARGING |
6 |
|
برگه مشخصات |
WE-WPCC | Box | Active | Transmitter | 3 Coil, 1 Layer | 6.9µH, 6.4µH, 6.9µH | ±10% | 45mOhm | 100 @ 125kHz | 9A | 12A | 15MHz | -20°C ~ 105°C | - |
|
760308103305WE-WPCC WIRELESS POWER CHARGING |
7 |
|
برگه مشخصات |
WE-WPCC | Tray | Active | Receiver | 2 Coil, 1 Layer | 8.8µH, 1.4µH | ±10% | 220mOhm Max, 100mOhm Max | 30 @ 125Khz, 47 @ 125kHz | 2.6A, 5A | 5A, 5A | 22MHz, 16MHz | -20°C ~ 105°C | 1.77" L x 1.73" W x 0.03" H (45.0mm x 44.0mm x 0.75mm) |
|
IWTX47R0DAEB6R3JF1IWTX-47R0DA-F1 6.3 5% EB E2 |
31 |
|
برگه مشخصات |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±5% | 40mOhm | 190 @ 200kHz | 7A | 22A | - | -40°C ~ 105°C | 1.81" L x 1.81" W x 0.22" H (46.0mm x 46.0mm x 5.6mm) |
|
|
IWAS4832ADEB150JF1IWAS-4832AB-F1 11 5% EB E2 |
29 |
|
برگه مشخصات |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 15µH | ±5% | 240mOhm | 65 @ 200kHz | - | - | - | -40°C ~ 105°C | 1.89" L x 1.26" W x 0.07" H (48.0mm x 32.0mm x 1.9mm) |
|
|
IWTX47R0EBEB240JF1IWTX-47R0EB-F1 24 5% EB E2 |
50 |
|
برگه مشخصات |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 24µH | ±5% | 75mOhm | 200 @ 200kHz | 6A | 20A | - | -40°C ~ 105°C | 1.85" Dia x 0.21" H (47.0mm x 5.3mm) |
|

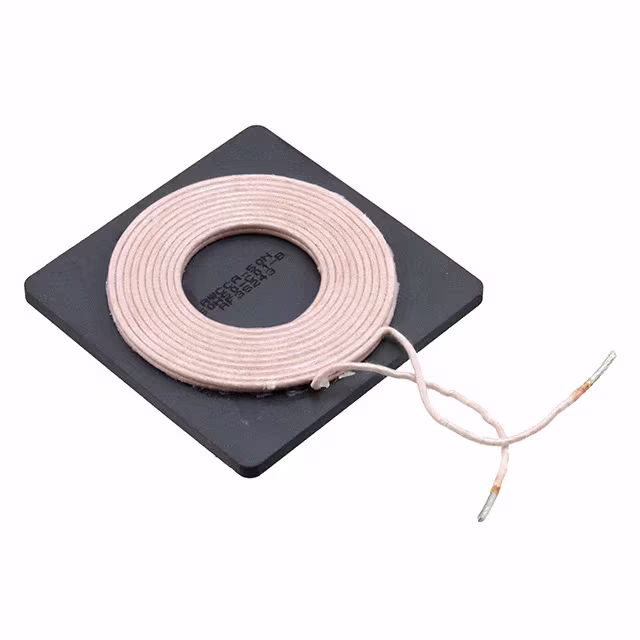

AWCCA-50N50H50-C01-BRX TX 1 COIL 1 LAYER 24UH 5.7A |
0 |
|
برگه مشخصات |
AWCCA-50N50 | Bulk | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 72mOhm | 163 @ 100kHz | 5.7A | 30A | 2.8MHz | -25°C ~ 85°C | 1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm) |
