کویل شارژ بی سیم
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تابع | تایپ کنید | اندوکتانس | تحمل | مقاومت DC (DCR) | Q @ فرکانس | رتبه فعلی (آمپر) | جاری - اشباع (Isat) | فرکانس - خود رزونانس | دمای عملیاتی | اندازه / ابعاد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
760308101105TX 1 COIL 2 LAYER 3.3UH 3A |
0 |
|
برگه مشخصات |
WE-WPCC | Tray | Active | Transmitter | 1 Coil, 2 Layer | 3.3µH | ±10% | 80mOhm Max | 30 @ 125kHz | 3A | 6A | 20MHz | -20°C ~ 105°C | 0.81" Dia x 0.10" H (20.5mm x 2.6mm) |
|

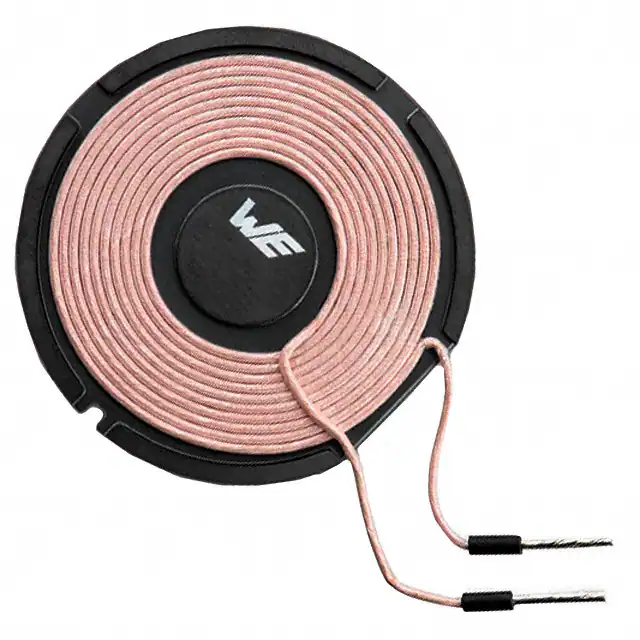

760308100111TX 1 COIL 1 LAYER 6.3UH 13A |
0 |
|
برگه مشخصات |
WE-WPCC | Box | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 51mOhm Max | 120 @ 125kHz | 6A | 10A | 24MHz | -20°C ~ 105°C | 1.97" Dia x 0.24" H (50.0mm x 6.0mm) |
|
760308101304TX 1 COIL 1 LAYER 6.3UH 6A |
0 |
|
برگه مشخصات |
WE-WPCC | Box | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 48mOhm Max | 115 @ 125kHz | 6A | 10A | 16MHz | -20°C ~ 105°C | 1.85" Dia x 0.12" H (47.0mm x 3.0mm) |
|

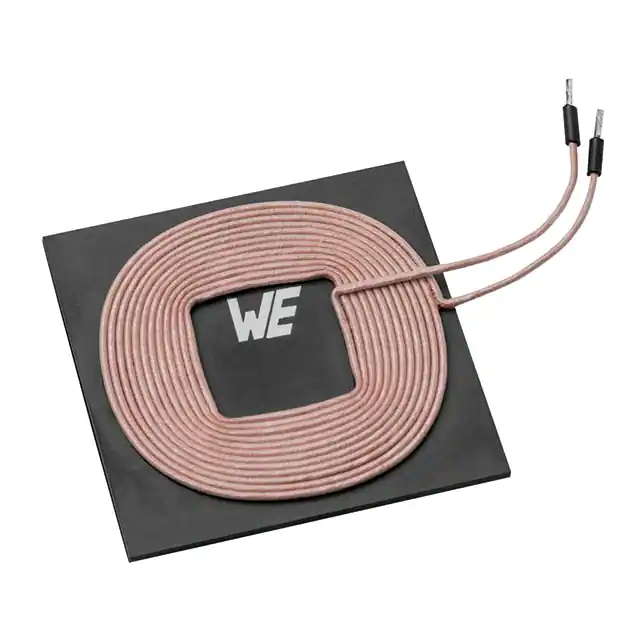

760308103102TX 1 COIL 1 LAYER 10UH 7A |
0 |
|
برگه مشخصات |
WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 55mOhm Max | 130 @ 125kHz | 7A | 10A | 11MHz | -20°C ~ 105°C | 1.79" L x 2.09" W x 0.18" H (45.5mm x 53.0mm x 4.5mm) |
|

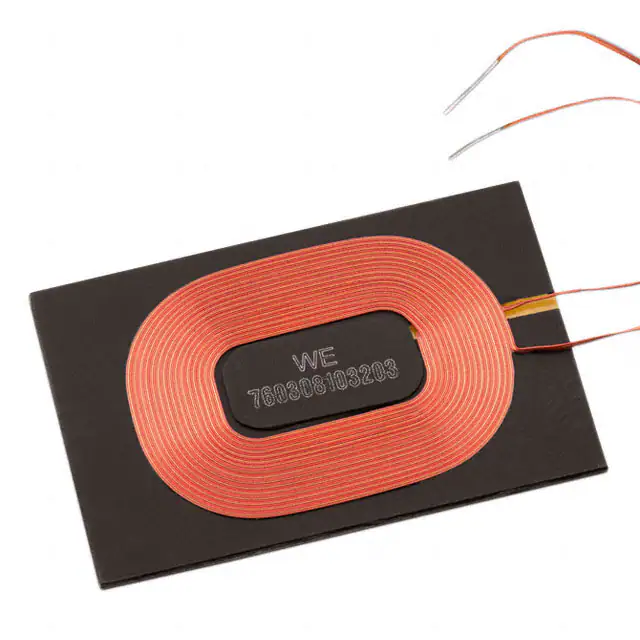

760308103203RX 1 COIL 1 LAYER 12UH 1.55A |
22 |
|
برگه مشخصات |
WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 550mOhm | 21 @ 125kHz | 1.55A | 3A | 20MHz | -20°C ~ 105°C | 1.89" L x 1.27" W x 0.03" H (48.2mm x 32.2mm x 1.0mm) |
|

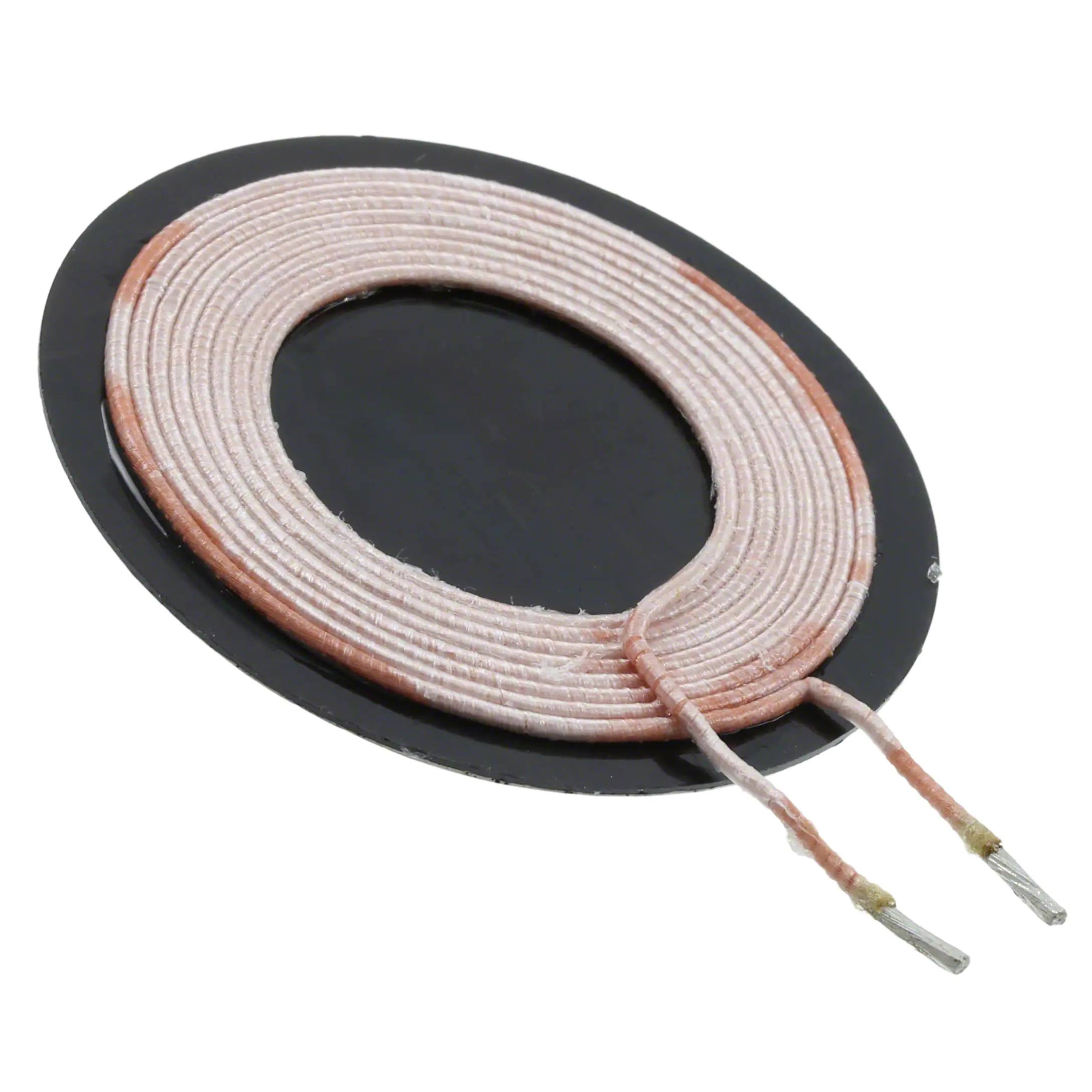

WT-505060-8K2-LTTX 1 COIL 1 LYR 4.95UH |
21 |
|
برگه مشخصات |
WT | Tray | Active | Transmitter | 1 Coil, 1 Layer | 4.95µH | - | 30mOhm | 97 @ 100kHz | - | - | - | - | - |
|
760308102212RX 1 COIL 1 LAYER 5.4UH 2A |
22 |
|
برگه مشخصات |
WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 5.4µH | ±10% | 240mOhm Max | 18 @ 125kHz | 2A | 4A | 25MHz | -20°C ~ 105°C | 1.14" L x 1.14" W x 0.04" H (29.0mm x 29.0mm x 0.9mm) |
|
760308103211RX 1 COIL 1 LAYER 7.3UH 2.5A |
22 |
|
برگه مشخصات |
WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 7.3µH | ±10% | 200mOhm Max | 28 @ 125kHz | 2.5A | 5A | 12.7MHz | -20°C ~ 105°C | 1.81" L x 1.42" W x 0.03" H (46.0mm x 36.0mm x 0.7mm) |
|

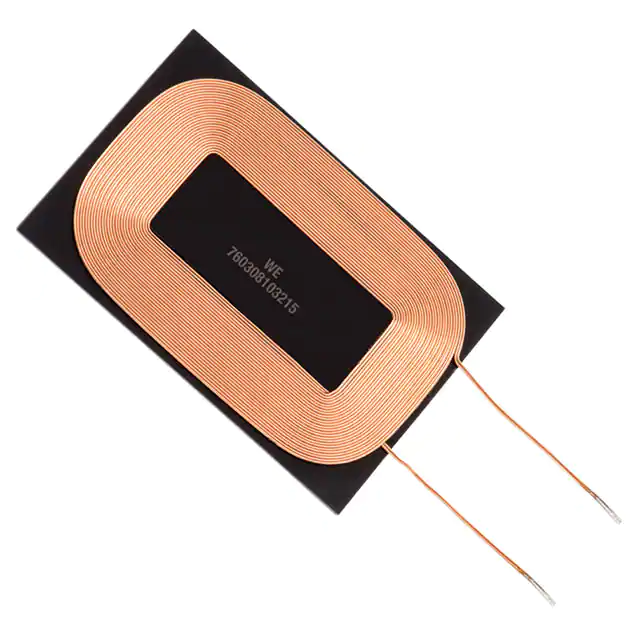

760308103215RX 1 COIL 1 LAYER 14.3UH 3A |
16 |
|
برگه مشخصات |
WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 14.3µH | ±10% | 190mOhm Max | 40 @ 125kHz | 3A | 8A | 8.8MHz | -20°C ~ 105°C | 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.0mm) |
|

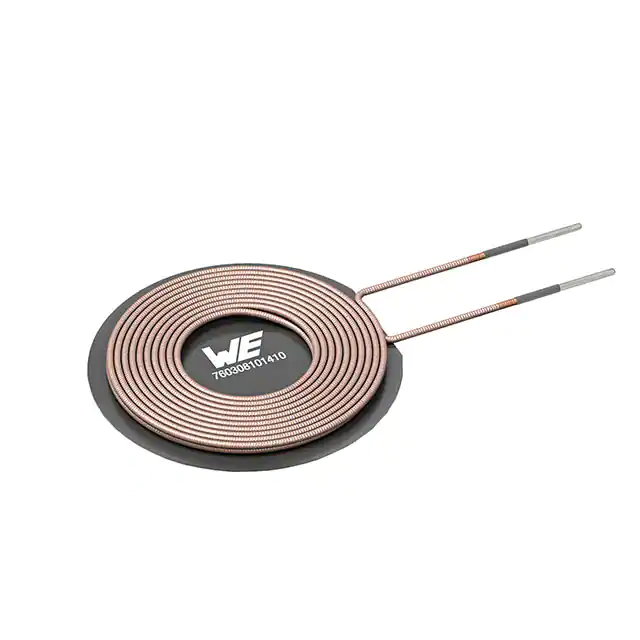

760308101410WE-WPCC WIRELESS POWER CHARGING |
4 |
|
برگه مشخصات |
WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 100mOhm | 170 @ 125kHz | 5.5A | 10A | 6MHz | -20°C ~ 105°C | 1.97" Dia x 0.12" H (50.0mm x 3.1mm) |
|
760308102308WE-WPCC WIRELESS POWER CHARGING |
0 |
|
برگه مشخصات |
WE-WPCC | Box | Active | Transmitter | 1 Coil, 1 Layer | 3µH | ±10% | 35mOhm Max | 60 @ 125kHz | 8.5A | 15A | 27MHz | -20°C ~ 105°C | 1.97" L x 1.18" W x 0.14" H (50.0mm x 30.0mm x 3.5mm) |
|

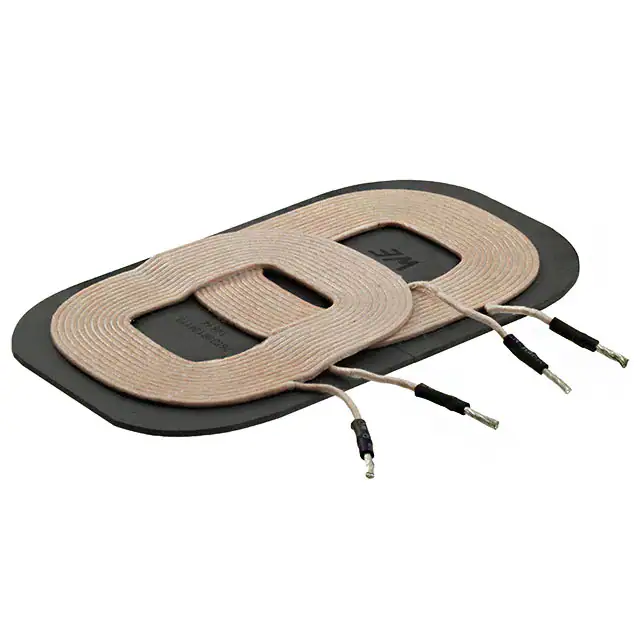

760308104119TX 2 COIL 1 LAYER 12UH 11.5UH 8A |
0 |
|
برگه مشخصات |
WE-WPCC | Tray | Active | Transmitter | 2 Coil, 1 Layer | 12µH, 11.5µH | ±10% | 56mOhm | 130 @ 125kHz | 8A | 12A | 12MHz | -20°C ~ 105°C | 3.48" L x 2.07" W x 0.14" H (88.50mm x 52.50mm x 3.50mm) |
|
760308103145WE-WPCC WIRELESS POWER CHARGING |
3 |
|
برگه مشخصات |
WE-WPCC | Bulk | Active | Transmitter | 3 Coil, 1 Layer | 11.3µH | ±10% | 83mOhm Max | 150 @ 125kHz, 145 @ 125kHz | 8.5A | 24A | 10MHz | -20°C ~ 105°C | 4.29" L x 2.20" W x 0.20" H (109.0mm x 56.0mm x 5.2mm) |
|
760308103147WE-WPCC WIRELESS POWER CHARGING |
1 |
|
برگه مشخصات |
WE-WPCC | Bulk | Active | Transmitter | 3 Coil, 1 Layer | 8.5µH, 7.5µH, 8.5µH | ±10% | 56mOhm Max | 145 @ 125kHz, 130 @ 125kHz, 145 @ 125kHz | 9A, 10A, 9A | 18A | 11MHz | -20°C ~ 105°C | 3.94" L x 2.01" W x 0.20" H (100.0mm x 51.0mm x 5.2mm) |
|
WT202030-16M8-GTX 1 COIL, 1 LYR 6.2UH |
0 |
|
برگه مشخصات |
WT | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.2µH | - | 190mOhm | - | - | - | - | - | - |
|

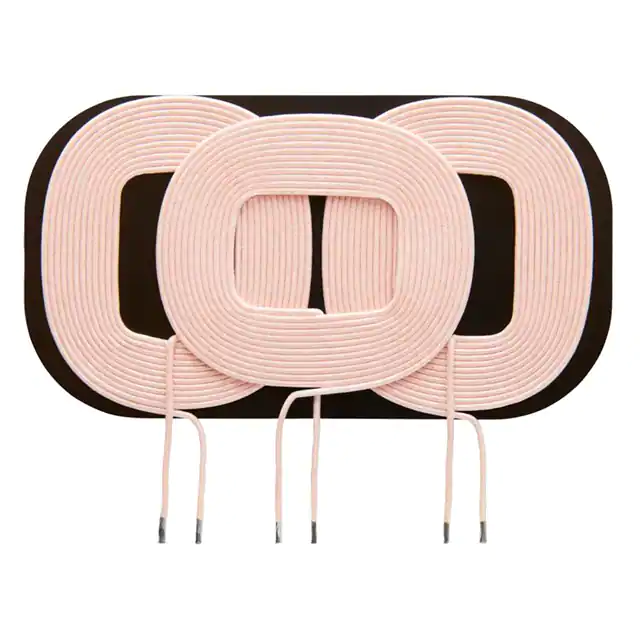

WTM-12R5K-A6MULTI-COIL WIRELESS CHARGING COI |
3 |
|
برگه مشخصات |
WCC | Box | Active | Transmitter | 3 Coil, 1 Layer | 11.5µH, 12.5µH | ±10% | 65mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 3.94" L x 2.17" W x 0.16" H (100.0mm x 55.0mm x 4.0mm) |
|

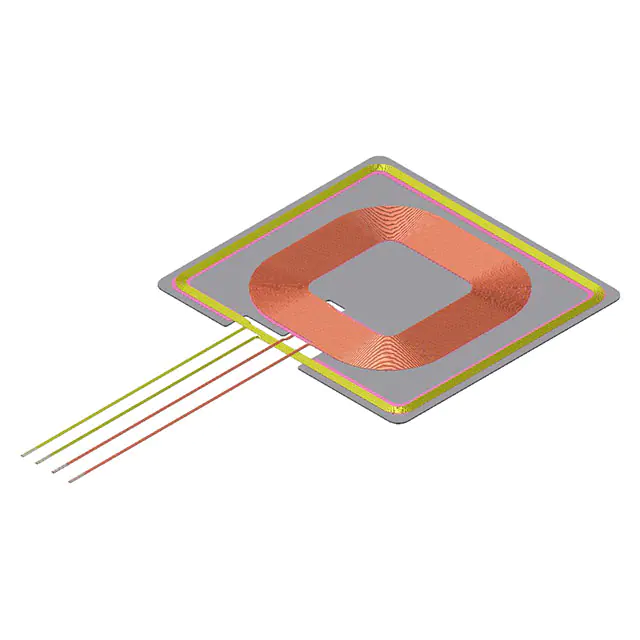

WR524825-17M6-NF-GRX 1 COIL, 1 LYR 16.8UH |
0 |
|
برگه مشخصات |
WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 16.8µH | - | 750mOhm | - | - | - | - | - | 2.05" L x 1.89" W x 0.02" H (52.0mm x 48.0mm x 0.5mm) |
|

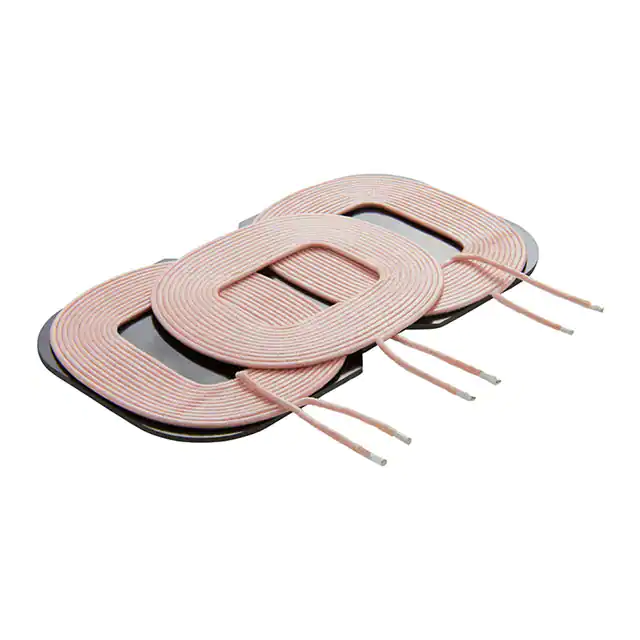

WTM12R5K-A28MULTI-COIL WIRELESS CHARGING COI |
2 |
|
برگه مشخصات |
WCC | Box | Active | Transmitter | 3 Coil, 1 Layer | 11.5µH, 12.5µH | ±10% | 65mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 3.70" L x 2.13" W x 0.16" H (94.0mm x 54.0mm x 4.0mm) |
|
WTM9R8K-A9MULTI-COIL WIRELESS CHARGING COI |
0 |
|
برگه مشخصات |
WCC | Box | Active | Transmitter | 3 Coil, 1 Layer | 9.8µH, 10.2µH, 9.8µH | ±10% | 60mOhm Max, 65mOhm Max | - | 8A | 10A | - | -20°C ~ 85°C | 3.98" L x 2.24" W x 0.16" H (101.0mm x 57.0mm x 4.0mm) |
|
AWCCA-RX404012-101RX COIL 1 LAYER 8.0UH |
0 |
|
- |
AWCCA | Tray | Not For New Designs | Receiver | 1 Coil, 1 Layer | 8µH | ±10% | 80mOhm Max | - | - | - | - | - | 1.57" L x 1.57" W x 0.05" H (40.0mm x 40.0mm x 1.2mm) |
