مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RACM30-15SK/277/OFAC/DC CONVERTER 15V 30W |
46 |
|
برگه مشخصات |
POWERLINE Power Modules (30W) | Tray | Active | Open Frame | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 2 A | - | - | - | - | - | 30W | ITE (Commercial), Laboratory, Medical | 4 kV | 90% | -40°C ~ 90°C (With Derating) | - | Chassis Mount | 3.00" L x 1.50" W x 0.98" H (76.2mm x 38.1mm x 25.0mm) | CE, cURus, EAC, UKCA |
|
|
RACM30-24SK/277/OFAC/DC CONVERTER 24V 30W |
40 |
|
برگه مشخصات |
POWERLINE Power Modules (30W) | Tray | Active | Open Frame | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 30W | ITE (Commercial), Laboratory, Medical | 4 kV | 89% | -40°C ~ 90°C (With Derating) | - | Chassis Mount | 3.00" L x 1.50" W x 0.98" H (76.2mm x 38.1mm x 25.0mm) | CE, cURus, EAC, UKCA |
|
|
RACM30-05SK/277/OFAC/DC CONVERTER 5V 30W |
40 |
|
برگه مشخصات |
POWERLINE Power Modules (30W) | Tray | Active | Open Frame | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 30W | ITE (Commercial), Laboratory, Medical | 4 kV | 86% | -40°C ~ 90°C (With Derating) | - | Chassis Mount | 3.00" L x 1.50" W x 0.98" H (76.2mm x 38.1mm x 25.0mm) | CE, cURus, EAC, UKCA |
|
|
LRS-100N2-36O/P +36V2.8A |
37 |
|
برگه مشخصات |
LRS-100N2 (100W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 36V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 101W | ITE (Commercial) | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | CB, CE, CQC, cURus, EAC, UKCA |
|
LPS-50-48AC/DC CONVERTER 48V 53W |
40 |
|
برگه مشخصات |
LPS-50 (50W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 53W | ITE (Commercial) | 3 kV | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Universal Input | Chassis Mount | 7.68" L x 2.17" W x 0.91" H (195.0mm x 55.0mm x 23.0mm) | CB, CE, cURus, TUV |
.jpg)
|
GTM43007-C4512-FW(R)AC/DC CONVERTER 12V 45W |
30 |
|
برگه مشخصات |
GTM43007-CWWVV-FW | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 3.75 A | - | - | - | - | - | 45W | Household Appliances, ITE (Commercial), Medical | 4 kV | 89% | -10°C ~ 45°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.20" H (127.0mm x 76.2mm x 30.5mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO |
|
IRM-45-48STAC/DC CONVERTER 48V 45W |
11 |
|
برگه مشخصات |
IRM-45 (45W) | Box | Active | Enclosed | 1 | 85 ~ 305 VAC | 48V | - | - | - | - | - | 940 mA | - | - | - | - | - | 45W | ITE (Commercial) | 3 kV | 90.5% | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.29" L x 2.05" W x 1.32" H (109.0mm x 52.0mm x 33.5mm) | CB, CE, cURus, TUV |
|
PSC-35AAC/DC CONVERTER 13.8V 13.8V 36W |
15 |
|
برگه مشخصات |
PSC-35 (35W) | Tray | Active | Open Frame | 2 | 90 ~ 264 VAC, 127 ~ 370 VDC | 13.8V | 13.8V | - | - | - | - | 1.7 A | 900 mA | - | - | - | - | 36W | ITE (Commercial) | 3 kV | 84% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.33" L x 2.00" W x 0.94" H (84.6mm x 50.8mm x 24.0mm) | CB, CE, cURus, TUV |
|
|
TXN 75-14875W COST EFFICIENT, METAL ENCASE |
50 |
|
برگه مشخصات |
TXN75 (75W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 140 ~ 340 VDC | 48V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | 86% | -30°C ~ 70°C | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | CB, cURus |
|
EPS-45-36-CAC/DC CONVERTER 36V 45W |
47 |
|
برگه مشخصات |
EPS-45 (45W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 36V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 45W | ITE (Commercial) | 3 kV | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | CB, CE, cURus, TUV |
|
|
EPS-45-48-CAC/DC CONVERTER 48V 48W |
45 |
|
برگه مشخصات |
EPS-45 (45W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 1 A | - | - | - | - | - | 48W | ITE (Commercial) | 3 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | CB, CE, cURus, TUV |
|
|
EPS-45-24-CAC/DC CONVERTER 24V 46W |
37 |
|
برگه مشخصات |
EPS-45 (45W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 1.9 A | - | - | - | - | - | 46W | ITE (Commercial) | 3 kV | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | CB, CE, cURus, TUV |
|
RAC05-15SK/C14AC/DC CONVERTER 15V 5W |
6 |
|
برگه مشخصات |
POWERLINE RAC05-K/C14 (5W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 333 mA | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | 81% | -25°C ~ 70°C (With Derating) | Universal Input | Panel Mount | 2.17" L x 1.12" W x 0.83" H (55.1mm x 28.5mm x 21.0mm) | CB, CE, cURus, FCC |
|
|
50ACPE_05S4ENCLOSED AC DC CONVERTERS 1 OUTP |
49 |
|
برگه مشخصات |
50ACPE_4 (50W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | Household Appliances, ITE (Commercial) | 4 kV | 86% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | cURus, UL |
|
|
LRS-100N2-48O/P +48V2.1A |
6 |
|
برگه مشخصات |
LRS-100N2 (100W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 101W | ITE (Commercial) | 4 kV | 90.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | CB, CE, CQC, cURus, EAC, UKCA |
|
|
TXN 50-11550W COST EFFICIENT, METAL ENCASE |
75 |
|
برگه مشخصات |
TXN50 (50W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 140 ~ 340 VDC | 15V | - | - | - | - | - | 3.4 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 85% | -30°C ~ 70°C | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CB, cURus |
.jpg)
|

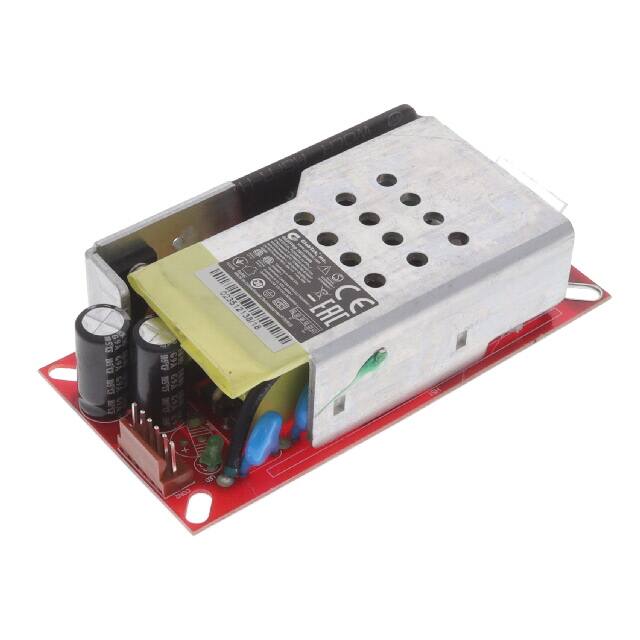

GTM96700-B7048-F(R)AC/DC CONVERTER 48V 70W |
77 |
|
برگه مشخصات |
- | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.45 A | - | - | - | - | - | 70W | ITE (Commercial), Medical | 4 kV | 89% | -10°C ~ 50°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.5mm) | CB, CE, EAC, ETL, S-Mark, UkrSEPRO, VCCI |
.jpg)
|

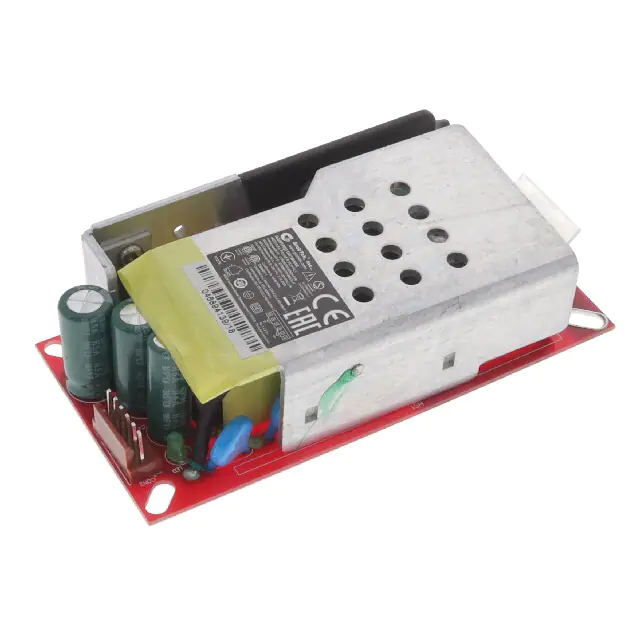

GTM96700-B6524-F(R)AC/DC CONVERTER 24V 65W |
73 |
|
برگه مشخصات |
- | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 65W | Medical | 4 kV | 89% | -10°C ~ 50°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.5mm) | CB, CE, EAC, ETL, S-Mark, UkrSEPRO, VCCI |
.jpg)
|

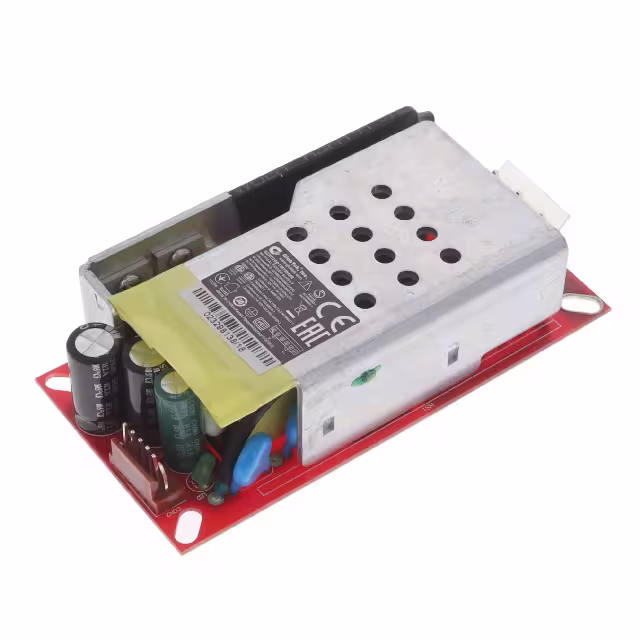

GTM96700-B6012-F(R)AC/DC CONVERTER 12V 60W |
69 |
|
برگه مشخصات |
- | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | 89% | -10°C ~ 50°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.5mm) | CB, CE, EAC, ETL, S-Mark, UkrSEPRO, VCCI |
.jpg)
|

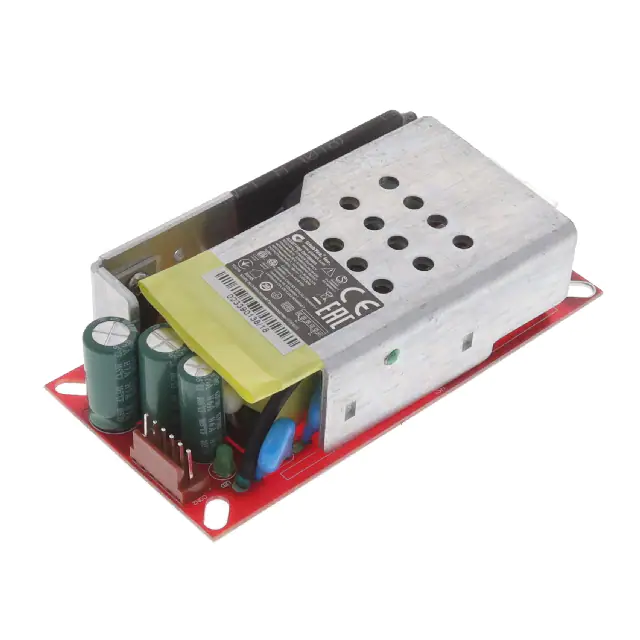

GTM96700-B6219-F(R)AC/DC CONVERTER 19V 62W |
51 |
|
برگه مشخصات |
- | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 19V | - | - | - | - | - | 3.26 A | - | - | - | - | - | 62W | ITE (Commercial), Medical | 4 kV | 89% | -10°C ~ 50°C | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.5mm) | CB, CE, EAC, ETL, S-Mark, UkrSEPRO, VCCI |
