ترانسفورماتور حس جریان
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | محدوده فرکانس | تایپ کنید | رتبه فعلی (آمپر) | اندوکتانس | ET (ولت-زمان) | نسبت چرخش - اولیه: ثانویه | نسبت فعلی | مقاومت DC (DCR) | رتبه بندی ها | نوع نصب | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) | سبک خاتمه |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CR8420-1000CURR SENSE XFMR 50A IN-LINE |
214 |
|
برگه مشخصات |
CR8400 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 50 A | - | - | - | 1000:1 | 22Ohm | - | Free Hanging (In-Line) | 1.417" L x 1.181" W (36.00mm x 30.00mm) | 0.362" (9.20mm) | Wire Leads |
|

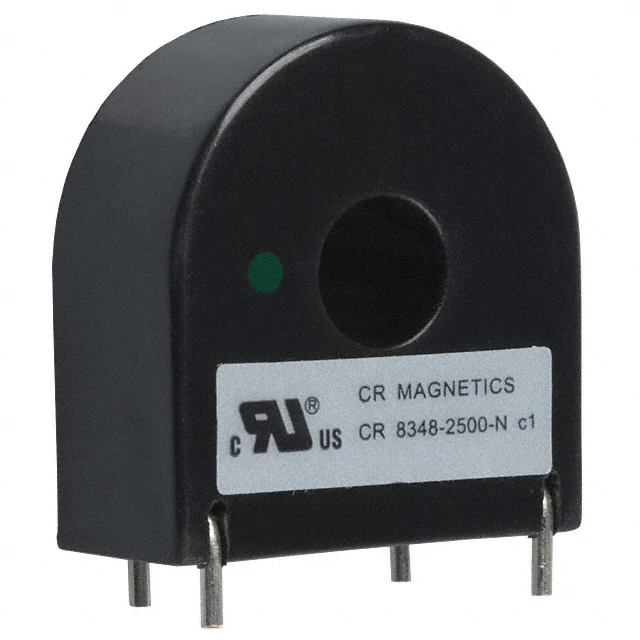

CR8348-2500-NCURR SENSE XFMR 40A T/H |
3,795 |
|
برگه مشخصات |
CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 40 A | - | - | - | 2500:1 | 134Ohm | - | Through Hole | 0.925" L x 0.433" W (23.50mm x 11.00mm) | 0.984" (25.00mm) | PC Pin |
|

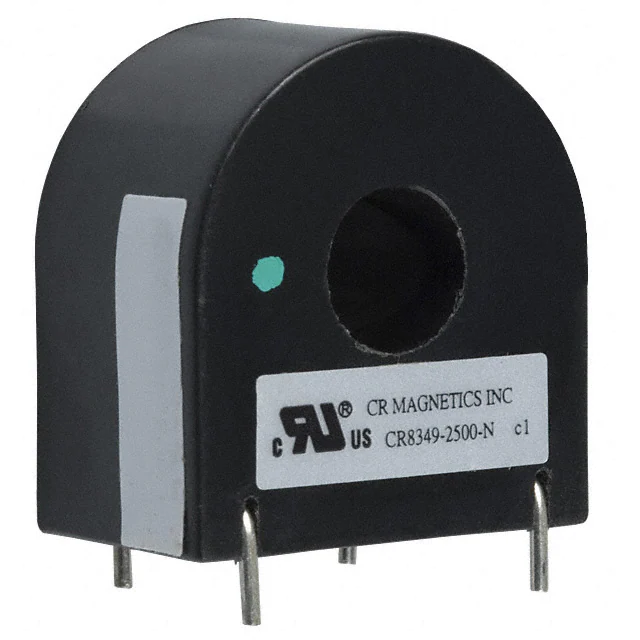

CR8349-2500-NCURR SENSE XFMR 75A T/H |
1,105 |
|
برگه مشخصات |
CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 75 A | - | - | - | 2500:1 | 190Ohm | - | Through Hole | 1.024" L x 0.670" W (26.00mm x 17.00mm) | 1.102" (28.00mm) | PC Pin |
|

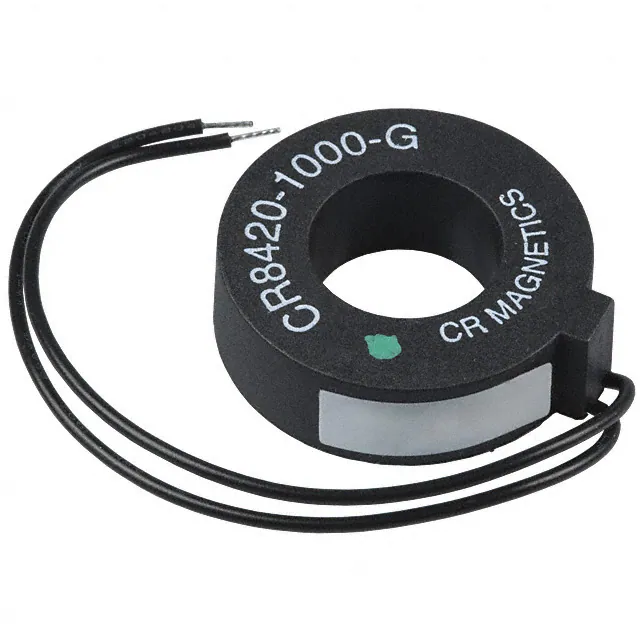

CR8420-1000-GCURR SENSE XFMR 20A IN-LINE |
4,256 |
|
برگه مشخصات |
CR8400 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 20 A | - | - | - | 1000:1 | 44Ohm | - | Free Hanging (In-Line) | 1.417" L x 1.181" W (36.00mm x 30.00mm) | 0.362" (9.20mm) | Wire Leads |
|
CR8450-1000CURR SENSE XFMR 100A IN-LINE |
5,729 |
|
برگه مشخصات |
CR8400 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 100 A | - | - | - | 1000:1 | 21Ohm | - | Free Hanging (In-Line) | 1.700" L x 1.450" W (43.18mm x 36.83mm) | 0.550" (13.97mm) | Wire Leads |
|

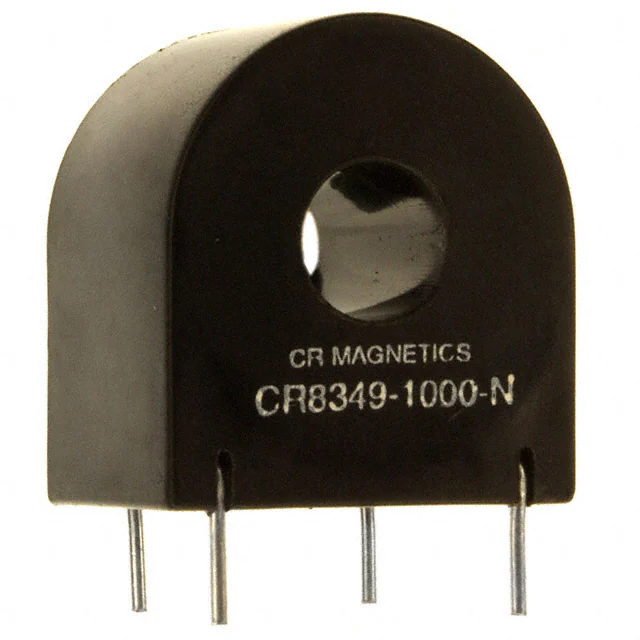

CR8349-1000-NCURR SENSE XFMR 50A T/H |
570 |
|
برگه مشخصات |
CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 50 A | - | - | - | 1000:1 | 32Ohm | - | Through Hole | 1.024" L x 0.670" W (26.00mm x 17.00mm) | 1.102" (28.00mm) | PC Pin |
|
CR2550-RCURR SENSE XFMR IN-LINE |
186 |
|
برگه مشخصات |
CR2550 | Bulk | Active | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | 1.094" L x 0.866" W (27.80mm x 22.00mm) | - | - |
|

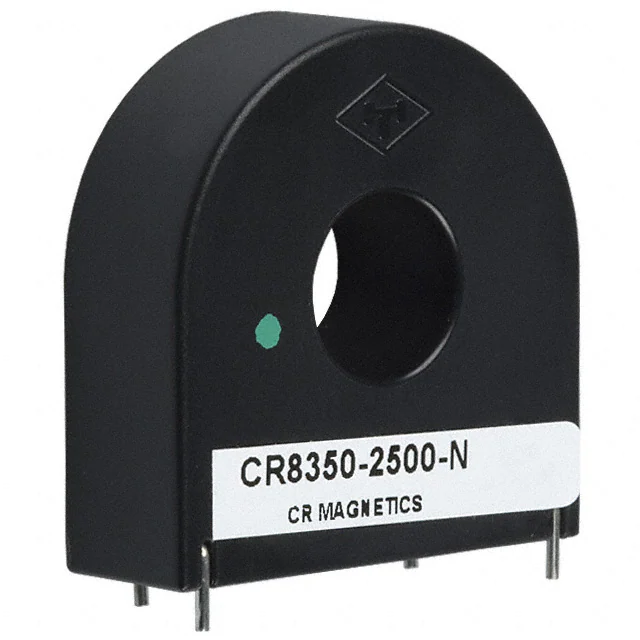

CR8350-2500-NCURR SENSE XFMR 100A T/H |
2,694 |
|
برگه مشخصات |
CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 100 A | - | - | - | 2500:1 | 57Ohm | - | Through Hole | 1.476" L x 0.551" W (37.50mm x 14.00mm) | 1.535" (39.00mm) | PC Pin |
|

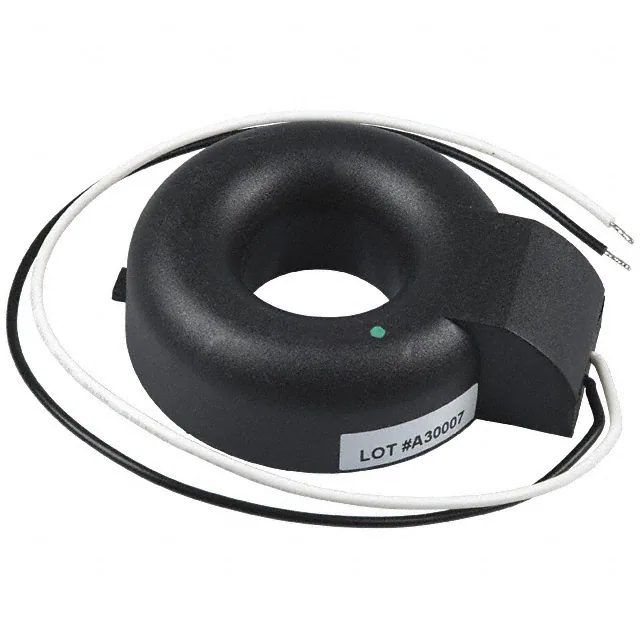

CR8459-2000-NCURR SENSE XFMR 200A IN-LINE |
852 |
|
برگه مشخصات |
CR8400 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 200 A | - | - | - | 2000:1 | 74Ohm | - | Free Hanging (In-Line) | 2.362" L x 1.890" W (60.00mm x 48.00mm) | 0.689" (17.50mm) | Wire Leads |
|
TT 100-SDCURR SENSE XFMR |
243 |
|
برگه مشخصات |
TT | Bulk | Not For New Designs | 50/60Hz | Non-Invasive (Split Core) | - | - | - | - | - | - | - | - | 1.574" L x 1.122" W (40.50mm x 28.50mm) | 2.047" (52.00mm) | PC Pin |
|
56200CCURR SENSE XFMR 10A T/H |
1,604 |
|
برگه مشخصات |
5600 | Tube | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 10 A | 72 mH | - | - | 200:1 | 1.87mOhm Primary, 2.81mOhm Secondary | - | Through Hole | 0.661" L x 0.350" W (16.79mm x 8.89mm) | 0.795" (20.19mm) | PC Pin |
|
|
56050CCURR SENSE XFMR 10A T/H |
363 |
|
برگه مشخصات |
5600 | Tube | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 10 A | - | - | - | 50:1 | - | - | Through Hole | 0.661" L x 0.350" W (16.79mm x 8.89mm) | 0.795" (20.16mm) | PC Pin |
|
PM8208NLCURR SENSE XFMR 1:100 10A SMD |
1,990 |
|
برگه مشخصات |
PM820X | Tray | Active | 50kHz ~ 1MHz | Invasive | 10 A | 2 mH | - | 1:100 | - | 6mOhm Primary, 5.5Ohm Secondary Max | AEC-Q200 | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
53050CCURR SENSE XFMR 1:50 10A SMD |
1,748 |
|
برگه مشخصات |
5300 | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 500 µH | - | 1:50 | - | 7mOhm Primary, 1.75Ohm Secondary | - | Surface Mount | 0.283" L x 0.327" W (7.20mm x 8.30mm) | 0.213" (5.40mm) | Gull Wing |
|
|
53200CCURR SENSE XFMR 1:200 10A SMD |
1,145 |
|
برگه مشخصات |
5300 | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 8 mH | - | 1:200 | - | 7mOhm Primary, 34Ohm Secondary | - | Surface Mount | 0.283" L x 0.327" W (7.20mm x 8.30mm) | 0.213" (5.40mm) | Gull Wing |
|
PA1005.020QNLTCURR SENSE XFMR 1:20 20A SMD |
3,009 |
|
برگه مشخصات |
PA1005QNL | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 80 µH | - | 1:20 | - | 0.75mOhm Primary, 550mOhm Secondary Max | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
749251100CURR SENSE XFMR 1:100 10A SMD |
508 |
|
برگه مشخصات |
WE-CST | Tape & Reel (TR) | Active | - | Invasive | - | 2 mH | 50VµS | 1:100 | - | 6mOhm Primary, 5.5Ohm Secondary | - | Surface Mount | 0.303" L x 0.272" W (7.70mm x 6.90mm) | 0.210" (5.33mm) | Gull Wing |
|
|
PA1005.100QNLCURR SENSE XFMR 1:100 20A SMD |
1,985 |
|
برگه مشخصات |
- | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 2 mH | - | 1:100 | - | 0.75mOhm Primary, 5.5Ohm Secondary | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
PA1005.050NLTCURR SENSE XFMR 1:50 20A SMD |
18,974 |
|
برگه مشخصات |
PA1005.XXXNL | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 500 µH | - | 1:50 | - | 0.75mOhm Primary, 1.5Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
PA1005.100NLCURR SENSE XFMR 1:100 20A SMD |
941 |
|
برگه مشخصات |
- | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 2 mH | - | 1:100 | - | 0.75mOhm Primary, 5.5Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
